Technical Specification:
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Sensors: | Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p , 960 x 576 – 960H , PAL |
| Lens: | 3.6 mm |
| Viewing angle: | 86 ° (manufacturer's data) 83 ° (our tests) |
| Infrared illumination detection area: | 80 m |
| IR illuminator power adjustment: | Automatic |
| Video output: | AHD / HD-CVI / HD-TVI / PAL – 1 Vpp / 75 Ω |
| Audio: | Built-in microphone – Audio playback via coaxial cable – HD-CVI only |
| Signal to noise ratio (S/N): | > 65 dB |
| OSD screen menu: | – |
| Selected features: | WDR – 130 dB – Wide dynamic range of lighting 3D-DNR – Digital noise reduction BLC/HLC – Background / high light compensation ICR – Infrared mechanical filter AGC – Automatic image gain adjustment Automatic white balance Privacy zones – max. 8 Mirror – mirror image Sharpness – Sharpness of image contours |
| Source of energy supply: | 12V DC / 640mA |
| Power consumption: | ≤ 7.7W |
| Housing: | Compact, Aluminum |
| Colour: | White |
| Protection class: | IP67 |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.73 kg |

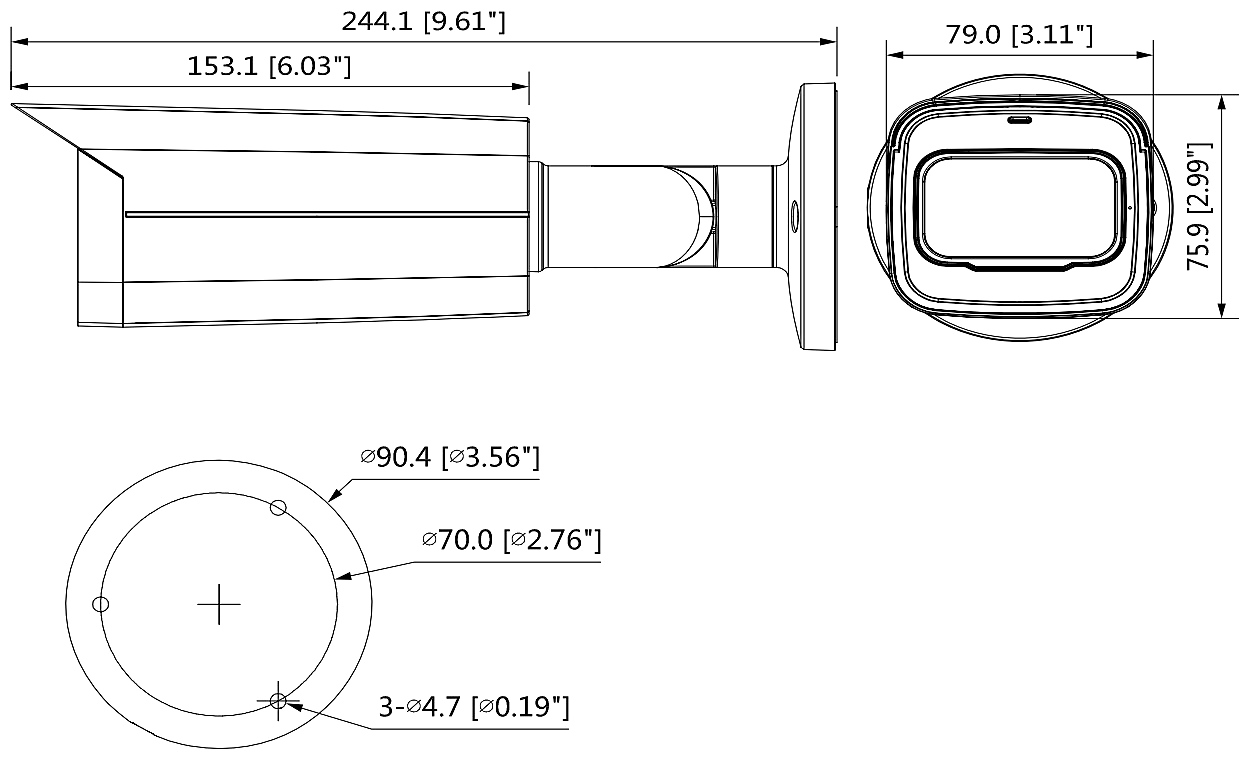

| Size: | 245 x 90 x 90 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
