Technical Specification:
| Standard: | AHD, HD-CVI, HD-TVI, CVBS |
| Sensors: | 1/2.8” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 720 – 720p 960 x 576 – 960H |
| Lens: | 2.8 mm (pinhole), F2.4 |
| Viewing angle: | 103 ° |
| Lighting: | 0.004 Lux (krāsa) , 0.0004 Lux (B/W) |
| Video output: | 1 Vpp / 75 Ω – AHD / HD-CVI / HD-TVI / CVBS |
| Audio: | Ieeja Audio – RCA (CINCH) Audio izeja – Ligzda BNC – tikai HD-CVI |
| Selected features: | WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija F-DNR (Defog) – Ar atmosfēras nokrišņiem saistīto trokšņu redukcija Dienas/nakts režīms ICR – infrasarkano staru mehāniskais filtrs D-ZOOM – Digitālais zoom – 4x AGC – Automātiska attēla pastiprinājuma regulēšana BLC – atpakaļgaismas kompensācija HLC – Intensīvas gaismas kompensācija (punktveida) Automātisks baltā balanss Mirror – spoguļattēls Privātuma zona Vada garums : 2.8 m |
| OSD screen menu: | OSD menu available using DAHUA video recorders |
| Housing: | Mini, Alumīnijs |
| Colour: | Black |
| Application: | The camcorder is suitable for outdoor use, taking into account the possibility of water vapor condensation. |
| Source of energy supply: | 12 V DC / 180 mA |
| Power consumption: | ≤ 2.11 W |
| Operating temperature: | -30°C … 60°C |
| Allowable relative humidity: | ≤ 95% |
| Weight: | 0.04 kg |

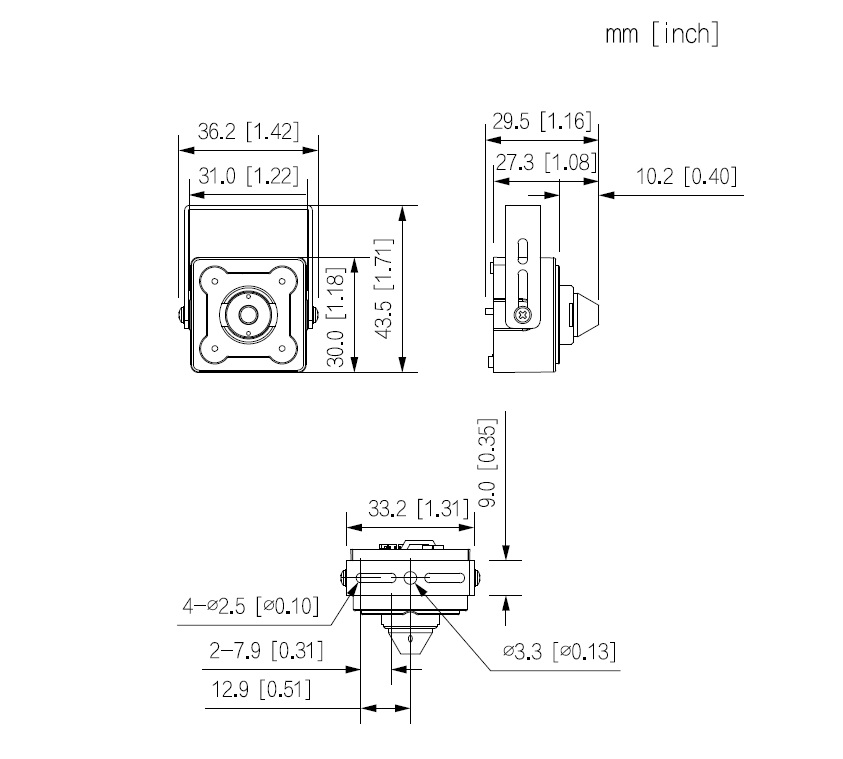

| Size: | 44 x 36 x 30 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
