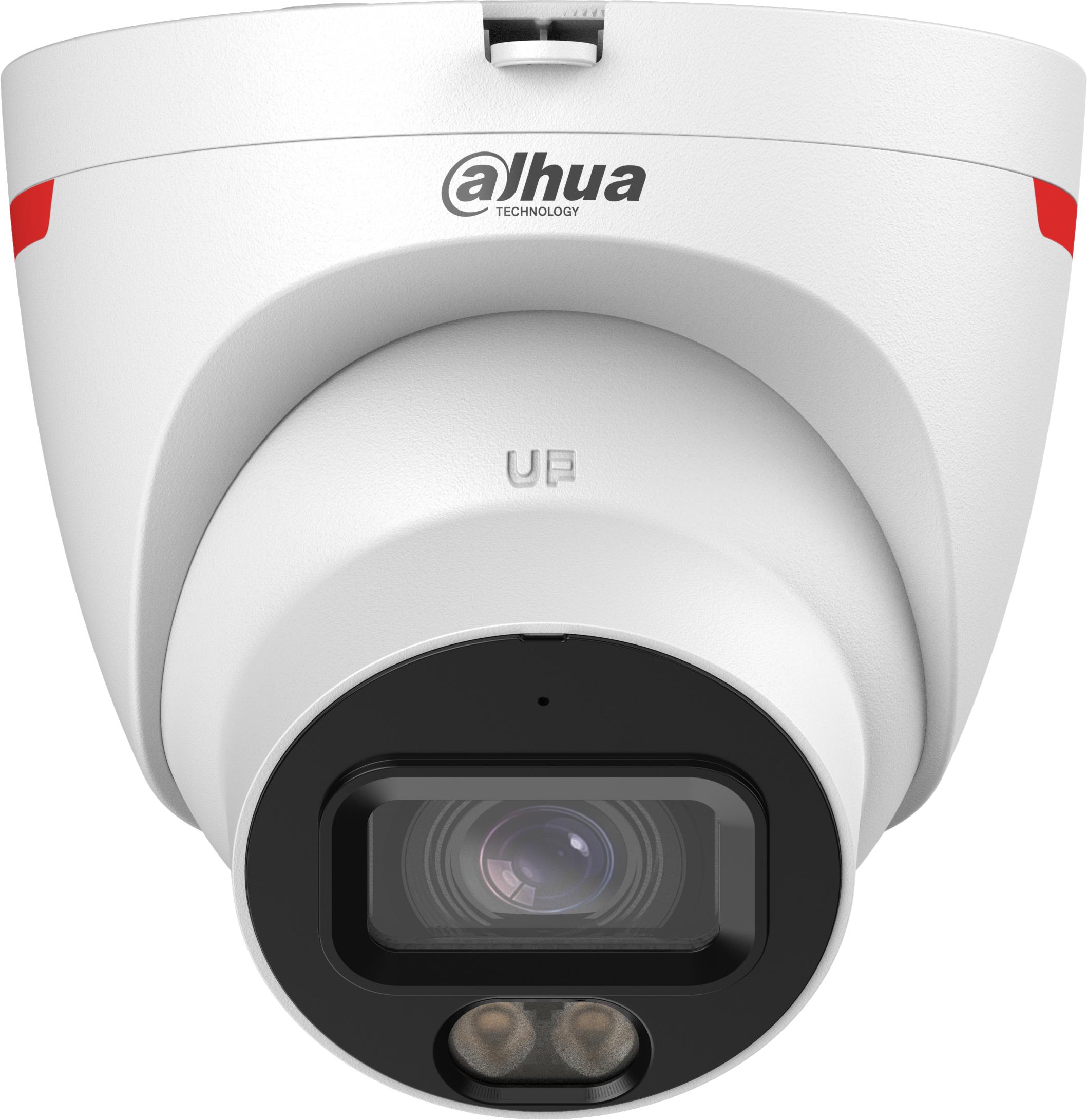

Dahua IP camera IPC-HFW2449TL-S-0280B-PRO
.
Main features
- 4-MP 1/1.8″ CMOS image sensor, low-light and high-resolution image.
- Maximum resolution 4 MP (2688 × 1520) @20 fps, supports 2560 × 1440 (2560 × 1440) @25/30 fps.
- H.265 codec, high compression, ultra-low bit rate.
- Built-in warm lighting, maximum lighting distance: 30 m.
- ROI, SMART H.264+/H.265+, flexible encoding, adapted to different bandwidths and storage environments.
- Pivot mode, WDR, 3D NR, HLC, BLC, digital watermark, adapted to different surveillance scenes.
- Intelligent monitoring: intrusion, line crossing (both functions support classification and accurate detection of vehicles and people)
- Anomaly Detection: Motion detection, video tampering, audio detection, SD card missing, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.
- Supports up to 256 GB Micro SD card; built-in microphone.
- Continuous power supply 12 V DC/PoE, easy installation.
- IP67 protection.
- SMD Plus.
Dahua WizColor Technology
Dahua WizColor technology seamlessly combines with the camera's powerful AI-ISP, large pixel sensor, and wide aperture. This unique combination allows the cameras to easily capture high-quality images with vivid colors in night scenarios, ensuring that fine details are preserved and motion blur is minimized.
- Guaranteed night protection: Thanks to advanced WizColor technology, the camera captures detailed color images even in difficult lighting conditions, significantly improving event identification.
- Clear detail: The large sensor and aperture ensure that even in low light, the camera captures clear and detailed images.
- Motion blur reduction: Advanced artificial intelligence reduces motion blur to track moving objects more accurately.
- Faster identification: Dahua cameras provide bright colors in the dark, making it easier to identify people and vehicles.
Dahua mobile app: DMSS
DMSS is a mobile surveillance app with features such as remote monitoring, video playback, push notifications, device initialization and remote configuration. Devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers can be added. Once you log in to your account, you can use cloud services such as cloud updates, etc. The app supports iOS 9.0 and Android 5.0 or above, and can be used via 3G/4G/Wi-Fi.
DSS EXPRESS / Smart PSS lite software
- The free DSS EXPRESS / Smart PSS lite software for your PC allows you to manage the entire system.
- What's more, the DMSS mobile application for your phone is available for most popular platforms (Android, iOS, Windows Phone) and allows you to remotely view the system from anywhere in the world.
- Another important feature is motion detection, thanks to which you will receive information via email about a detected event.
- In addition, it has an intuitive interface and a Polish menu, which makes it easy to use.
Technical Specification:
| Parameter | Technical data | ||
| Exception sensor | 1/2.9″ CMOS | ||
| Maximum resolution | 2688 (H) × 1520 (V) | ROM memory | 128MB |
| RAM | 128MB | .Scanning system | Progressive |
| Electric shutter speed. | Auto/Manual 1/3 s-1/100,000 s | ||
| Minimum lighting | 0.005 lux@F1.0 | ||
| Signal-to-noise ratio | .>56 dB | ||
| Illumination range | Do 30 m (98.43 ft) (warm light) | ||
| Lighting control | Automatic; Manual | ||
| Number of illustrators | 2 (warm light) | ||
| Lens type | Focal length | ||
| M12 | Focal length | 2.8mm; 3.6mm | |
| Maximum opening | F1.0 | ||
| Viewing angle | 2.8mm: H: 101°; W: 53°; D: 120° | ||
| 3.6mm: 3.6mm: H: 82°; W: 43°; D: 94° | |||
| Aperture control | Fixed | ||
| Minimum focal length | 2.8mm: 1.5m (4.92ft) | 3.6 mm: 2.2 m (7.22 ft) | |
| DORI distances (2.8 mm) | Detection: 66.0 m (216.54 ft), Observation: 26.4 m (86.61 ft), Recognition: 13.2 m (43.31 ft), Identification: 6.6 m (21.65 ft) | ||
| DORI distances (3.6 mm) | Detection: 78.0 m (255.91 ft), Observation: 31.2 m (102.36 ft), Recognition: 15.6 m (51.18 ft), Identification: 7.8 m (25. | ||
| IVS (perimeter protection) | Impact detection, line crossing (vehicle and person classification) | ||
| Precise search from NVR, event acquisition, video merging | |||
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (only for additional stream) | ||
| Intelligent Code | Invented H.265+; Invented H.264+ | Number of streams | 2 streams | Results | 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF |
| Bitrate control | CBR/VBR | ||
| Video bitrate | H.264: 32 kbps-6144 kbps; H.265: 12kbps-6144kbps | ||
| WDR | 120dB | ||
| Color/B/W | |||
| BLC, HLC | Is | Is | Corresponds | Noise reduction | 3D NR |
| .Motion detection | Off/On (4 zones) | Region of Interest (RoI) | .Yes (4 zones) |
| Intelligent lighting | Yes | ||
| .tr> | Image rotation | 0°/90°/180°/270° | |
| Scissors | .td>Is being | ||
| Privacy masking | 4 zones | ||
| Built-in microphone | Is | ||
| Audio compression | G.711a; G.711Mu; G.726; PCM | Alarm events | No SD card, SD card full, SD card error, No network, IP conflict, Illegal access, Motion detection, Video tampering, Lines cut, Intrusion, Audio detection, Security exception | /td> | Network port | RJ-45 (10/100 Base-T) |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P | ./td> | Interoperability | ONVIF (profiles S, G, T); CGI | Charging | 12VDC/PoE (802.3af) |
| Floor consumption | Bases: 2.7 W (12 VDC); 3.5 W (PoE); maximum: 6.8 W (12 VDC); 8.2W (PoE) | ||
| Operating temperature | -40°C to +60°C | ||
| Operating humidity | |||
| Insurance category | IP67 | ||
| Body, material | Core: Metal; cover: plastic | ||

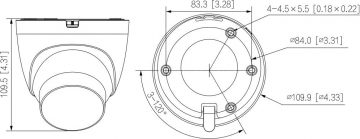

| Product dimensions | F109.9mm × 100.9mm | ||
| Net weight | 0.39 kg | ||
| Certification | CE-LVD: EN62368-1; CE-EMC: EMC Directive 2014/30/EU |
Additional information
| Svars | 1,0000 kg |
|---|---|
| Manufacturer | Dahua |
| Technology | Analog (HD, HD-CVI, HD-TVI) |
| Resolution | 4MP |
| Camera type | Eyeball/Turret |
| PoE | PoE |
| Connectivity technology | |
| Lens type | |
| Lens size (mm) | |
| Lighting distance (m) | |
| Alarm input/output | 1/1 |
| Memory card support | PoE enabled |
| Camera colour | White |
