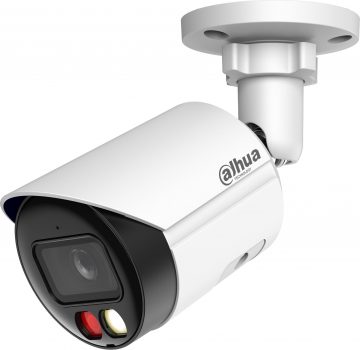

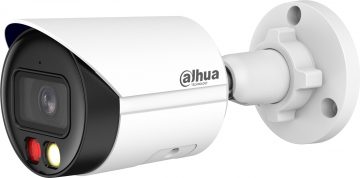

Dahua IP kamera IPC-HFW2649S-S-IL-0360B

Preces kods: 53308

EAN: 6939554905278

Piegādes laiks: 11-13 Martā

Estimated Delivery Dates

137,95

Availability: 0

Dahua IP kamera IPC-HFW2649S-S-IL-0360B

Main functions

Key elements

  • 6MP WizSense Intelligent Network Camera with dual illumination and fixed focal length
  • 1/2.7″ CMOS image sensor, low brightness and high image resolution
  • Maximum resolution: 6 MP (3288 × 1850) at 20 fps, supports 2688 × 1520 (2688 × 1520) resolution at 25/30 fps
  • H.265 codec, high compression ratio, ultra-low bit rate
  • Built-in warm light and IR LEDs, maximum IR range: 30 m, maximum warm light range: 30 m, maximum warm light range: 30 m
  • ROI, SMART H.264+/H.265+, flexible encoding, suitable for different environments with bandwidth and storage
  • Pivot mode, WDR, 3D NR, HLC, BLC, Digital Watermark, suitable for various surveillance scenarios
  • Intelligent Monitoring: break-in, intersection line (both functions support classification and accurate detection of vehicles and people)
  • Anomaly detection: motion detection, video tampering, audio detection, SD card missing, SD card full, SD card error, network disconnection, IP conflict, unauthorised access, voltage detection
  • Micro SD card support up to 256 GB; built-in microphone
  • Supports 12 V DC/PoE, easy installation
  • Protected by IP67
  • SMD Plus

Dahua Smart Dual Illuminators technology

Dahua Smart Dual Illuminators technology

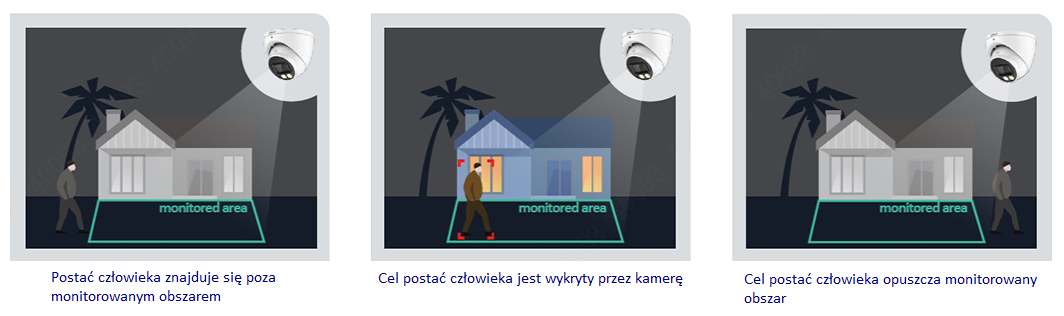

Dahua Smart Dual Illuminators technology uses an intelligent algorithm to pinpoint targets. The infrared illuminator is usually switched on at night. When the camera detects a target, the warm illuminator switches on and the camera records full colour video and key event information. When the target is outside the surveillance area, the warm light switches off and the IR illuminator switches back on, helping to reduce 'light pollution' in the area.

Key features

.

Intelligent dual illuminators: flexible switching between full colour and infrared modes.

Intelligent illumination (default): switch between IR illuminator and warm light when a target is detected.

Main functions

.

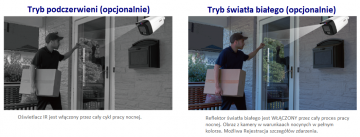

– IR mode (optional): Only the infrared emitter is turned on. Suitable for scenes where additional white light is not required, significantly reducing “light pollution”.

- White light mode (optional): only white light is switched on. Suitable for scenes requiring colour video

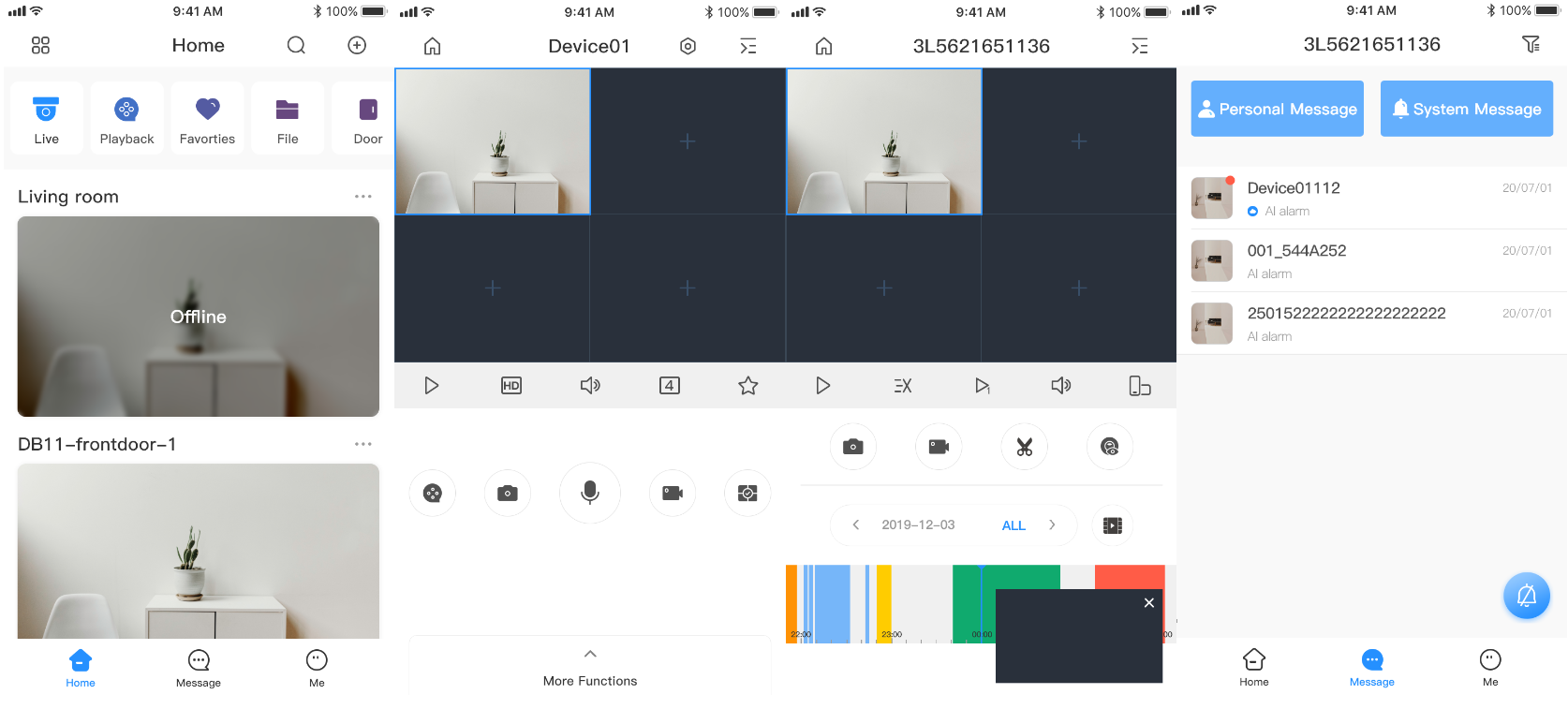

Dahua mobile app: DMSS

DMSS is a mobile surveillance app with functions such as remote monitoring, video playback, push notifications, device initialization and remote configuration. Devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers can be added. Once you log in to your account, you can use cloud services such as cloud updates, etc. The app supports iOS 9.0 and Android 5.0 or above, and can be used via 3G/4G/Wi-Fi.

Dahua mobile app: DMSS

DSS EXPRESS software

DSS EXPRESS software

  • The free DSS EXPRESS software for your PC allows you to manage the whole system.
  • The software is equipped with a number of innovative features necessary for video surveillance.
  • The software is designed to run Dahua-branded devices such as DVRs, cameras, servers, decoders, analogue, IP and CVI technology on a PC.
  • Motion detection is also an important feature, so you will be informed by email when an event is detected.
  • But it has an intuitive interface and a Polish language menu to make it easier to use.

Dahua Push Notifications

.

Send notifications of alarm events from Dahua IP network devices. Push notifications are a very useful tool as they allow users to react quickly to important events without having to constantly monitor the application. They are particularly useful in monitoring applications as they allow users to react quickly when an important event occurs.

Dahua Push Notifications

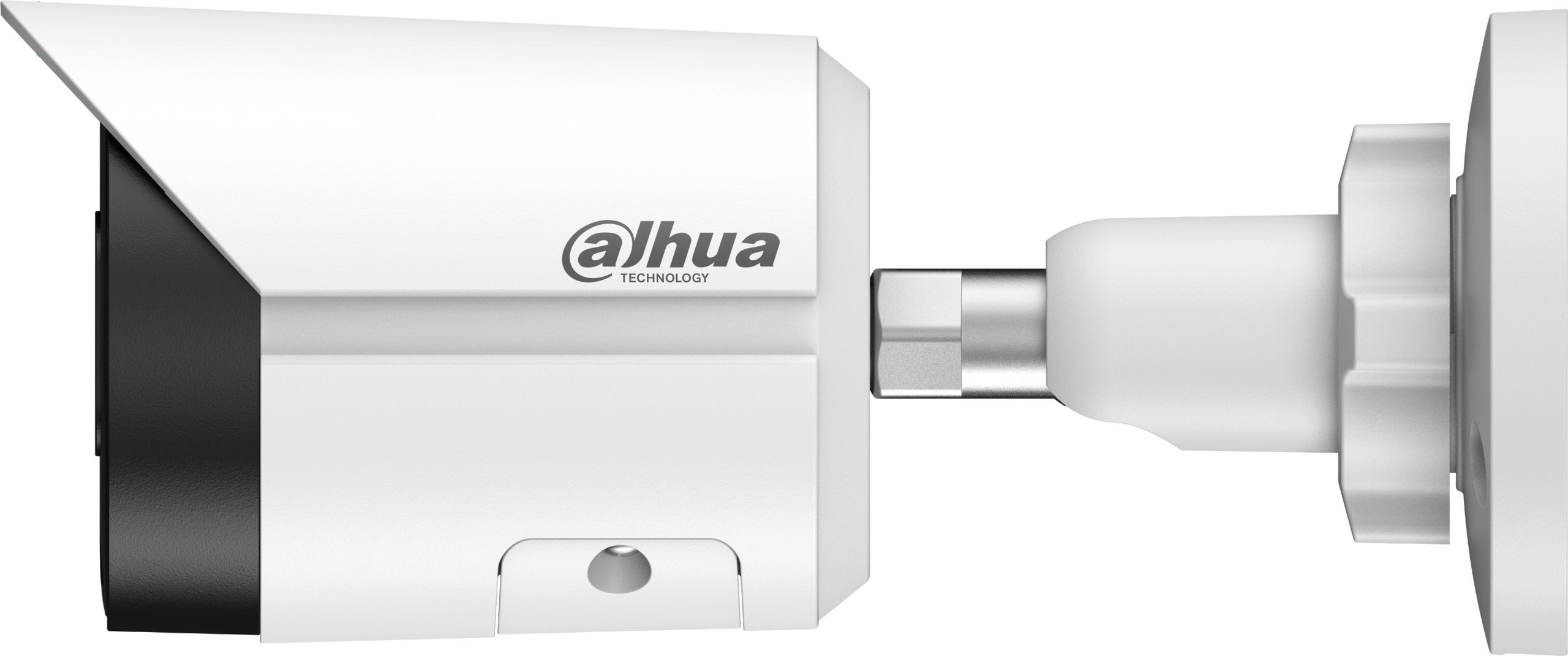

.Dimensions and installation

Dimensions and method of assembly
Dimensions and method of assembly

Additional elements

.

Additional elements

.

Specification

.

.

.

.tr>

Intelligent lighting

Is

.

.td>Darbības mitrums.td>Saglabāšanas temperatūra

.

.

Cultivator

Cultivator

Cultivatorstr>

.td>Ilustratoru skaits
Exception settings Brightness; Contrast; Sharpness; Saturation; Gamma
OSD overlay Laiks; kanāls; vieta; pielāgots
Sound mode Ranulārā ierakstīšana; kustības noteikšanas ierakstīšana; ierakstīšana pēc grafika; trauksmes ierakstīšana; Ierakstīšanas prioritāte: manuāla>brīdinājums>kustības noteikšana>harmonogramma
Micro SD card (max.) 256GB
Noteiktie iestatījumi Viena klikšķa atjaunošana
Nolikto iestatījumu atjaunošana
.User management Dzīvotāju skaits līdz 20 lietotājiem
Security Lietotāja vārds un parole; MAC adrese; HTTPS; IEEE802.1x; tīkla piekļuves kontrole
Zema spilgtuma pakāpe Starlight
.Izlūkošana (perimetra aizsardzība) Intrusion, līnijas šķērsošana (abas funkcijas atbalsta transportlīdzekļu un personu klasifikāciju un precīzu noteikšanu)

.
SMD SMD Plus
Intelligent search .Sadarbojas ar inteliģento NVR, lai meklētu un apvienotu notikumus video notikumos
Video compression H.265; H.264; H.264H; H.264H; H.264B; MJPEG (tikai papildu plūsma)
Intelligent Code Izpratīgs H.265+; Smart H.264+
Frame rate Galvējā straume: 3288 × 1850@(1-20 kadri sekundē)/2688 × 1520@(1-25/30 kadri sekundē), papildu plūsma: 704 × 576@(1-25 kadri sekundē)/704 × 480@(1-30 kadri sekundē)
Live broadcast capability 2 streams
Live broadcast capability.tr>

Results 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Access bandwidth control VBR; CBR
Video bitrate H.264: 32 kbps-8192 kbps; H.265: 12 kbps-8192 kbps
Day/night mode Automātiskais (ICR)/krāsu/B/W
BLC Is
HLC Is
WDR 120dB
Balances whiteness Automātiskais; dabiskais; ielu apgaismojums; āra apgaismojums; manuālais; pielāgots reģionālais
Gain control Automātiska/rokas režīmā
Noise reduction 3D NR
Motion detection Off/On (4 areas, rectangular)
No noklusējuma bitu pārraides ātrums 4096 kbps (3288 × 1850)
Range of Interest (RoI) Tiek (4 apgabali)
Is
Divkārša viedā gaisma Is
Exceptional rotation 0°/90°/180°/270° (Atbalsta 90°/270° pie izšķirtspējas 2688 × 1520 un mazāk)
Mirgošana Corresponds
Privacy masking 4 areas
Language Angļu; tradicionālā ķīniešu; itāļu; spāņu; japāņu; krievu; franču; vācu; portugāļu; turku; poļu; rumāņu; ungāru; korejiešu; čehu
Alarm events Nē SD kartes; pilna SD karte; SD kartes kļūda; nav tīkla savienojuma; IP konflikts; nelikumīga piekļuve; kustības atklāšana; video viltojumi; līnijas šķērsošana; ielaušanās; skaņas atklāšana; sprieguma atklāšana; SMD; drošības izņēmums
Network port RJ-45 (10/100 Base-T)
.SDK un API Is
Network protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNA; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour
Interoperability
.

ONVIF (profils S & profils G & profils T); CGI
Hosts 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (max. 256 GB); NAS
Grinder IE; Chrome; Firefox
.Pārvaldības programmatūra Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile application
Mobile application
Mobilā lietojumprogramma/td>

iOS; Android
Cybersecurity Video šifrēšana; Firmware šifrēšana; Konfigurācijas šifrēšana; Digest; WSSE; Konta bloķēšana; Drošības žurnāli; IP/MAC filtrēšana; Sertifikātu ģenerēšana un importēšana X.509; syslog; HTTPS; 802.1x; Uzticama ielāde; Uzticama izpilde; Uzticama atjaunināšana
Operating temperature -40°C to +60°C (-40°F to +140°F)
≤95 % (RH), non-condensing
-40°C to +60°C (-40°F to +140°F)
Storage humidity ≤95 % (relatīvais mitrums), bez kondensācijas .
Insurance IP67
Lens type Fokusa garums
.Objektīva stiprinājums M12
Focal length 3.6 mm
Maximum opening F1.6
Viewing angle H: 91°; V: 46°; D: 110°
Aperture control Pastāvīga
Minimum focusing distance 1,7 m (5.58 pēdas)
DORI distance D: 85,4 m; O: 34,2 m; R: 17,1 m; I: 8.5 m
Camera appearance Kulla
Image>

Image sensor 1/2.7″ CMOS
Maximum resolution 3288 (H) × 1850 (V)
ROM 128MB
RAM 256MB
Scanning system Progressive
Electronic shutter speed
Electronic shutter speed
Auto/Manual 1/3 s-1/100,000 s
Minimum lighting 0.007 lux@F1.6 (color, 30 IRE) 0.0007 lux@F1.6 (black and white, 30 IRE) 0 lux (illuminator on)
Signal-to-noise ratio >56 dB
Illustrator distance līdz 30 m (98.43 pēdas) (IR) Līdz 30 m (98.43 pēdas (siltā gaisma)
Iluminatora ieslēgšanas vadība Automatic; manual
1 (IR LED); 1 (warm light)

Additional information

Svars 0,6200 kg
Manufacturer

Dahua

Technology

Analog (HD, HD-CVI, HD-TVI)

Resolution

6MP

Camera type

Bullet

PoE

PoE

Connectivity technology

Lens type

Lens size (mm)

Lighting distance (m)

Alarm input/output

1 / 2

Memory card support

PoE enabled

Camera colour

White, Black
