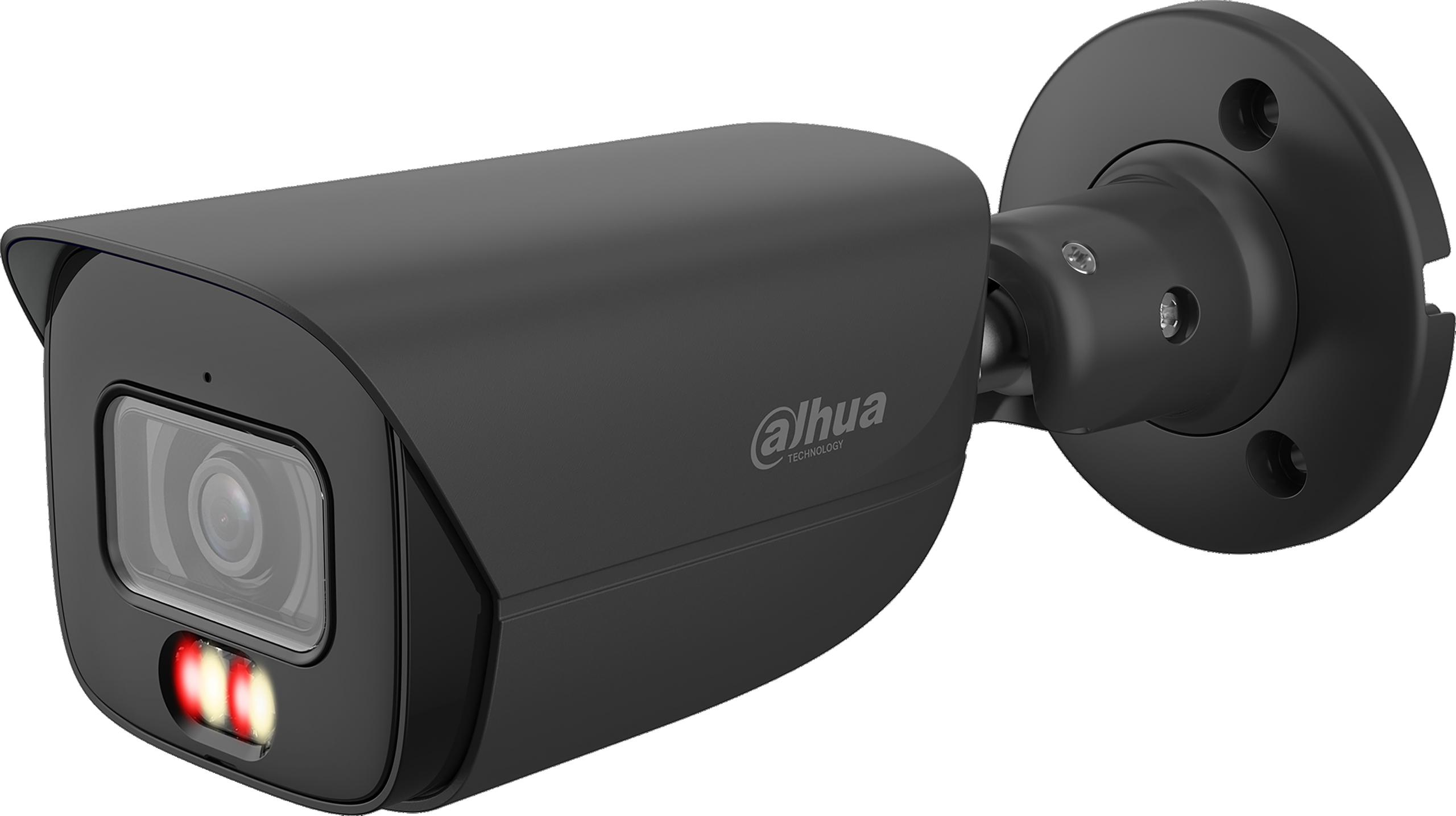

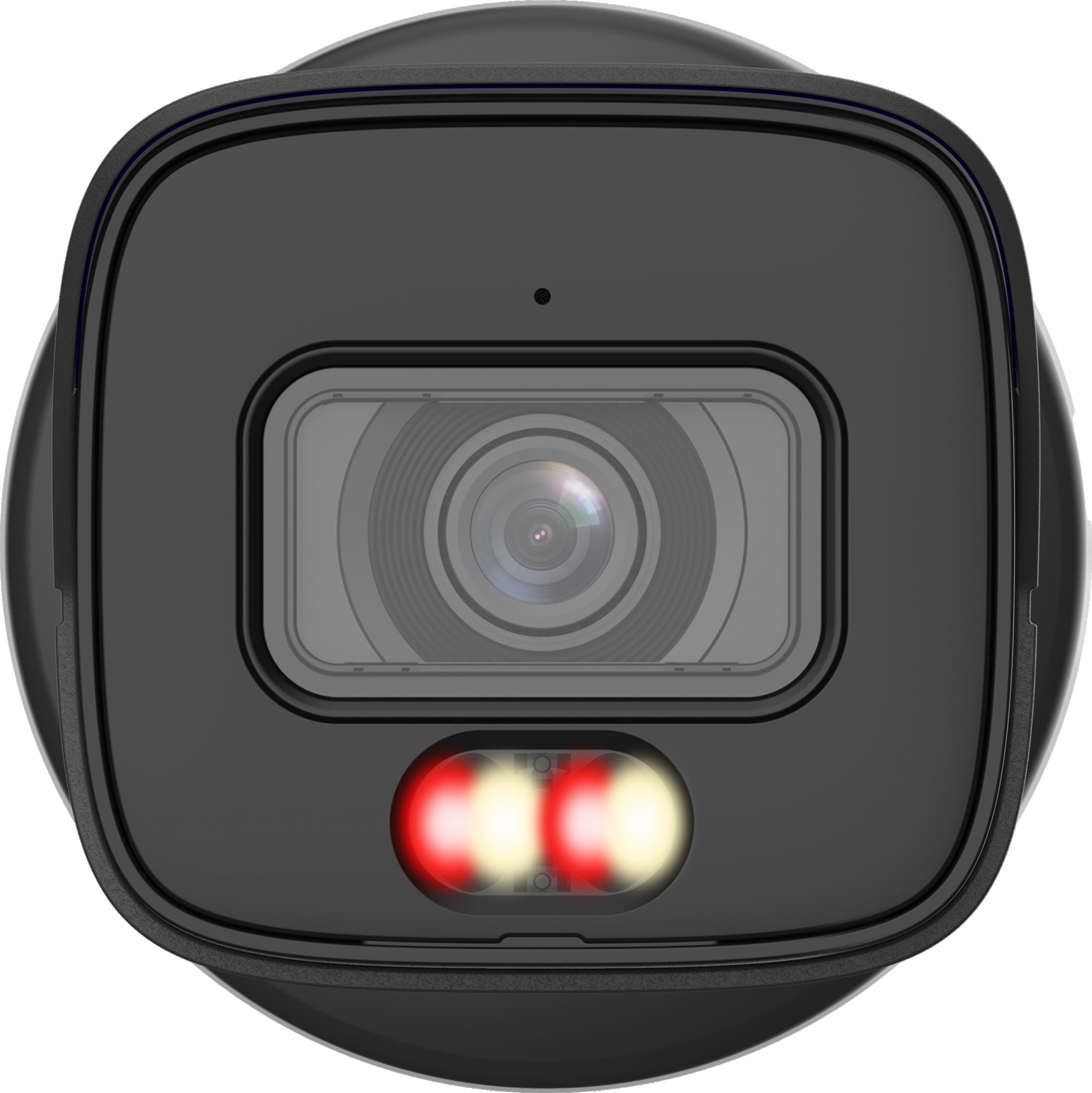

DAHUA IP CAMERA IPC-HFW3849E-AS-IL-0280B-Black

Product code: 56879

EAN: 6939554931932

Piegādes laiks: 15-17 Decembrī

Delivery time on the specified dates

188,93

Availability: 50

DAHUA IPC-HFW3849E-AS-IL-0280B-Black IP CAMERA

Key features:

Key features:

  • 8 MP 1/2.7″ CMOS sensor – high resolution and excellent image quality even in low light
  • Resolution up to 8 MP (3840 × 2160) at 25/30 frames per second
  • H.265 compression – high efficiency and very low bit rate, ideal for saving disk space
  • Built-in IR illumination and warm light – range up to 30 meters
  • Flexible coding: ROI, Smart H.264+/H.265+, AI H.264/H.265 – adaptable to different bandwidths and recording conditions
  • Advanced image features:

Rotation mode,

Wide Dynamic Range (WDR),

3D noise reduction,

HLC light compensation and BLC,

Watermark – ideal for various surveillance scenarios

  • Intelligent monitoring functions:

Intrusion and line crossing detection with human and vehicle recognition

  • Anomaly detection:

Motion, image tampering, scene change, sound detection

No SD card, error or card is full

Network connection loss, IP conflict, unauthorized access, voltage detection

  • MicroSD card support up to 512 GB
  • Built-in microphone
  • Power supply: 12V DC or PoE
  • Housing with IP67 sealing class – resistance to difficult weather conditions
  • SMD 4.0 – intelligent motion detection with false alarm reduction (e.g. from animals)
  • AI SSA — automatic image adjustment to scene conditions thanks to artificial intelligence
  • Ability to set SMD detection zone in warm light area — with alarm activation function

WizSense, which was introduced to the market by Dahua Technology, is a series of a wide range of products and solutions based on artificial intelligence (AI), using an independent AI chip and deep learning algorithms. This technology allows for accurate recognition of people and vehicles in an image, allowing users to focus on real goals.

SMD 4.0

Thanks to advanced artificial intelligence capabilities, SMD 4.0 (Smart Motion Detection) feature filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, this technology is optimized to ignore both small and large animals, eliminating false alarms.

Quick selection

Technology Quick selection allows you to quickly recognize interesting targets - people or vehicles - which significantly improves the search for events recorded by SMD. Thanks to the perfect integration of the smart camera and recorder functions, this function allows you to search for targets (people/vehicles) based on an artificial intelligence algorithm that analyzes and compares, among other things: the color of clothing or vehicles.

AI SSA (Scene Self-Adaptation)

AI SSA The technology, based on a deep learning algorithm, can intelligently recognize different scenes and automatically adjust image parameters to obtain their optimal rendering.

Artificial Intelligence Coding (for IP solutions)

As monitoring resolution increases, maintaining high image quality while reducing data storage costs has become a key challenge. WizSense AI Coding The technology, based on constant bit rate (CBR), dynamically allocates the bit rate, ensuring a clear target image while saving more than 25 % of bandwidth compared to the H.265 codec.

Technical specifications

RJ-45 (10/100 Base-T)

Smart PSS Lite, DSS, DMSS, DoLynk Care

610g / 770g

Parameter Value
Image sensor 1/2.7 inch CMOS
Maximum resolution 3840 (H) × 2160 (V)
ROM memory 256MB
RAM memory 1GB
Scanning system Progressive
Shutter speed Auto/Manual 1/3 s – 1/100,000 s
Minimum lighting 0.007 lux (color), 0.0007 lux (monochrome), 0 lux (with illuminator)
Signal to noise ratio >56 dB
Lighting range Up to 30 m (IR and warm light)
Lighting control Automatic / Manual
Number of illuminators 2 (multi-core – IR + warm light)
Angle adjustment Pan: 0-360°, Tilt: 0-90°, Rotation: 0-360°
Lens type Fixed focus
Lens mount M12
Focal length 2.8mm / 3.6mm
Maximum aperture F1.4
Viewing angle 2.8 mm: height: 110°, vertical: 58°, depth: 132°; 3.6 mm: height: 86°, vertical: 49°, depth: 100°
Aperture control Fixed
Minimum focal length 2.8mm: 1.4m; 3.6mm: 1.9m
DORI 2.8mm: 84.8/33.9/17.0/8.5m; 3.6mm: 98.7/39.5/19.7/9.9m
Perimeter protection (IVS) Intrusion, crossing the line (with classification of people and vehicles)
SMD SMD 4.0
EyePick AI – Target search based on appearance features
AI SSA AI – adjusting image parameters to the scene
Intelligent search Integration with smart recorder NVR
Video compression H.265, H.264, MJPEG (substream)
Smart Code Smart H.265+ / H.264+
Artificial Intelligence Coding AI H.265 / AI H.264
Number of streams 3 streams
Resolutions 8M / 6M / 5M / 4M / 3M / 1080p / 720p / D1 / VGA / CIF
Bit rate control VBR / CBR / ABR
Video bitrate H.264/H.265: 3-16384kbps
Day/night mode Automatic (ICR) / Color / Black and White
WDR / BLC / HLC 120 dB / Yes / Yes
White balance Auto, Natural, Lamp, Outdoor, Manual, Custom
Reinforcement Automatic / Manual
Noise reduction 3D NR
Motion detection ON/OFF (4 zones, rectangular)
Region of Interest (ROI) Yes (4 zones)
Smart lighting Yes (smart lighting + smart dual lighting)
Fog prevention Yes
Image rotation 0° / 90° / 180° / 270°
Mirror / Masking / LDC Yes / 8 zones / Yes
Built-in microphone Yes
Audio compression PCM, G.711a/u, G.726, G.723
Alarm events None/Error/SD full, tampering, scene change, audio, voltage, intrusion, external alarm, exception
Network port
Network protocols IPv4/6, HTTP, TCP, UDP, RTSP, FTP, SFTP, P2P, etc.
Compatibility ONVIF (profiles S/G/T/M), CGI
Users 20 (total up to 64 Mbps)
Memory FTP, SFTP, microSD (up to 512 GB), NAS
Browser support IE11, Chrome, Firefox
Software
Mobile apps iOS, Android
Cybersecurity Video encryption, firmware, configuration, X.509 certificates, logs, HTTPS, etc.
Certificates CE-LVD:EN62368-1; CE-EMC: Directive 2014/30/EU
Audio input 1 channel (RCA port)
Audio output 1 channel (RCA port)
Alarm input 1 channel: Wet contact, 5 mA, 3-5 VDC
Alarm output 1 channel: Wet contact, 300 mA, 12 VDC
Power source 12VDC / PoE (802.3af)
Backup power supply Continues operation after disconnecting one power source
Energy consumption 3.7 W / 5.4 W (basic), up to 10 W (full features)
Operating/storage temperature –40°C to +60°C
Operating/storage humidity ≤95 % (non-condensing)
Sealing class IP67
Housing material Metal
Dimensions 192.7 x 70.5 x 66.4 mm (W x D x H)
Net/gross weight

Additional information

Weight 1.0000 kg
