DAHUA IP surveillance kit 4 cameras IPC-HFW1239TL1-A-IL 2Mpx
MAIN FUNCTIONS OF THE MONITORING KIT:
- Surveillance system: 4-channel Dahua recorder + 1 TB hard drive + 4 4MPx lamp cameras
- Free application for previewing images on your smartphone
- Software for operating the system on a computer
- 2MPx external cameras with dual night modewith a range of up to 30 m (IR diodes and warm light)
- Thanks to 1 TB disk and complete equipment, the system is ready to work without the need to purchase additional elements.
GREAT SECURITY FOR YOUR HOME OR BUSINESS!
- DAHUA The surveillance kit will be the perfect protection for your home or business.
- Cameras can be installed both inside and outside the building. both inside and outside The cameras, thanks to their high tightness class, are resistant to adverse weather conditions.
- The offered video surveillance kit consists of: 4-channel recorder with 1 TB hard drive, 2 Mpx IP cameras with full set of accessories, which ensures proper system operation.
- There is continuous access to camera images and recordings using an appropriately protected application.
- The kit can be run even without special knowledge!
Dahua push notifications
Push notifications for alarm events from Dahua IP network devices. Push notifications are a very useful tool because they allow users to quickly respond to important events without constantly monitoring the application. They are especially useful in surveillance applications because they allow users to quickly respond to an important event.
Dahua mobile app: DMSS
DMSS is a mobile application for surveillance with functions such as remote monitoring, video playback, push notifications, device initialization and remote configuration. Devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers can be added. After logging in to the account, you can use cloud services such as cloud service upgrade and so on. The app supports iOS 9.0 and Android 5.0 or above, and can be used with 3G/4G/Wi-Fi.
DSS EXPRESS / Smart PSS lite software
- The free DSS EXPRESS / Smart PSS lite software for your computer allows you to manage the entire system.
- Additionally, the DMSS mobile phone app is available for most popular platforms (Android, iOS, Windows Phone) and allows remote viewing from anywhere in the world.
- Another important function is motion detection, thanks to which we will receive information about the detected event via email.
- In addition, it has an intuitive interface and a Polish menu, which makes it easy to use.
Cloud support (P2P)
Dahua devices are equipped with P2P functions. Thanks to this, there is no need to use an external IP address, which is associated with complex configuration. Simply scan the QR code or enter the serial number in the dedicated app to receive remote online viewing via your phone or tablet.
SEE WHAT YOU GET IN OUR KIT:
- The kit is based on high-quality, branded components.
- DAHUA surveillance systems are designed to make their installation as simple and intuitive as possible.
- The instructions included in the kit will guide you step-by-step through the process of installing and configuring the kit.

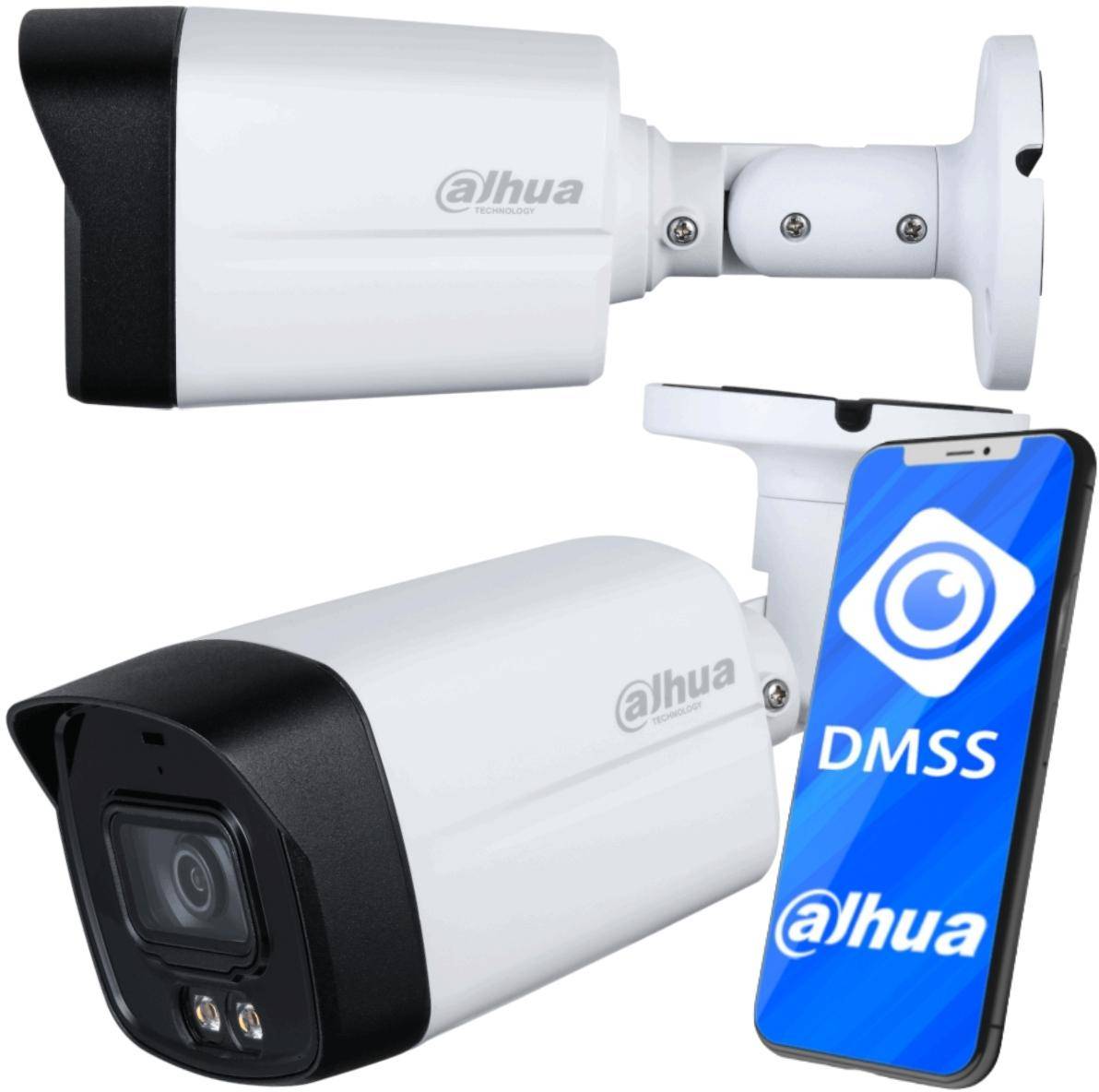

IP camera Dahua IPC-HFW1239TL1-A-IL
- 2MPx IP camera with dual illumination, and also with noise reduction function
- 2 megapixel 1/2.8-inch CMOS image sensor
- Maximum output resolution 1920 × 1080@25/30 fps
- Built-in IR LED and warm light – maximum IR illumination distance is 30 m, warm light distance is 30 m.
- H.265 compression, high compression ratio, very low bandwidth
- DWDR, 3D NR, HLC, BLC ROI, SMART H.264+/H.265+ features
- Video motion and sabotage detection, audio detection, network disconnection, IP conflict and illegal access detection
- Built-in microphone
- 12 VDC/PoE power supply
- Protection class IP67
- Supports people detection
DAHUA NVR2104HS-S3 IP RECORDER
- Recorded until 4 IP for cameras with maximum resolution 12Mpix
- Video compression H.265/H.264, Smart Codec
- Supported camera resolution: 12Mpx, 8Mpx, 6Mpx, 5Mpx, 3Mpx, 1080p, 1.3Mpx, 720P
- Supports intelligent algorithms:
- Perimeter protection with human/vehicle object classification
- SMD Plus
- Supports 1 hard drive with maximum capacity 16TB
- Video outputs: HDMI, VGA
- 1 RJ45 port (10/100M)
- Bit rate 80/60 Mbit
- Additional interfaces: 2xUSB 2.0
- Web Service (IE), P2P, GDMSS (Android, iOS), SmartPSS

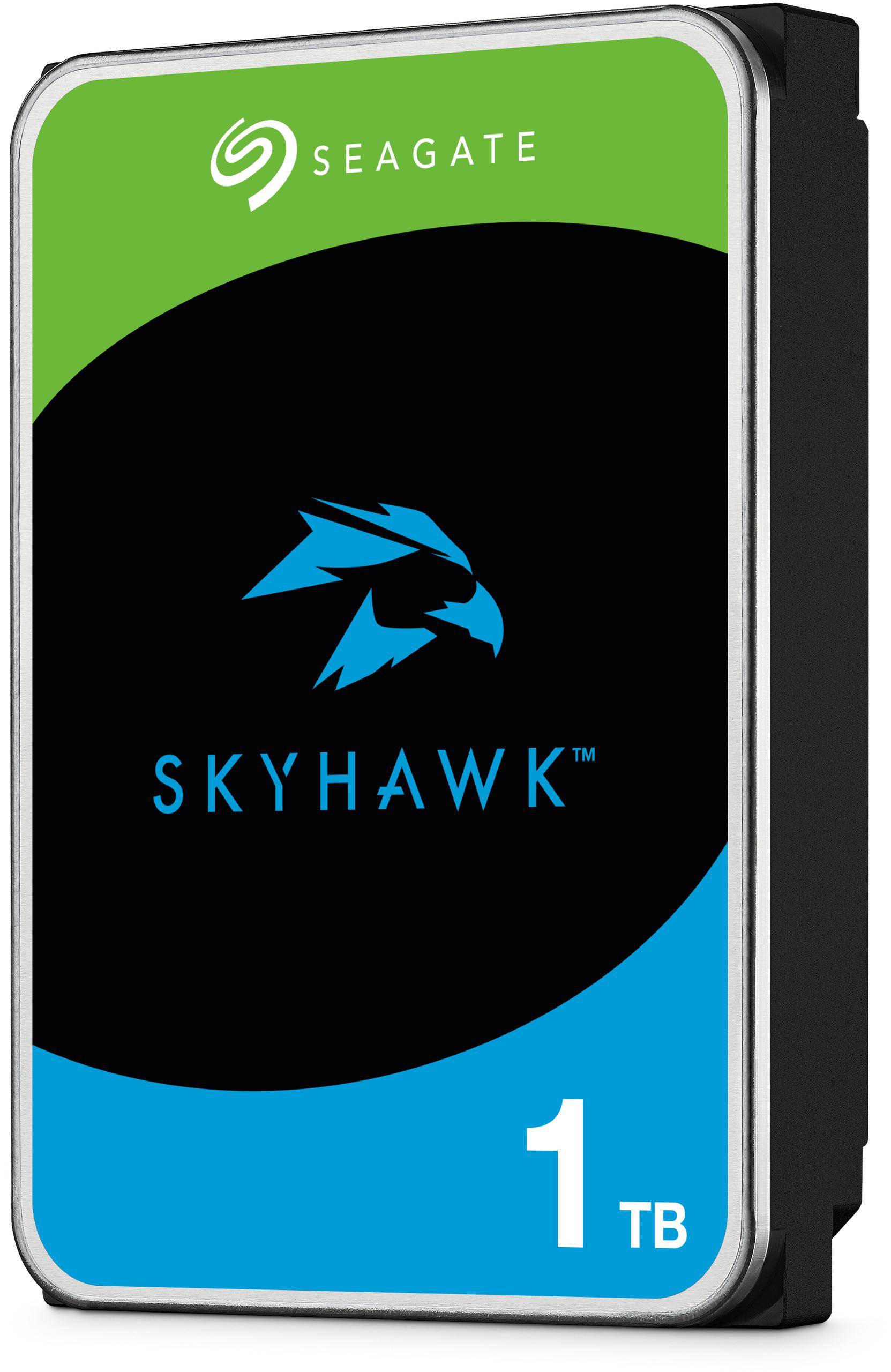

Seagate SkyHawk ST1000VX013 1TB HDD
- Drives are available in capacities up to 10TB, supporting over 10,000 hours of high-definition content and 64 cameras per drive.
- Optimized for observation with ImagePerfect software.
- Rotary vibration sensors provide reliable operation in multi-disk and array systems.
- RAID.
- 180 TB/year workload rating, three times higher than desktop drives and competitive solutions.
- Fast recording readiness for sensor camera traffic.
- Continuous operation 24 hours a day, 7 days a week, with a mean time between failures of 1 million hours.

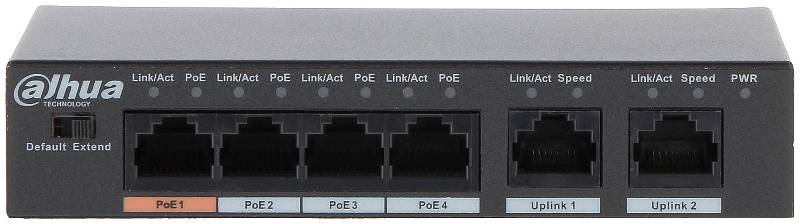

SWITCHED POE GETFORT 4FE x POE + 2FE UPLINK 65W
- 6 ports 100Mbps RJ45
- 4 PoE 802.3 af/at ports
- 1 802.3bt port (60W)
- Supports PoE up to 30W per port
- 52V/65W power supply
- Long-range PoE mode, up to 250 m
- Supports VLAN port isolation
GETFORT PREMIUM CAT.5E U/UTP PVC TWISTED PAIR CABLE
- For indoor use
- High quality (100 % copper cable)
- Tested,Measurement made on a 90 m long section using Fluke Networks DTX-1800 meter
- Meets UTP category 5e requirements
- Meter marker
GETFORT RJ45 CAT.5e 8P8C NETWORK PLUG
- Category – Cat.5e
- Type – RJ45 (8P8C)
- Application – 4-pair unshielded twisted pair cable
- Material – polycarbonate
- Contacts – phosphor bronze, gold plated
The package includes:
- 1 x POE SWITCH GETFORT 4FE x POE + 2FE UPLINK 65W 20045
- 20 x GETFORT PREMIUM CAT.5E U/UTP PVC 4037 TWISTED PAIR CABLE
- 10 x GETFORT RJ45 CAT.5e 8P8C NETWORK PLUG 13385
- 1 x Eltrox sticker for small monitored objects 35483
- 1 x DAHUA NVR2104HS-S3 IP RECORDER 36450
- 1 x Seagate SkyHawk ST1000VX013 1TB HDD 39779
- 4 x Dahua IPC-HFW1239TL1-A-IL IP Camera 43178
