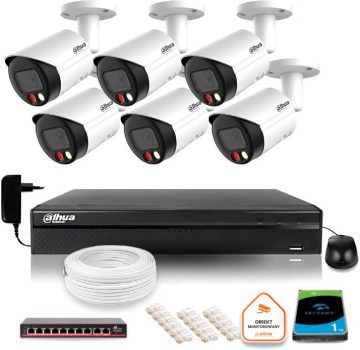

Dahua IP surveillance kit 6 FullHD cameras with two-color night lighting

Dahua IP surveillance kit with 6 FullHD cameras and two-color night lighting

Key features of the kit

• Dahua surveillance system: 8-channel recorder + 1 TB hard drive + 6 FullHD external tube cameras
• Freeapp for viewing the image on a smartphone
• Software for operating the system on a computer
• 2MPx external cameras – with smart two-color light mode that works around the clock, with a range of up to 30 m
• Thanks to the 1 TB drive and complete equipment, the system is ready to work without the need to purchase additional elements.
• FREE “OBSERVED OBJECT” LABEL”

Dahua smart dual illuminator technology

Dahua’s smart dual-illuminator technology uses an intelligent algorithm to accurately detect targets. The IR illuminator is usually turned on at night. When the camera detects a target, the warm light turns on and the camera records full-color video and key event information. When the target moves outside the monitored area, the warm light turns off and the IR illuminator turns on again, helping to reduce “light pollution” in the area.

Perfect security for your home or business!

• Dahua The surveillance kit will be the perfect starter for securing your home or business.
• Cameras can be installed either inside and outside the building – thanks to the high tightness class, the cameras are resistant to all potentially adverse weather conditions!
• The offered video surveillance kit consists of: 8-channel recorder with 1 TB hard drive, 2 Mpx IP camera and accessory kit, which ensures proper system operation.
• PoE enabled continuous access to camera images and recordings via a suitably protected application.

Monitoring for continuous operation 24/7

The Dahua brand surveillance kit model with professional 24/7 1 TB drive, 2Mpx camera and 8-channel IP NVR recorder is a stable and advanced solution that provides effective surveillance, excellent image quality and easy system management. This makes it ideal for a variety of applications, from home surveillance to professional industrial and business institutions.

IP surveillance application

IP monitoring kits are widely used security purposes. They are installed at home, in businesses, warehouses, public institutions, schools and other locations to monitor and record activities to prevent theft, burglary or others unwanted incidents. The proposed kit will be used:

• Alarm system: IP cameras can be part of more advanced alarm systems that respond to motion detection in specific areas and send notifications to the appropriate individuals or services.
• Remote access and monitoring: One of the main advantages of IP technology is the ability to remotely access cameras via the Internet. This allows users to monitor camera images in real time, regardless of their location.
• Animal and nature monitoring: IP cameras are also used in scientific research and nature conservation, allowing you to observe animals in their natural environment or monitor wildlife.
• Health and care monitoring: In some cases, IP cameras can be used to monitor patients in healthcare facilities, allowing medical staff to monitor their health.
• Education and learning: IP cameras can be used for educational purposes, allowing you to live broadcast or record classes, lectures, or seminars.

IP video surveillance kits have many other uses depending on the specific needs and situation. With the rapid development of technology, their functionality is constantly expanding, opening up new possibilities for use.

Dahua mobile app: DMSS

DMSS is a mobile surveillance app with functions such as remote monitoring, video playback, push notifications, device initialization and remote configuration. You can add devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers. After logging in to your account, you can use cloud services such as upgrading to cloud service and so on. The app supports iOS 9.0 and Android 5.0 or above, and can be used with 3G/4G/Wi-Fi.

SEE WHAT YOU'RE BUYING IN OUR PACKAGE - package contents:

• The kit is based on high-quality, branded components.
• Dahua The monitoring system is designed to make its installation as simple and intuitive as possible.

DAHUA IPC-HFW2249S-S-IL-0280B IP CAMERA

• 2 MP 1/2.8-inch CMOS image sensor
• Max. 2 MP output (1920 × 1080)@25/30 fps
• H.265 codec, high compression ratio, ultra-low bit rate
• Built-in warm light/IR LED, maximum lighting distance is 30m and maximum warm light distance is 30m
• ROI, SMART H.264+/H.265+, flexible encoding, applicable to various bandwidths and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermark, applicable to various surveillance scenes
• Intelligent monitoring: intrusion, disconnection (two functions support vehicle and human classification and accurate detection)
• Supports max. 256GB Micro SD card; built-in microphone
• 12V DC/PoE power supply, easy installation
• IP67 protection class
• SMD Plus

DAHUA NVR2108HS-4KS3 IP RECORDER

• 8 Channel 1U 1HDD Lite Network IP Recorder
• Supports smart compression H.265+, H.265, smart H.264+, H.264 and MJPEG.
• Max. decoding power: 6 x 1080p@30fps.
• Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
• Supports up to 12 MP IP cameras.
• Artificial intelligence using DVR supports 4-channel SMD Plus technology.
• Artificial intelligence, using a camera, supports perimeter protection and SMD Plus technology.
• Supports one-click power on and off.

Seagate SkyHawk ST1000VX013 1TB HDD Drive

• Drives are available in capacities up to 10 TB, supporting more than 10,000 hours of high-definition content and 64 cameras per drive.
• Optimized for observation with ImagePerfect software.
• Rotary vibration sensors provide reliable operation in multi-disk and array systems.
• RAID.
• 180 TB/year workload rating, three times higher than desktop drives and competitive solutions.
• Fast recording readiness for motion detection cameras.
• Continuous operation 24 hours a day, 7 days a week, with a mean time between failures of 1 million hours.

SWITCH POE GETFORT 8FE x POE + 2FE UPLINK 120W POE+

• 10 100Mbps RJ45 ports

• 8 PoE 802.3 af/at ports

• Supports PoE up to 30W per port

• 52V/120W power supply

• Long range PoE mode, up to 250m

• Supports VLAN port isolation

GETFORT PREMIUM CAT.5E5E U/UTP PVC

• For indoor use
• High quality (100% copper cable)
• Tested, measured over a 90 m length using a Fluke Networks DTX-1800 meter
• Meets UTP category 5e requirements
• Meter marker

GETFORT RJ45 CAT.5e 8P8C NETWORK PLUG

• Category – Cat.5e
• Type – RJ45 (8P8C)
• Application – 4 twisted pairs unshielded
• Material – polycarbonate
• Contacts – phosphor bronze, gold plated

Sticker for a small Eltrox monitored object

• production technology: self-adhesive polymer foil
• high resistance to UV radiation
• height: 110 mm
• width: 100 mm

The package includes:

• 1 x SWITCH POE GETFORT 8FE x POE + 2FE UPLINK 120W POE+ 20046
• 30 x TWISTED PAIR CABLE GETFORT PREMIUM CAT.5E U/UTP PVC 4037
• 14 x GETFORT RJ45 CAT.5e 8P8C 13385 NETWORK PLUG
• 6 x DAHUA IPC-HFW2249S-S-IL-0280B IP CAMERA 35374
• 1 x Eltrox sticker for small monitored objects 35483
• 1 x Seagate SkyHawk ST1000VX013 1TB HDD 39779
• 1 x DAHUA NVR2108HS-4KS3 IP RECORDER 45889
