IP uzraudzības komplekts Dahua 8mpx 4K 4 kameras IPC-HDW2849TM-S-IL ar 1TB disku
IP surveillance application
IP monitoring kits are widely used security purposes. They are installed at home, in businesses, warehouses, public institutions, schools and other locations to monitor and record activities to prevent theft, burglary or others unwanted incidents. The proposed kit will be used:
- Alarm system: IP cameras can be part of more advanced alarm systems that respond to motion detection in specific areas and send notifications to the appropriate individuals or services.
- Remote access and monitoring: One of the main advantages of IP technology is the ability to remotely access cameras via the Internet. This allows users to monitor camera images in real time, regardless of their location.
- Animal and nature monitoring: IP cameras are also used in scientific research and nature conservation, allowing you to observe animals in their natural environment or monitor wildlife.
- Health and care monitoring:In some cases, IP cameras can be used to monitor patients in healthcare facilities, allowing medical staff to monitor their health.
- Education and learning: IP kameras var izmantot izglītības nolūkos, ļaujot pārraidīt tiešraidi vai ierakstīt nodarbības, lekcijas vai seminārus.
IP video novērošanas komplektiem ir daudz citu pielietojumu atkarībā no konkrētajām vajadzībām un situācijas. Pateicoties tehnoloģiju straujajai attīstībai, to funkcionalitāte pastāvīgi paplašinās, paverot jaunas lietošanas iespējas.
Dahua mobile app:DMSS
DMSS is a mobile surveillance app with functions such as remote monitoring, video playback, push notifications, device initialization and remote configuration. You can add devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers. After logging in to the account, you can use cloud services such as upgrading to cloud service and so on. The app supports iOS 9.0 and Android 5.0 or above, and can be used with 3G/4G/Wi-Fi.
Dahua push notifications
Push paziņojumi par trauksmes notikumiem no Dahua IP tīkla ierīces. Push paziņojumi ir ļoti noderīgs rīks, jo tie ļauj lietotājiem ātri reaģēt uz svarīgiem notikumiem, nepārtraukti neuzraugot lietojumprogrammu. Tie ir īpaši noderīgi uzraudzības lietojumprogrammās, jo ļauj lietotājiem ātri reaģēt, kad notiek svarīgs notikums.

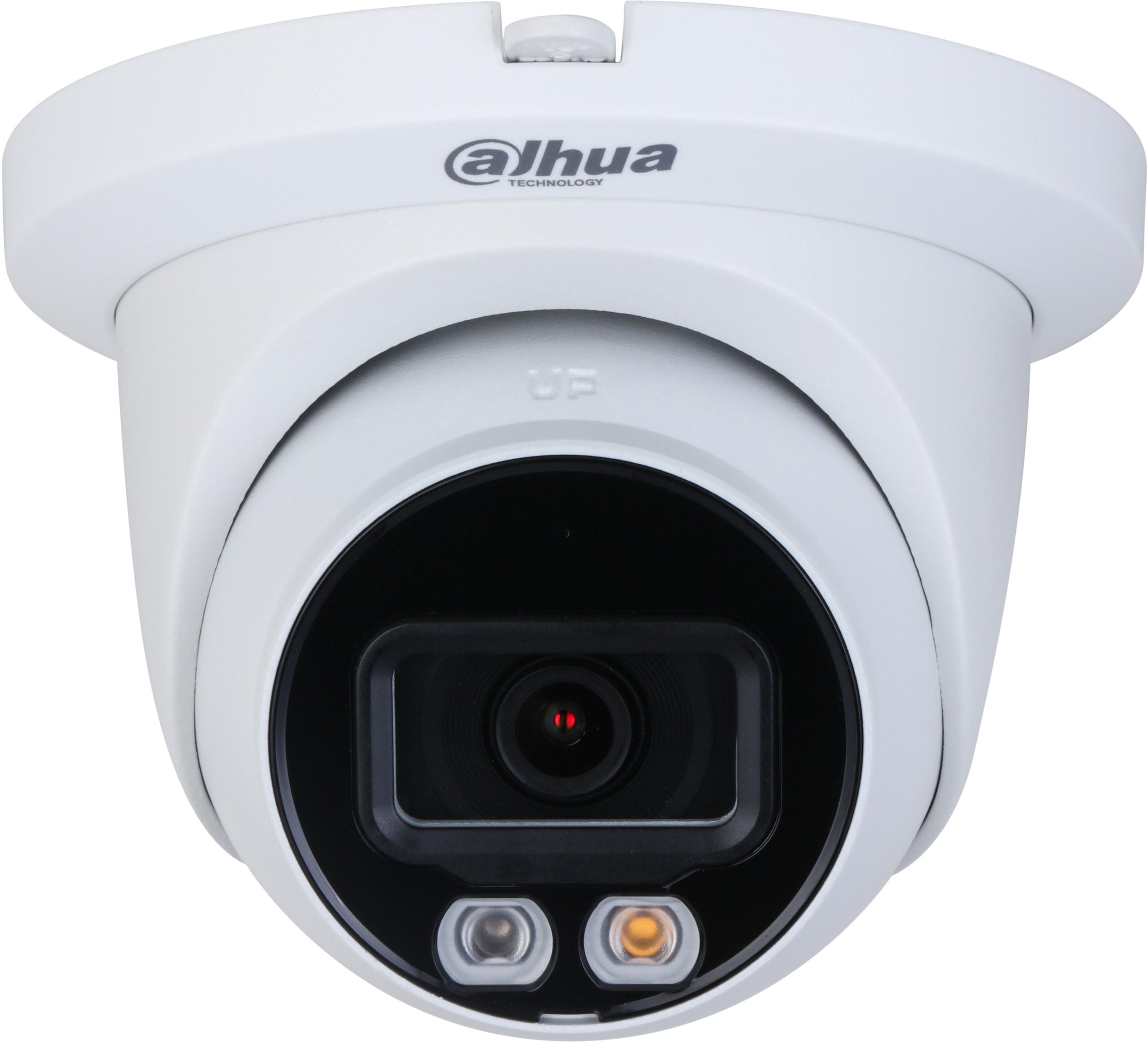

Dahua 8mpx IP camera IPC-HDW2849TM-S-IL-0280B
- Sensors: 1/2.7″ 8MP progresīvās skenēšanas CMOS
- Resolution: 3840×2160 (8Mpx) @ 20fps
- Compression: H.265+/ H.265/ H.264+/ MJPEG
- number of pixels: 8Mpx
- objective: 2.8mm
- illuminator:1 IR LED (range 30 m)
- 1 white light LED (range 30 m)
- support for microSD / microSDHC / microSDXC cards up to 256 GB
- AI features: perimeter protection, SMD+ (object classification – person/vehicle, alarm filter)
- built-in microphone
- body: metal ball body, tightness class (IP67)
- power supply: 12 V DC or PoE 48 V (802.3af)

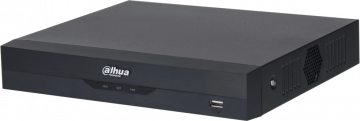

DAHUA NVR2104HS-4KS3 IP RECORDER
- 1U 1HDD Lite Network IP Recorder
- Supports Smart H.265+ compression, H.265, Smart H.264+, H.264 and MJPEG.
- Maks. dekodēšanas jauda: 4 × 1080p@30 kadri/s.
- Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
- Atbalsta IP kameras ar izšķirtspēju līdz 12MP.
- Artificial intelligence supports 4-channel SMD Plus technology through the recorder.
- Artificial intelligence supports perimeter protection and SMD Plus technology through the camera.
- Supports one-click power on and off.

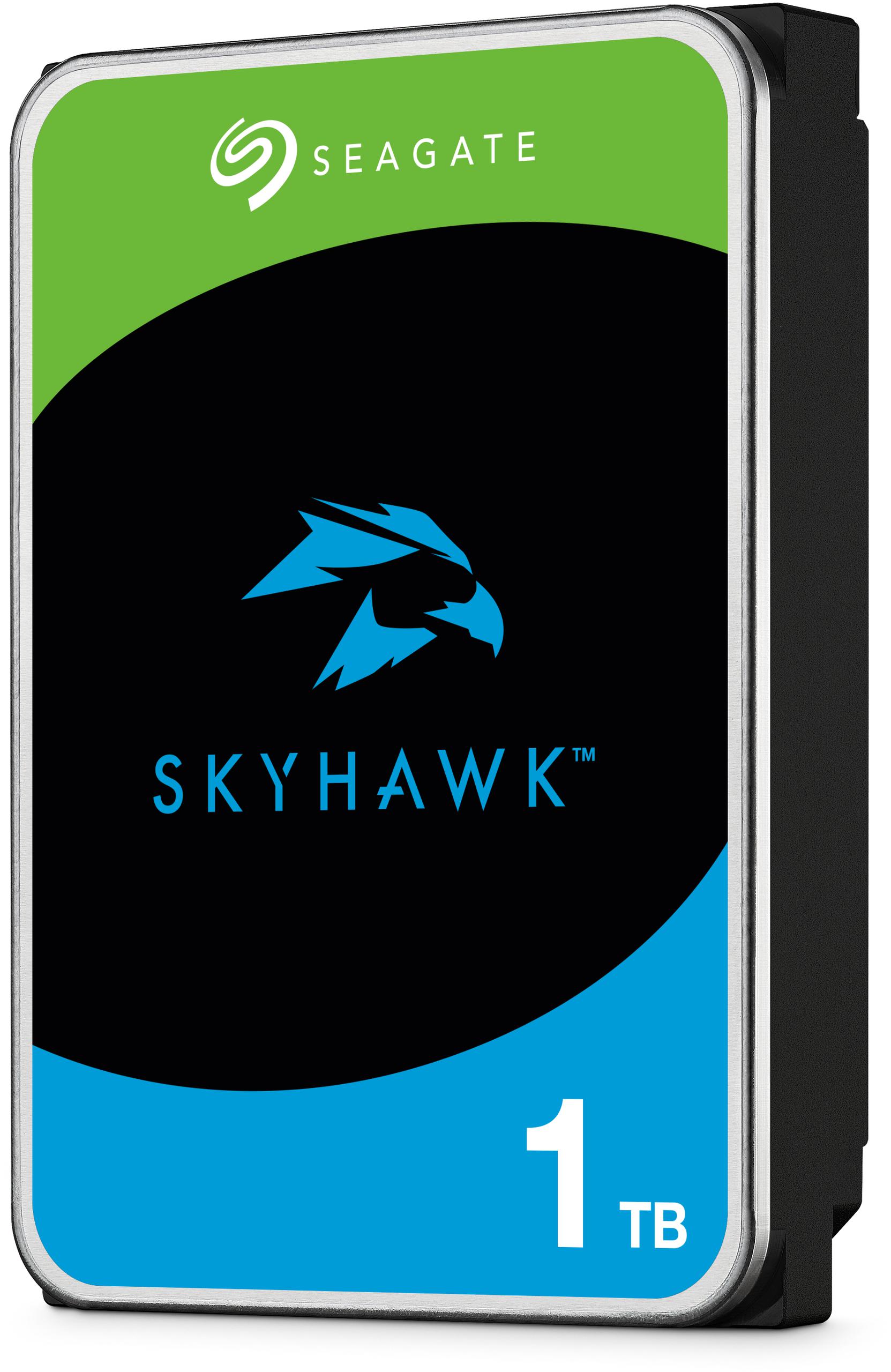

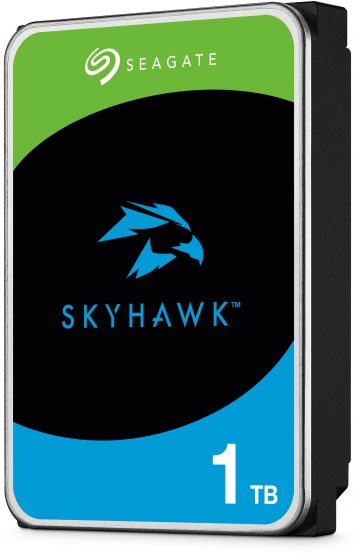

Seagate SkyHawk ST1000VX013 1TB hard drive
- Pieejams ar ietilpību līdz 10 TB, kas atbalsta vairāk nekā 10 000 stundu augstas izšķirtspējas satura un 64 kameras katrā diskā.
- Optimized for observation with ImagePerfect software.
- Rotary vibration sensors provide reliable operation in multi-disk and array systems.
- RAID.
- Rated workload of 180 TB/year, three times more than desktop drives and competitive solutions.
- Short waiting time for recording for cameras that operate based on motion sensors.
- Continuous operation 24 hours a day, 7 days a week, with a mean time between failures of 1 million hours.
SWITCH POE GETFORT 4FE x POE + 2FE UPLINK 65 W
- 6 x 100 Mbps RJ45 porti
- 4 x 802.3 af/at PoE porti
- 1 x 802.3bt ports (60 W)
- Atbalsta PoE līdz 30 W uz portu
- 52V/65W power supply
- PoE režīms lielā darbības rādiusā, līdz 250 m
- Supports port VLAN isolation
GETFORT RJ45 CAT.5e 8P8C NETWORK PLUG
- Category – Cat.5e
- Type – RJ45 (8P8C)
- Application – 4 twisted pairs unshielded
- Material – polycarbonate
- Contacts – phosphor bronze, gold plated
GETFORT PREMIUM CAT.5E U/UTP PVC TWISTED PAIR CABLE
- For indoor use
- High quality (100% copper cable)
- Tested,Measurement made on a 90 m long section using Fluke Networks DTX-1800 meter
- Meets UTP category 5e requirements
- Meter marker
Eltrox sticker for small monitored objects
- Production technology: Self-adhesive polymer foil
- High resistance to UV radiation
- Augstums: 110 mm
- Width: 100 mm
The package includes:
- 1 x POE SWITCH GETFORT 4FE x POE + 2FE UPLINK 65W 20045
- 20 x GETFORT PREMIUM CAT.5E U/UTP PVC 4037 TWISTED PAIR CABLE
- 4 x GETFORT RJ45 CAT.5e 8P8C 13385 NETWORK PLUG
- 1 x Eltrox 35483 sticker for small, monitored objects
- 4 x Dahua 8mpx IP kamera IPC-HDW2849TM-S-IL-0280B 37415
- 1 x Seagate SkyHawk ST1000VX013 1TB HDD 39779
- 1 x DAHUA NVR2104HS-4KS3 IP RECORDER 45884
