Technical Specification:
| Standard: | TCP/IP |
| Sensors: | 1/2.8” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: | 2.8 … 12 mm – Motozoom |
| Viewing angle: | 101 ° … 33.5 ° (ražotāja dati) 97 ° … 34 ° (mūsu pārbaudes) |
| Infrared illumination detection area: | 40 m |
| RS-485 interface: | – |

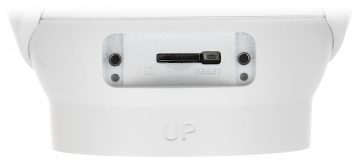

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs: | – |
| Audio: | – |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6 , HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast |
| WEB Server: | Iebūvēts, Web Viewer |
| Maximum number of online users: | 6 |
| ONVIF: | 19.12 |
| Mobile phone access: | Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Main stream transmission speed: | 25 frame rate @ 1080p |
| Selected features: | Motozoom objektīvs – Pārvalde no pārlūka, NVR vai programmatūras D-WDR – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana ICR – infrasarkano staru mehāniskais filtrs BLC – konfigurējama izgaismojuma kompensācija HLC – Intensīvas gaismas kompensācija (punktveida) Dienas/nakts režīms (color/b&w/auto) Kustības detekcija – maks. 4 zonas Privātuma zonas – maks. 4 Mirror – spoguļattēls |
| Source of energy supply: | PoE (802.3af), 12 V DC / 420 mA |
| Power consumption: | < 6.4 W @ PoE < 5 W @ 12 V DC |

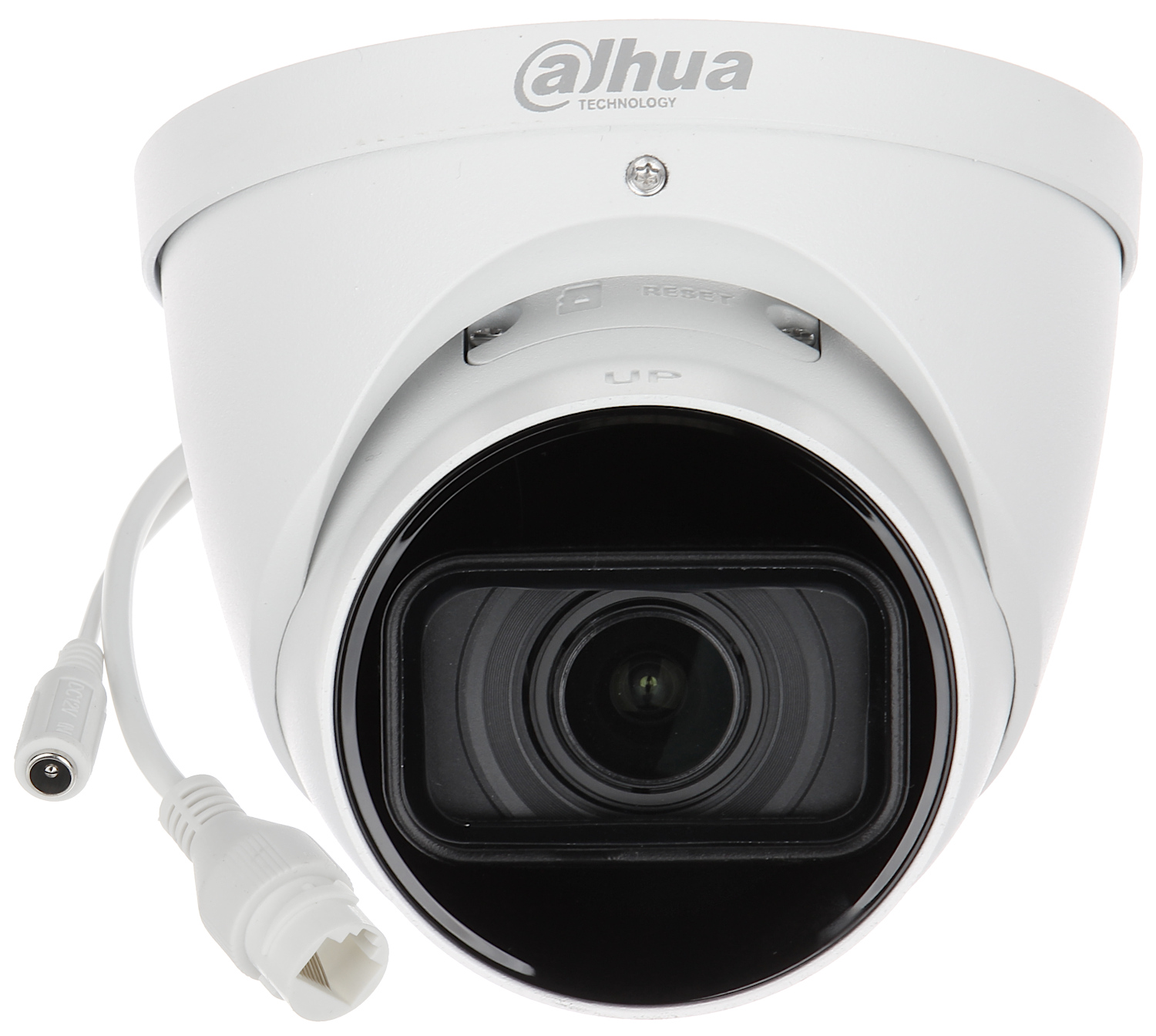

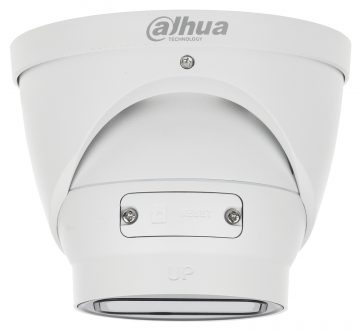

| Housing: | Dome – Metal |
| Colour: | White |
| Anti-vandalism: | – |
| Protection class: | IP67 |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.69 kg |

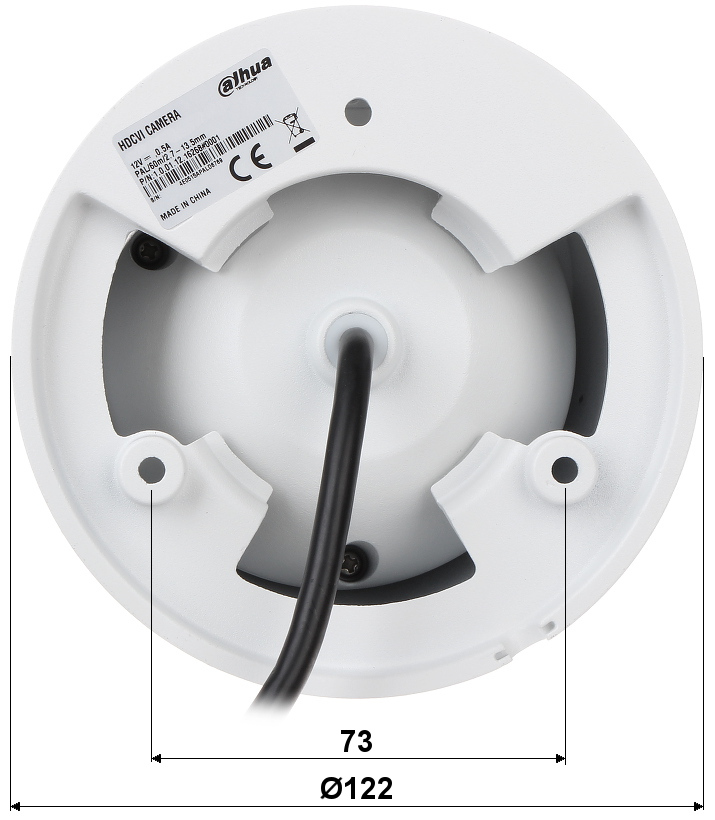

| Size: | Ø 122 x 108 mm |
| Language selection: | angļu, franču, spāņu |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
