| Standard: |
TCP/IP |
| Sensors: |
1/2.7” Progressive Scan CMOS |
| Matrix size: |
8.3 Mpx |
| Resolution: |
3840 x 2160 – 8.3 Mpx , 4K UHD , 3072 x 2048 – 6.3 Mpx , 3072 x 1728 – 5.3 Mpx , 2880 x 1620 – 4.7 Mpx , 2688 x 1520 – 4 Mpx , 2048 x 1536 – 3.1 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p |
| Lens: |
2.7 … 13.5 mm – Motozoom |
| Viewing angle: |
113 ° … 31 ° (ražotāja dati) 110 ° … 32 ° (mūsu pārbaudes) |
| Infrared illumination detection area: |
40 m |
| RS-485 interface: |
- |
| Memory card slot: |

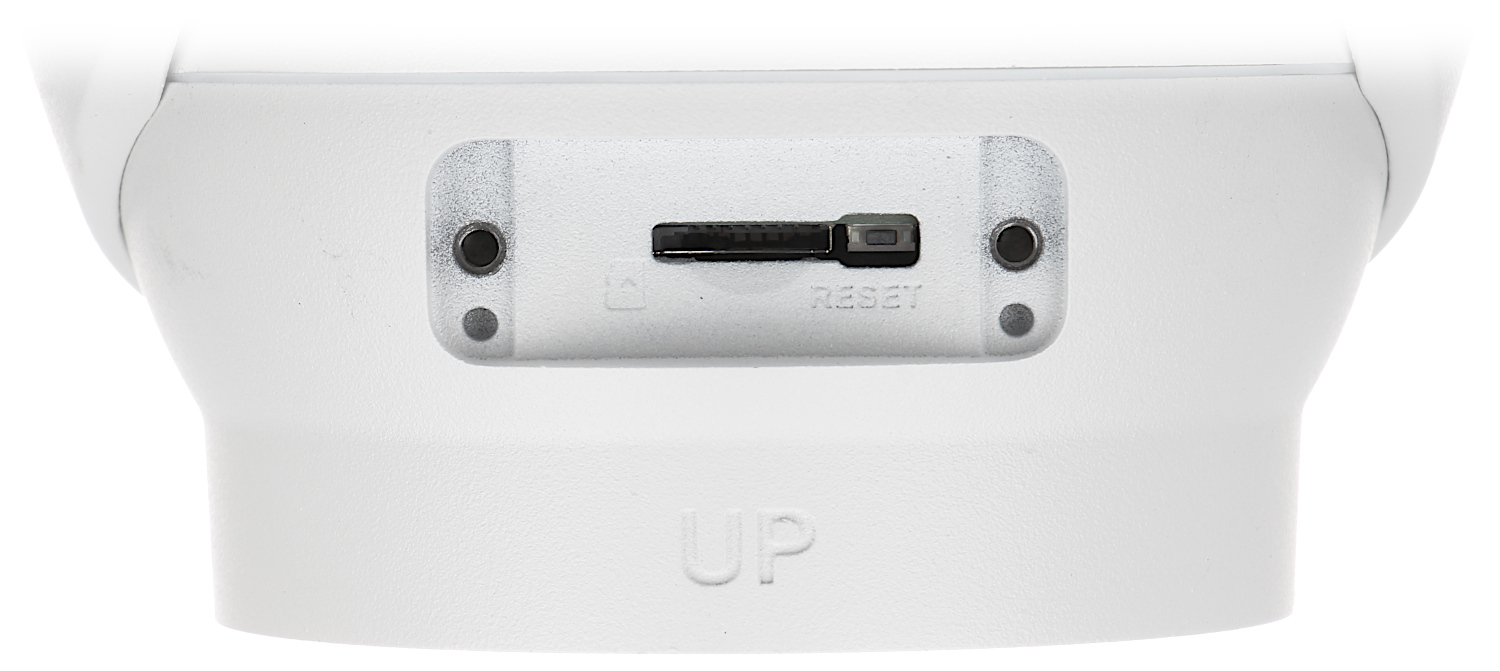

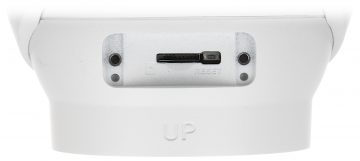

Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs: |
- |
| Audio: |
Built-in microphone Audio signal transmission over the network Sound detection |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| WEB Server: |
Built-in |
| Maximum number of online users: |
20 |
| ONVIF: |
21.12 |
| Main stream transmission speed: |
20 fps @ 8.3 Mpx 25 fps @ 4 Mpx |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Default IP address: |
192.168.1.108 |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| WEB Server: |
Built-in |
| Selected features: |
Motozoom objektīvs – Pārvalde no pārlūka, NVR vai programmatūras WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana AGC – Automātiska attēla pastiprinājuma regulēšana BLC – konfigurējama izgaismojuma kompensācija HLC – Intensīvas gaismas kompensācija (punktveida) Saderīga ar NAS – Network Attached Storage Automātisks baltā balanss Dienas/nakts režīms (color/b&w/auto) ICR – infrasarkano staru mehāniskais filtrs Garso detekcija Kustības atklāšana Konfigurējamas privātuma zonas Mirror – spoguļattēls SMD PLUS – objekta meklēšana, kas tiek klasificēts kā: cilvēks, mehāniskais transportlīdzeklis, nemehāniskais transportlīdzeklis IVS analizė : līnijas šķēršošana , ielaušanās – personu un transportlīdzekļu klasifikācija, ainas maiņa |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 530 mA |
| Power consumption: |
≤ 6.4 W @ 12 V DC ≤ 7.6 W @ PoE |
| Anti-vandalism: |
- |
| Protection class: |
IP67 |
| Housing: |
Dome – Metal |
| Colour: |
White |
| Operating temperature: |
-30°C … 60°C |
| Weight: |
0.69 kg |
| Size: |

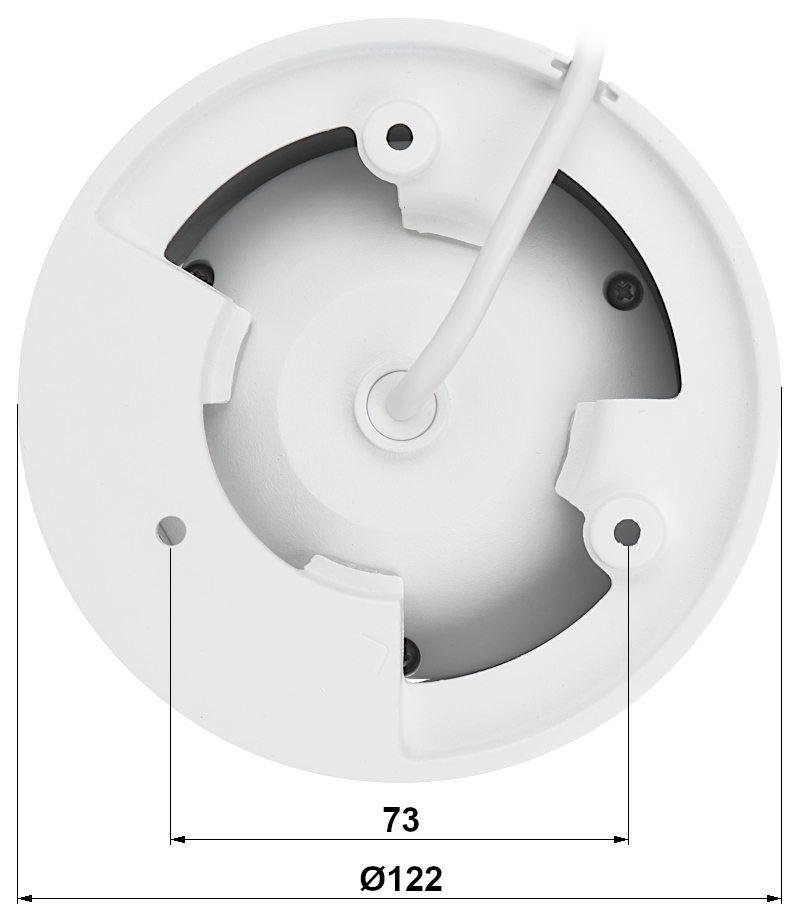

Ø 122 x 108 mm |
| Language selection: |
poļu, angļu, čehu, franču, spāņu, nīderlandiešu, vācu, portugāļu, krievu, rumāņu, ukraiņu, ungāru, itāļu |
| Manufacturer / Brand: |
DAHUA |
| Warranty: |
3 years |
