Technical Specification:
| Standard: | TCP/IP |
| Sensors: | 1/2.8” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: | 2.8 mm |
| Viewing angle: | 106 ° (manufacturer's data) 103 ° (our tests) |
| Infrared illumination detection area: | 30 m |

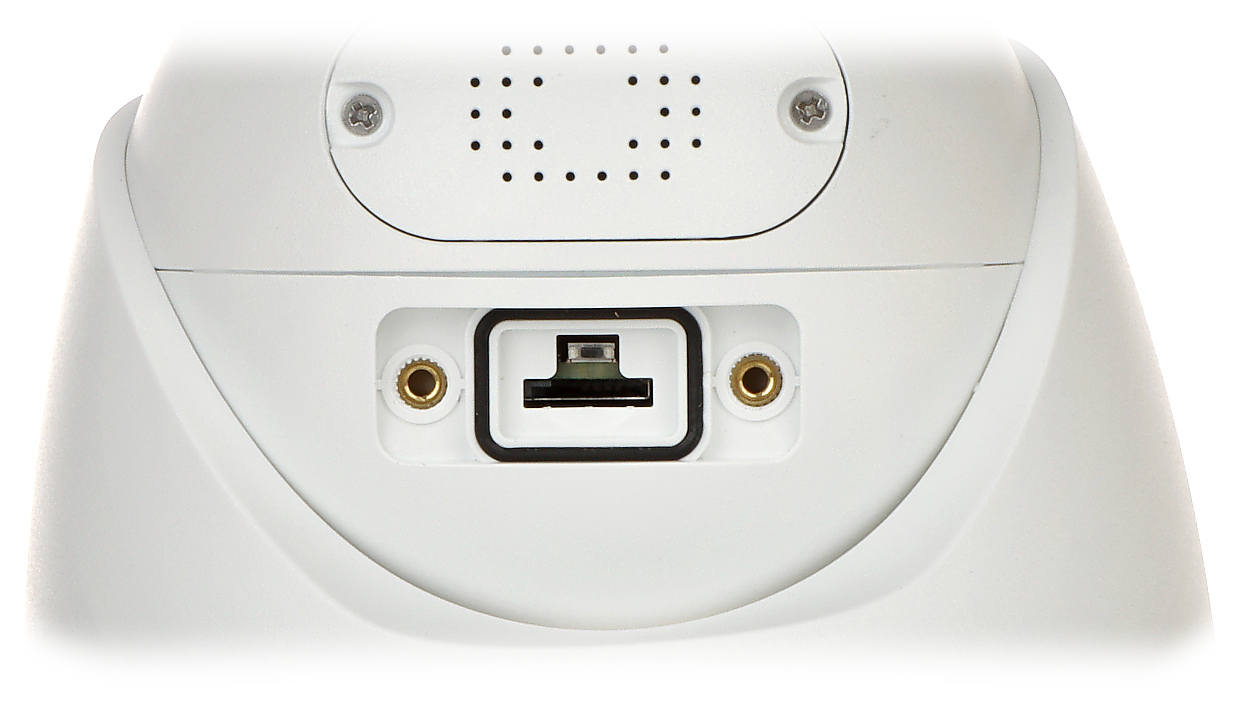

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |

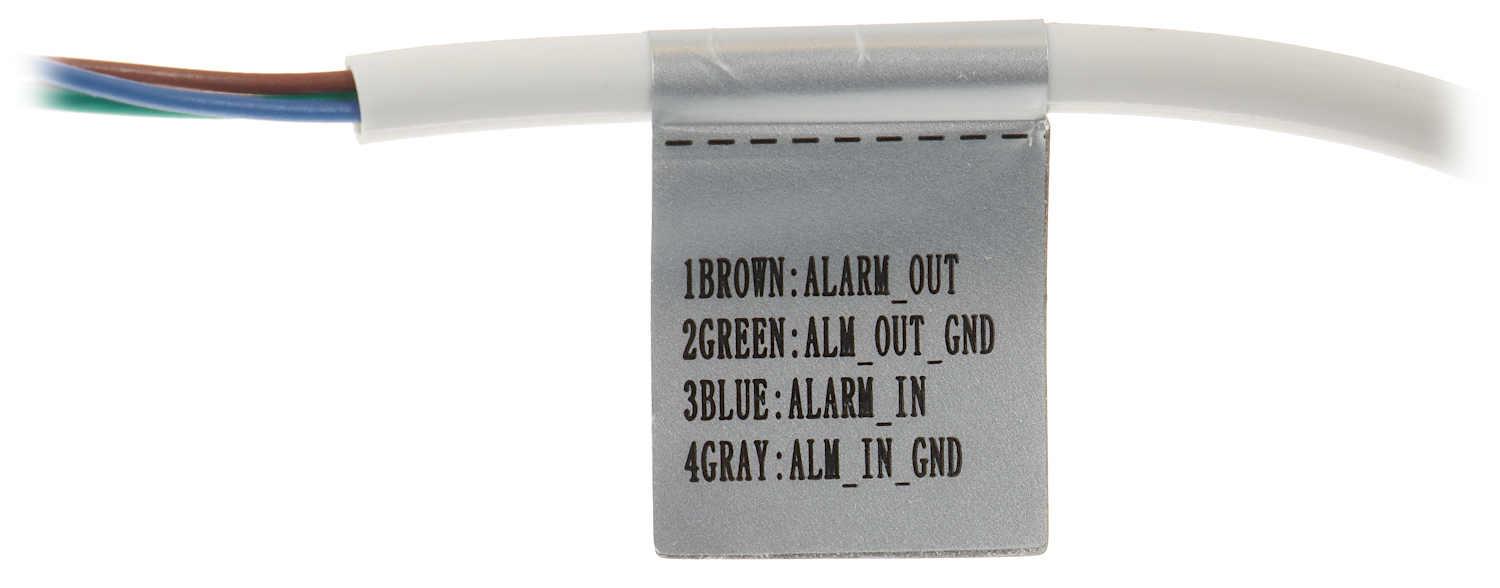

| Alarm inputs/outputs: | 1 / 1 |
| Audio: | Built-in microphone External microphone input Audio output Two-way audio streaming support Sound detection Built-in speaker – Alarm siren |
| Main stream transmission speed: | 25 frame rate @ 1080p |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6 , HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x SNMP |
| WEB Server: | Built-in |
| Maximum number of online users: | 20 |
| ONVIF: | 20.06 |
| Selected features: | WDR – 120 dB – Wide dynamic range of lighting 3D-DNR – Digital noise reduction ROI – improving the quality of selected image fragments F-DNR (Defog) – Reduction of noise associated with atmospheric precipitation SSA – Smart Scene Adaptive – intelligent scene adaptation by automatically adjusting exposure parameters to obtain a better image SMD 3.0 – search for an object classified as: person, motor vehicle – increased detection distance and resistance to false alarms Mirror – mirror image BLC/HLC – background / strong light compensation Possibility to change resolution, quality and bit rate Sound detection Motion detection – max. 4 zones Privacy zones – max. 8 Temperature map – areas with different motion intensity are marked in the image with corresponding colors Active deterrence function IVS analysis: intrusion, line crossing – classification of people and vehicles, scene change, abandoned/missing object, shape detection, crowd detection, people counting – supports 4 independent detection zones |
| Mobile phone access: | Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream |
| Source of energy supply: | PoE (802.3af), 12 V DC / 570 mA |
| Power consumption: | ≤ 7.9 W @ 12 V DC ≤ 9.4 W @ PoE (802.3af) |
| Housing: | Dome – Metal + Plastic |
| Colour: | White |
| Protection class: | IP67 |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.49 kg |

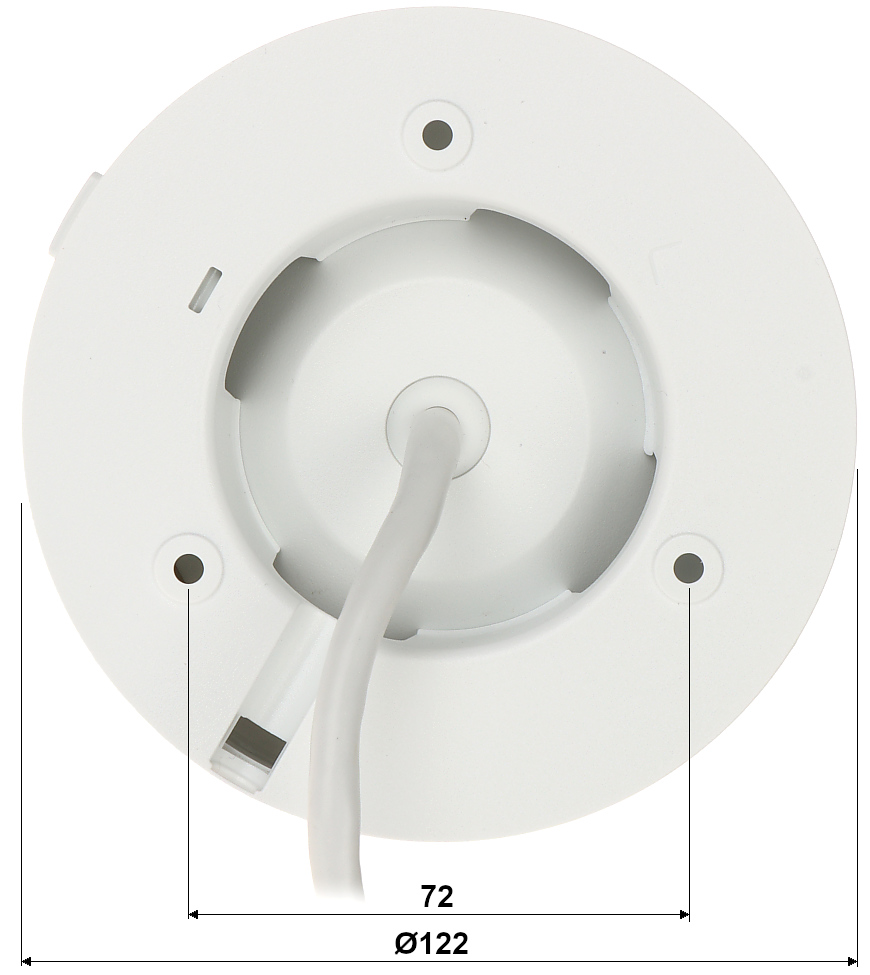

| Size: | Ø 122 x 113.5 mm |
| Language selection: | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
