| Standard: |
TCP/IP |
| Sensors: |
1/2.7” Progressive Scan CMOS |
| Matrix size: |
5 Mpx |
| Resolution: |
2880 x 1620 – 5 Mpx , 2688 x 1520 – 4 Mpx , 2560 x 1440 – 3.7 Mpx , 2048 x 1536 – 3 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: |
2.8 mm |
| Viewing angle: |
106 ° (ražotāja dati) 101 (mūsu pārbaudes) |
| Infrared illumination detection area: |
30 m |
| RS-485 interface: |
- |
| Memory card slot: |
- |
| Image compression method: |
H.265+ / H.265 / H.264 / H.264+ / MJPEG |
| Alarm inputs/outputs: |
- |
| Audio: |
Built-in microphone Audio signal transmission over the network Sound detection |
| Main stream transmission speed: |
20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast |
| WEB Server: |
Built-in |
| Maximum number of online users: |
6 |
| ONVIF: |
20.06 |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default IP address: |
192.168.1.108 |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Selected features: |
D-WDR – Wide dynamic range of lighting 3D-DNR – Digital noise reduction ROI – improving the quality of selected image fragments BLC/HLC – background / strong light compensation Ability to change resolution, quality and bitrate Motion detection Privacy zone Configurable privacy zones Sound detection Mirror – mirror image |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 330 mA |
| Power consumption: |
≤ 3.9 W @ 12 V DC ≤ 4.5 W @ PoE (802.3af) |
| Housing: |
Compact – Metal |
| Colour: |
Black |
| Protection class: |
IP67 |
| Operating temperature: |
-40°C … 60°C |
| Weight: |
0.32 kg |

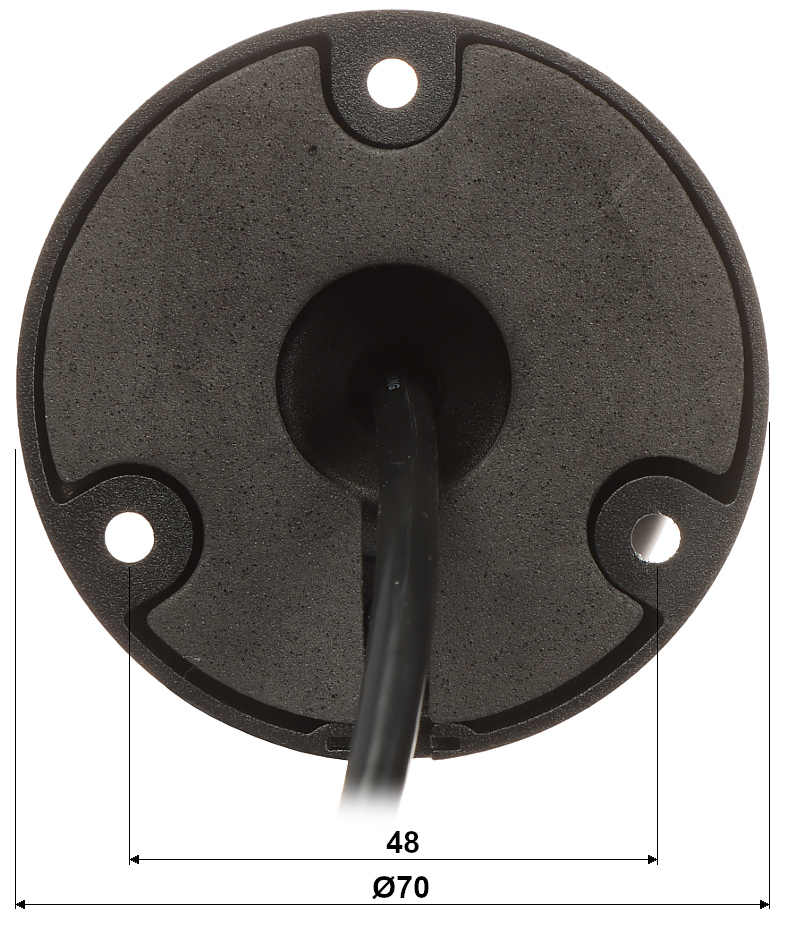

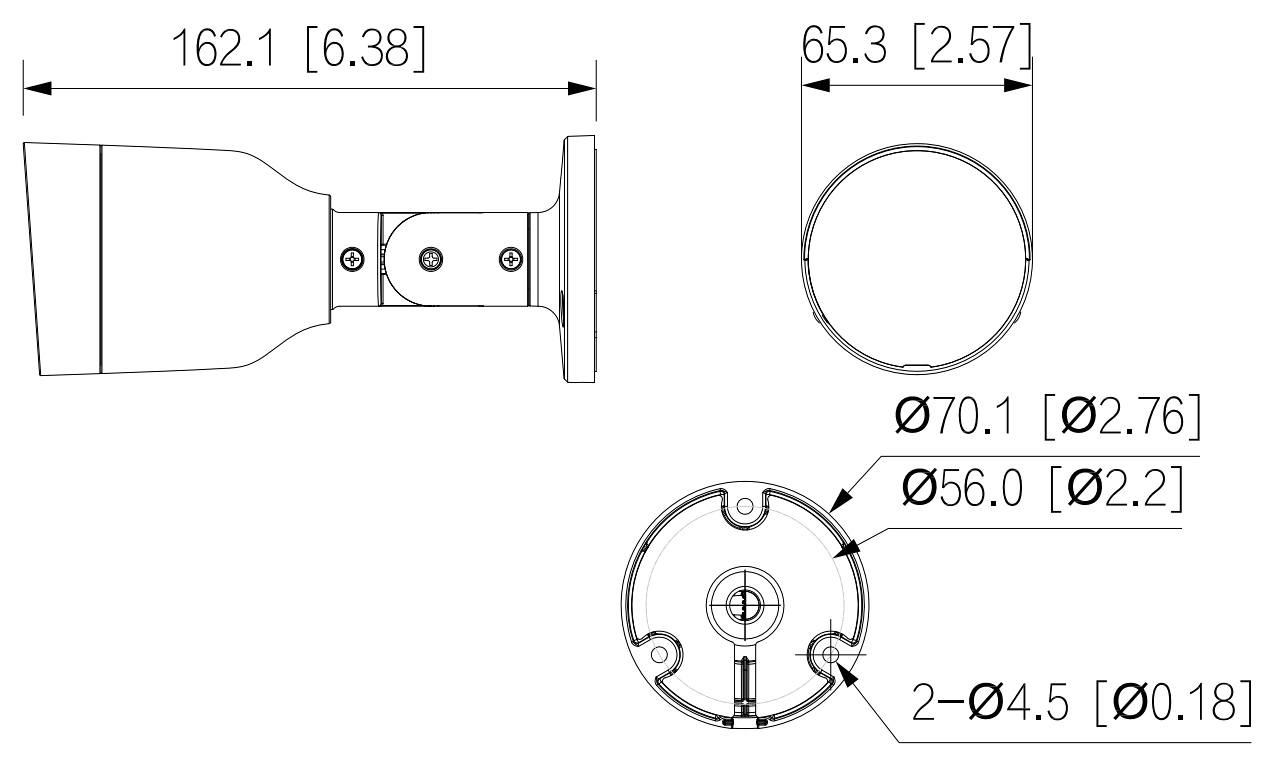

| Size: |
Ø 70 x 162 mm |
| Language selection: |
English, Spanish, Russian |
| Manufacturer / Brand: |
DAHUA |
| Warranty: |
3 years |
