| Standard: |
TCP/IP |
| Sensors: |
1/1.8” Progressive Scan CMOS |
| Matrix size: |
4 Mpx |
| Resolution: |
2688 x 1520 – 4 Mpx , 2560 x 1440 – 3.7 Mpx , 2048 x 1536 – 3 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: |
2.8 mm |
| Viewing angle: |
112 ° (manufacturer's data) 107 ° (our tests) |
| Infrared illumination detection area: |
80 m |

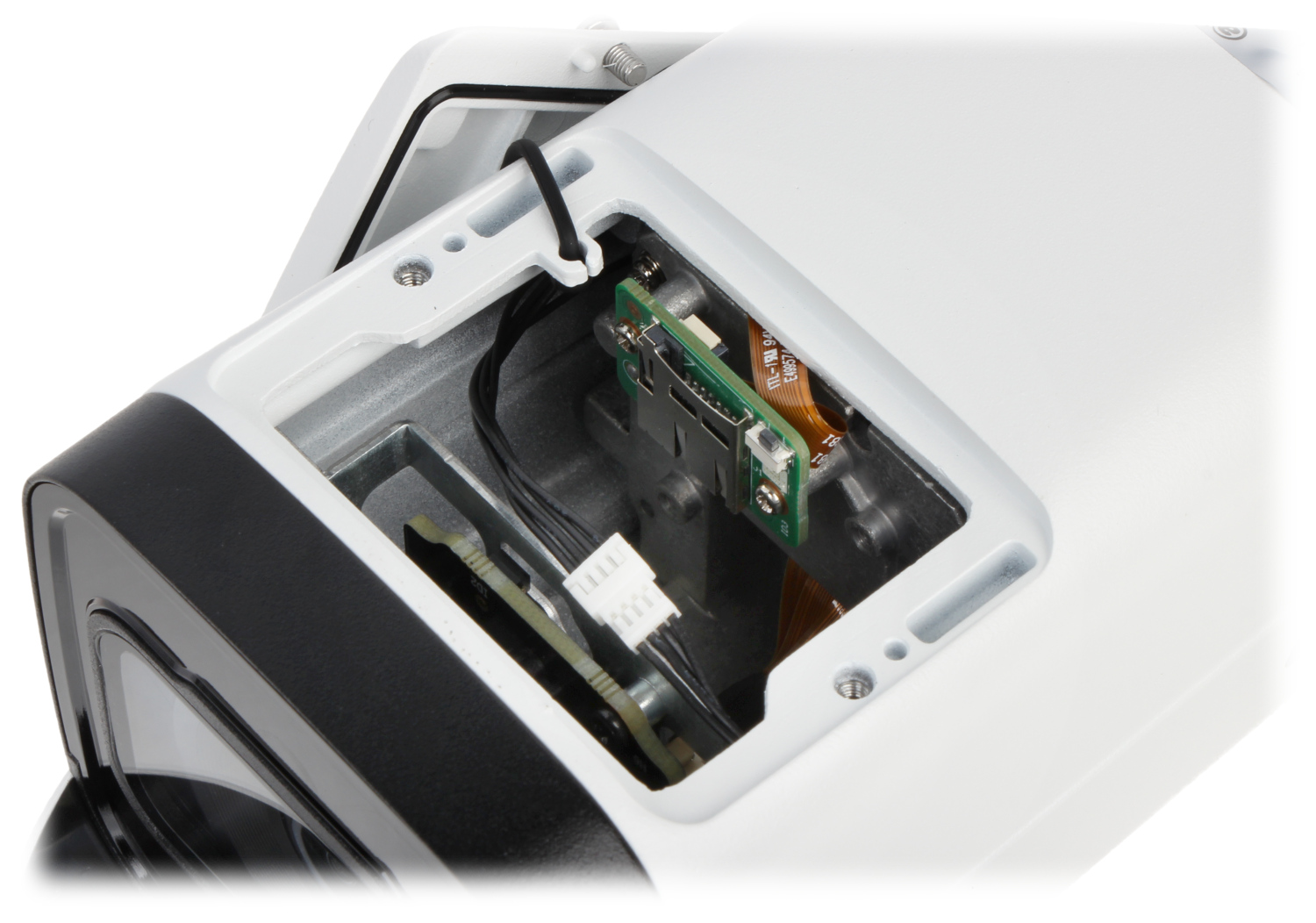

| Memory card slot: |
Supports Micro SD memory cards up to 512GB (local recording possible) |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |

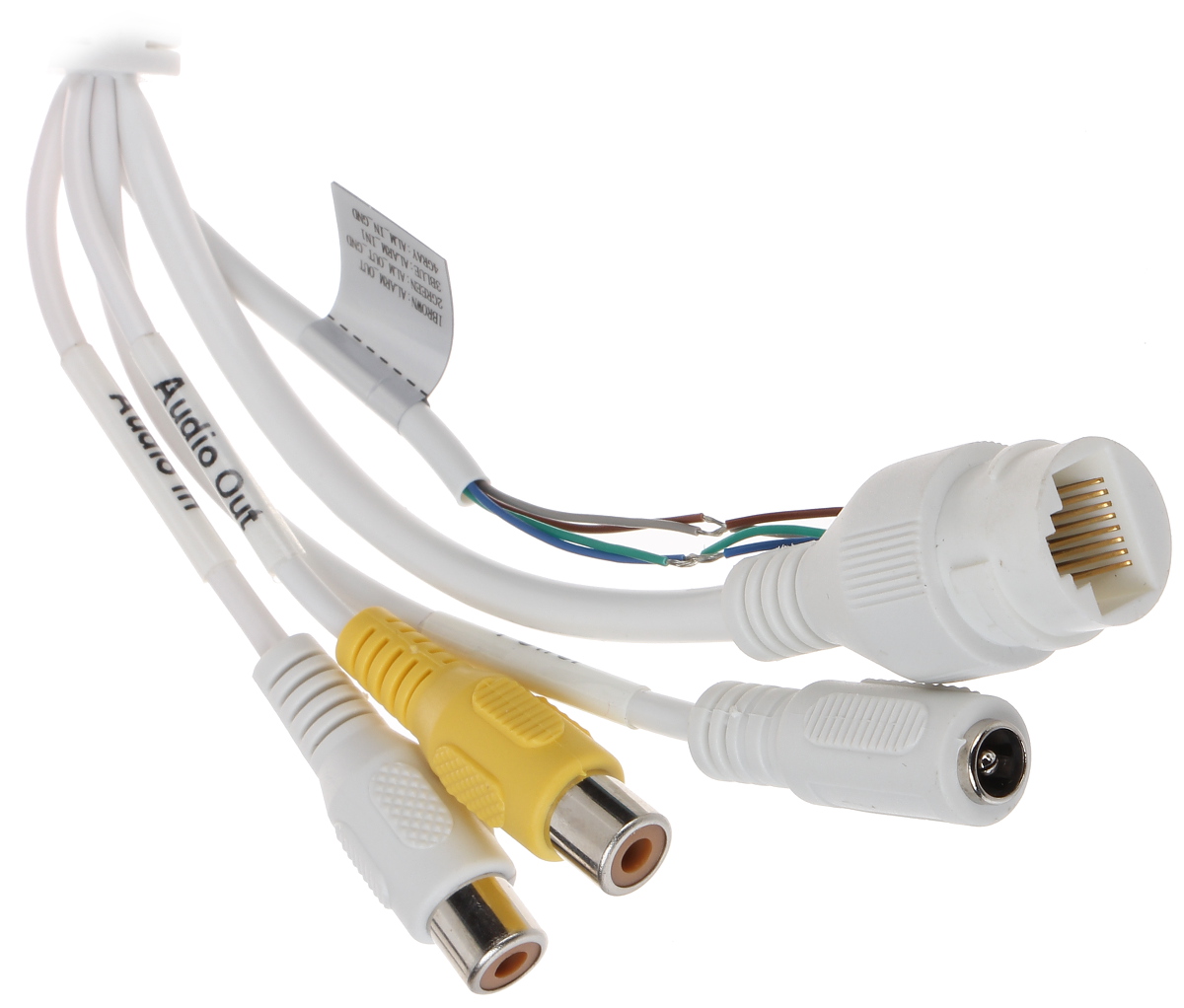

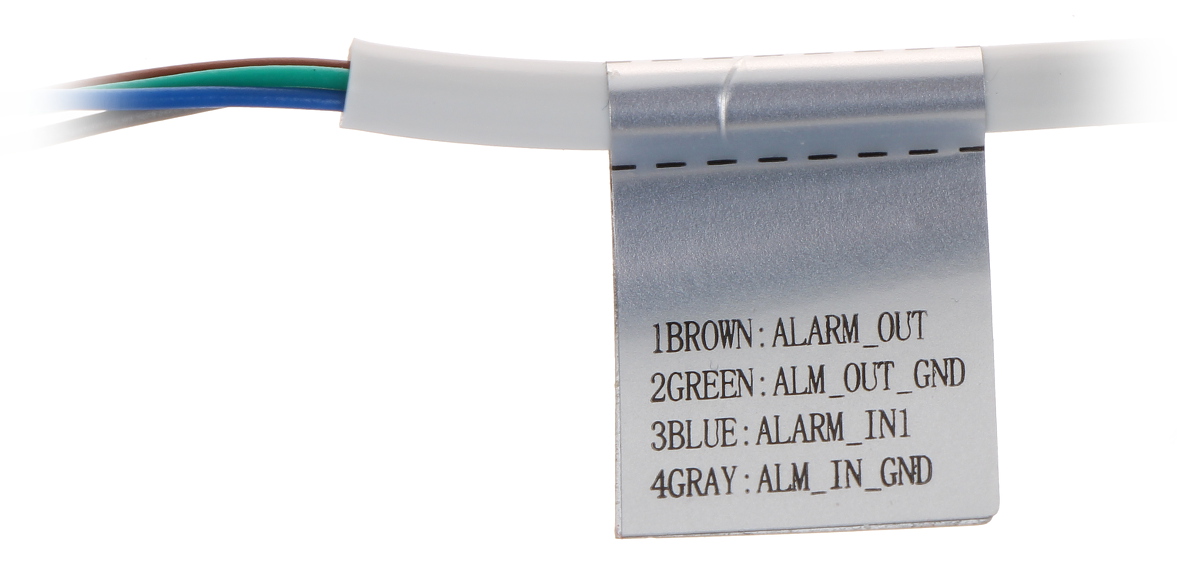

| Alarm inputs/outputs: |
1 / 1 |
| Audio: |
Built-in microphone, Audio input Audio output Two-way audio streaming support Sound detection Compliant with AAC standard |
| Main stream transmission speed: |
25 frames per second @ 4 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTSP, RTP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x, SNMP, P2P |
| WEB Server: |
Built-in |
| Maximum number of online users: |
20 |
| ONVIF: |
22.06 |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default IP address: |
192.168.1.108 |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Side stream |
| Selected features: |
WDR – 120 dB – Wide dynamic range of lighting 3D-DNR – Digital noise reduction ROI – improving the quality of selected image fragments F-DNR (Defog) – Noise reduction associated with atmospheric precipitation BLC/HLC – background / strong light compensation Ability to change resolution, quality and bit rate Motion detection Privacy zones – max. 8 Day/night mode ICR – infrared mechanical filter Automatic white balance AGC – Automatic image gain control Mirror – mirror image AI SSA – ang. AI Smart Scene Adaptive – automatic scene adaptation using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker in order to set optimal image parameters SMD 3.0 – object search classified as: person, motor vehicle Temperature map – areas with different motion intensity are marked in the image with corresponding colors IVS analysis: line crossing, intrusion – classification of people and vehicles, fast movement, scene change, abandoned/missing object, parking detection, suspicious activity detection, crowd detection, face detection – compatible with 6 types of facial attribute extraction, people counting – detection and maintenance of 4 independent areas |
| Source of energy supply: |
PoE (802.3af), ePoE, 12 V DC / 700 mA |
| Power consumption: |
≤ 9.8 W @ PoE ≤ 8.3 W @ 12 V DC |
| Housing: |
Compact – Metal |
| Colour: |
White |
| Protection class: |
IP67 |
| Anti-vandalism: |
IK10 |
| Operating temperature: |
-40°C … 60°C |
| Weight: |
0.95 kg |

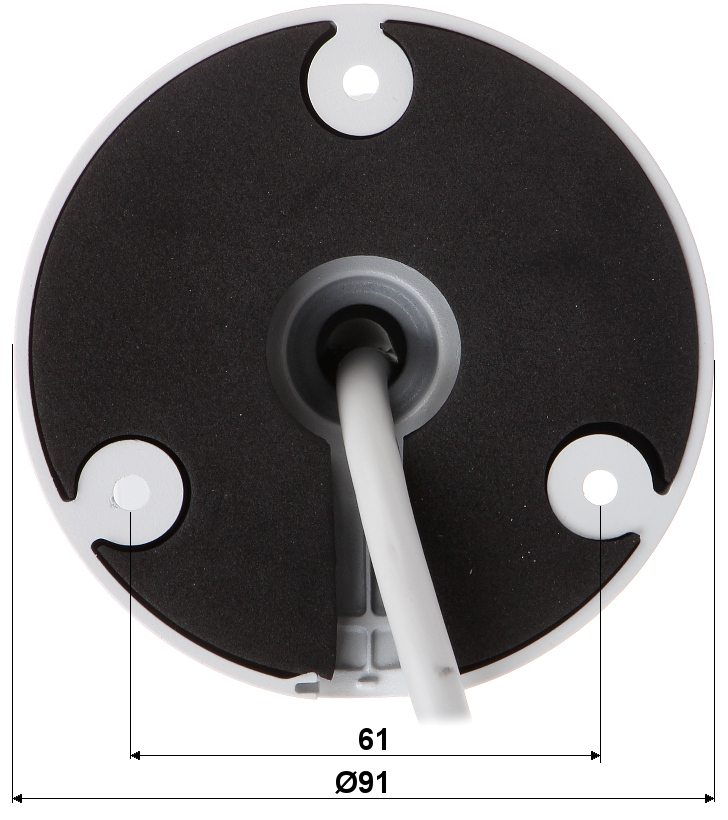

| Size: |
244 x 79 x 76 mm |
| Language selection: |
Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Hungarian, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand: |
DAHUA |
| Warranty: |
3 years |
