Technical Specification:
| Standard: | TCP/IP |
| Sensors: | 1/2.8” STARVIS™ CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | 2560 x 1440 – 3.7 Mpx, , 2048 x 1536 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Lens: | 2.8 … 12 mm |
| Viewing angle: | 97 ° … 31.6 ° (ražotāja dati) 90 ° … 43 ° (mūsu pārbaudes) |
| Optical zoom: | x4 |
| Digital zoom: | x16 |
| Infrared illumination detection area: | 15 m |
| Video output: | - |
| Rotation speed (manual control): | 0.1 °/s … 70 °/s (līmenis) 0.1 °/s … 30 °/s (vertikāli) |
| Preset rotation speed: | 80 °/s (līmenis) 40 °/s (vertikāli) |
| Horizontal rotation range: | 0 ° … 355 ° – Rotation is limited by a switch |
| Vertical rotation range: | 5 ° … 90 ° |
| RS-485 interface: | - |
| Number of presets: | 300 |
| Horizontal scan: | - |
| Route settings: | 8 |
| Image compression method: | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Alarm inputs/outputs: | - |
| Main stream transmission speed: | 25 kadru nomaiņas ātrums – 4 Mpx |

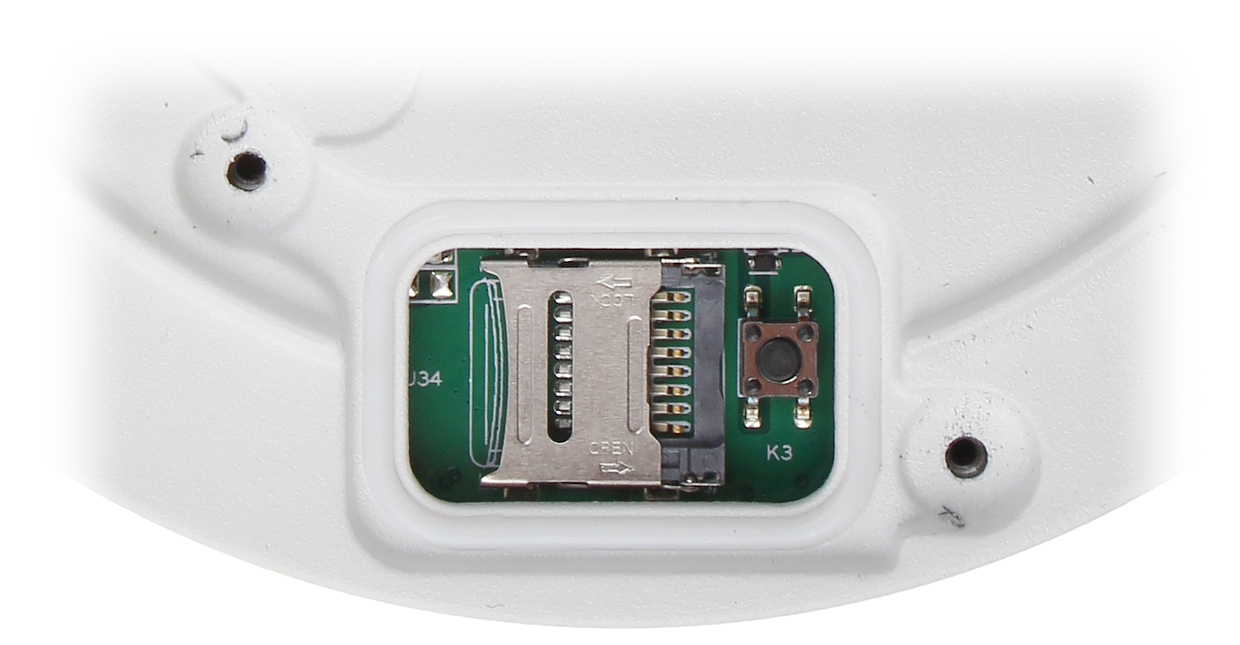

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6 , HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP RTCP, TCP/IP , UDP, IGMP, ICMP, DHCP, PPPoE, ARP |
| WEB Server: | Built-in, NVR compliant |
| Maximum number of online users: | 20 |
| ONVIF: | 20.06 |

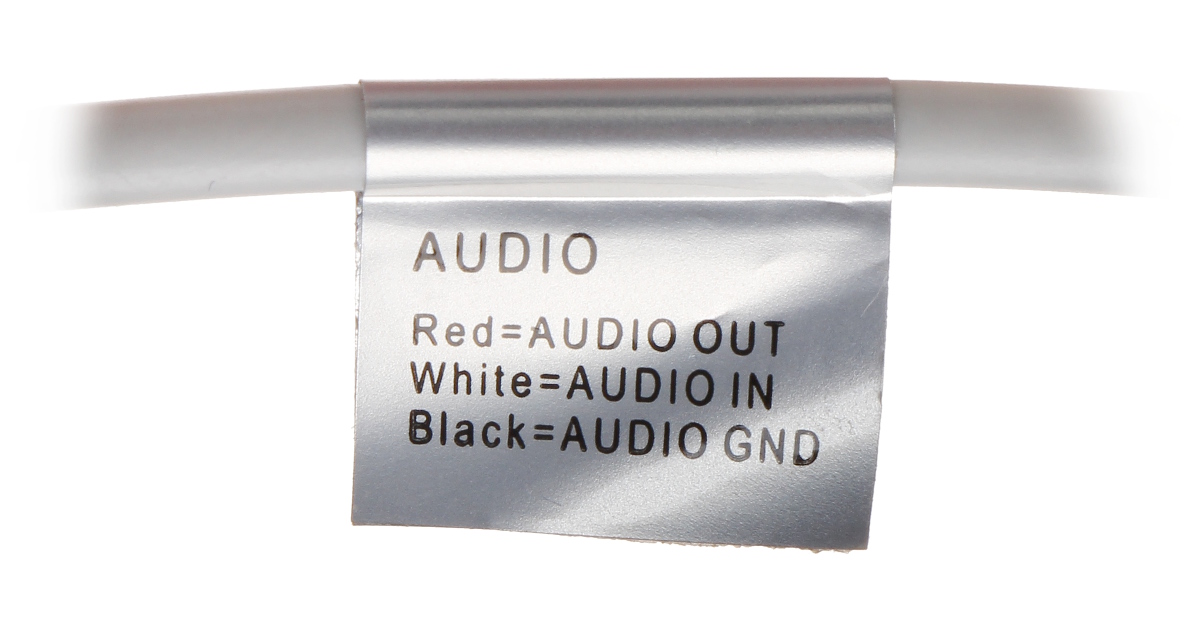

| Audio: | Iebūvēts mikrofons, Ārējā mikrofona ieeja, Audio izeja, Divvirzienu audio straumēšanas atbalsts Garso detekcija |
| Mobile phone access: | Port: 37777 or cloud access Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Default IP address: | 192.168.1.108 |
| Browser access ports: | 80, 37777 |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream |
| Selected features: | WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 2D-DNR, 3D-DNR – Digitāla trokšņa redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana F-DNR (Defog) – Ar atmosfēras nokrišņiem saistīto trokšņu redukcija EIS – Elektroniskais attēla stabilizētājs BLC/HLC – fona / spēcīgas gaismas kompensācija ICR – infrasarkano staru mehāniskais filtrs Dienas/nakts režīms Konfigurējamas privātuma zonas inteliģenta kustību noteikšana (nodalot personas no transportlīdzekļiem) SMD PLUS – objekta meklēšana, kas tiek klasificēts kā: cilvēks, mehāniskais transportlīdzeklis IVS analizė : ielaušanās , līnijas šķēršošana – personu un transportlīdzekļu klasifikācija, pamests/iztrūkstošs objekts , video sabotāža, ainas maiņa , veido detekcija , personu skaitīšana |
| Source of energy supply: | PoE (802.3af), 12 V DC / 710 mA |
| Power consumption: | ≤ 8.5 W |

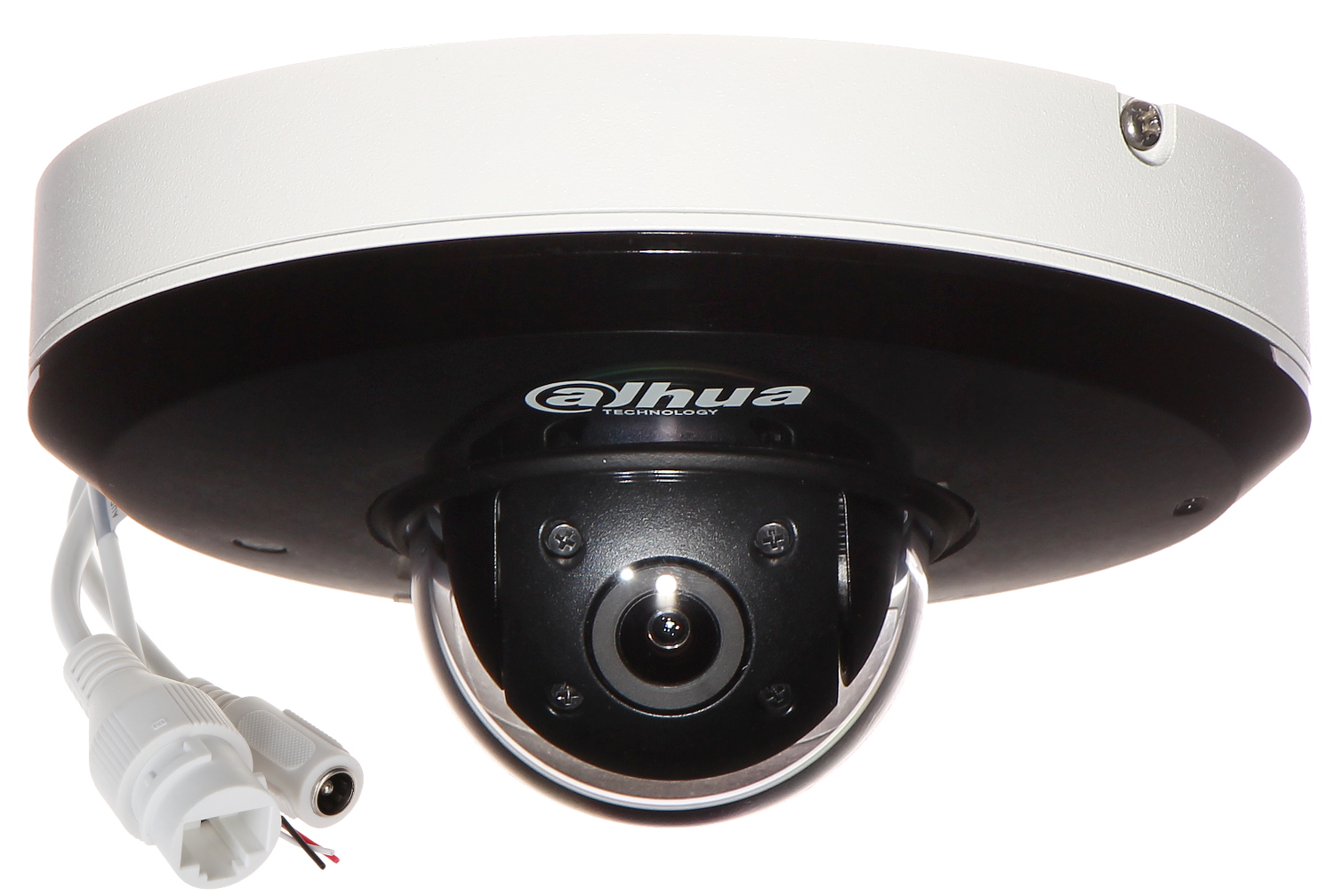

| Housing: | Speed Dome Metāla, Plastmasas |
| Colour: | Black + White |
| Protection class: | IP66 |
| Anti-vandalism: | IK08 |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.51 kg |

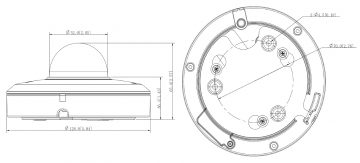

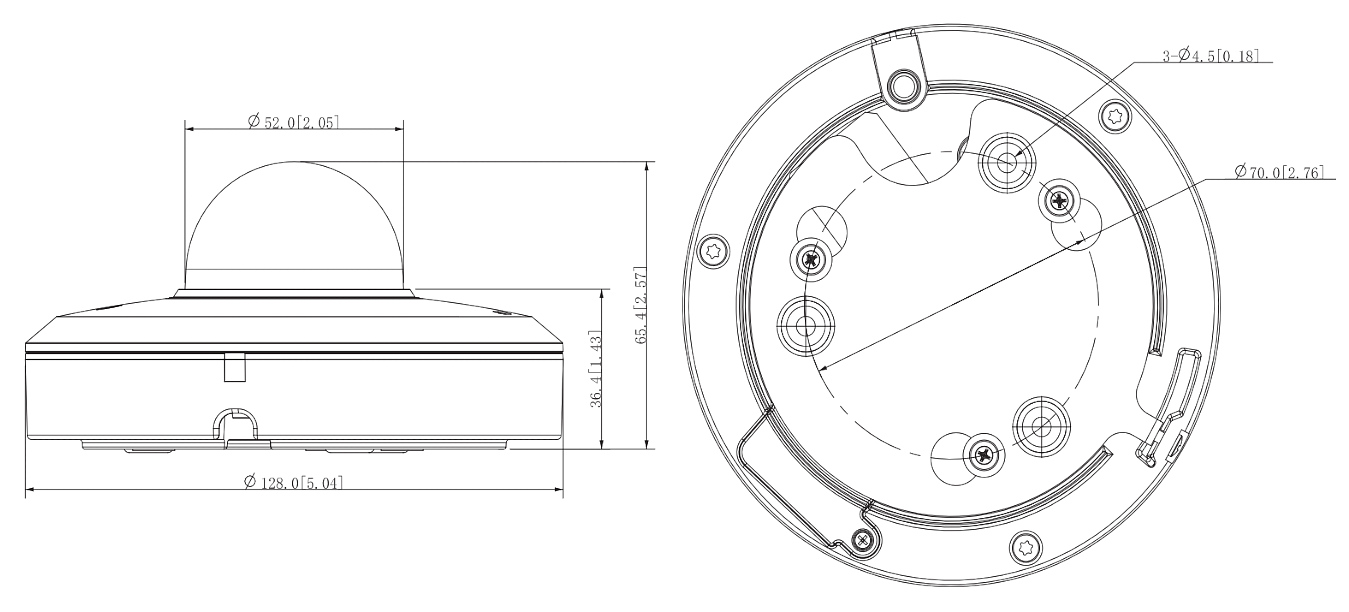

| Size: | Ø 128 x 65 mm |
| Language selection: | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Italian |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
