Video standard: AHD – 8 Mpx, HD-CVI – 8 Mpx, HD-TVI – 8 Mpx, TCP/IP – 8K, CVBS – PAL / NTSC </span>;>Display: 8 " Retina - capacitive touchscreen, 2048 x 1536 px </span>;>Entrance Video: 1 pc. AHD / HD-CVI / HD-TVI / CVBS – BNC socket 1 pc. HDMI </span>;>Output Video: 1 pc CVBS 1 pc HDMI </span>;>LAN port: 2 pcs. – Compatible with video cameras and PoE switch </span>;>Regular ports: RS-485 </span>;>Protocols: : Pelco-D, Pelco-P </span>;>Wi-Fi module</span>;>Selected features: Compatible image compression methods: H.265, H.264, MJPEG </span>;
<table>
Video standard:
Display:
8 " Retina - capacitive touchscreen, 2048 x 1536 px
Entrance Video:
Exit Video:
LAN port:
2 pcs. – Compatible with video cameras and PoE switch
Audio Input:
1 pc. Mini Jack
Audio Output:
1 pc. Mini Jack
Video signal level meter:
AHD, HD-CVI, HD-TVI, CVBS : Peak level, Sync level, Burst
Video signal generator:
Regular ports:
RS-485
Protocols:
Supports more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(MB), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC
Transmission speed:
150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
Testing a twisted pair cable or telephone line:
Testing UTP cables or telephone connections with RJ-45 plugs
Line test RS-485, RS-232:
Data check with master device (commands are displayed in hexadecimal)
Wi-Fi module:
Cable identification in a cable group:
Audio test:
Digital multimeter:
Optical power measurements:
VLS (VFL) – visual fault locator from optical fibers:
TDR reflectometer:
Work as a power source:
Charging the batteries:
Expected battery life:
10 hours (max)
Operation:

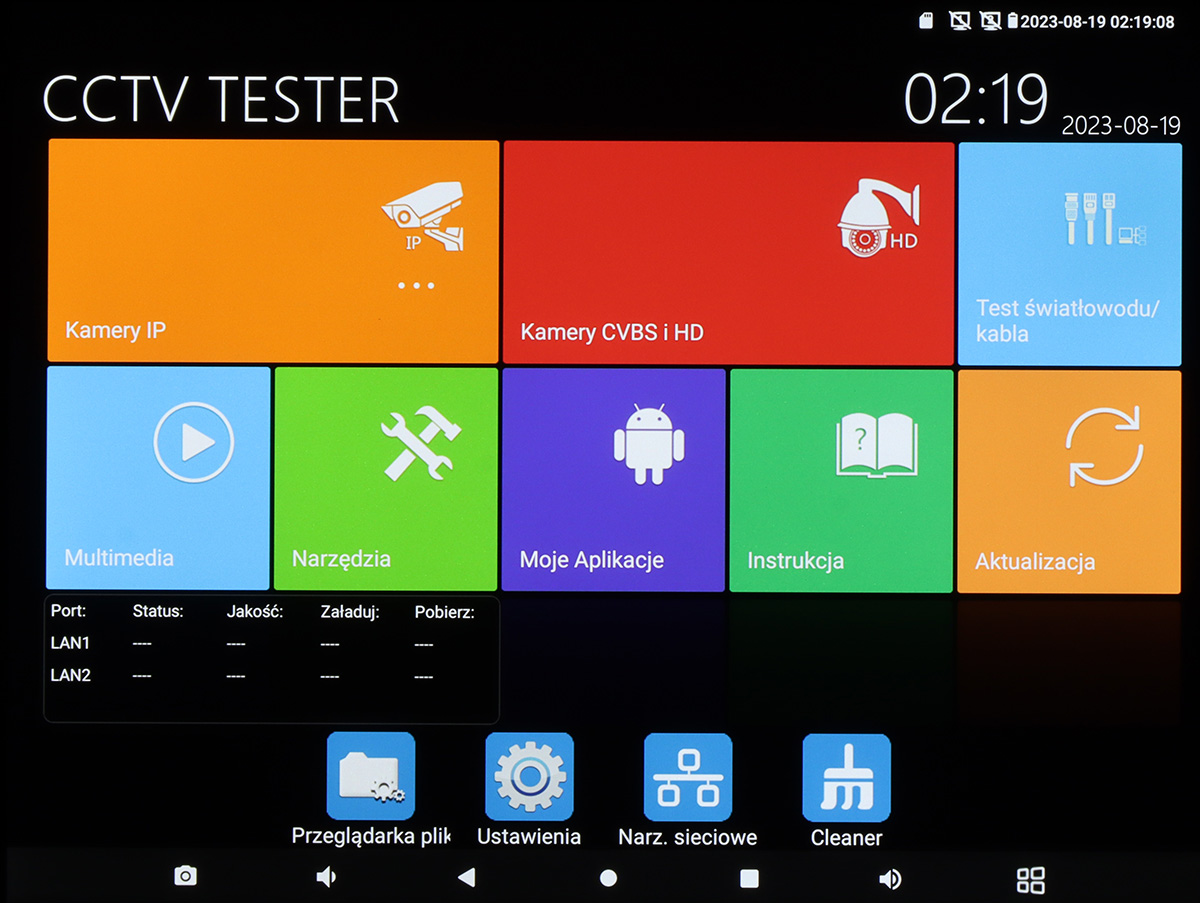

Graphical menu – touch control and key control
Selected functions:
Operating temperature:
-10°C … 50°C
Permissible relative humidity:
30 % … 90 %
Weight:
1.16 kg
Size:
263 x 182 x 42 mm
Language selection:
Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian
WARRANTY:
2 years

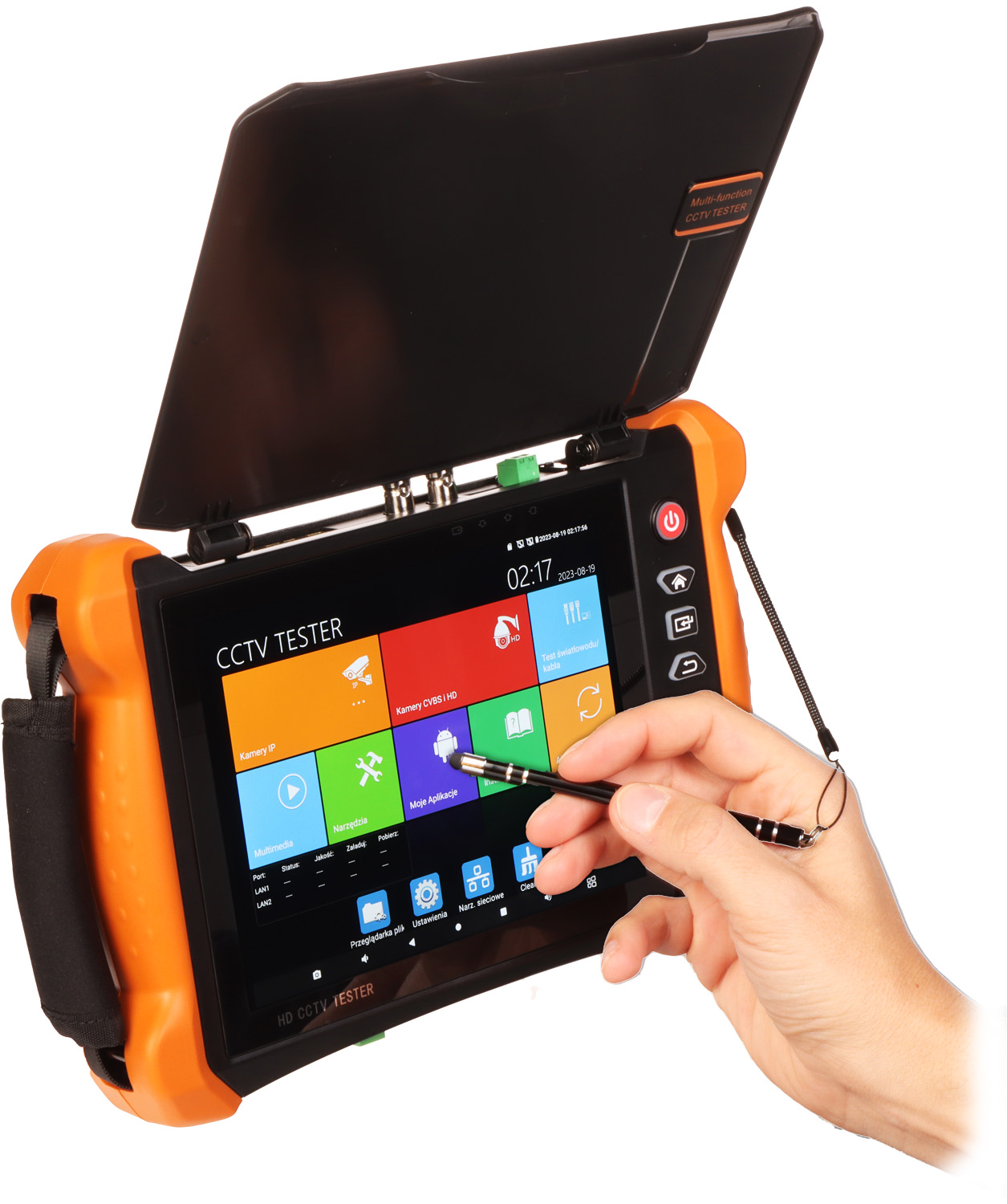

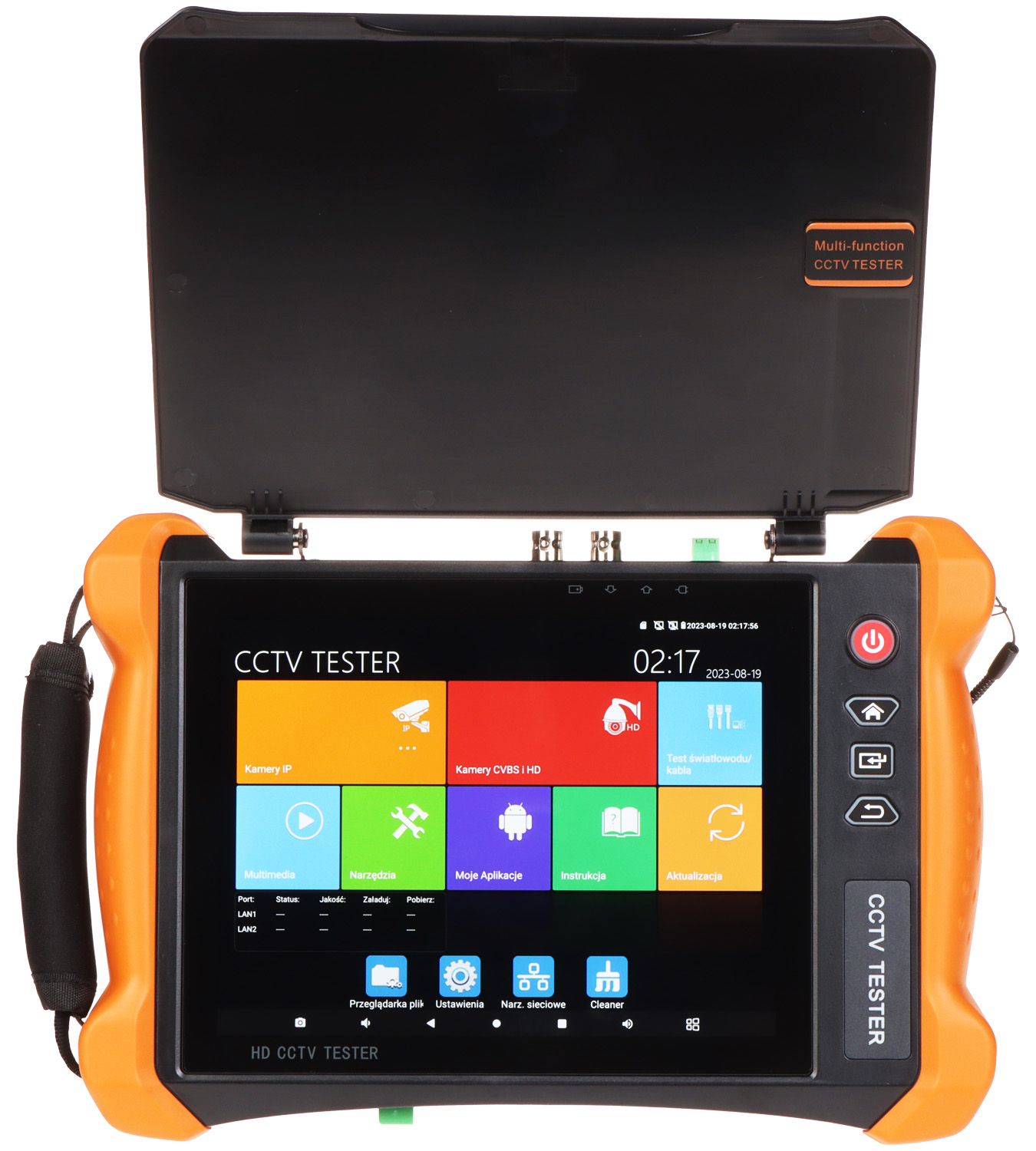

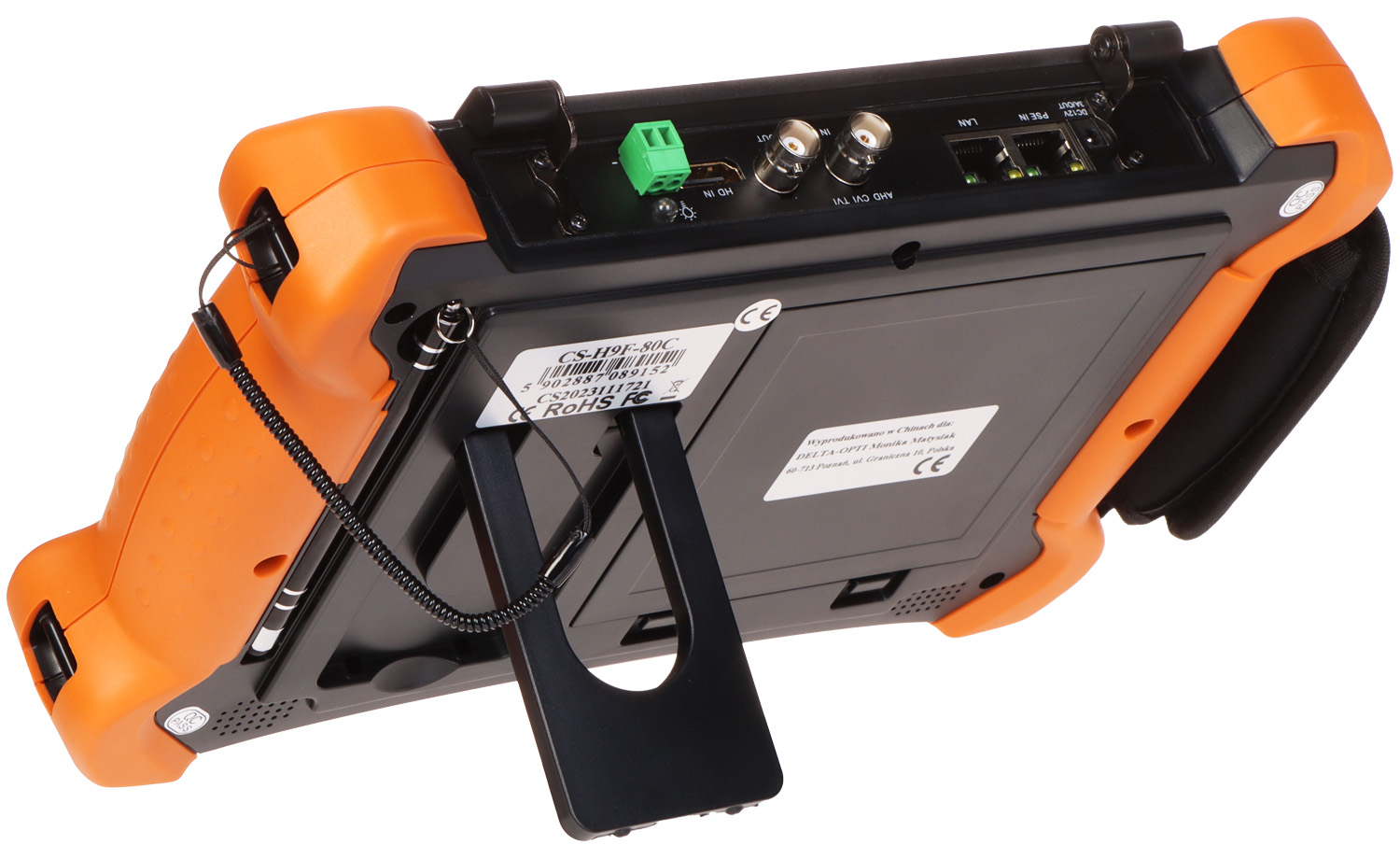

MULTIFUNCTION TESTER CCTV CS-H9F-80C
Estimated Delivery Dates
564,25 €
Availability: 7
Additional information
| Svars | 2,5420 kg |
|---|---|
| Dimensions | 350 × 300 × 105 cm |
