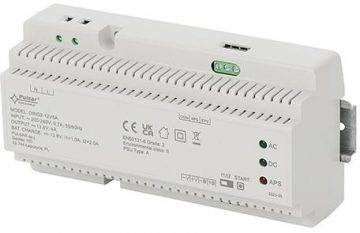

Bufera komutācijas barošanas avots DIN sliedei 2. pakāpe DING2-12V5A 13.8V 5A – galvenās iezīmes:
- atbilstība ielaušanās un aizturēšanas trauksmes sistēmu standartam (SSWiN) EN50131-6:2017 1., 2. pakāpei un II vides klasei
- atbilstība piekļuves kontroles sistēmu standartam (KD) EN60839-11-2:2015+AC:2015 un vides klase I
- supply voltage ~200–240 V
- DING2 series is an uninterruptible power supply 13.8 V or 27.6 V
- The DING2 series power supply is available in versions with current capacity: 13.8 V: 2A/3A/5A and 27.6 V: 2A/3A
- high efficiency (up to 90%)
- battery charging current selected by jumper (for selected models from the DING2 series)
- battery over-discharge protection (UVP)
- START funkcija manuālai pieslēgšanai akumulatora barošanas avotam
- LED optical indication
- battery dynamic test
- battery circuit continuity check
- battery voltage control
- EPS tehniskā izeja elektrotīkla kļūmei – OC tips
- APS battery failure indication technical output – OC type
- battery charging and maintenance management
- battery output protection against short circuit and reverse connection
- Protection: SCP short circuit, OLP overload, OVP overvoltage, Overvoltage protection
- Warranty – 2 years from the date of manufacture
DIN rail buffer switching power supply 2nd stage DING2 – description
The buffer power supplies are designed in accordance with the requirements of the standard (SSWiN) EN50131-6:2017, level 1, 2 and environmental class II, as well as (KD) EN60839-11-2:2015+AC:2015 and environmental class I. The power supplies are designed for continuous power supply of SSWiN and KD devices that require a stabilized voltage of 12 V or 24 V DC (±15 %).
