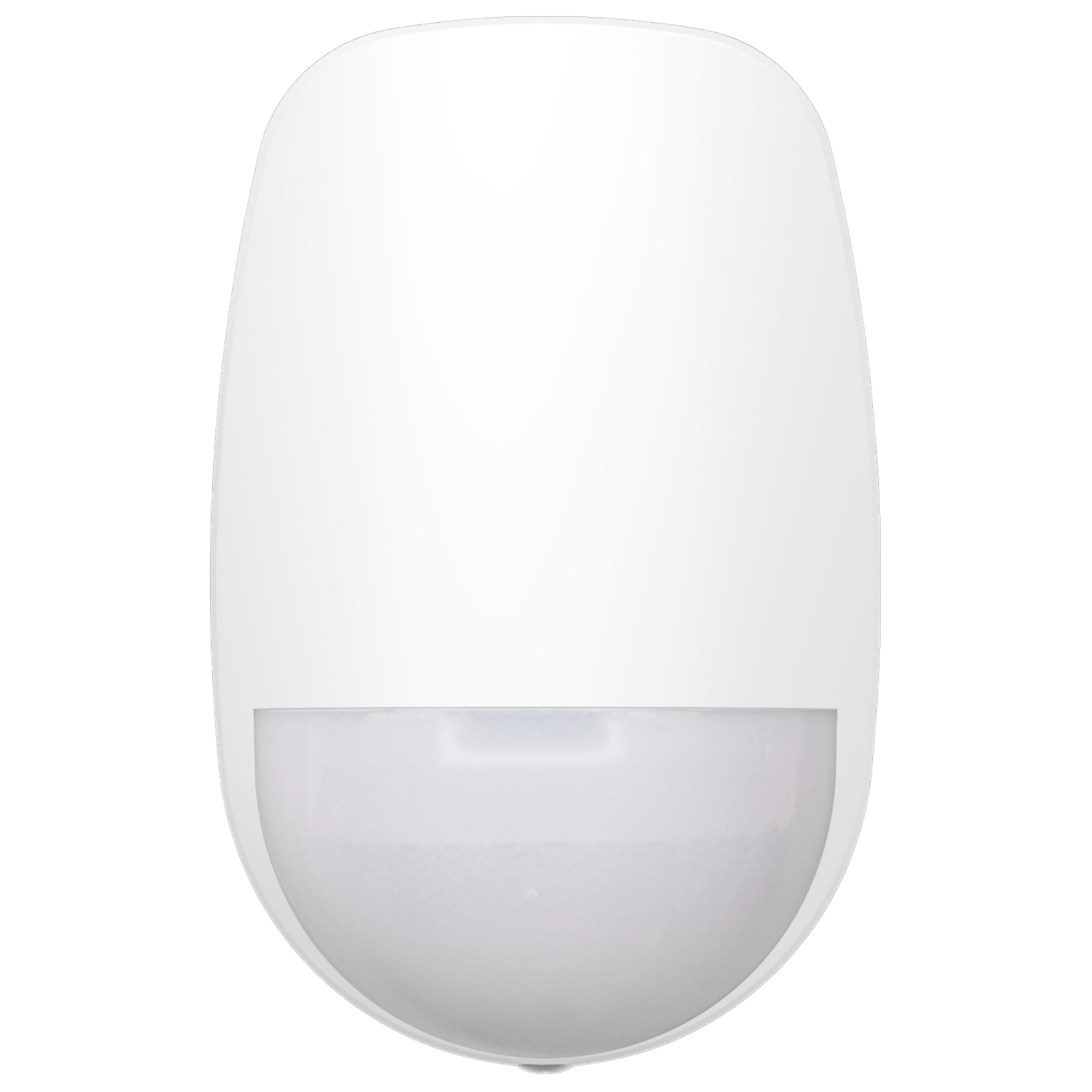

DIVKĀRŠAS TEHNOLOĢIJAS MIKROVIĻŅU DETEKTORS + PIR DS-PDD15AM-EG2 Hikvision

Application: Internal </span>;>Sensor type: Passive infrared (PIR) and microwaves (MW) </span>;>Reception area: 15 m </span>;>Detection angle: 85.9 ° </span>;>Colour: White </span>;>Selected characteristics: Pieejas zonas kontrole </span>; <table>

Application:
Internal
Sensor type:
Passive infrared (PIR) and microwaves (MW)

Recommended mounting height:
1.8 m … 2.4 m
Reception area:
15 m

Detection angle:
85.9 °
Sensitivity setting:
Automatic

Alarm output:
NC
Sabotage exit:


LED indication:

Mikroviļņu frekvences josla:
24.15 GHz … 24.25 GHz

Resistant to animals:

Antimaskas funkcija:


Anti-cloaking:

Anti-blocking:


Digital temperature compensation:

Protection class (Grade):
EN50131-2-4:2020 Grade 2

Environmental class EN 50130-5:
II
Source of energy supply:
9 … 16 V DC / 25 mA

Operating temperature:
-10°C … 55°C
Target movement speed:
0.3  … 2 m/s

Colour:
White
Selected characteristics:
