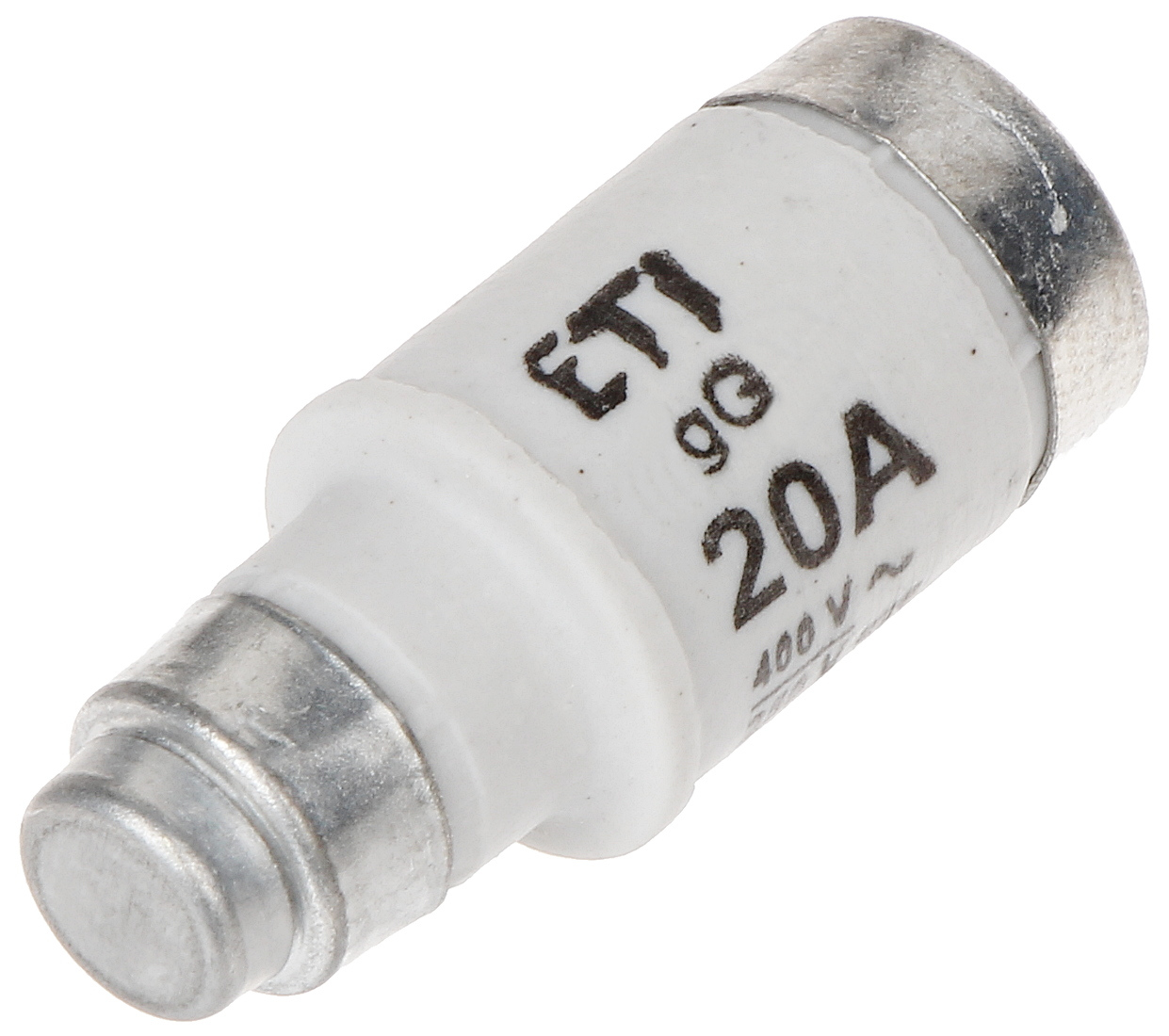

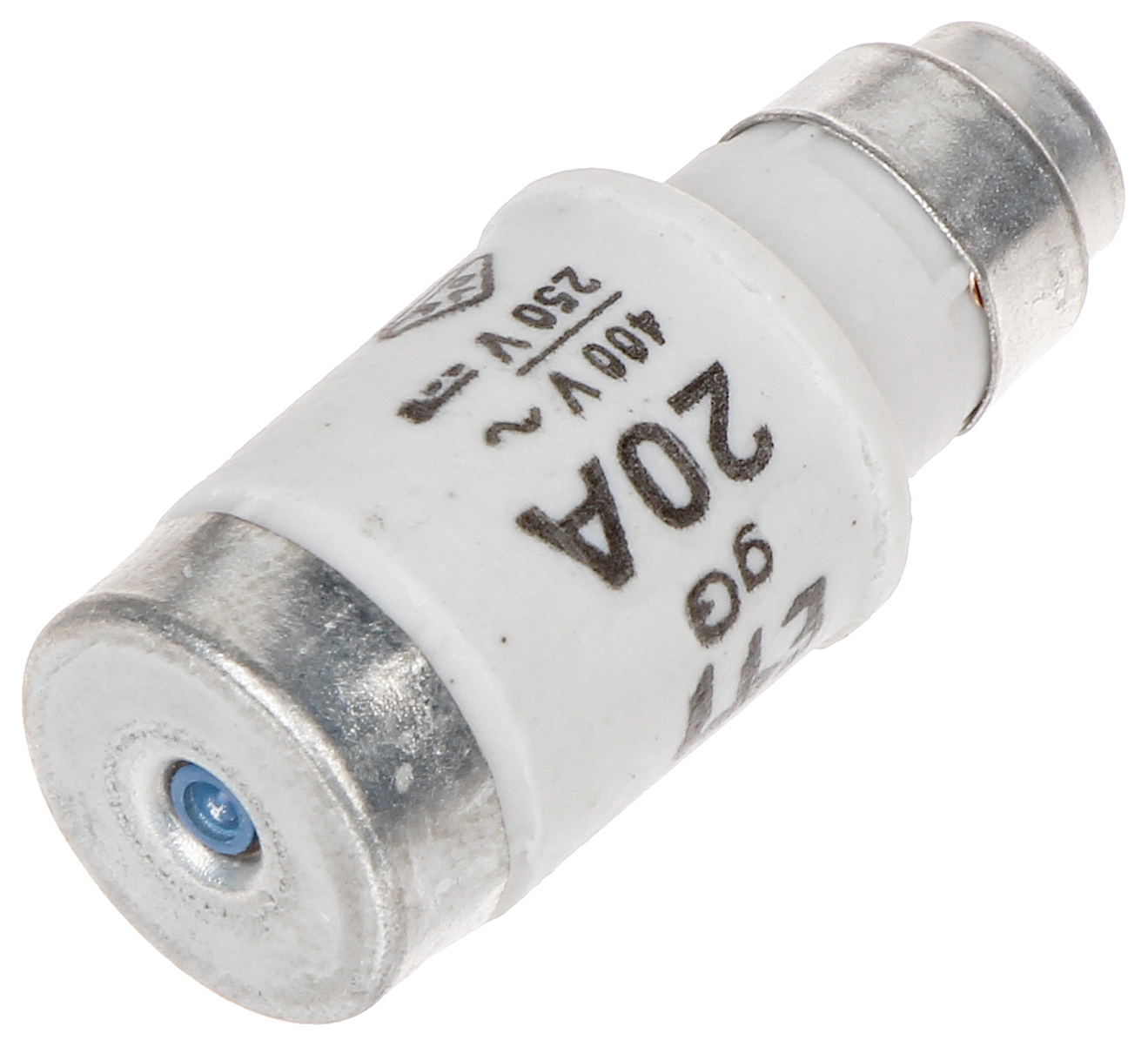

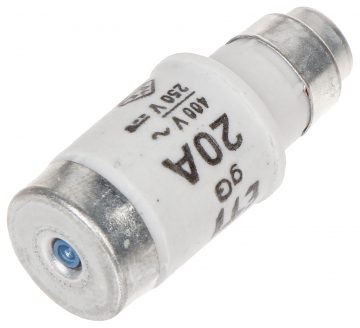

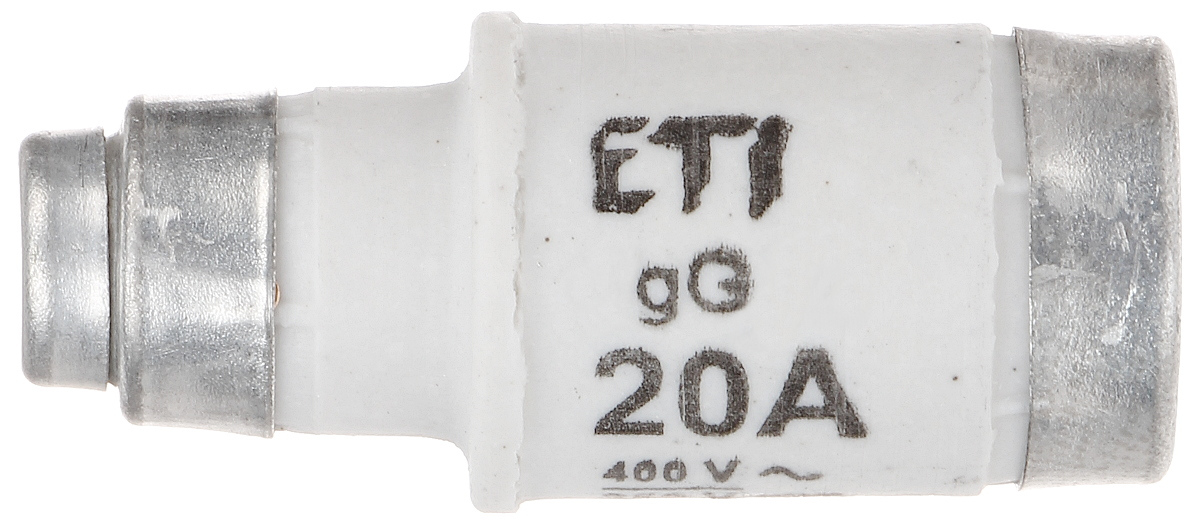

Technical Specification:
| Rated current: | 20 A |
| Rated voltage: | 250V DC, 400V AC |
| Fuse characteristics: | gG |
| Fuse socket: | E18 |
| Type: | D0 |
| Size: | D02 |
| Unlocking capacity: | 50000A AC, 8000A DC |
| Selected characteristics: | Low power and energy consumption Low temperature rise High short-circuit current limiting capability Stability of the time-current characteristic and selectivity of operations Selective cooperation with current overload circuit breakers |
| Housing: | Ceramic |
| Weight: | 0.011 kg |
| Size: | Ø 15 x 36 mm Ø 10.9 mm (A) |
| Manufacturer / Brand: | EIT |
| Warranty: | 2 years |
