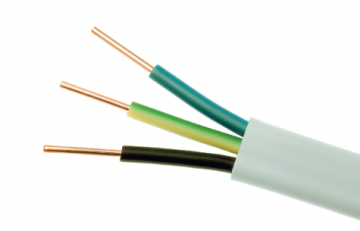

Electric cable flat wire YDYp 450/750V 3×2.5mm2 ELEKTROKABEL 100m
Cables with copper conductors, single-core, with PVC insulation and electrical insulation, for permanent installation, flat, for general installation
and in humid environments, for installation under plaster and on plaster.
specification
- Standards- pn-en 50525-1: 2011, pn-e-90068
- Reaction to fire- (CPR) eca 3 x 2.5 mm²
- Crucial cores according to PH-HD 308 S2:2007 — yellow-green, brown, blue
- Core — solid copper, class 1, according to PN-EN 60228:2007 Insulation – tire PVC
- Packaging — reels up to 100 m long
- Number of cores and nominal cross-section — 3 x 2.5 mm²
- Number of wires in the core — 1
- Nominal insulation thickness — 0.8mm
- Nominal tire thickness – 6.3 x 12.9 mm
- Maximum core resistance at 20 ̊C — 7.41 Ω/km
- Minimum insulation resistance at 70 ̊C – 0.010 mΩ x km
- Approximate cable weight – 140 kg/km
Permissible operating temperature
- On the cable surface: max. 70 ̊C
- Working cores at short circuit: max. 160 ̊C
- Transportation, assembly, processing: min. -5 ̊C
- Storage: max. 40 ̊C
