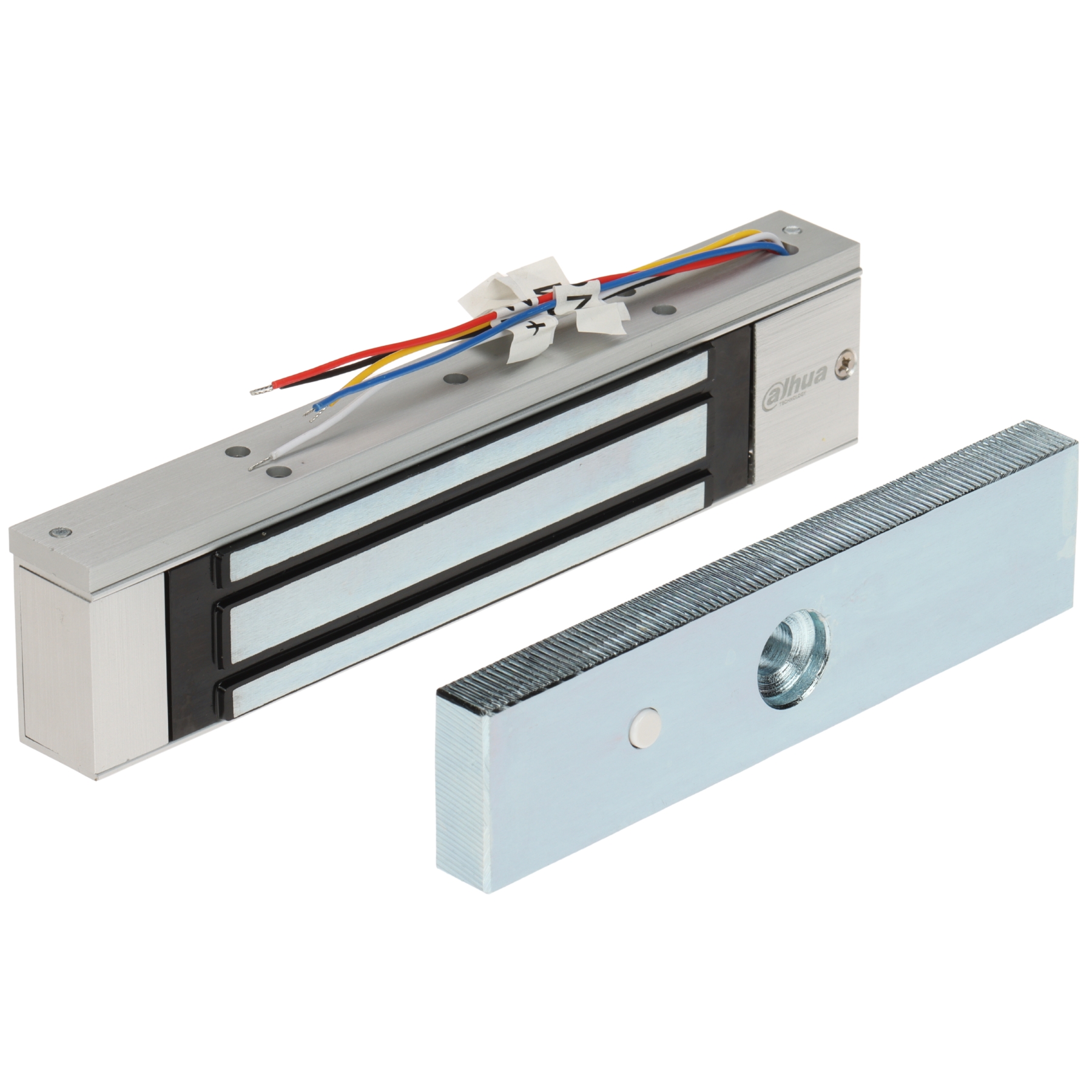

ELECTROMAGNETIC LOCK ASF180A-V1 DAHUA

Product code: ASF180A-V1

EAN: 6923169766706

Piegādes laiks: 17-21 Janvārī

Estimated Delivery Dates

27,64

Availability: 19

Load capacity: 180 kg </span>;>Rated voltage: 12 V DC </span>;>Current consumption: 370mA </span>;>Selected characteristics: LED indication, Door status detection </span>; <table>

Load capacity:
180 kg
Rated voltage:
12 V DC

Current consumption:
370mA
Selected characteristics:

  • LED indication,
  • Door status detection
  • NO/NC output signals door opening
  • Turnstile remains open after power outage
  • For internal use
  • Door thickness range: 5 … 15 cm

    Weight:
    1.04 kg (total)

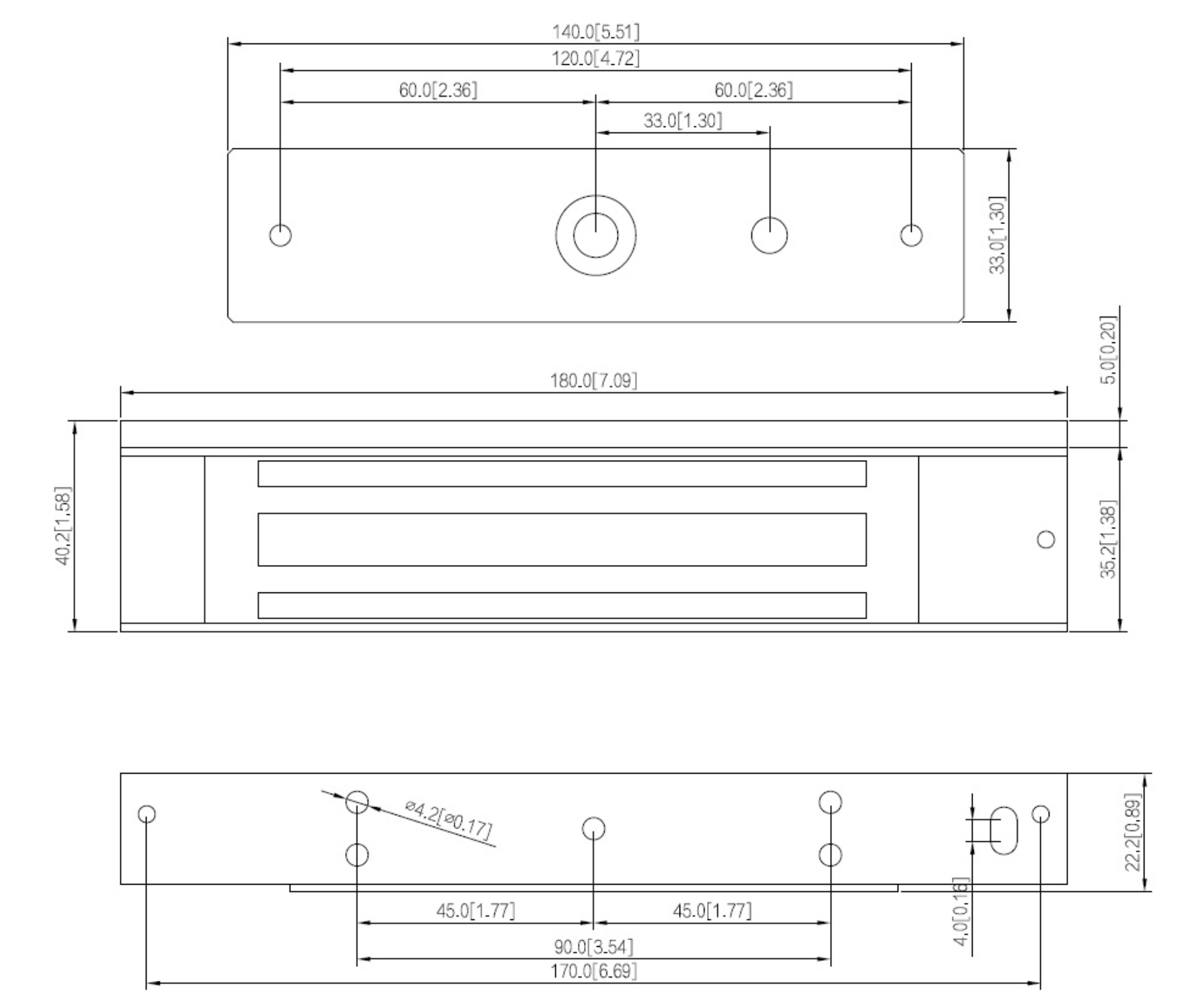

    Size:

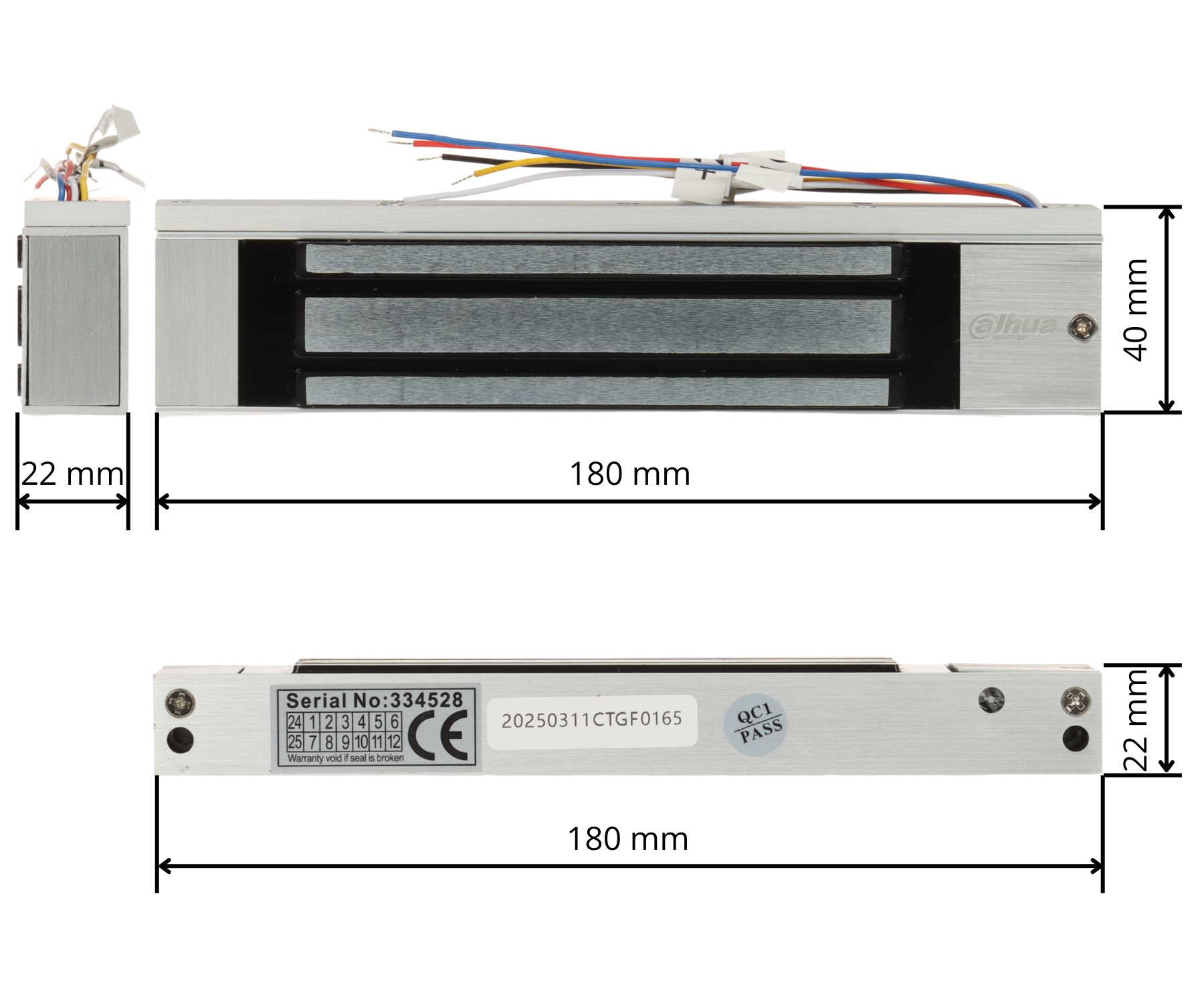

  • 180 x 40 x 22 mm (ELECTROMAGNETIC HOLDER)

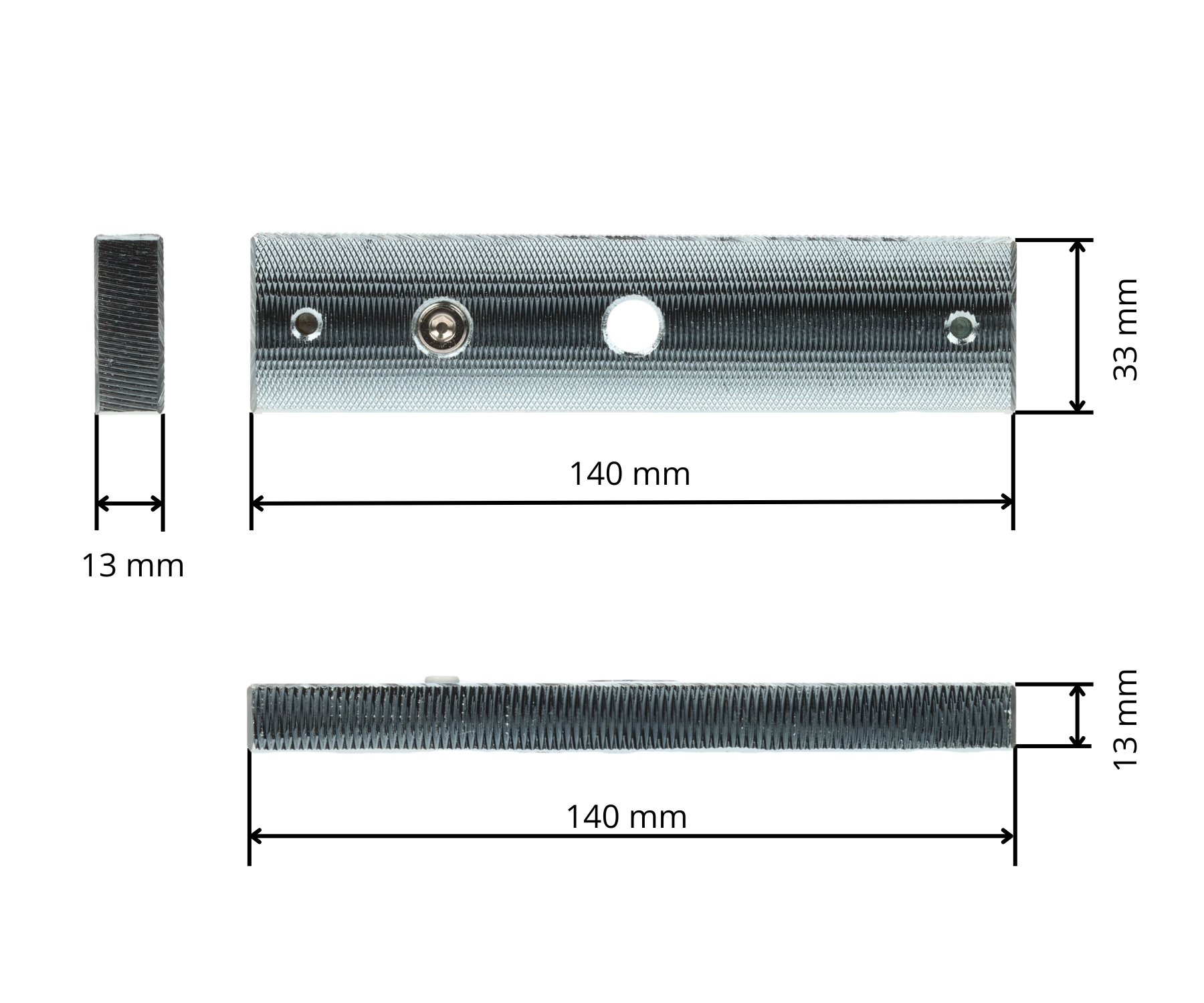

  • 140 x 33 x 13 mm (metal plate)

    Manufacturer / Brand:
    DAHUA
    WARRANTY:
    2 years
  • Additional information

    Svars 1,1840 kg
    Dimensions 210 × 60 × 55 cm
