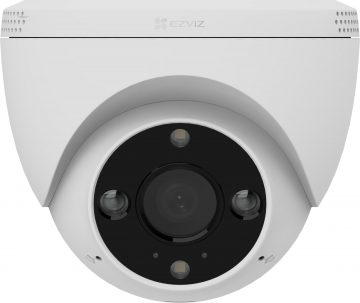

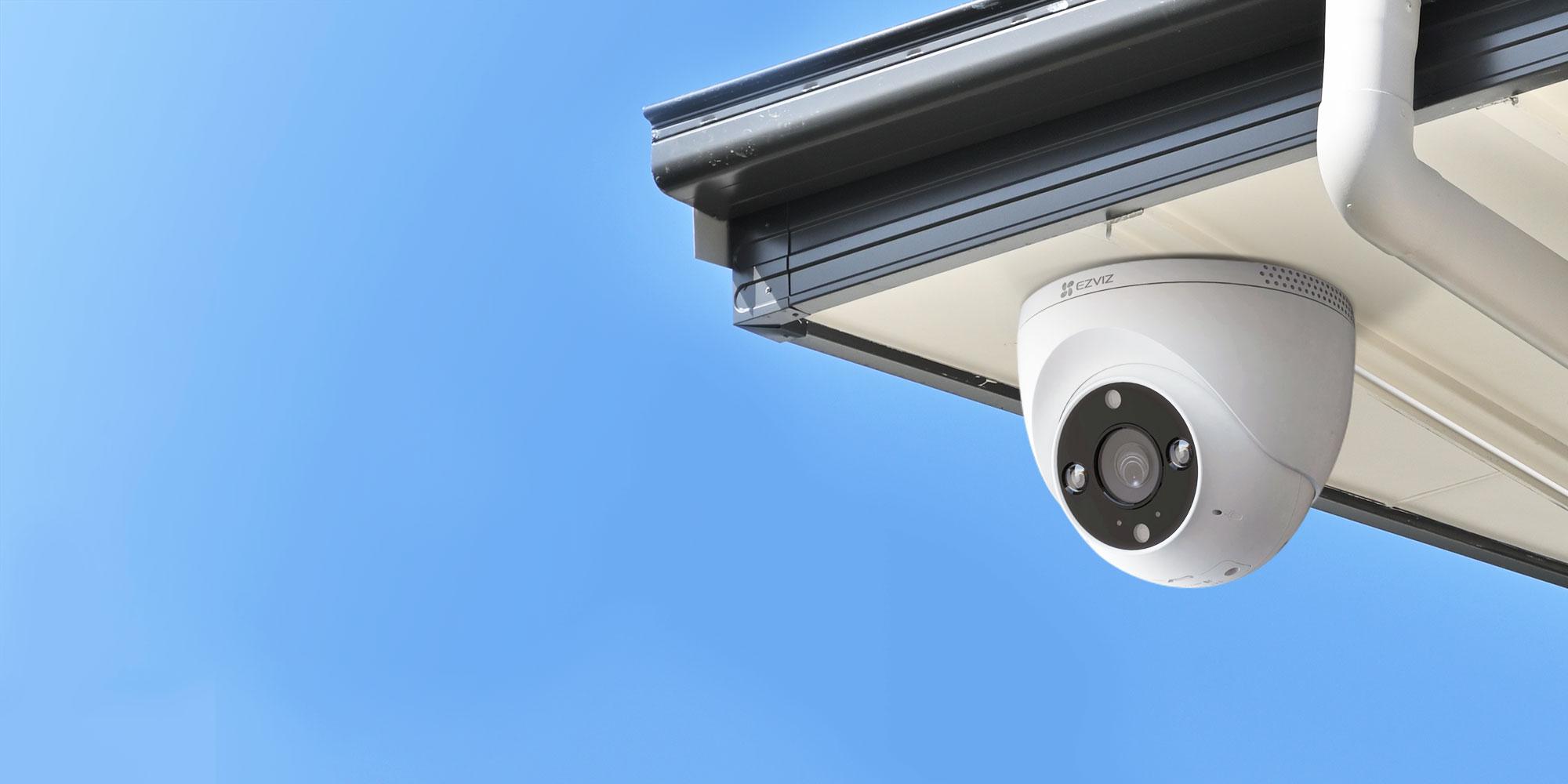

Durable dome-shaped outdoor camera with 2K (2304×1296) resolution,
PoE power/link via a single cable and AI people/vehicle detection.
Color or IS night vision, active protection (siren + strobe),
H.265 videos and microSD up to 512 GB.
- 2K (3MP) quality + H.265 — less traffic and storage.

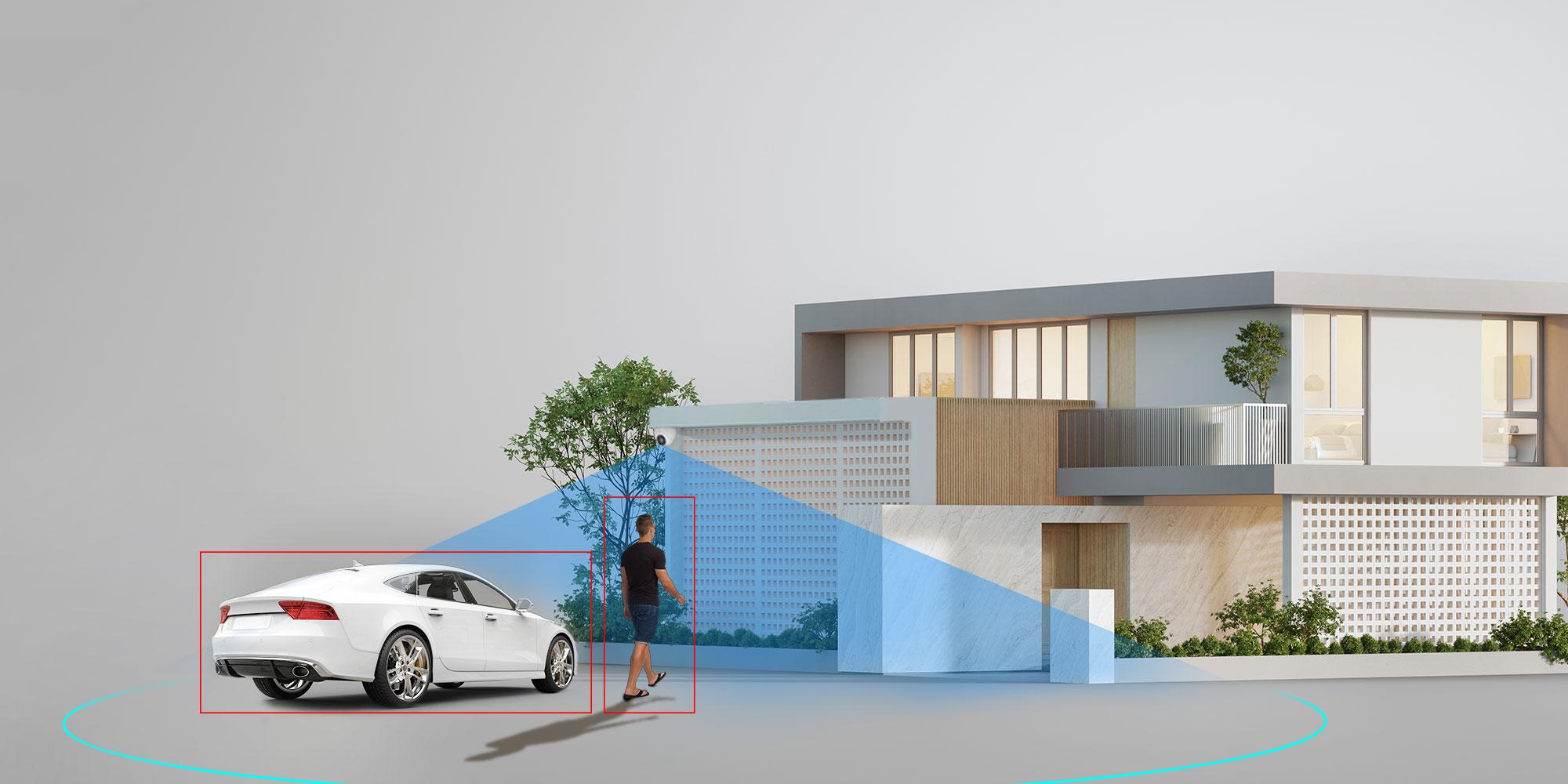

- AI person/car, customizable zones; two-way audio.

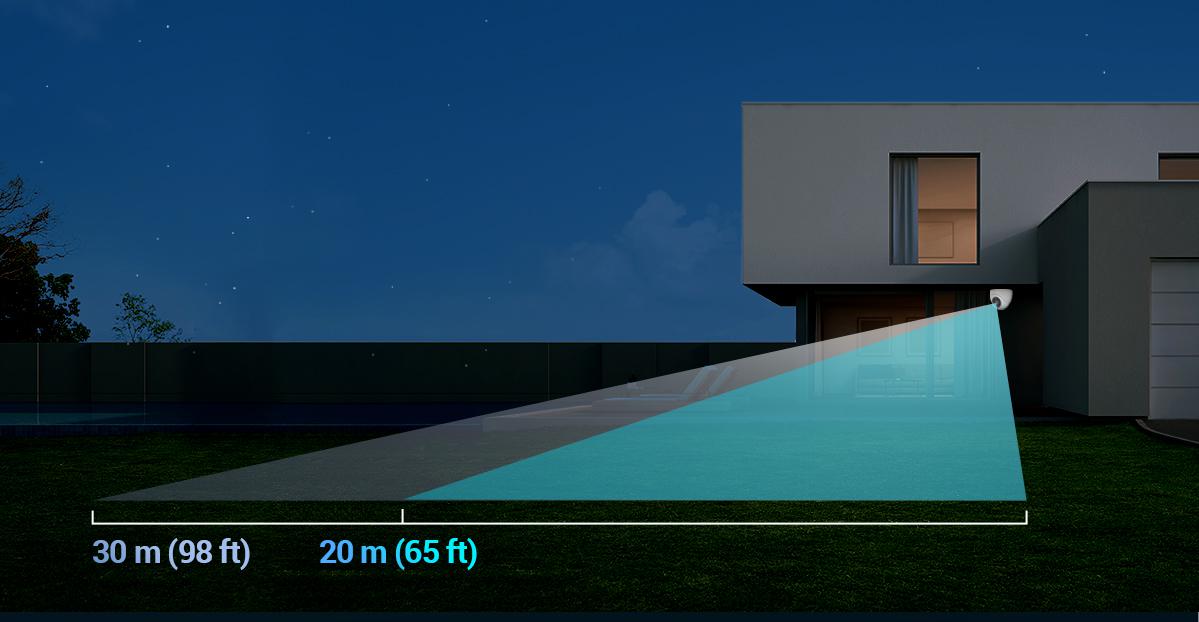

- Night of colors with spotlights and IS until 30 m.
- PoE (802.3af) or DC 12V; RJ45 10/100M.

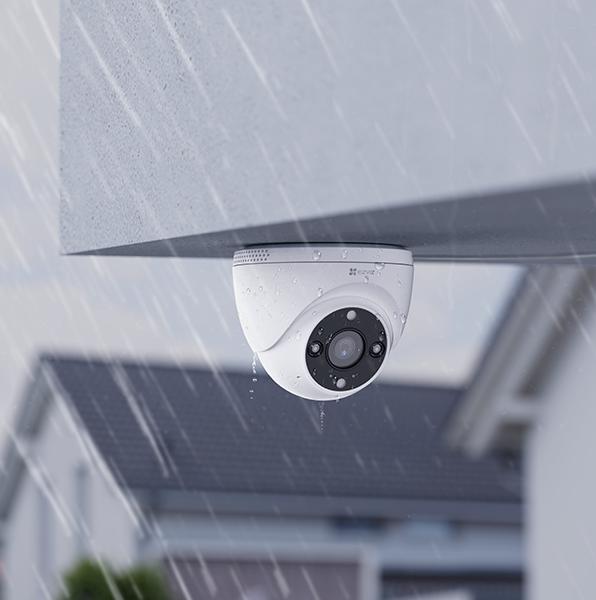

- IP67 metal body; microSD up to 512 GB or CloudPlay.
Technical specification
| Model / MPN | CS-H4-R201-1H3EKFL (PoE) |
|---|---|
| Resolution/fps | 2304×1296 (2K), self-adaptive in the network |
| Sensors | 1/2.7″ Progressive Scan CMOS |

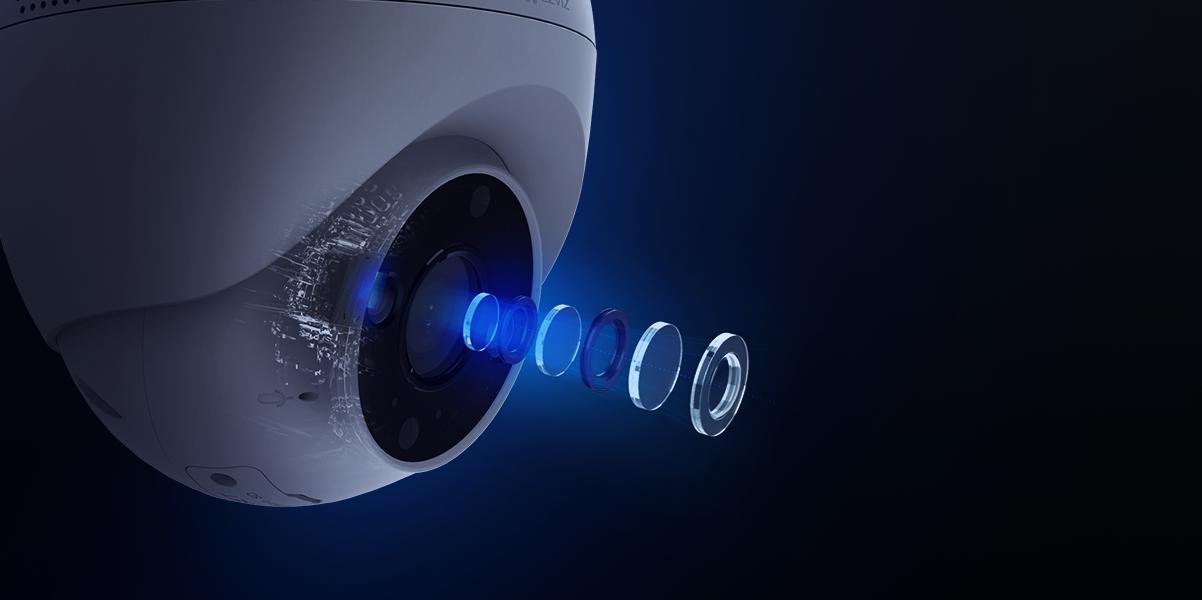

| Lens / Viewing Angle | 2.8 mm: ~106° (H) · 4mm: ~86° (H) · 6 mm: ~52° (H) |
| Day / night | Night of colors with spotlights; IS until ~30 m |
| Smart features | AI people/vehicle detection; zones; customizable voice notifications |
| Active protection | Siren + stroboscope |

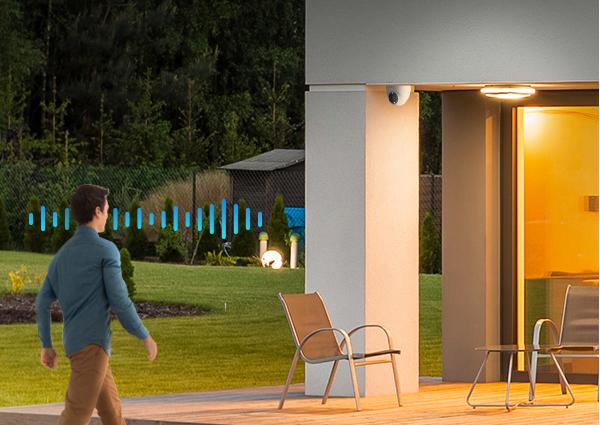

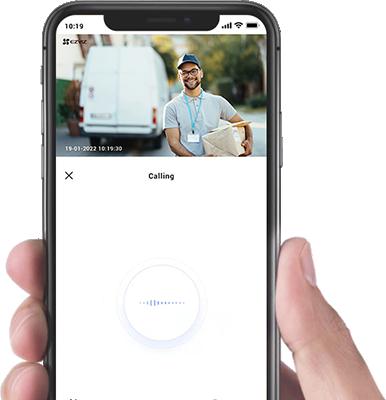

| Audio | Two-way conversation |
| Videos | H.265 / H.264; adaptive bitrate |
| Network | RJ45 10/100M; PoE 802.3af (power + data via one cable) |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay (subscription) |

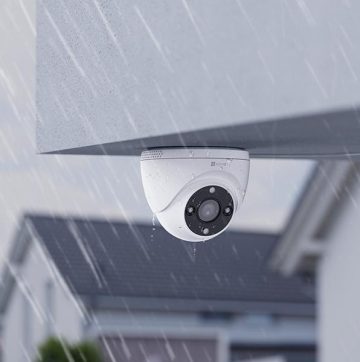

| Hull | IP67; −30…+50 °C; ≤95% RH (non-condensing) |
| Feeding | PoE (802.3af) or DC 12V |

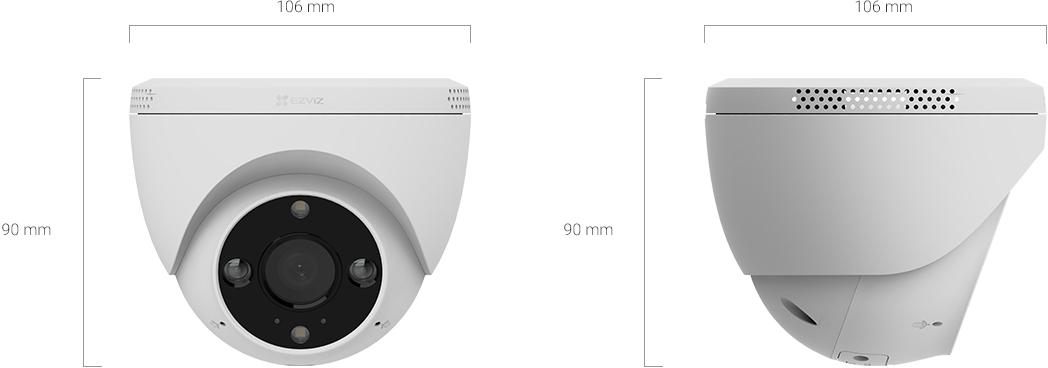

| Dimensions / weight | ~106 × 106 × 90mm; around 229 g |
| Included | Camera, mounting kit, screws/dowels, drilling template, QIG/regulatory information |
Note: PoE provides both power and data transmission over a single Ethernet cable; PoE switch/injector sold separately.

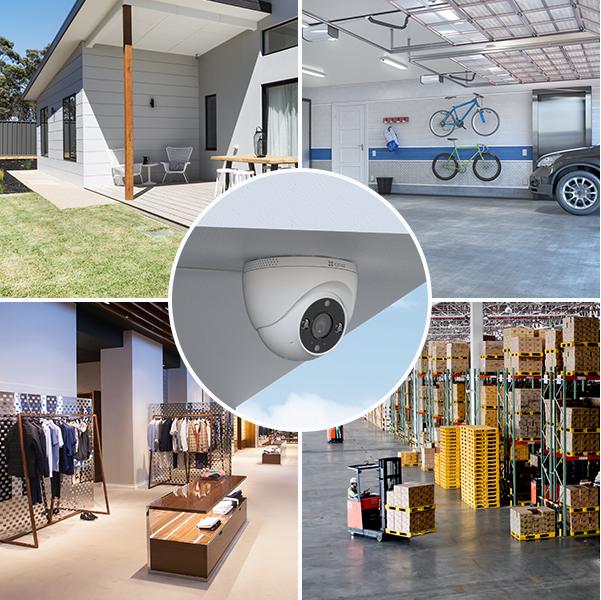

Where is it useful?
- Perimeters, yards, warehouses — 24/7 recording and active deterrence.
- Schools/offices — PoE single-cable installation for easy connection.
- Long lines — RJ45 stability against capricious Wi-Fi.
FAQ
Does the H4 PoE support Wi-Fi?
No - this version works through RJ45 (with PoE or DC 12V).
Is local recording possible?
Yes — microSD up to 512 GB and/or EZVIZ CloudPlay (subscription).
Did you know?
- PoE 802.3af allows you to power the camera up to ~100 m over a regular Ethernet (Cat5e/6) line.
- H.265 reduces storage/network consumption compared to H.264 at similar quality.
