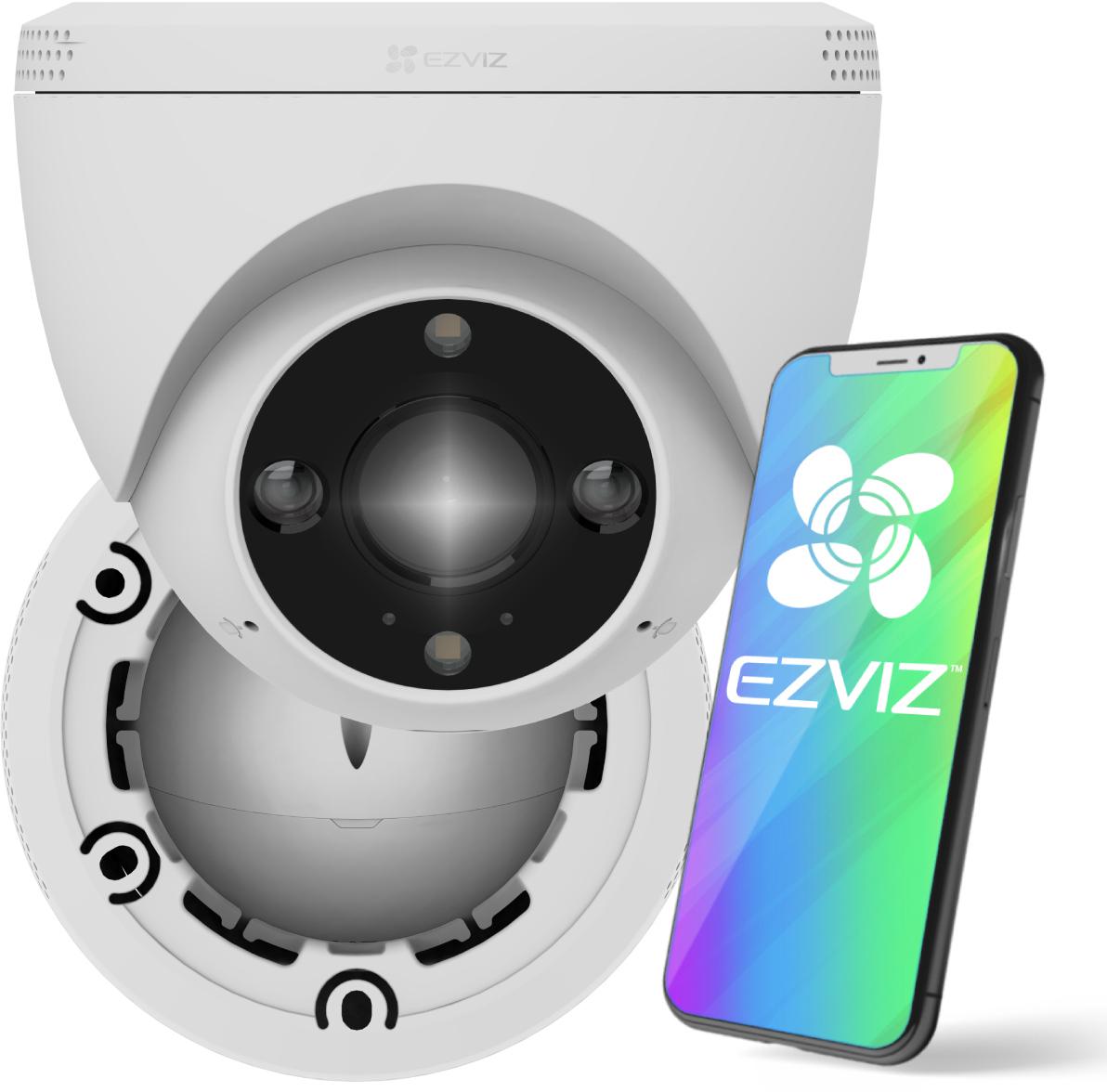

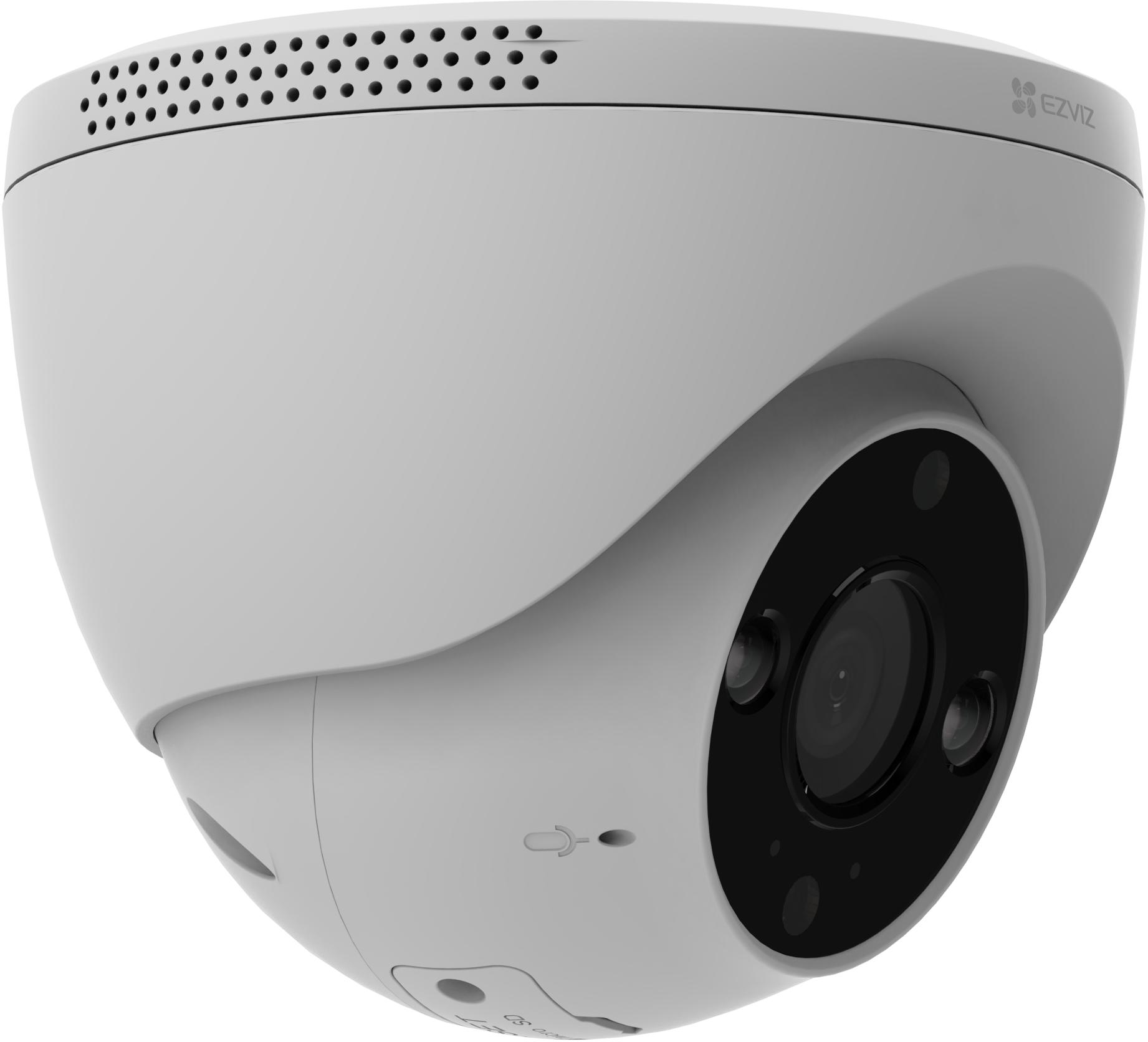

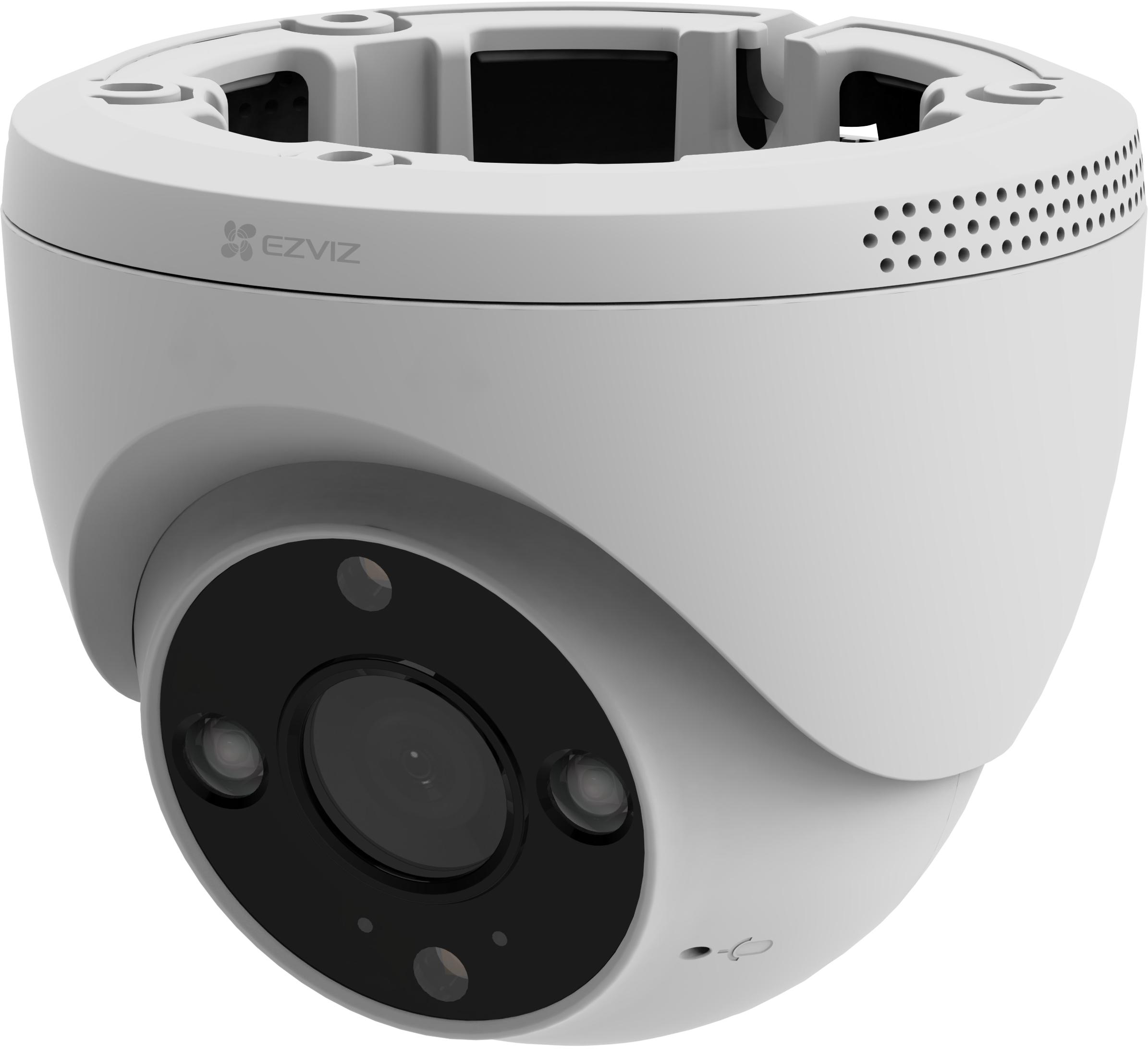

Rugged dome camera with 2K (2304×1296) resolution and active protection
(siren + strobe). Color night up to ~15 m or IR up to ~30 m,
two microphones for better sound, AI people/vehicle detection,
H.265, microSD up to 512 GB, Wi-Fi 2.4 GHz and RJ45. IP67 housing for outdoor use.
- 2K (3MP) until 25 fps with H.265.
- Color/IR night: to 15/30m (Smart Night Vision).
- AI: shapes of people and vehicles, customizable areas.
- Active protection: loud siren and strobe lights.
- Two microphones — improved audio perception up to ~15 m.
- microSD up to 512 GB + EZVIZ CloudPlay (optional).
- Wi-Fi 2.4 GHz with For initial setup of AP modes + RJ45 10/100M.
- IP67 and work from −30…+50 °C.
Technical specification
| Model / MPN | CS-H4-R201-1H3WKFL |
|---|---|
| Max. resolution / frames | 2304×1296 (2K), up to 25 fps (self-adaptive network) |
| Sensors | 1/2.7″ Progressive Scan CMOS |
| Lenses / FOV | 2.8mm: 106° (H) / 122° (S) · 4mm: 86° (H) / 102° (S) 6mm: 52° (N) / 62° (S) |
| Day / night | Color until ~15 m or IS until ~30 m; ICR; 3D DNR; WDR |
| Smart features | People/vehicle detection, customizable zones, voice notifications |
| Audio | Two-way audio, two microphones (perception to ~15 m) |
| Videos | H.265 / H.264; Ultra-HD/HD/Standard; adaptive bitrate (max ~3 Mbps) |
| Network | Wi-Fi 2.4 GHz (802.11b/g/n; AP mode for setup); RJ45 10/100M |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay (subscription) |
| Protection | IP67 weather resistance |
| Power supply / consumption | DC 12V / 1A; max 8W |
| Operating conditions | −30…+50 °C; ≤95% RH (non-condensing) |
| Dimensions / weight | 106 × 106 × 90mm; approx. 229 g |
| Included | H4 camera, power adapter, drilling template, screw set, QIG, regulatory information |
Note: color night uses white LEDs; IR mode extends further but is black and white. Wi-Fi operates on the 2.4 GHz band; available in initial setup AP mode.
Where is it useful?
- Yards, driveways, warehouse entrances — IP67 and active protection.
- Shops and workshops — AI people/vehicle detection and voice notifications.
- Perimeters with noisy background — two microphones improves audio quality.
Installation recommendations
- Choose a focus: 2.8 mm for a broader overview, 4/6mm — for a further point view.
- Mount at a height of ~2.7–3 m; set detection zones to reduce false alarms.
- For longer recordings, use H.265 and 128–512GB microSD.
FAQ
Does the H4 support Wi-Fi 5 GHz?
No — the model works 2.4 GHz in the lane; also available RJ45 wired connection.
How far can you see at night?
Until ~30 m In IR mode; colors up to ~15 m with white LED.
Can I record locally?
Yes — microSD up to 512 GB and EZVIZ CloudPlay (subscription).
Did you know?
- H.265 typically reduces data throughput by ~30–50% vs. H.264 — longer recording at the same microSD.
- Council The design protects the lens from weather conditions and allows for compact wall/ceiling mounting.
- Voice notifications and active protection often improves the deterrent effect compared to “silent” cameras.
