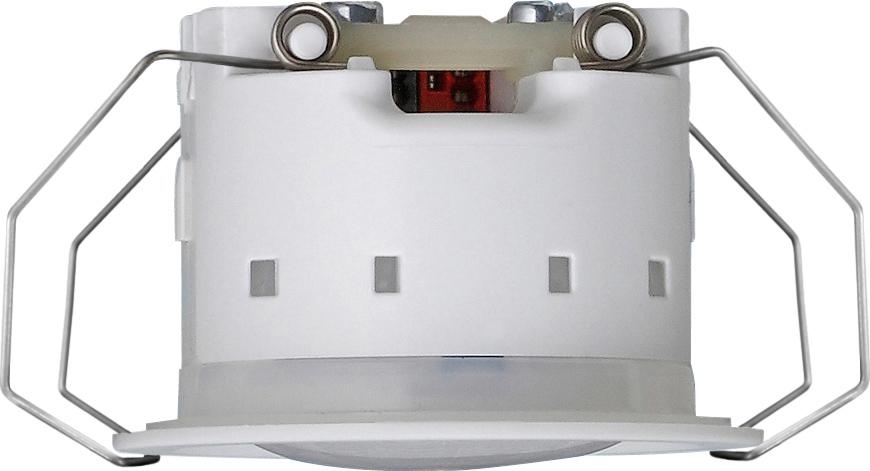

GIRA KNX presence sensor Mini Comfort 2225 00
Presence sensor for presence monitoring (operating mode: presence sensor), motion detection (operating mode: ceiling sensor) or monitoring via alarm telegrams (operating mode: alarm device). Thanks to their slim and flat design and flexible installation concept, the Mini presence detectors are particularly suitable for buildings with high architectural requirements.
Features
- Especially
- Surface mounting in a junction box (optional).
- The IP44 protection rating allows installation outdoors and in areas exposed to moisture.
- The color accent of the decorative rings allows you to match them to the color of the walls or ceiling.
- Ceiling-mounted device with integrated KNX bus connector.
- PIR sensors: three sensors, integrated brightness sensor.
- The motion detection sensitivity can be set manually using the controller.
- Sensitivity can be configured using ETS Software.
- Motion detection signal (permanent or only during the walk test).
- Separate evaluation of three long-range PIR sensors with a detection range of 120°, each with coverage.
- Manual activation using infrared remote control.
- Can set up to 5 + >< 2 function blocks for each ceiling. presence detector, sleep mode Alarm.
- Function block 6: presence sensor with lighting control.
- Function block 7: Brightness sensor with limit value monitoring.
- Switching function blocks, such as day/night mode or weekday/weekend mode.
- Function blocks 1 to 5: one device, can set main block, auxiliary device.
- Operating modes that can be set for a single device as the master device: automatic, semi-automatic (manual ON / automatic OFF or automatic ON / manual OFF).
- Each function block has two outputs (1 to 5) for ceiling emergency lighting function, presence sensor.
- Function setting, dimming value transmitter, light scene accessory, temperature value transmitter, brightness value sensor, temperature operating mode.
- Presence sensor function with lighting control: connection to the presence sensor or separate device function block, setpoint setting, setpoint determination via external communication object, teach-in function, value control feedback with effective setpoint limit values
- New: integrated temperature sensor for measuring room temperature (from index level I02).
suspended ceiling solid ceiling in a junction box according to DIN 49073 using additional accessories.
e.g. the device programming button) are easily accessible from the front. This means that disassembly is not required for further adjustment or programming via ETS.
