OPTIC CABLE
GLASS Z-XOTKtcdD 8xSM
=”
” ://allegro2.eltrox.pl/zdjecia/12417/kabel-swiatlowodowy-aramid-z-xotktcdd-sm-2×9-125-itu-t-g657a-12kn-span-80m-1.jpg” alt = OPTICAL CABLE GLASS Z-D8 loading=”lazy” />

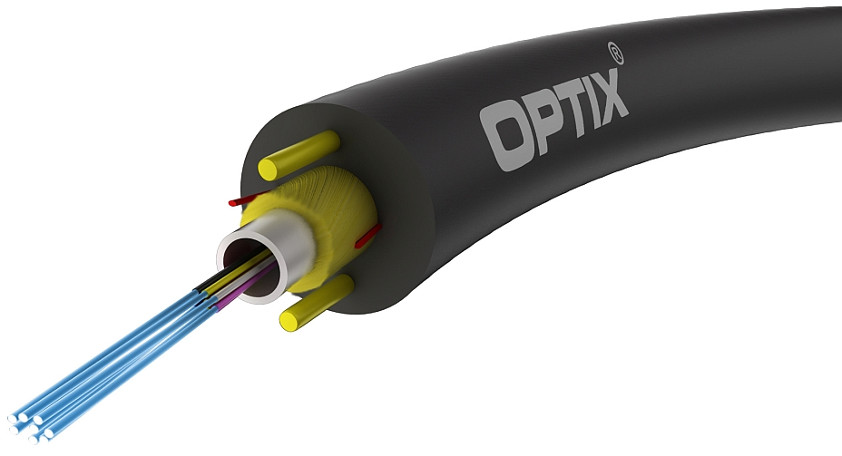

GLASS Z-XOTKtcdD SM 8×9/125 ITU-T G.652D 0.5kN fiber optic cable
Estimated Delivery Dates
0,93 €
Availability: 0
OPTIC CABLE
Main functions
- Number of fibers: 8
- Fiber type G.652D
- High quality
- High flexibility and pull-through resistance despite small diameter (5.2 mm 12 J, 6 mm 24 J)
- HDPE coating
- UV resistance
- Gel and water blocking construction (WB)
- Reinforced with 2 ARP rods >
- Completely dielectric
- Maximum installation tension 500N
- Compliance with EIA/TIA-598 coding standards
- Temperature range -40oC – 70oC
- Span 40M
Single Modelix.be. km)
use 2>
GLASS Z-XOTKtcdD series cables are designed for installation in primary and secondary telecommunications channels using pneumatic (blowing) and mechanical (pulling) methods, as well as for overhead installations on spans up to 40 meters.
2″>s
The GLASS Z-XOTKtcdD series cables feature a lightweight single-tube construction, high flexibility and tensile strength despite their small diameter (5.2 mm 12 J, 6 mm 24 J). Additional benefits include a gel and water blocking construction (WB), HDPE coating and UV resistance. The tube contains up to 24 fibers, which are color coded eia/tia-598.
