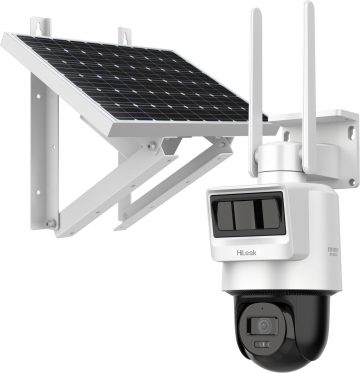

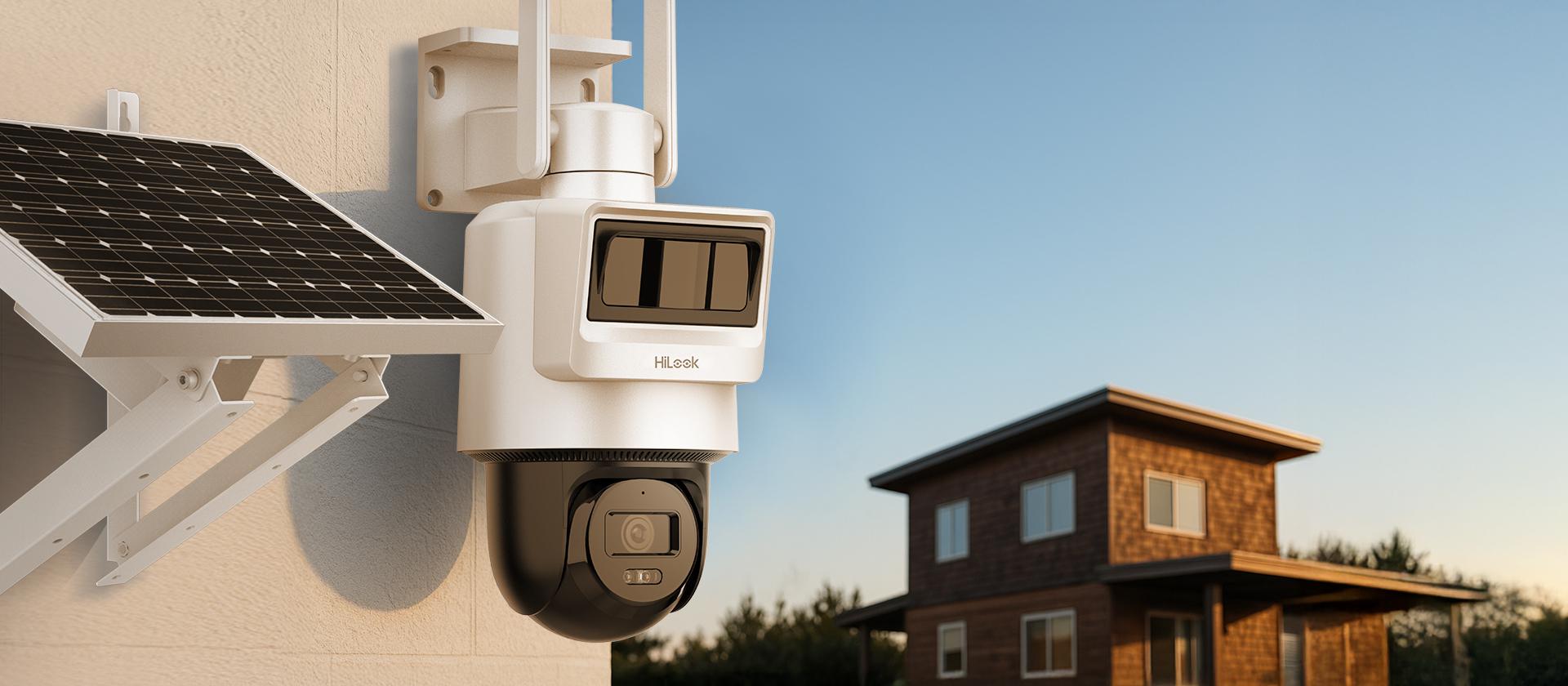

HiLook PTZ-S4-4G IP camera with solar panel – independent surveillance wherever you need it
HiLook PTZ-S4-4G The Solar Powered IP Camera with 4G LTE Transmission is a smart PTZ camera with 4 MP resolution, motion detection based on radar and PIR sensor, and two-way voice communication. Thanks to the integrated solar panel and built-in battery, it operates independently of external power sources, and thanks to the cellular connection, it can operate anywhere within the LTE network coverage area.
Key features of the HiLook PTZ-S4-4G camera:
- Image resolution: 4MP (2560×1080) 1440)
- 4G LTE module — operation without Wi-Fi and cables
- Solar panel power supply(50W) + built-in battery (up to 27 hours of operation without sunlight)
- PTZ rotating head: pan 0°-340°, tilt 0°-80°
- PIR motion detection + radar — greater accuracy
- Built-in microphone and speaker — two-way audio
- Night mode with IR up to 30 m
- MicroSD card slot up to 512 GB
- IP66 protection class — waterproof and dustproof
- Supports Hik-Connect application (Android/iOS)
- Ability to manually set the radar angle: 0°, 10°, 20°
- H.265/H.264 — less data consumption
- Easy installation and complete mobility - ideal for remote locations
Image resolution: 4 MP (2560 × 1440)
The HiLook PTZ-S4-4G camera offers detailed images in high 4 MP resolution, allowing for precise recognition of objects and people even from a distance. This makes it ideal for monitoring outdoor areas where recording quality and clarity are important.

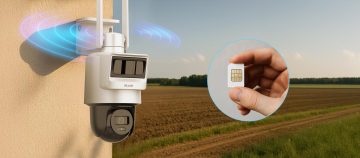

4G LTE module - works without Wi-Fi and cables
Thanks to the built-in 4G LTE module, the camera works completely independently of Wi-Fi or cable connection. Simply insert a nano SIM card to remotely access the image from anywhere. This is an ideal solution for places where there is no network infrastructure, such as construction sites, land plots or forest areas.

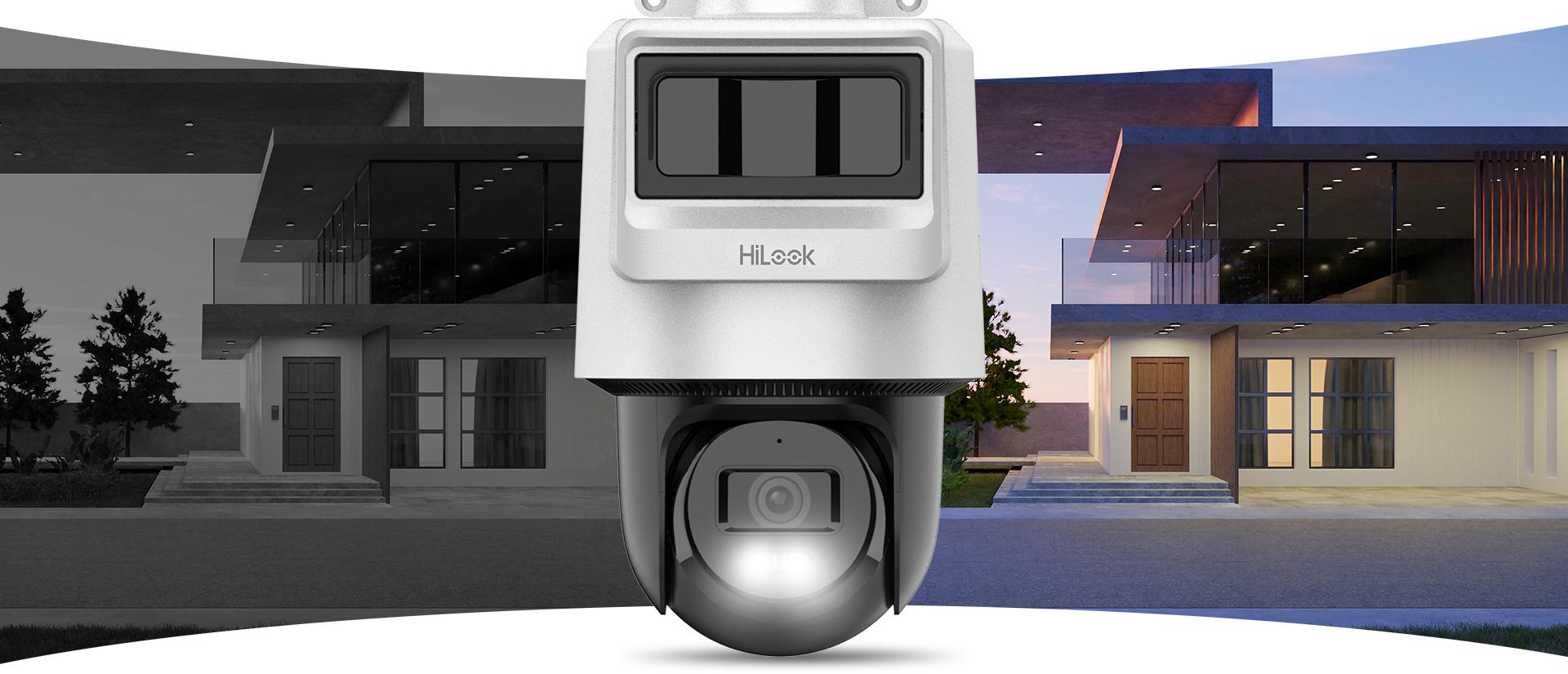

Night mode with IR up to 30 m
The HiLook PTZ-S4-4G camera is equipped with an infrared illuminator, which ensures effective surveillance even after dark. Night mode allows visibility up to 30 meters in complete darkness, which allows you to protect the area 24 hours a day - regardless of lighting conditions.

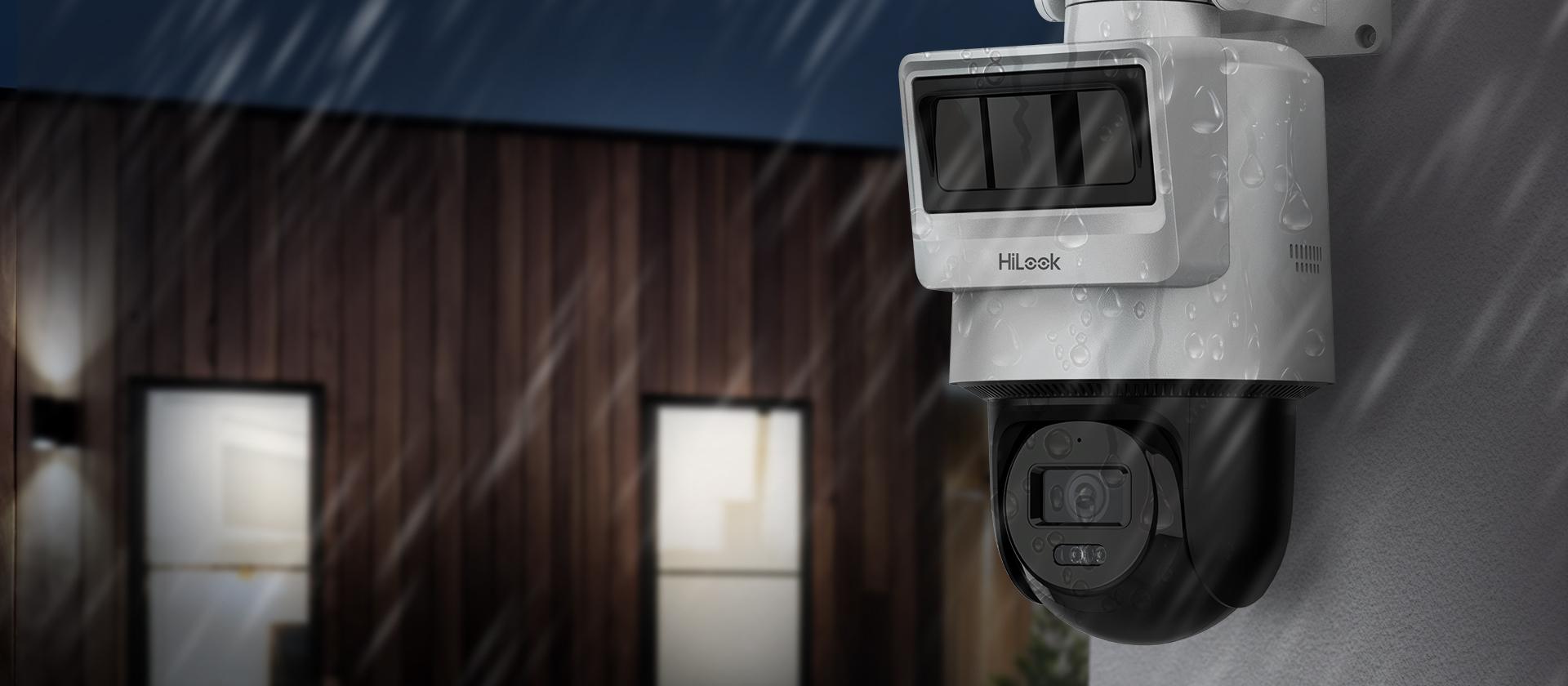

IP66 resistance class - waterproof and dustproof
The HiLook PTZ-S4-4G camera body meets the IP66 standard, which means complete resistance to dust and powerful water jets. This makes the device ideal for difficult weather conditions - rain, snow, dust or high humidity. This guarantees stable operation all year round, regardless of weather conditions.

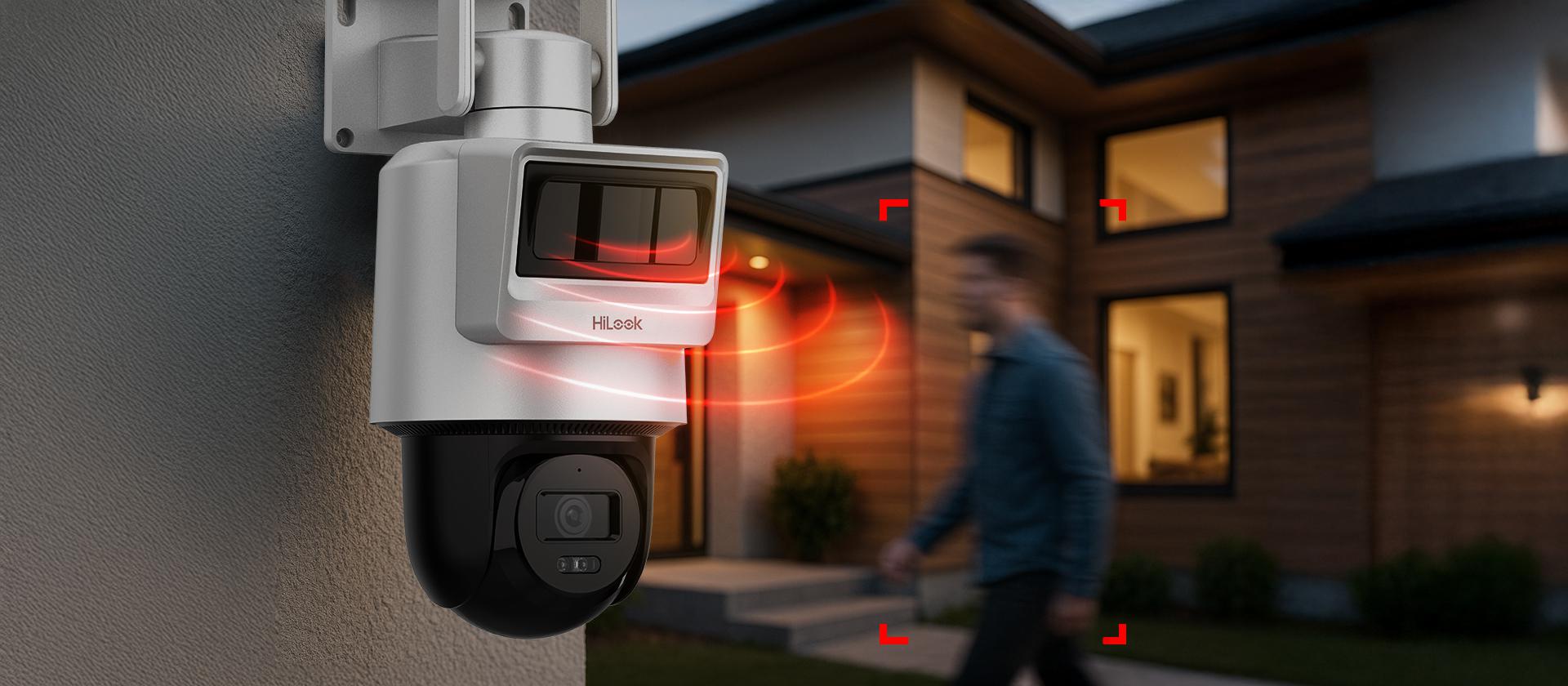

PIR motion detection + radar - greater accuracy
The camera uses a combination of PIR (infrared) sensor and radar, which significantly increases the accuracy of motion detection. This dual detection reduces false alarms caused by, for example, leaves or animals, and allows for more effective recognition of the presence of people or vehicles in the monitored area.

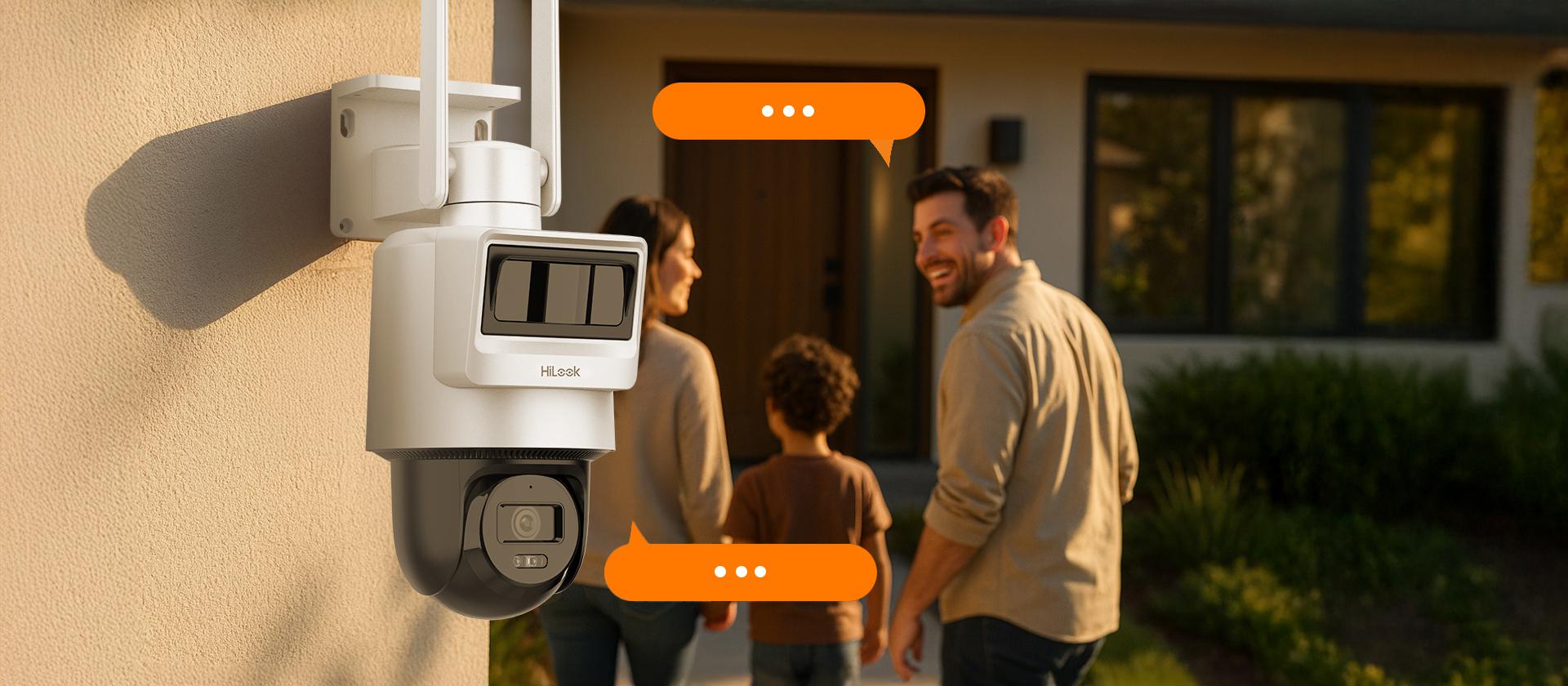

Built-in microphone and speaker – two-way audio
The HiLook PTZ-S4-4G camera allows you to talk in real time thanks to the built-in microphone and speaker. The two-way audio function allows you not only to hear what is happening in the monitored area, but also to react – for example, to warn an intruder or talk to a courier.

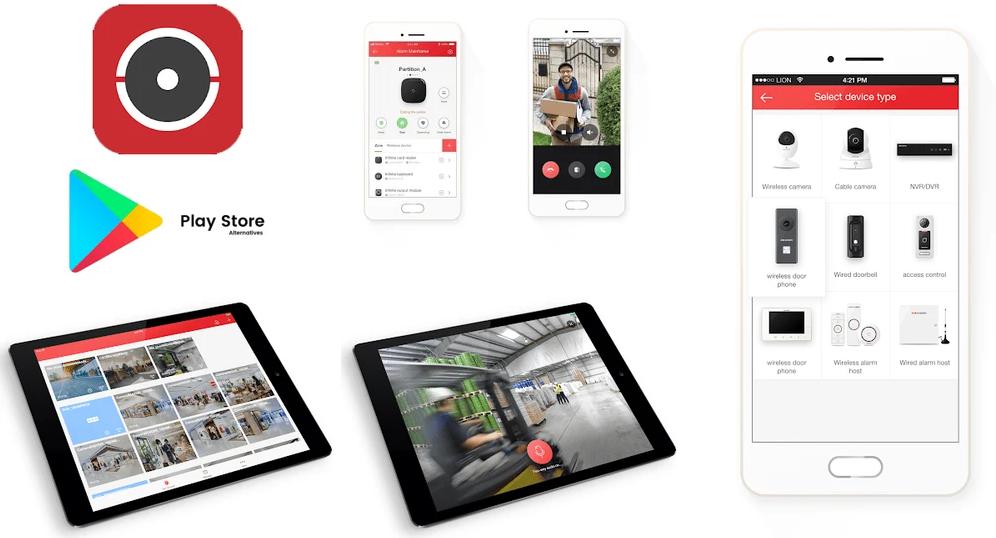

Hik-Connect app - remote viewing and full control
Using Hik-Connect app, you can check what's happening in front of the camera at any time - regardless of your location. Intuitive operation on your smartphone or tablet (Android and iOS) allows you to view live video, play recordings, receive notifications when motion is detected and use the audio function. It is a convenient and secure tool for monitoring management from a single app.
Technical specifications – HiLook PTZ-S4-4G
Image:
- Sensor: 1/2.7″ progressive scan CMOS
- Max. Resolution: 2560 × 1440 (4 MP)
- Shutter speed: 1/3 s - 1/100,000 s
- Sensitivity: Color: 0.005 lux @ (F1.6, AGC on), B/W: 0 lux with IR
- Day/night mode: IR filter
Lens:
- Type: fixed focal length
- Available focal lengths: 2.8 mm (horizontal viewing angle 94°)
- Aperture: F1.6
PTZ (pan and tilt function):
- Rotation range (panoramic): 0° – 340°
- Tilt range: 0° – 80°
- Pan/Tilt Speed: Up to 25°/s
IR and night mode:
- IR range: up to 30 m
- Intelligent IR illumination: yes
- IR wavelength: 850 nm
Transmission and network:
- Connectivity: LTE (4G), nano SIM card slot
- Supported LTE bands: B1/3/5/7/8/20/28 (EU)
- Data transfer rate (EU): upload 5.1 Mbps, download 10.3 Mbps
- Protocols: TCP/IP, DHCP, IPv4
- Interface: 1 x RJ45 10/100M Ethernet
- Supports up to 6 live views simultaneously
- Compatibility: ONVIF (profiles S, G, T), Hik-Connect, HikCentral
Audio:
- Built-in microphone and speaker
- Two-way communication
- Compression: G.722.1, G.711, MP2L2, PCM, G.726, AAC-LC
Videos:
- Compression: H.265/H.264 (main), MJPEG (substream)
- Bit rate: 32 Kbps – 8 Mbps
- ROI: 1 fixed area
Detection and events:
- Sensors: PIR + radar (angle detection: 80° horizontal, 30° vertical, range up to 12 m)
- Events: motion detection, video tampering, exceptions
- Responses: audio alarm, recording to card, email, FTP
Memory and recording:
- microSD/microSDHC/microSDXC slot up to 512 GB
Power and battery:
- Power source: 10W solar panel (±5%), 50.0W lithium battery.76Wh
- Operating time without sun: up to 27 hours (typical consumption 1.85 W)
- Max power consumption: 7 W
Housing and operating conditions:
- Ingress protection class: IP66
- Operating temperature: 0°C to 50°C (during operation), -20°C to 55°C (battery discharge)
- Humidity: up to 95%, non-condensing
- Dimensions: 133.1 × 177.64 × 382.44 mm
- Weight: approx. 850 g (without packaging), with packaging: approx. 5.4 kg
