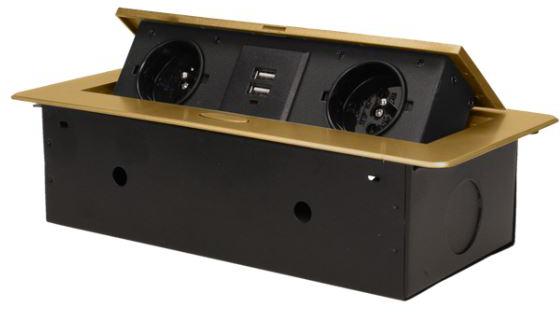

Furniture socket recessed into the worktop ORNO OR-AE-13109/BR brass
im-gv class=”col-6″>im-gm src=”https://allegro2.eltrox.pl/zdjecia/31835/gniazdo_meblowe_wpuszczane_w_blat_orno_orae13109br_mosidz_7c689bf04ad26.jpg” alt=”Goal” loading=”lazy” />v class=”col” sp>
- Set of two network sockets with grounding and current path latches, connected to a USB charger in a housing hidden in the worktop.
- The device is intended for for mounting on desks, worktops and tables, it can be mounted both vertically and horizontally, providing easy access to electrical outlets.
- Thanks to the flat edge (only 2 mm), the housing with sockets fits perfectly on the table surface and does not interfere with its cleaning.
- The recommended cable is 3 × 1.5 mm² (not included). >
Technical specifications
- Supply voltage 230V~, 50Hz
- Max. load 3600W
- Number of power outlets 2
- Power socket type 2P+S
- Case standard French (Type E)
- USB charger yes
- DC charger, 5 output voltage/USB2 charger 1A
- Number of USB ports 2
- USB port type A
- Material zinc alloy + steel sheet
- Colour brass
- Assembly recessed into the work surface. 265 mm
- Height: 67 mm
- Depth: 119 mm
- Edge thickness 2mm

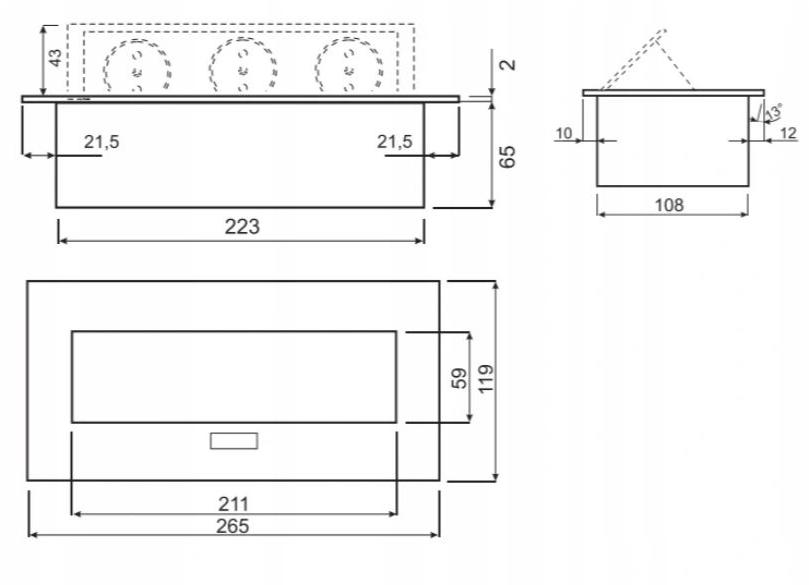

Mounting hole dimensions:
- Width:2:>7mmmm
- Depth: 65 mm
z_9cb0eab28507b.jpg” alt=”Installation/Assembly” loading=”lazy” />

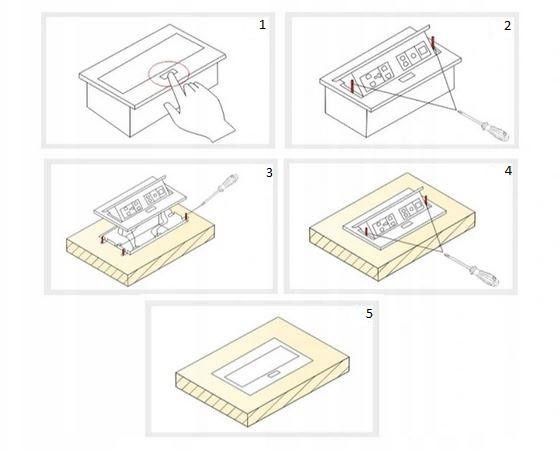

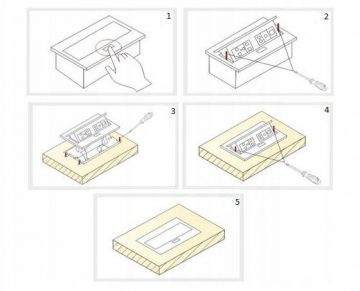

Installation/Assembly
The device is designed to be installed in standard worktop openings,so install it indoors. >
- After creating the hole, press the button on the housing socket to slide out the socket panel.
- Unscrew the 2 screws on the side of the socket panel.
- Then screw the socket housing to the table using 4 screws.
- Replace the screws on the side of the socket panel.
- Close it.
65 mm
installation/assembly
The device is designed to mount on a standard countertop open. Place the socket.
65 mm
