Name: INDUSTRIĀLAIS PĀRSLĒGS IS4207-4GT-120 5-PORTU + 2 x SFP DAHUA
SKU: IS4207-4GT-120
Availability: OutOfStock

INDUSTRIĀLAIS PĀRSLĒGS IS4207-4GT-120 5-PORTU + 2 x SFP DAHUA

Preces kods: IS4207-4GT-120

EAN: 6923172585967

Piegādes laiks: 20-23 Aprīlī

Estimated Delivery Dates

672,89 €

Availability: 0

LAN ports: 2 x RJ45 + Hi-PoE / PoE (802.3bt), 3 x RJ45 + PoE (802.3af/at), 1 x Konsole – RJ45, 2 x Uplink – SFP ligzda </span>;>Transmission speed: 10 / 100 / 1000 Mbps – 5 LAN & PoE porti, 10 / 100 / 1000 Mbps – 1 RJ-45 ligzda Konsole, 1000 Mbps – 2 SFP porti </span>;>Maximum total power: 120W </span>; <table>

LAN ports:

2 times RJ45 10/100/1000 Base-T + Hi-PoE / PoE (802.3bt),

3 x RJ45 10/100/1000 Base-T + PoE (802.3af/at),

1 x Konsole – RJ45 10/100/1000 Base-T,

2 x Uplink – SFP ligzda 1000 Base-X
Management:

Transmission speed:

10 / 100 / 1000 Mbps – 5 LAN & PoE porti,

10 / 100 / 1000 Mbps – 1 RJ-45 ligzda Konsole,

1000 Mbps – 2 SFP porti
Maximum output power:

90 W / Hi-PoE / PoE 802.3bt ligzda – 1, 2 porti

30 W / PoE ligzda – 3 … 5 porti

Maximum total power:
120W
Switching performance:
14 Gb/s

Packet forwarding speed:
10.42 Mpps
MAC address table:
8k

Working mode:
Long Distance PoE On : 250 m, 10 Mbps
LED diodes:
Power, Link/Act, SFP

Selected characteristics:

Designed for industrial applications with a wide temperature range.

Ierīce ir saderīga ar 8–pinu barošanas avotu ("+": pini 1, 2 / 4, 5; "-": pini 3, 6 / 7, 8)

Ar sarkano krāsu atzīmētās pieslēgvietas atbalsta standartus IEEE802.3af, IEEE802.3at, IEEE802.3bt un Hi-PoE ar maksimālo izejas jaudu 90 W uz pieslēgvietu – paredzēts lieljaudas ierīču energoapgādei

PoE Watchdog režīms – pieslēgvietu monitorings, kas apgādā PoE ierīces un automātiskā restartēšana, atvienojot strāvas padevi, ja tiek konstatēta nereaģējošā ierīce

Spanning Tree STP/RSTP/ERPS

Atbalsta IEEE 802.1Q standartu līdz 512 VLAN grupām un 4K identifikatoriem

LACP – Statiskais saites apkopojums

Data flow control (802.3x)

IGMP Snooping

DHCP Client

IEEE 802.1x portu autentifikācija

ERPS (Ethernet Ring Protection Switching)

SNMP v1/v2c/v3

Iespēja pievienot divus strāvas adapterus – dublētā barošana
Certificates:
CE, FCC

Protection:

Aizsardzība pret elektrostatisko izlādi (Air/Contact) : 8 / 6 kV

Aizsardzība pret zibens izlādi (kopīgs/atšķirīgs) : 6 / 4 kV
Hull:
Desktop, DIN – Metāla

Source of energy supply:
53 V DC
Power consumed:

≤ 6 W (režīms)

≤ 120 W (max)

Operating temperature:
-40°C … 75°C
Weight:
0.65 kg

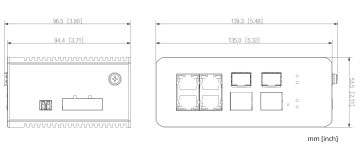

Size:
139.3 x 53.5 x 96.5 mm
Manufacturer / Brand:
DAHUA

WARRANTY:
3 years

Additional information

Svars	0,9200 kg
Dimensions	254 × 187 × 101 cm
