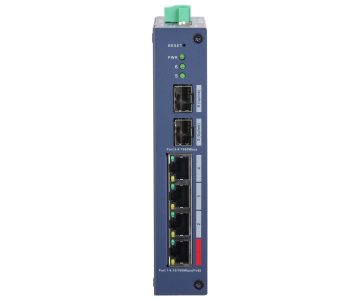

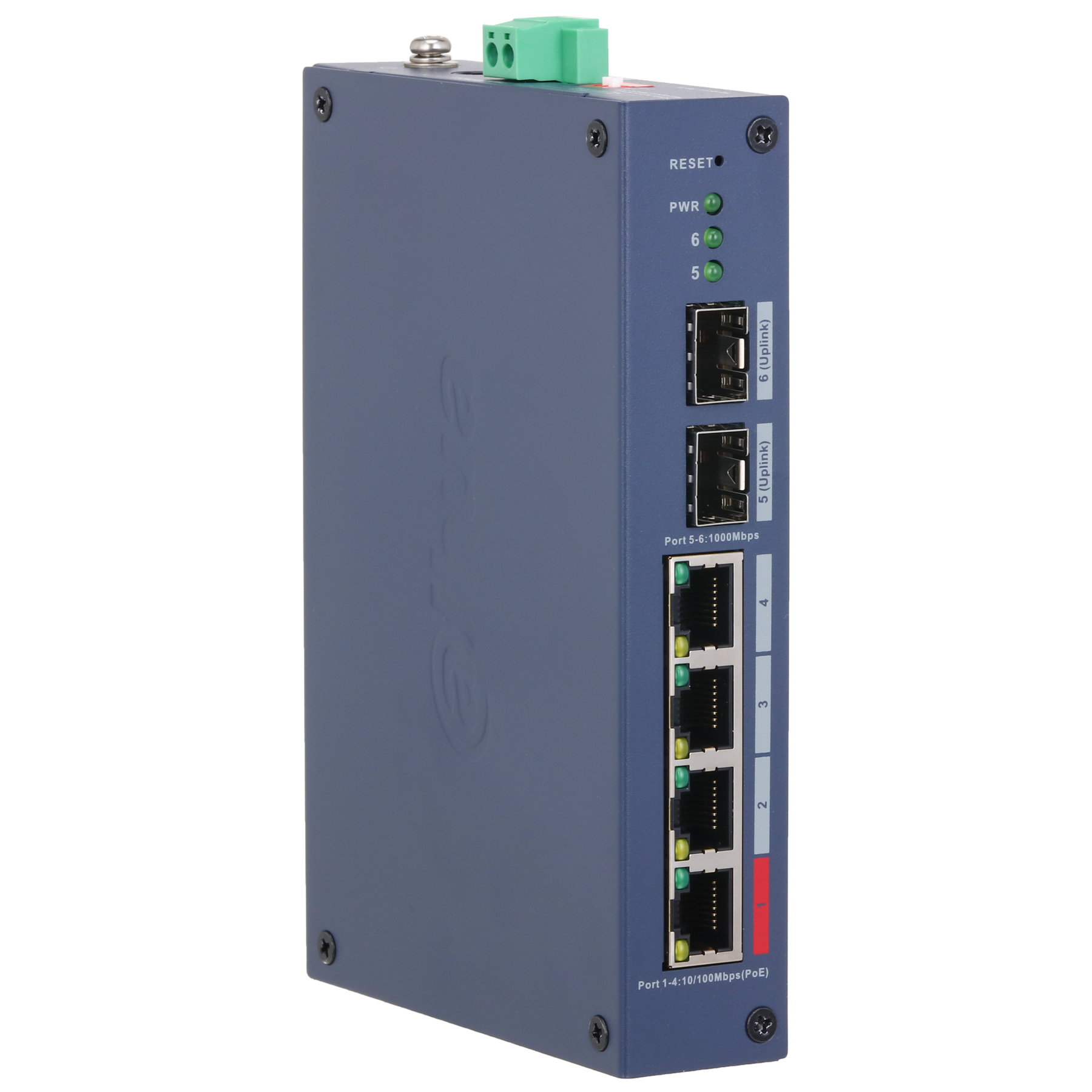

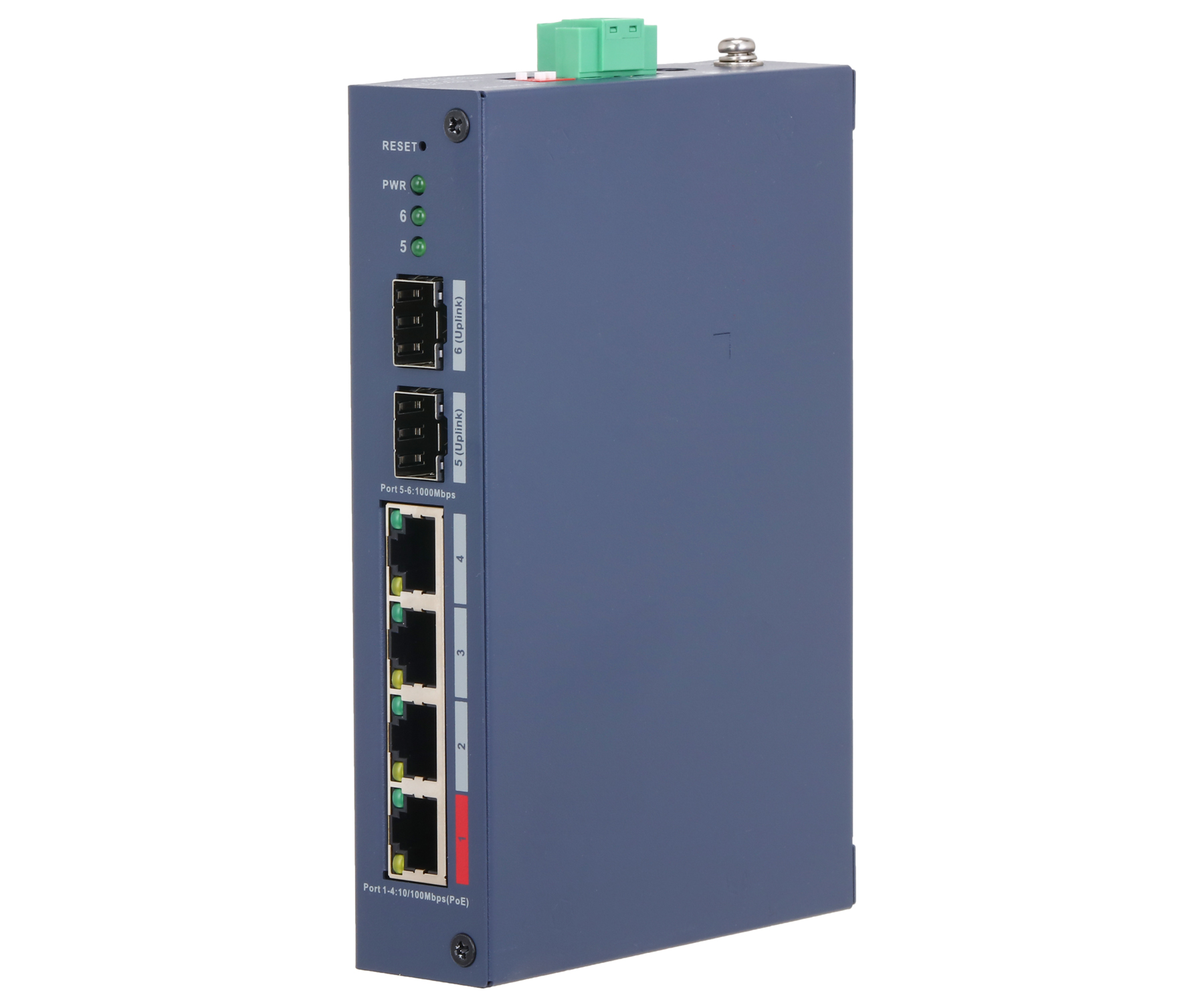

Name: INDUSTRIĀLAIS PĀRSLĒGS POE CHS4206-4ET-90 4-PORTU SFP DAHUA
SKU: CHS4206-4ET-90
Availability: InStock

INDUSTRIĀLAIS PĀRSLĒGS POE CHS4206-4ET-90 4-PORTU SFP DAHUA

Preces kods: CHS4206-4ET-90

EAN: 6939554903465

Piegādes laiks: 10-13 Martā

Estimated Delivery Dates

74,31 €

Availability: 20

LAN ports: 1 x RJ45 10/100/1000 Base-T + Hi-PoE (802.3af/at/bt), 3 x RJ45 10/100 Base-T + PoE (802.3af/at), 2 x SFP ligzda 1000 Base-X </span>;>Management</span>;>Transmission speed: 10 / 100 Mbps – 4 LAN & PoE porti, 1000 Mbps – 2 SFP porti </span>;>Maximum total power: 92.7 W </span>; <table>

LAN ports:

1 x RJ45 10/100/1000 Base-T + Hi-PoE (802.3af/at/bt),

3 x RJ45 10/100 Base-T + PoE (802.3af/at),

2 x SFP ligzda 1000 Base-X
Management:

Transmission speed:

10 / 100 Mbps – 4 LAN & PoE porti,

1000 Mbps – 2 SFP porti
Maximum output power:

30 W / PoE ligzda @ PoE (802.3af/at),

90 W @ Hi-PoE (802.3bt)

Maximum total power:
92.7 W
MAC address table:
8k

Selected characteristics:

EXTEND mode - ports 1, 2, 3, 4 support transmission up to 250 m

PoE Watchdog režīms – pieslēgvietu monitorings, kas apgādā PoE ierīces un automātiskā restartēšana, atvienojot strāvas padevi, ja tiek konstatēta nereaģējošā ierīce

Loop Protection

Port Based VLAN

The switch is managed via the web and cloud (DoLynk Care app)

Topology and network status view

Supports Auto-learning and Auto-aging functions for MAC addresses

Datu plūsmas kontrole

protection against lightning discharge and voltage differences between devices

Designed for industrial applications with a wide temperature range.

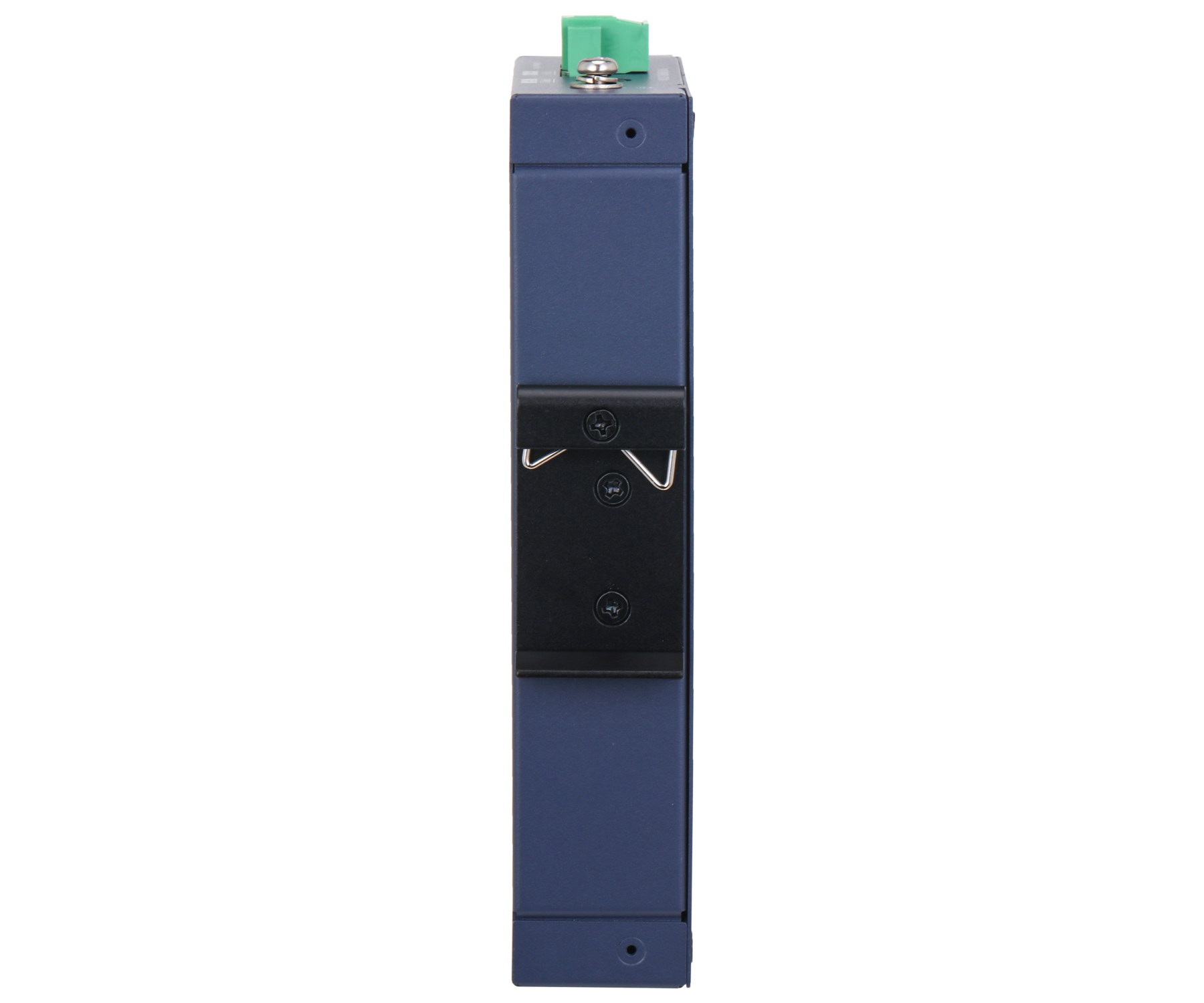

Pastiprināts metāla korpuss ar DIN sliedes stiprinājumu TH-35 (TS-35)

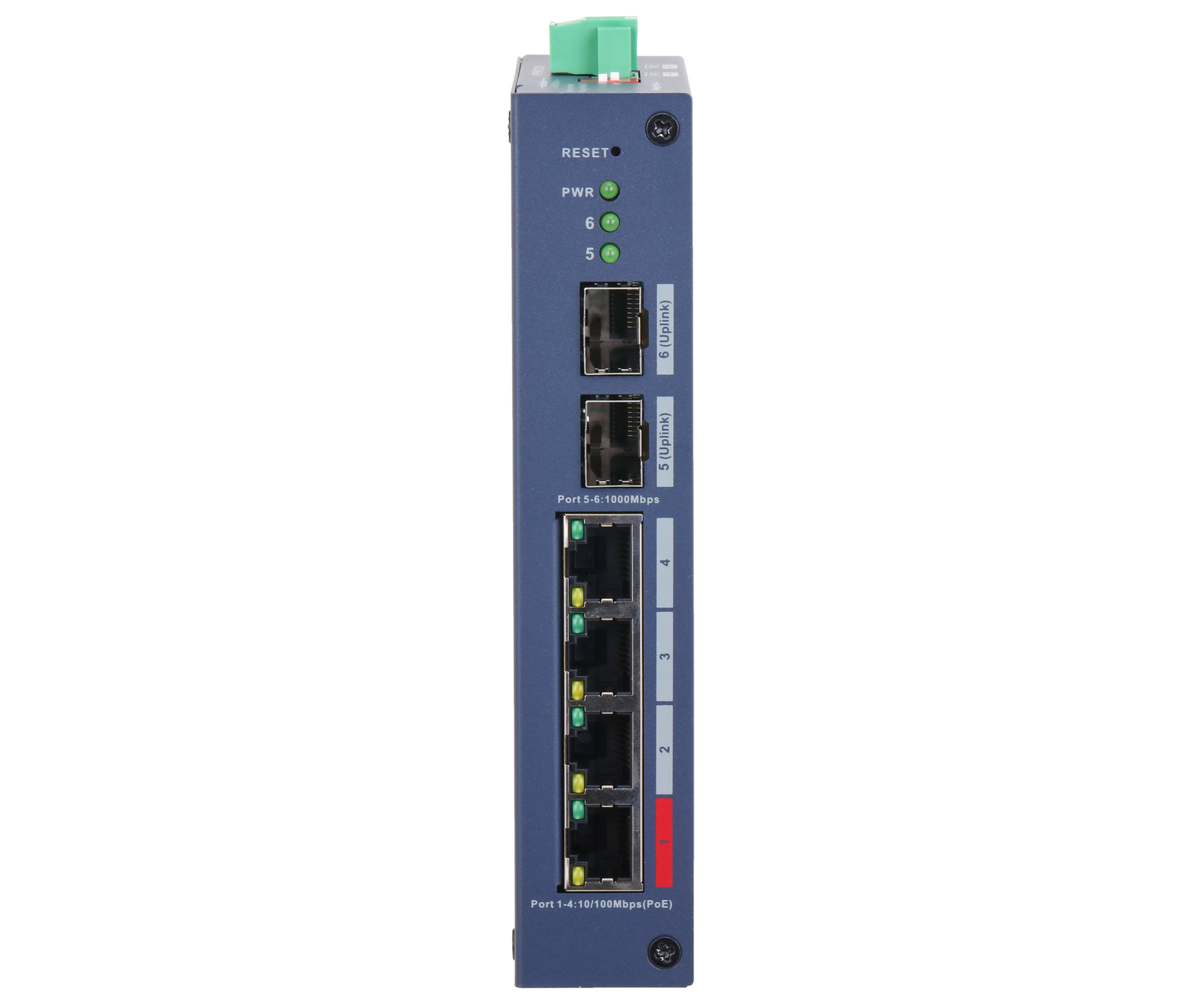

LED diodes:
Power, Link/Act

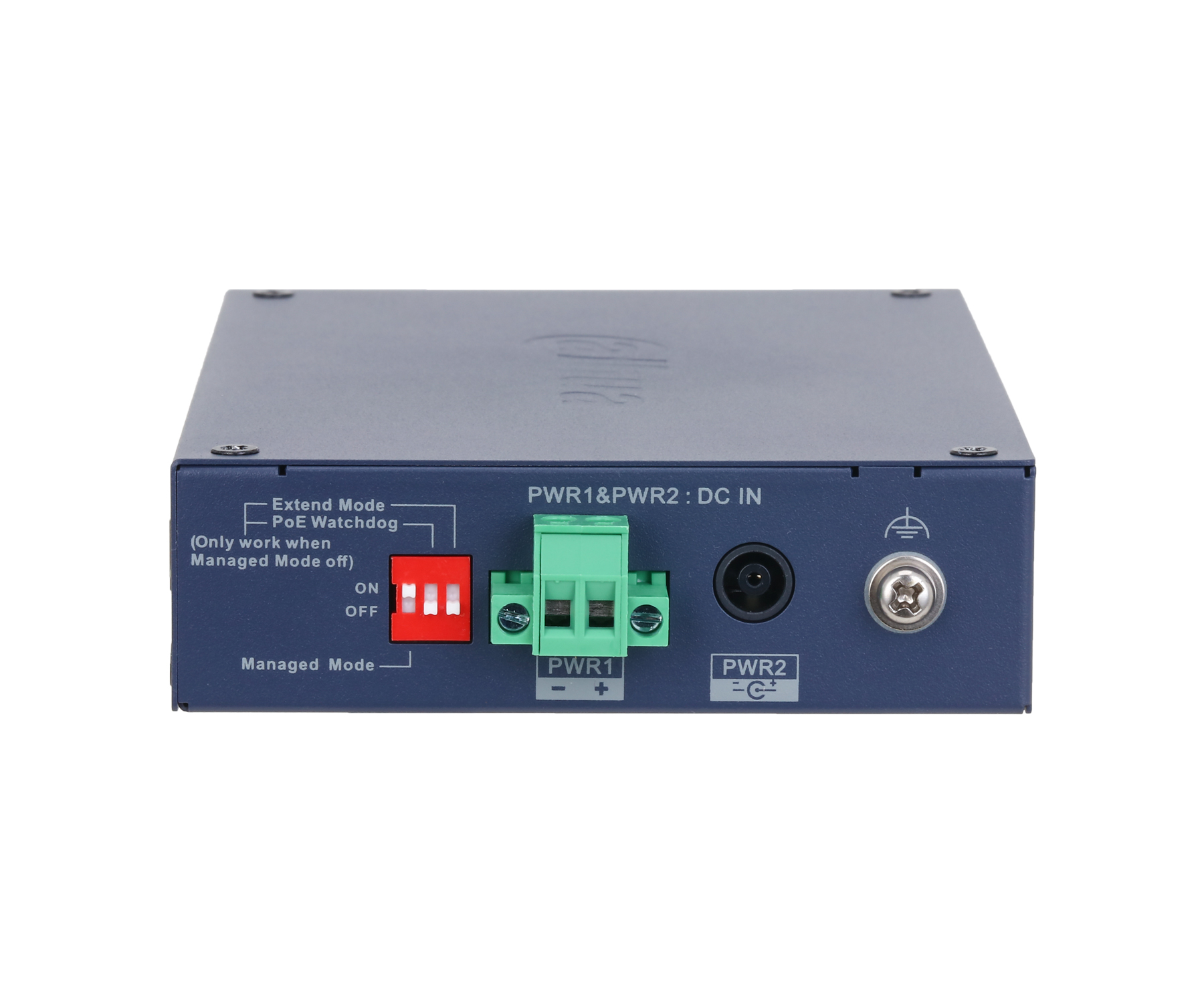

Source of energy supply:

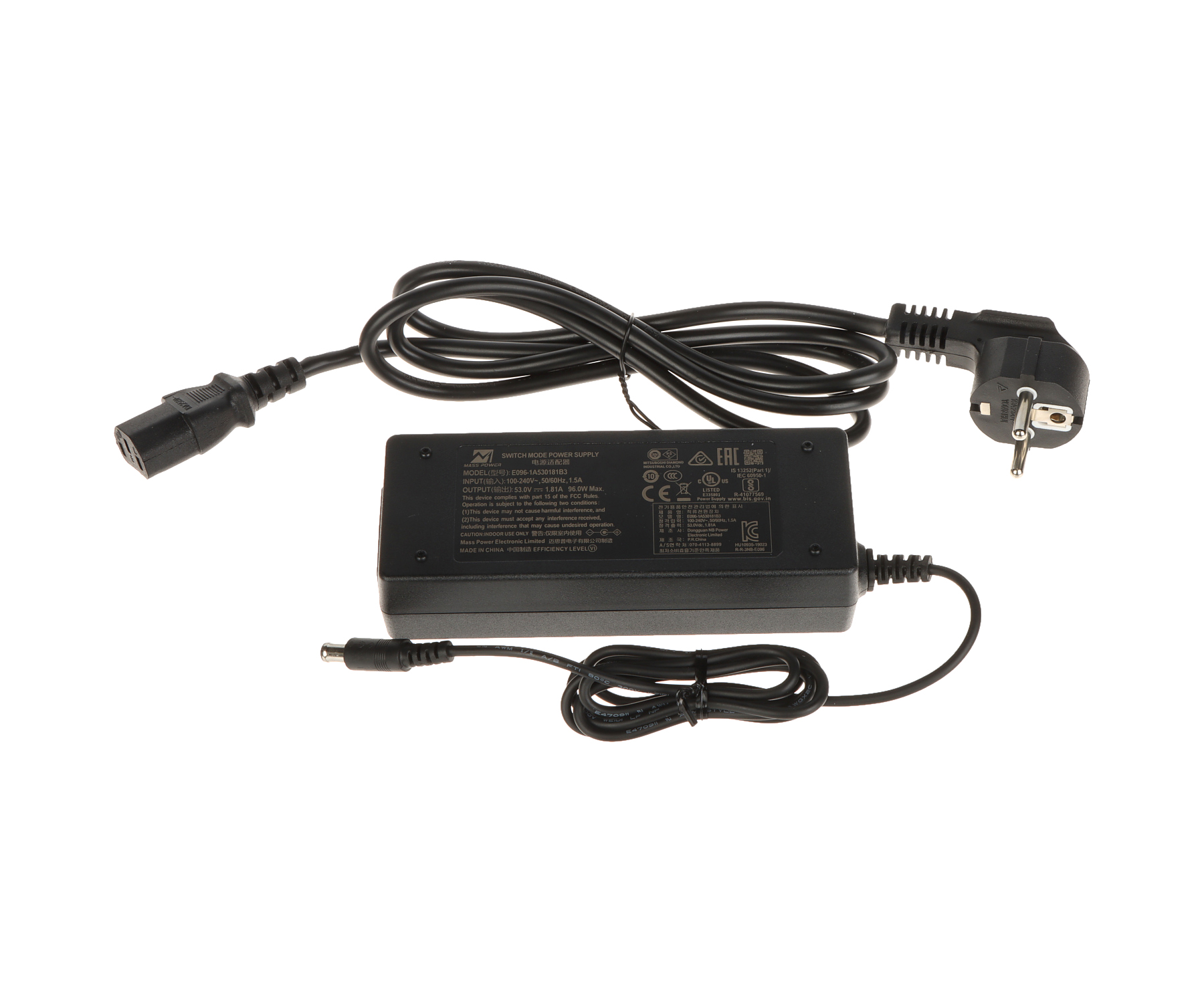

53 V DC / 1.81 A (power adapter included)
Operating temperature:
-30 °C … 65 °C

Assembly:
DIN rail (TS-35)
Weight:
0.32 kg

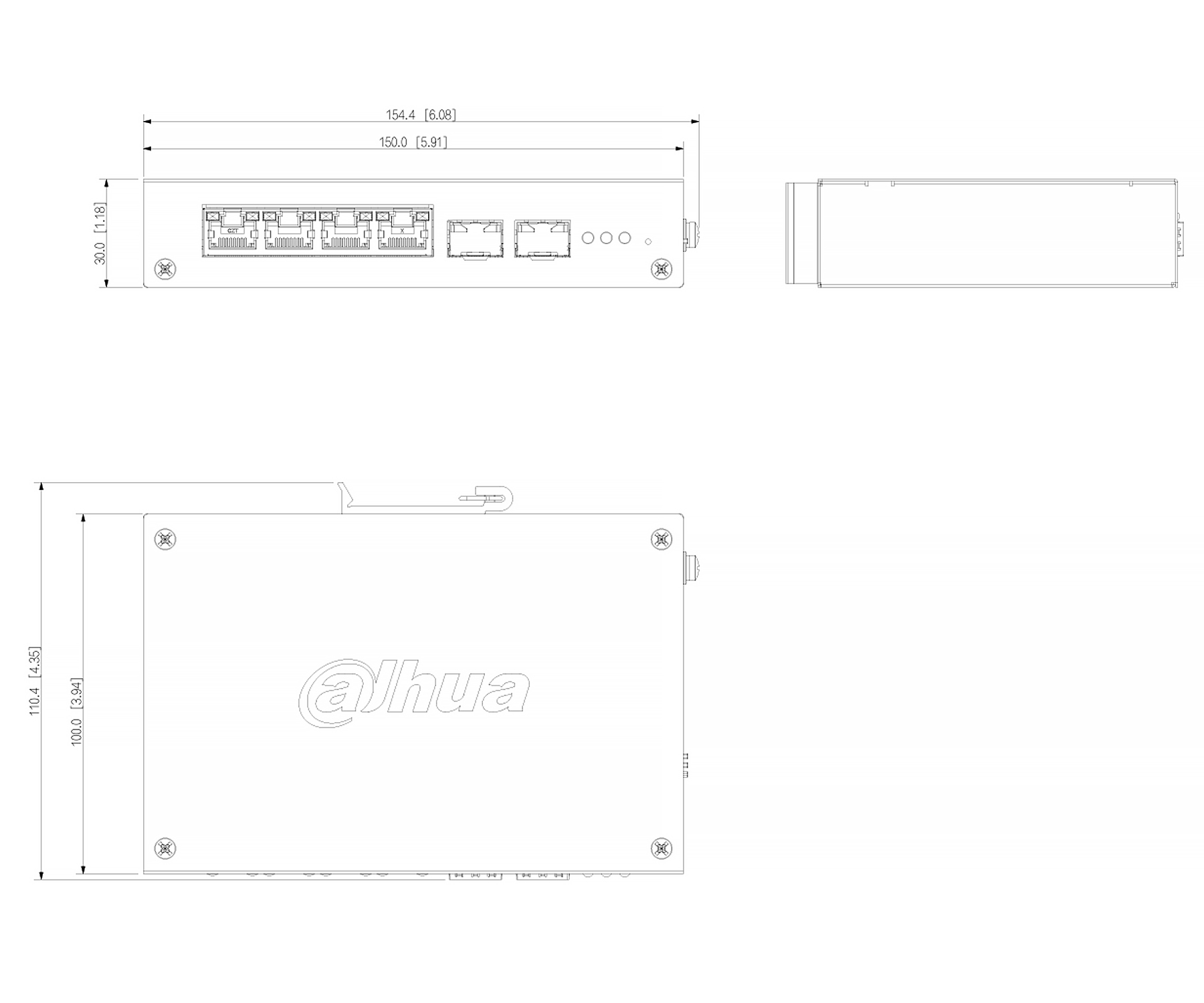

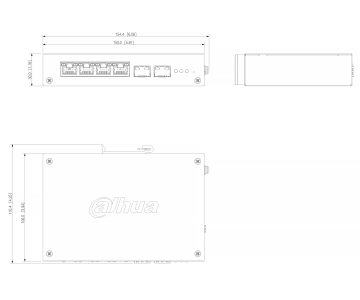

Size:
154 x 110 x 30 mm
Manufacturer / Brand:
DAHUA

WARRANTY:
5 years

Additional information

Svars	1,0660 kg
Dimensions	270 × 240 × 80 cm
