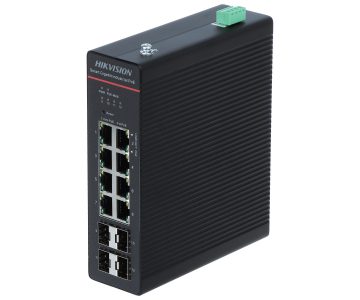

Name: INDUSTRIĀLAIS PĀRSLĒGS POE DS-3T1512HP-SI-8P4FKIT(75W) 8-PORTU SFP Hikvision
SKU: DS-3T1512HP-SI-8P4FKIT(75W)
Availability: InStock

INDUSTRIĀLAIS PĀRSLĒGS POE DS-3T1512HP-SI-8P4FKIT(75W) 8-PORTU SFP Hikvision

Preces kods: DS-3T1512HP-SI-8P4FKIT(75W)

EAN: 6936422147723

Piegādes laiks: 10-13 Martā

Estimated Delivery Dates

233,35 €

Availability: 4

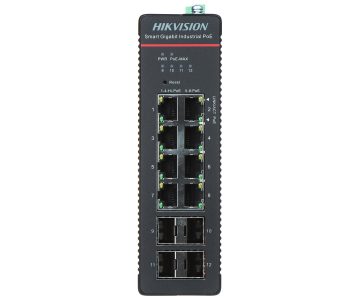

LAN ports: 8 x RJ45 ( 4 x PoE (802.3bt) + 4 x PoE (802.3af/at) ), 4 x SFP ligzda </span>;>Transmission speed: 10 / 100 / 1000 Mbps – 8 LAN & PoE porti, 1000 Mbps – 4 SFP porti – Uplink </span>;>Maximum total power: 300W </span>;>Selected characteristics: DIN rail mounting </span>; <table>

LAN ports:

8 times RJ45 ( 4 x PoE (802.3bt) + 4 x PoE (802.3af/at) ),

4 x SFP ligzda
Transmission speed:

10 / 100 / 1000 Mbps – 8 LAN & PoE porti,

1000 Mbps – 4 SFP porti – Uplink

Maximum output power:

1 … 4 porti : 90 W / PoE ligzda,

5 … 8 porti : 30 W / PoE ligzda
Maximum total power:
300W

MAC address table:
8k
Management:

Default IP address:
192.168.1.64
Default username/admin password:
admin / –

Working mode:

Extend On : 300 m, 10 Mbps @ UTP kat. 5e, 6

Extend Off : 100 m, 1000 Mbps @ UTP kat. 5e, 6
Selected characteristics:

Switch can be managed via www

Konfigurācija un pārvaldība ar iVMS-4200 lietotni

Auto MDI/MDI-X detection - automatic detection of data transmission mode

Topology and network status view

Datu plūsmas kontrole

Storm Control function

Port mirroring function

Statiskais saites apkopojums

QoS : Plānošanas rindas SP, WRR, SP+WRR

VLANs

Spanning Tree STP/RSTP

SNMPv1/v2c

Watchdog PoE

Ierīce ir saderīga ar 8–pinu barošanas avotu

Remote configuration

Remote software update

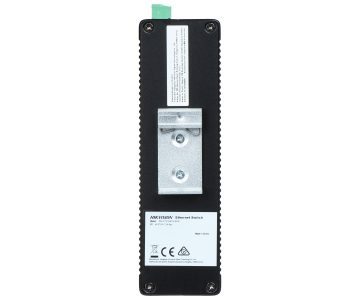

DIN rail mounting

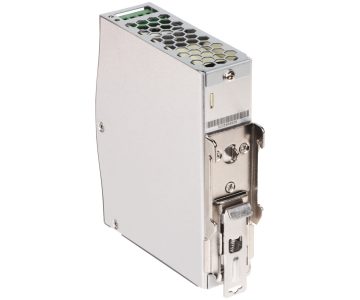

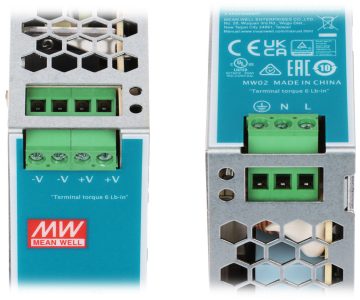

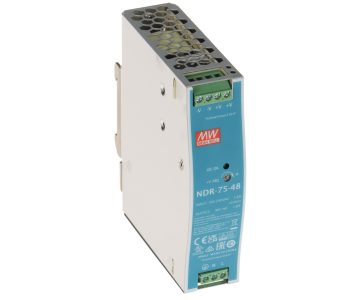

MEAN WELL NDR-75-48 barošanas avots iekļauts komplektā

LED diodes:
Power, Link/Act, PoE, PoE Max, 9 SFP, 10 SFP, 11 SFP, 12 SFP
Certificates:
CE

Hull:
Metal
Protection:
Pārspriegums 6 kV – PoE porti

Source of energy supply:

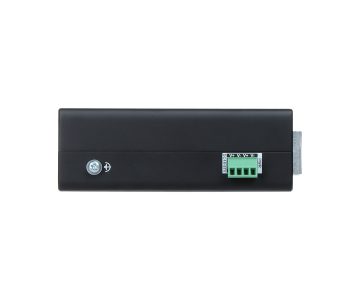

48 … 57 V DC – skrūvējama plāksne (komplektā strāvas adapteris)
Operating temperature:
-40°C … 75°C

Weight:
0.84 kg
Size:
164 x 140 x 46 mm

Manufacturer / Brand:
Hikvision
SAP Code:
301803726

WARRANTY:
3 years

Additional information

Svars	1,6280 kg
Dimensions	200 × 185 × 205 cm
