Technical Specification:
| LAN ports: | 1 x SFP socket 100/1000 Base-X – Uplink, 1 x RJ45 10/100/1000 Base-T – Uplink, 3 x RJ45 10/100 Base-T + PoE (802.3af/at), 1 x RJ45 10/100 Base-T + Hi-PoE / PoE (802.3af/at) |
| Management via WWW/console: | - |
| LED diodes: | Power, Link/Act |
| Transmission speed: | 10 / 100 Mbps – 4 LAN & PoE ports, 10 / 100 / 1000 Mbps – 1 LAN port, 100 / 1000 Mbps – SFP slot |
| Maximum output power: | 30 W / PoE socket @ PoE (802.3af/at), 60 W @ High PoE |
| Maximum total power: | 60W |
| MAC address table: | 8k |
| Working mode: | Extend On : 250 m, 10 Mbps Extend Off : 100 m, 100 Mbps |
| Selected characteristics: | Designed for industrial applications with a wide temperature range. PoE power mode: The device is compatible with 8-pin power supply Intelligent power output level management Protection against lightning discharge and voltage differences between devices Watchdog PoE / PD Alive mode – monitoring of ports supplying PoE devices and automatic restart by disconnecting power supply if an unresponsive device is detected Possibility to connect two power adapters – redundant power supply |
| Certificates: | CE, FCC |

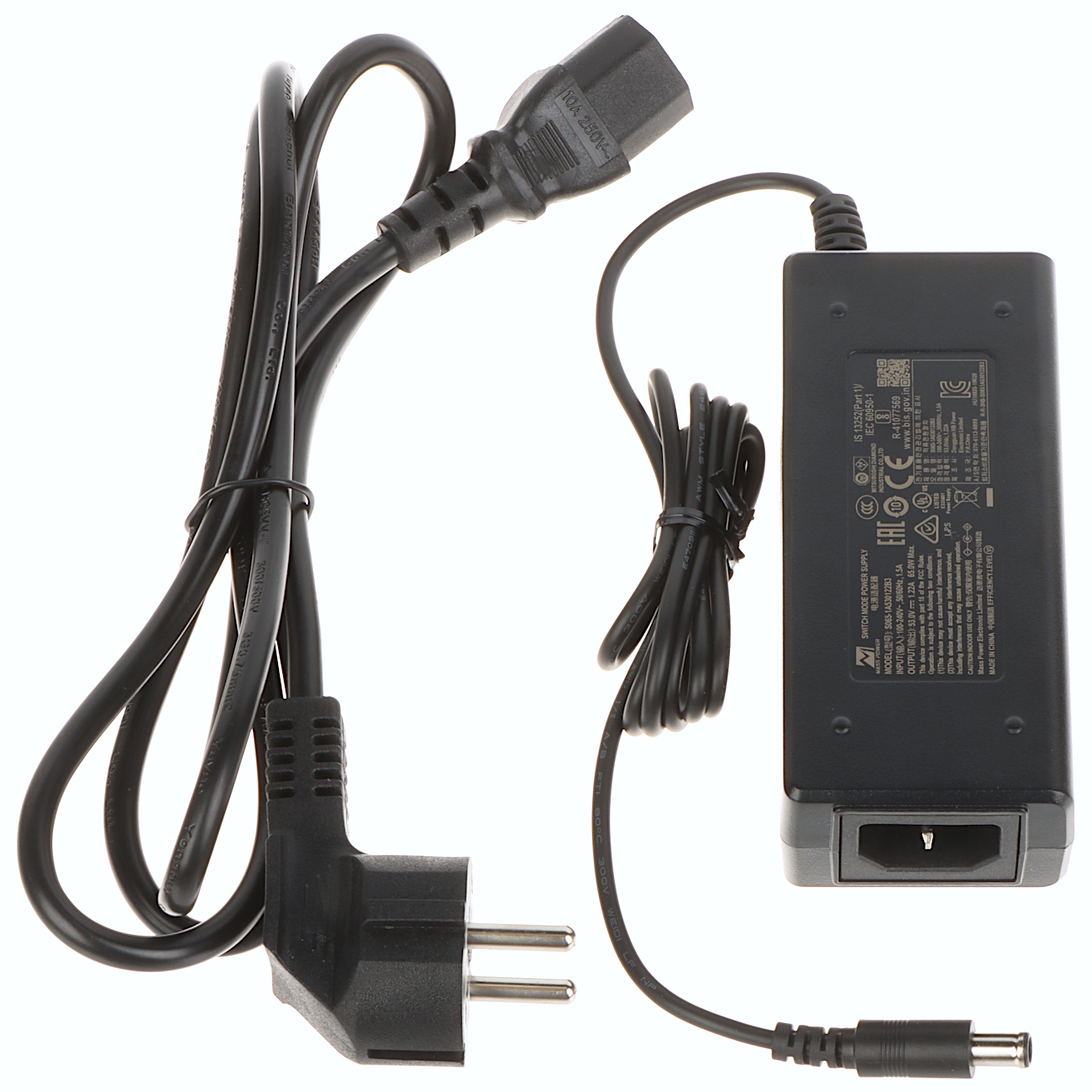

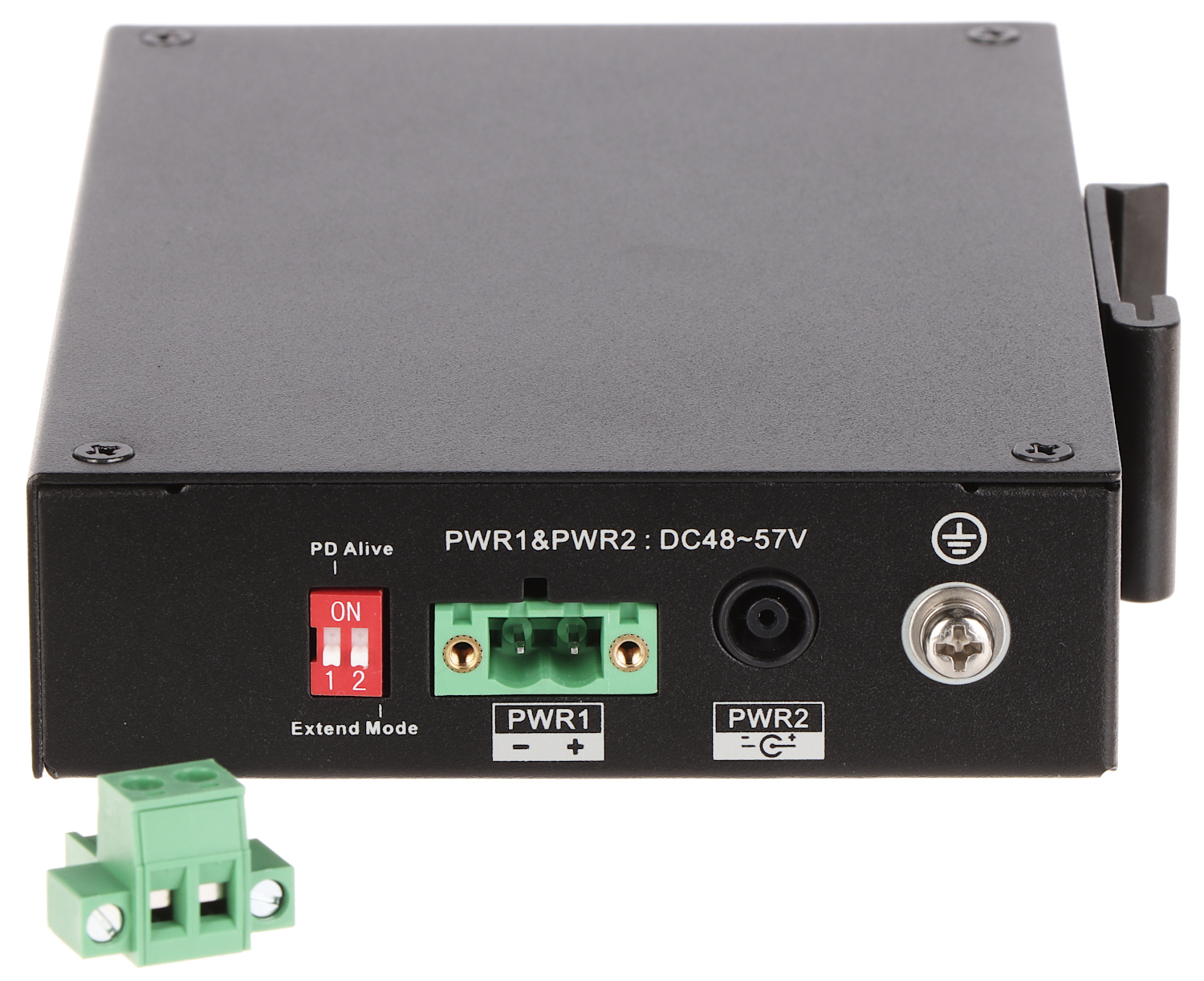

| Source of energy supply: | 53 V DC / 1.22 A (power adapter included) |
| Operating temperature: | -30°C … 65°C |

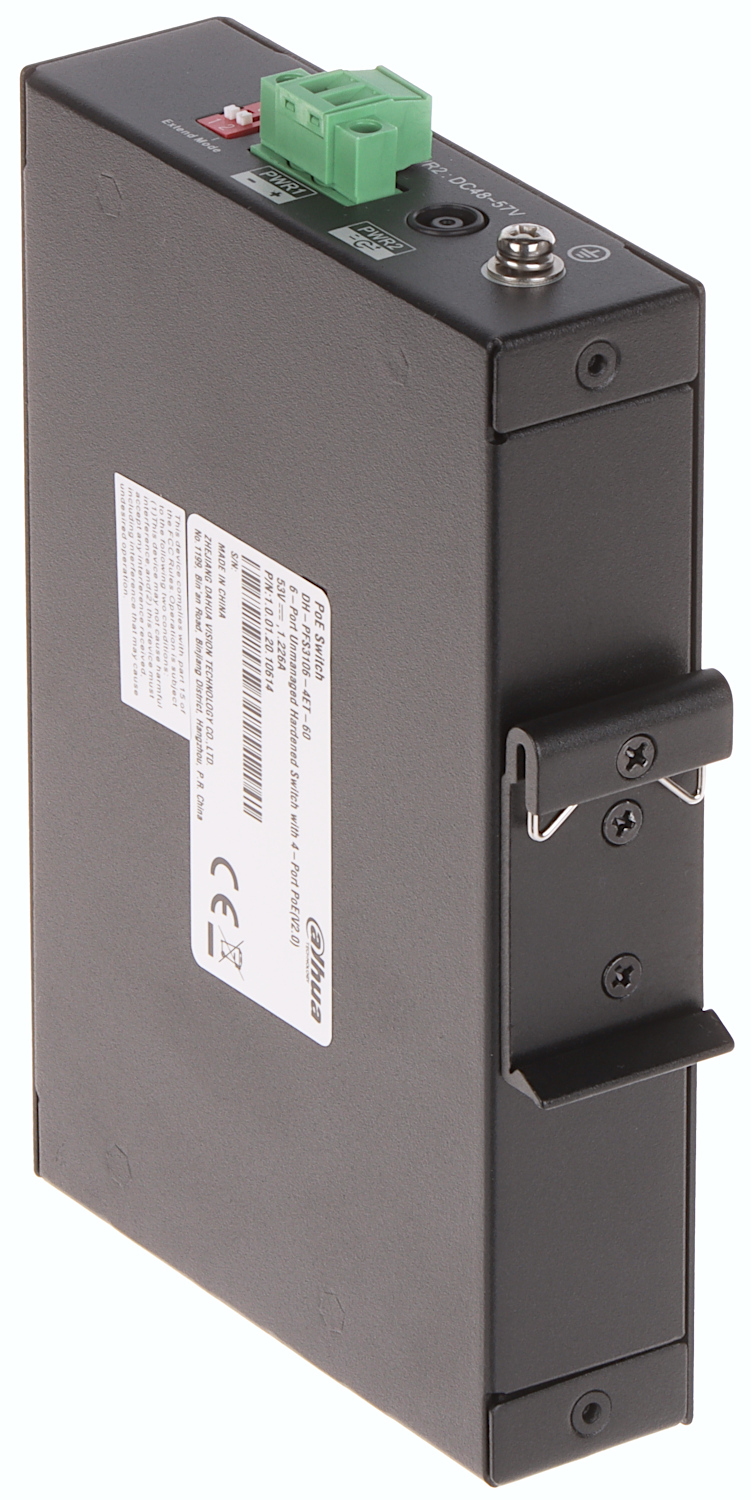

| Assembly: | DIN rail (TS-35) |
| Weight: | 0.44 kg |
| Size: | 150 x 110 x 30 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
