Technical Specification:
| Supported resolution: | 9 Channels @ 4000 x 3000 px – 12 Mpx , 9 Channels @ 3840 x 2160 px – 4K , 36 Channels @ 1920 x 1080 – 1080p , 81 Channels @ 1280 x 720 – 720p , 144 Channels @ 704 x 576 – D1 |
| Number of compatible screens: | 9 pcs. |

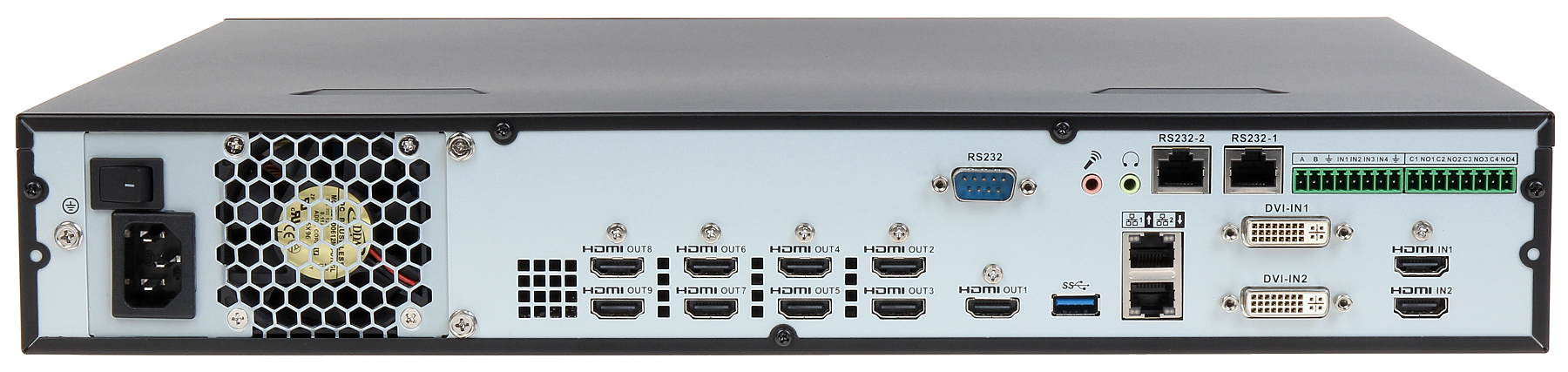

| Video inputs: | 2 x HDMI 4K 2 x DVI |
| Video outputs: | 9 x HDMI |
| Audio output: | HDMI |
| Network interface: | 2 x RJ45 10/100/1000 Base-T |
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – |
| Regular ports: | 2 pcs. RS-232 @ RJ45 1 pc. RS-232 @ D-Sub 1 pc. RS-485 |
| Alarm inputs/outputs: | 4 / 4 |
| Source of energy supply: | 230V AC |
| Power consumption: | ≤ 70W |
| Operating temperature: | -10°C … 55°C |
| Weight: | 4.70 kg |
| Size: | 440 x 415 x 76 mm – 1.5 U |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
