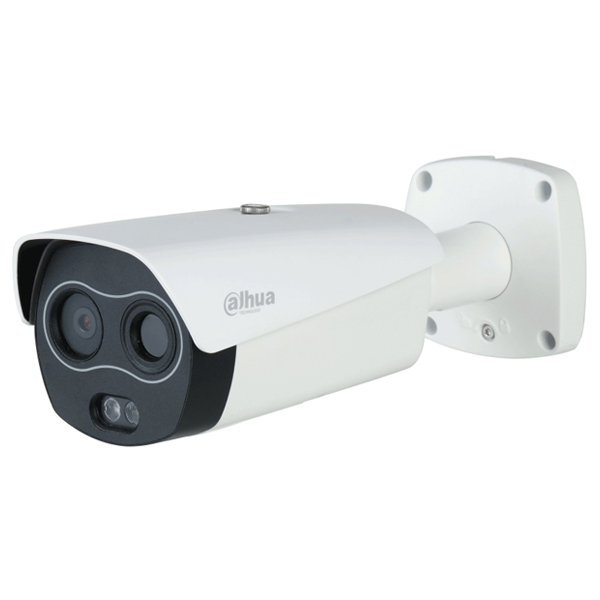

IP HIBRĪDA TERMOKAMERA TPC-BF2241-B7F8-DW-S2 7.0 mm – 960p, – 4 Mpx 8.0 mm DAHUA

Sensors: Uncooled VOx microbolometer </span>;>Matrix size: 256 x 192 px </span>;>Viewing angle: 24 ° </span>;>Resolution: 1280 x 960, 1024 x 768 px – 4 Mpx, 1920 x 1080 – 1080p </span>;>Sensors: 1/2.7" Progressive Scan CMOS </span>;>Viewing angle: 33.4 ° </span>;>Video output: Izeja CVBS, SPOT – 1 Vpp / 75 Ω </span>;>RS-485 interface</span>;>Source of energy supply: PoE (802.3af), 12V DC </span>; <table>

Sensors:
Uncooled VOx microbolometer

Matrix size:
256 x 192 px
Pikseļu lielums:
12 µm

Termālā jutība (NETD):
< 40 mK @ F1.0
Spektrālais diapazons:
8 µm … 14 µm

Krāsu palete:
18
Lens:
7.0 mm

Angle of visibility:
24 °
Resolution:
1280 x 960  – 960p ,
1024 x 768 px ,
640 x 480 px ,
256 x 192 px

Resolution:	- 4 Mpx 2336 x 1752  , 1920 x 1080 - 1080p 1280x720 – 720p 704 x 576 – 4CIF 352 x 288  – CIF
Sensors:	1/2.7" Progressive Scan CMOS
Lens:	8.0 mm
Angle of visibility:	33.4 °
Optical zoom:
Digital zoom:
Lighting:	0.05 Lux (krāsa) @ F2.0 0.005 Lux (B/W) @ F2.0
Infrared illumination reception area:	35 m

Standard:	IP, PAL
Video output:	Izeja CVBS, SPOT – 1 Vpp / 75 Ω
RS-485 interface:
Memory card slot:	Supports Micro SD memory cards up to 256GB (local recording possible)
Image compression method:	H.265 / H.264 / H.264H / H.264B / MJPEG
Alarm inputs/outputs:	1 / 1
Audio:	Audio Input Audio Output Two-way audio streaming support
Mainstream transmission speed:	25 frame rate @ 1280 x 960  25 frame rate @ 4 Mpx
Interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in, NVR compliant
Maximum number of online users:	10
ONVIF:
Intelligent image analysis:	crossing the line burglary objektu noteikšana (cilvēks, automašīna) ugunsgrēka noteikšana Dūmu detektēšana smēķēšanas noteikšana
Selected functions:	Iespēja dublēt attēlu no termoattēla kameras par klasisku attēlu – 3 Attēlošanas režīmi PIP – Attēls attēlā D-WDR – Wide Dynamic Range ROI – improving the quality of selected image fragments EIS – Electronic Image Stabilizer 2D-DNR, 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Precipitation Noise Reduction BLC/HLC – Backlight/High Light Compensation Day/night mode ICR – Infrared mechanical filter AGC - Automatic gain control WB – White Balance (ATW/AWB/Manual/Internal/External) Motion detection Inteliģenta siltākā / aukstākā punkta izsekošana Active deterrence function – Light and sound alarm 6kV kameras un tās konstrukcijas aizsardzība pret zibensizlādi Aizsardzība pret elektrostatisko izlādi – Contact/Air (ESD/EMP) : 8 / 15 kV
Mobile phone access:	37777 socket Android: Free application DMSS iOS (iPhone): Free app DMSS
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
ONVIF socket:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Source of energy supply:	PoE (802.3af), 12 V DC / 1A
Power consumed:	≤ 12W
Hull:	Compact – Metal
Colour:	White
Class of protection:	IP67
Operating temperature:	-30°C … 60°C
Weight:	1.4 kg

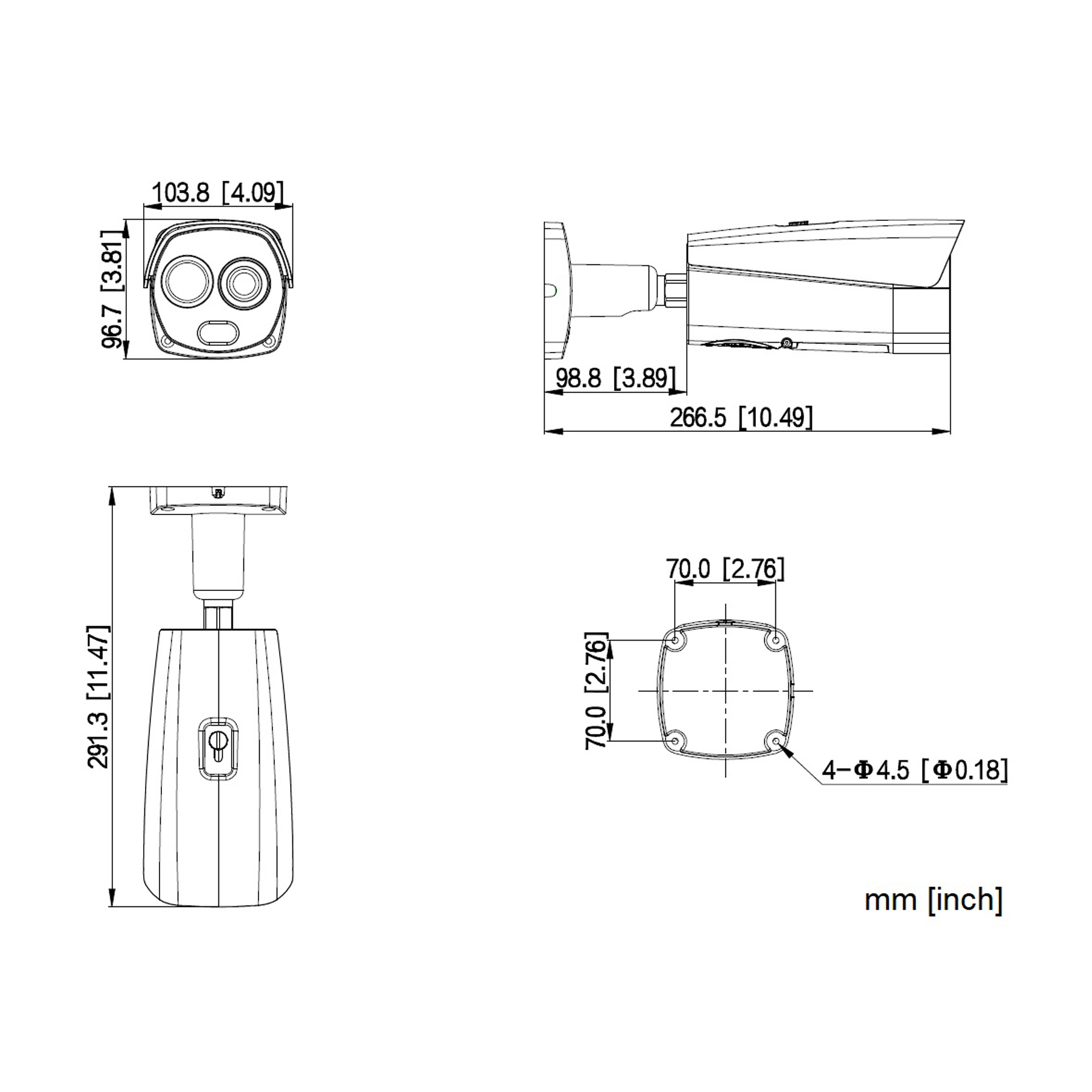

Size:	96  x 104  x 280 mm
Language selection:	English
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years
