IP HIBRĪDA TERMOKAMERA TPC-BF2241-TB7F8-DW-S2 7.0 mm – 960p, 8.0 mm – 4 Mpx DAHUA

Sensors: Uncooled VOx microbolometer </span>;>Matrix size: 256 x 192 px </span>;>Viewing angle: 24 ° </span>;>Resolution: 1280 x 960, 1024 x 768 px </span>;>Sensors: 1/2.7 " </span>;>Viewing angle: 33.4 ° </span>;>Resolution: 2336 x 1752, 1920 x 1080 </span>;>RS-485 interface</span>;>Alarm inputs/outputs: 1 / 1 </span>;>Audio: Two-way audio streaming support </span>;>Source of energy supply: PoE (802.3af), 12V DC </span>; <table>

Sensors:
Uncooled VOx microbolometer

Matrix size:
256 x 192 px
Pikseļu lielums:
12 µm

Termālā jutība (NETD):
< 40 mK @ F1.0
Spektrālais diapazons:
8 µm … 14 µm

Krāsu palete:
18
Lens:
7.0 mm

Angle of visibility:
24 °
Digital zoom:
16x

Resolution:
1280 x 960  – 960p ,
1024 x 768 px ,
640 x 480 px ,
256 x 192 px
Temperature measurement range:
-20 °C … 150 °C, 0 °C … 550 °C

Temperatūras mērījumu precizitāte:
± 2 °C, ± 2 %

Sensors:	1/2.7" Progressive Scan CMOS
Lens:	8.0 mm
Angle of visibility:	33.4 °
Optical zoom:
Digital zoom:
Resolution:	2336 x 1752  – 4 Mpx , 1920 x 1080 - 1080p 1280x720 – 720p 704 x 576 – D1
Lighting:	0.05 Lux (krāsa) @ F2.0 0.005 Lux (B/W) @ F2.0
Infrared illumination reception area:	35 m

Standard:	IP
Video output:
RS-485 interface:
Memory card slot:	Micro SD card support up to 256GB
Image compression method:	H.265 / H.264 / H.264H
Alarm inputs/outputs:	1 / 1
Audio:	Audio Input Audio Output Two-way audio streaming support Iebūvēts skaļrunis – Trauksmes skaņas signalizācija
Mainstream transmission speed:	25 frame rate @ 1280 x 960  25 frame rate @ 4 Mpx
Interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in
Maximum number of online users:	10
ONVIF:
Intelligent image analysis:	crossing the line burglary objektu noteikšana (cilvēks, automašīna) Inteliģenta siltākā / aukstākā punkta izsekošana ugunsgrēka noteikšana Dūmu detektēšana smēķēšanas noteikšana Telefonsarunu noteikšana
Selected functions:	Iespēja dublēt attēlu no termoattēla kameras par klasisku attēlu – 3 Attēlošanas režīmi PIP – Attēls attēlā D-WDR – Wide Dynamic Range ROI – improving the quality of selected image fragments 2D-DNR, 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Precipitation Noise Reduction BLC/HLC – Backlight/High Light Compensation Dienas/nakts režīms (color/b&w/auto) – ICR automatic filter AGC - Automatic gain control WB – White Balance (ATW/AWB/Manual/Internal/External) Motion detection Active Deterrence Feature – Active intrusion prevention works with a flashing white light and siren sound 6kV kameras un tās konstrukcijas aizsardzība pret zibensizlādi Aizsardzība pret elektrostatisko izlādi – Contact/Air (ESD/EMP) : 8 / 15 kV
Mobile phone access:	37777 socket Android: Free application DMSS iOS (iPhone): Free app DMSS
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
ONVIF socket:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Source of energy supply:	PoE (802.3af), 12 V DC / 1A
Power consumed:	≤ 12.2 W @ PoE ≤ 11.8 W @ 12 V
Hull:	Compact – Metal
Colour:	White
Class of protection:	IP67
Mechanical resistance class:
Operating temperature:	-30°C … 60°C
Weight:	1.4 kg

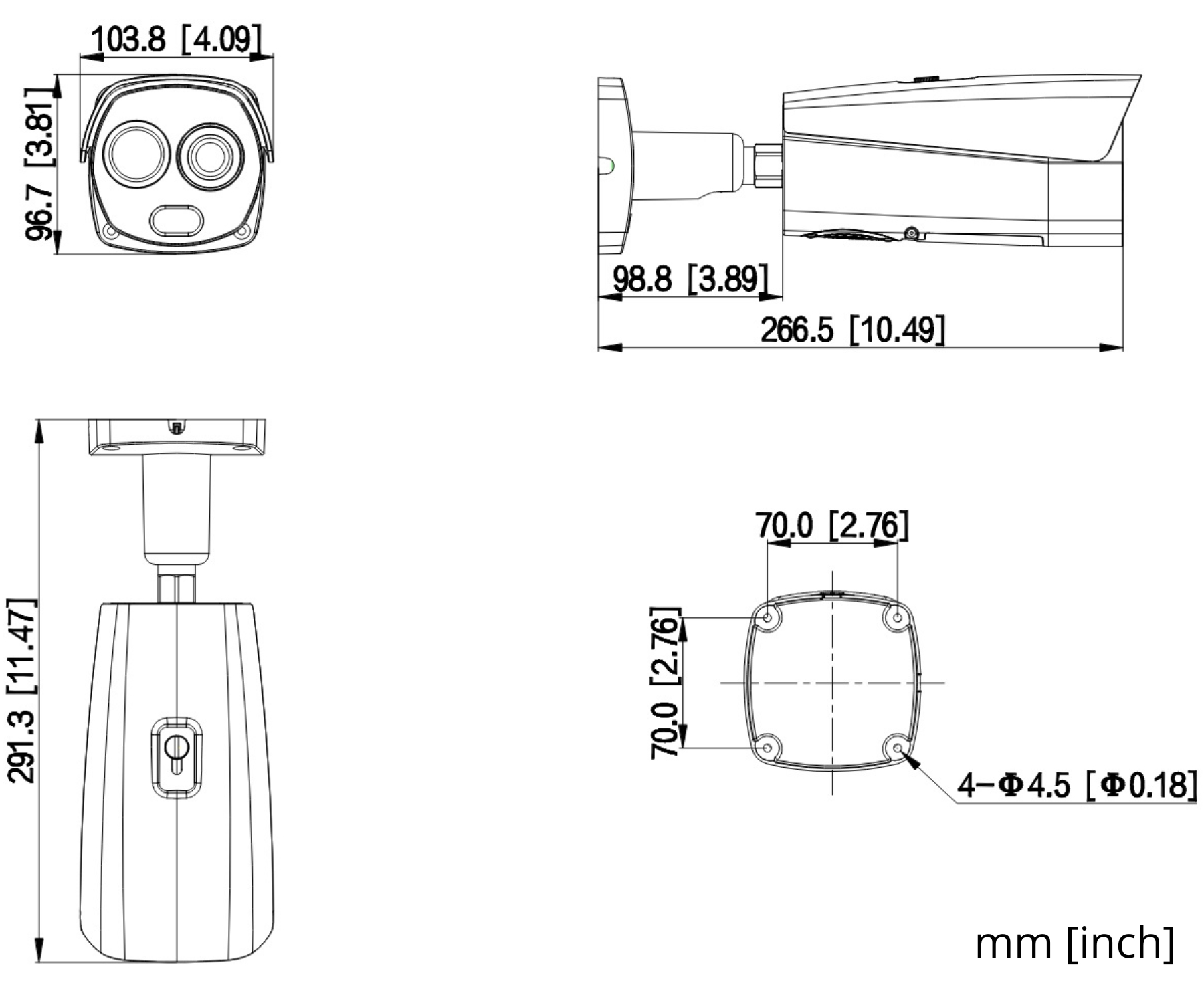

Size:	280  x 104  x 96 mm
Language selection:	English
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years
