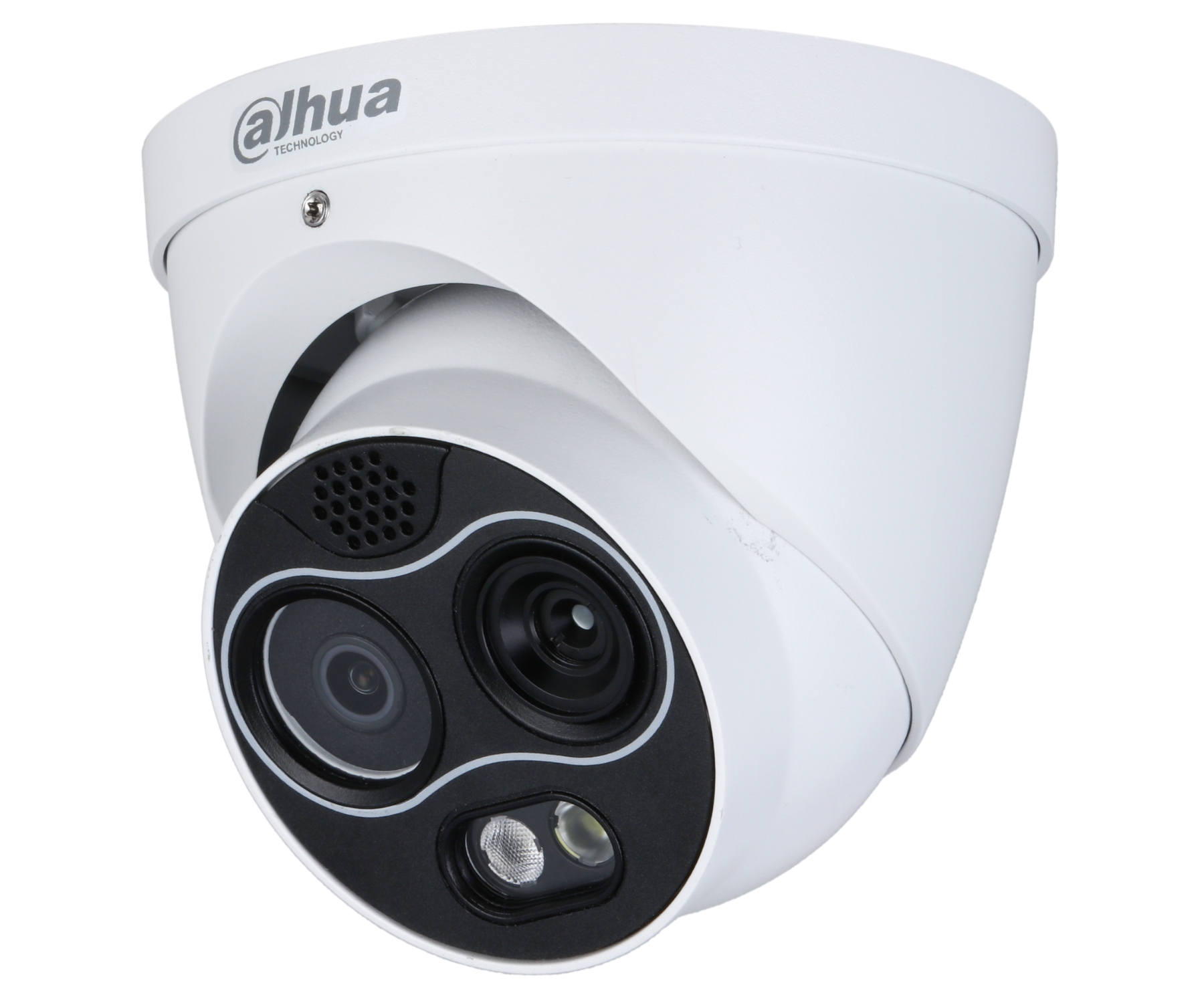

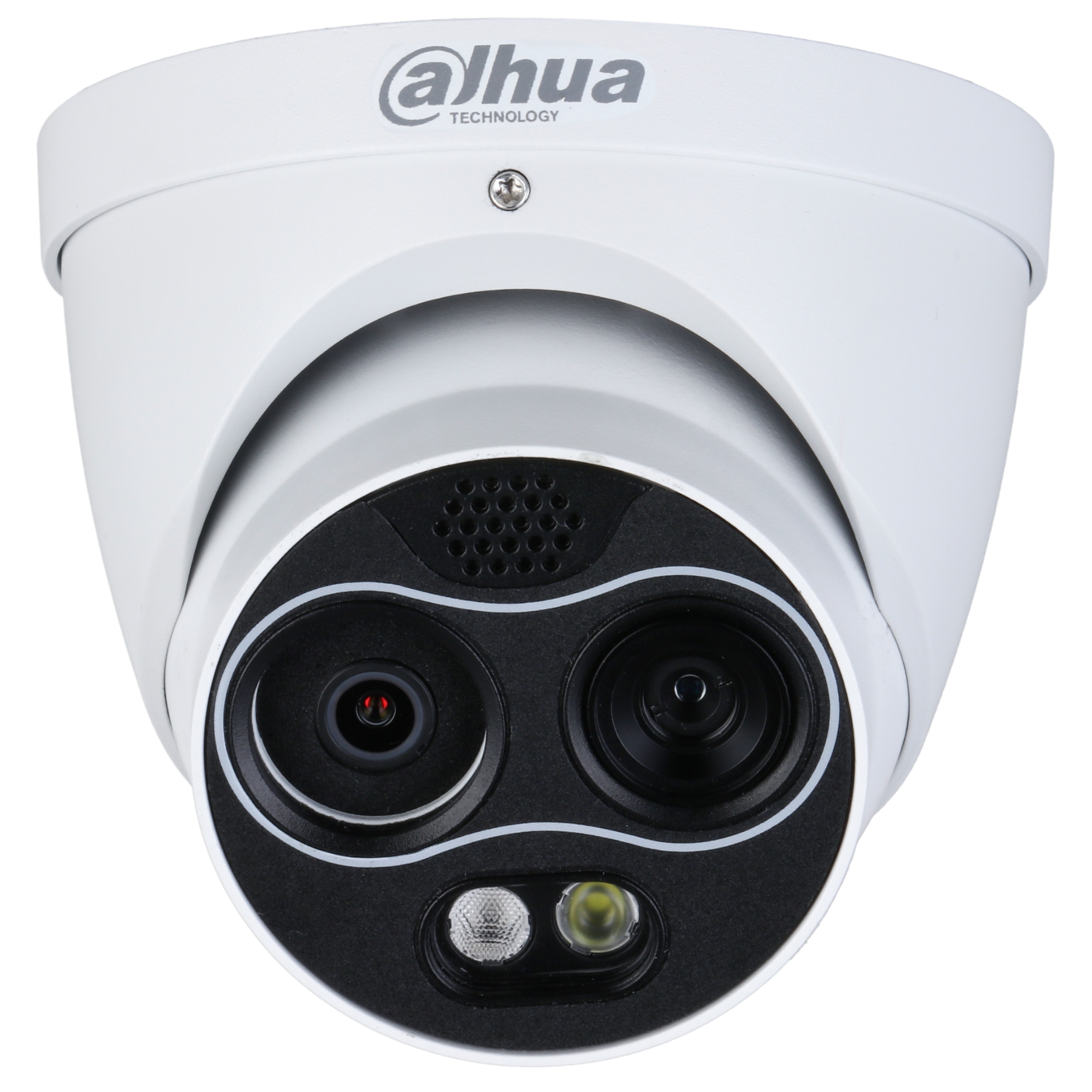

IP HIBRĪDA TERMOKAMERA TPC-DF1241-TB3F4-DW-S8 3.5 mm – 960p, 4 mm – 4 Mpx DAHUA

Sensors: Uncooled VOx microbolometer </span>;>Matrix size: 256 x 192 px </span>;>Viewing angle: 50.6 ° </span>;>Resolution: 1280 x 960, 1024 x 768 px </span>;>Sensors: 1/2.7 " </span>;>Viewing angle: 71.2 ° </span>;>Resolution: 2336 x 1752, 1920 x 1080 </span>;>RS-485 interface</span>;>Alarm inputs/outputs: 2 / 2 </span>;>Audio: Two-way audio streaming support </span>;>Source of energy supply: PoE (802.3af), 12V DC </span>; <table>

Sensors:
Uncooled VOx microbolometer

Matrix size:
256 x 192 px
Pikseļu lielums:
12 µm

Termālā jutība (NETD):
< 40 mK @ F1.0
Spektrālais diapazons:
8 µm … 14 µm

Krāsu palete:
18
Lens:
3.5mm

Angle of visibility:
50.6 °
Digital zoom:
x16

Resolution:
1280 x 960  – 960p ,
1024 x 768 px ,
640 x 480 px ,
256 x 192 px
Temperature measurement range:
-20 °C … 150 °C, 0 °C … 550 °C

Temperatūras mērījumu precizitāte:
± 2 °C, ± 2 %

Standard:	IP
Video output:
RS-485 interface:
Memory card slot:	Micro SD card support up to 256GB
Image compression method:	H.265 / H.264 / H.264H / MJPEG
Alarm inputs/outputs:	2 / 2
Audio:	Audio Input Audio Output Two-way audio streaming support Built-in speaker – Alarm siren
Mainstream transmission speed:	25 frame rate @ 1280 x 960  25 frame rate @ 4 Mpx
Interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in
Maximum number of online users:	10
ONVIF:
Intelligent image analysis:	crossing the line burglary ugunsgrēka noteikšana Siltāko un aukstāko punktu izsekošana attēlā objektu noteikšana (cilvēks, automašīna) Smēķētāju noteikšana Dūmu detektēšana Telefonsarunu noteikšana
Selected functions:	Iespēja dublēt attēlu no termoattēla kameras par klasisku attēlu – 3 Attēlošanas režīmi D-WDR – Wide Dynamic Range ROI – improving the quality of selected image fragments 2D-DNR, 3D-DNR – Digital Noise Reduction BLC/HLC – Backlight/High Light Compensation Dienas/nakts režīms (color/b&w/auto) – ICR automatic filter AGC - Automatic gain control WB – White Balance (ATW/AWB/Manual/Internal/External) Motion detection Active Deterrence Feature – Active intrusion prevention works with a flashing white light and siren sound
Mobile phone access:	37777 socket Android: Free application DMSS iOS (iPhone): Free app DMSS
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
ONVIF socket:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Source of energy supply:	PoE (802.3af), 12 V DC / 1.2 A
Power consumed:	≤ 8.3 W @ PoE ≤ 6.8 W @ 12 V
Hull:	Dome – Metal
Colour:	White
Class of protection:	IP67
Mechanical protection class:
Operating temperature:	-30°C … 60°C
relative humidity:	0  … 95 %
Weight:	0.85 kg

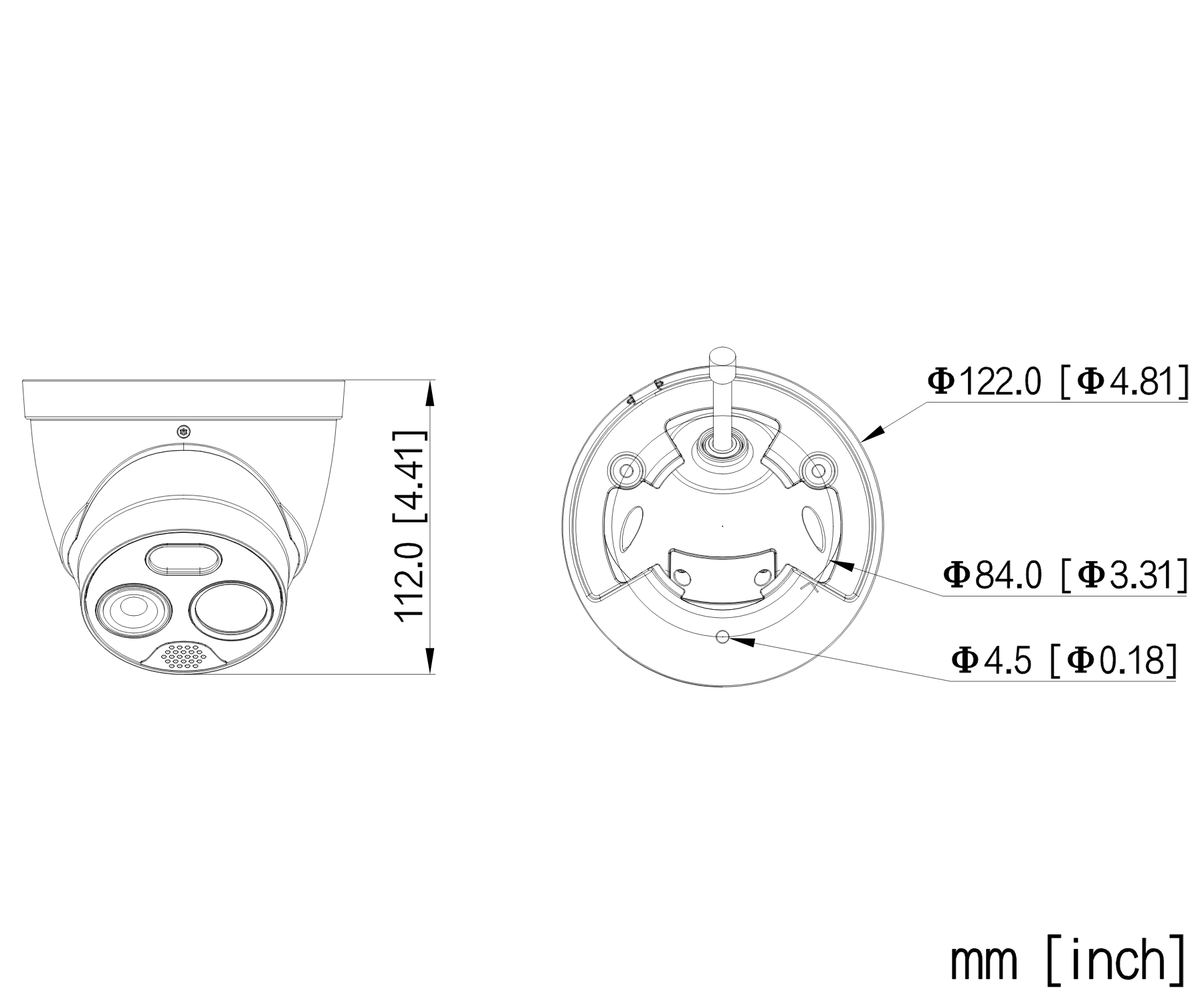

Size:	Ø 122  x 112 mm
Language selection:	poļu, angļu, čehu, franču, spāņu, Holandiešu, vācu, portugāļu, krievu, turku, itāļu
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years
