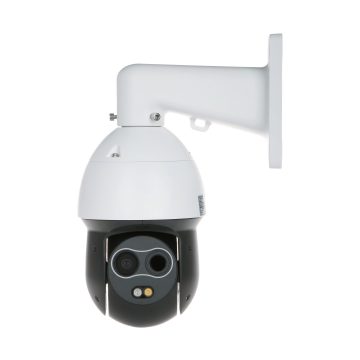

IP HIBRĪDA TERMOKAMERA TPC-SD2241-TB7F8-DW-S2 7 mm – 960p, – 4 Mpx 8 mm DAHUA

Sensors: Uncooled VOx microbolometer </span>;>Matrix size: 256 x 192 px </span>;>Viewing angle: 24 ° </span>;>Temperature measurement range: 0 °C … +550 °C </span>;>Resolution: 1280 x 960 – 960p, 1024 x 768 px 2336 x 1752, 1920 x 1080 </span>;>Image compression method: H.265 </span>;>Rotation speed (manual control): 0.1 °/s … 200 °/s (level) 0.1 °/s … 120 °/s (vertical) </span>; <table>

Sensors:
Uncooled VOx microbolometer

Matrix size:
256 x 192 px
Pikseļu lielums:
12 µm

Termālā jutība (NETD):
< 40 mK
Spektrālais diapazons:
8 µm … 14 µm

Krāsu palete:
18
Lens:
7 mm

Angle of visibility:
24 °
Temperature measurements:

0 °C … +550 °C
Resolution:
1280 x 960  – 960p ,
1024 x 768 px ,
640 x 480 px ,
256 x 192 px

VIDEOKAMERA:

Resolution:	2336 x 1752  – 4 Mpx , 1920 x 1080 - 1080p , 1280x720 – 720p , 704 x 576 – D1
Sensors:	1/2.7" Progressive Scan CMOS
Lens:	8 mm
Angle of visibility:	33.4 °
Optical zoom:
Digital zoom:	16x
Infrared illumination reception area:	35 m

General information:

Standard:	IP, PAL
Video output:	Izeja CVBS, SPOT – 1 Vpp / 75 Ω
RS-485 interface:
Memory card slot:	Micro SD card support up to 256GB
Image compression method:	H.265 / H.264 / MJPEG
Alarm inputs/outputs:	2 / 1
Audio:	External microphone input Audio output Two-way audio streaming support
Mainstream transmission speed:	25 frame rate @ 1280 x 960  25 frame rate @ 1080p
Interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in, NVR compliant
Maximum number of online users:	20
ONVIF:	18.12
Intelligent image analysis:	Dūmu detektēšana ugunsgrēka noteikšana crossing the line – classification of persons and vehicles burglary – classification of persons and vehicles objektu noteikšana (cilvēks, automašīna) object tracking smēķēšanas noteikšana
Selected functions:	2D-DNR, 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Precipitation Noise Reduction ROI – improving the quality of selected image fragments D-WDR – Wide Dynamic Range FFC – plakana lauka korekcija BLC/HLC – Backlight/High Light Compensation AGC - Automatic gain control Motion detection Configurable privacy zones Sharpness - Sharpness of the image contours Mirror – mirror image 6kV kameras un tās konstrukcijas aizsardzība pret zibensizlādi Inteliģents trauksmes signāls, kas saistīts ar baltās gaismas un skaļruņa ieslēgšanos
Mobile phone access:	37777 socket Android: Free application DMSS iOS (iPhone): Free app DMSS
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
ONVIF socket:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Preset rotation speed:	240 °/s (level) 200 °/s (vertical)
Rotation speed (manual control):	0.1 °/s … 200 °/s (level) 0.1 °/s … 120 °/s (vertical)
Horizontal rotation range:	360° – continuous
Vertical rotation range:	-15°…90°
Protocols:	DH-SD, Pelco-P, Pelco-D
Number of presets:	300
Horizontal scan:
Route settings:	8
Source of energy supply:	PoE (802.3at), 12 V DC / 1.62 A
Power consumed:	≤ 19.4 W
Hull:	Speed Dome
Colour:	White
Class of protection:	IP66
Operating temperature:	-30°C … 60°C
Weight:	3.2 kg

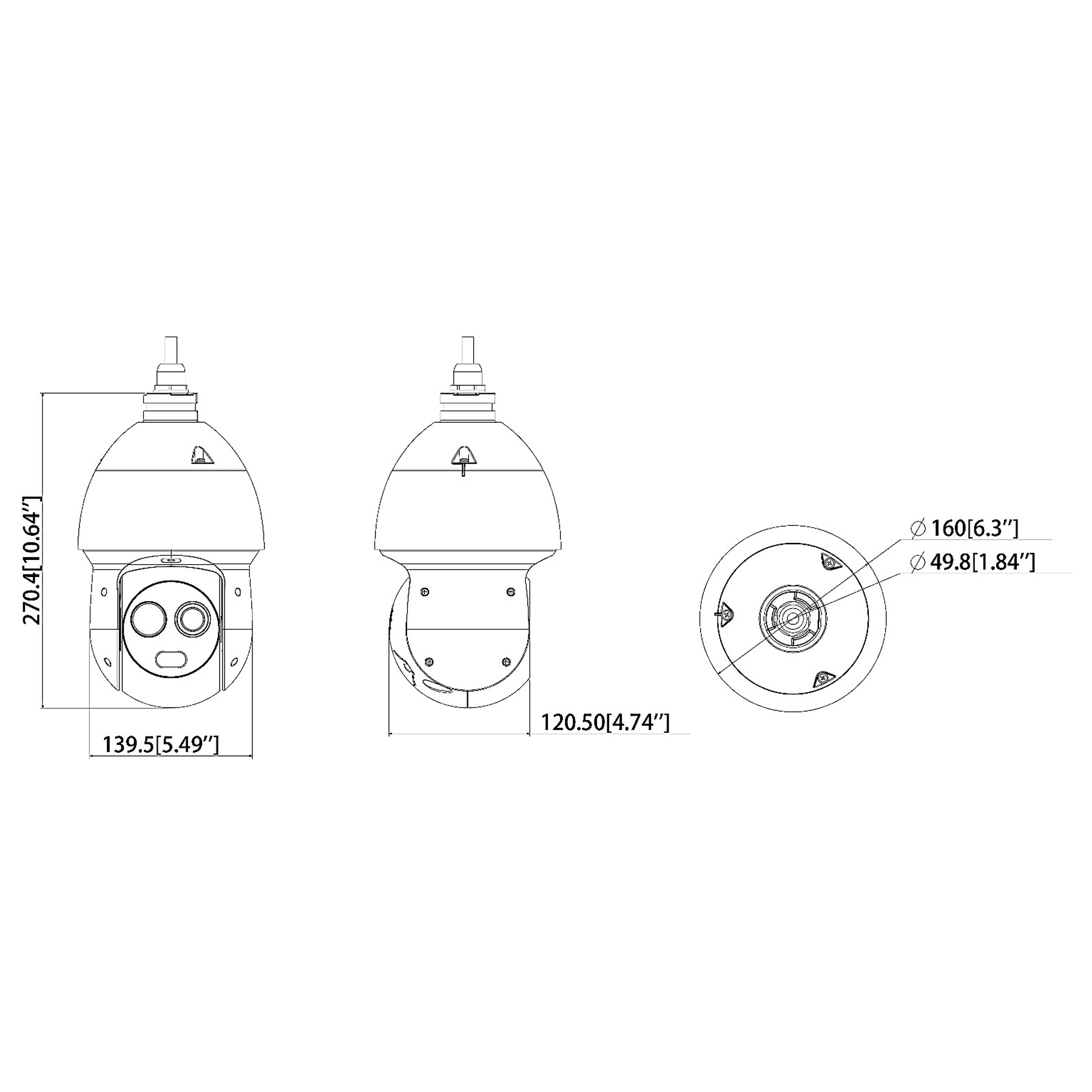

Size:	Ø 160  x 295 mm
Language selection:	angļu, franču, spāņu, itāļu
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years
