Name: IP KAMERA BCS-L-DMIP25FSR3-AI1 - 5 Mpx 2.8 mm BCS Line
SKU: BCS-L-DMIP25FSR3-AI1
Availability: OutOfStock

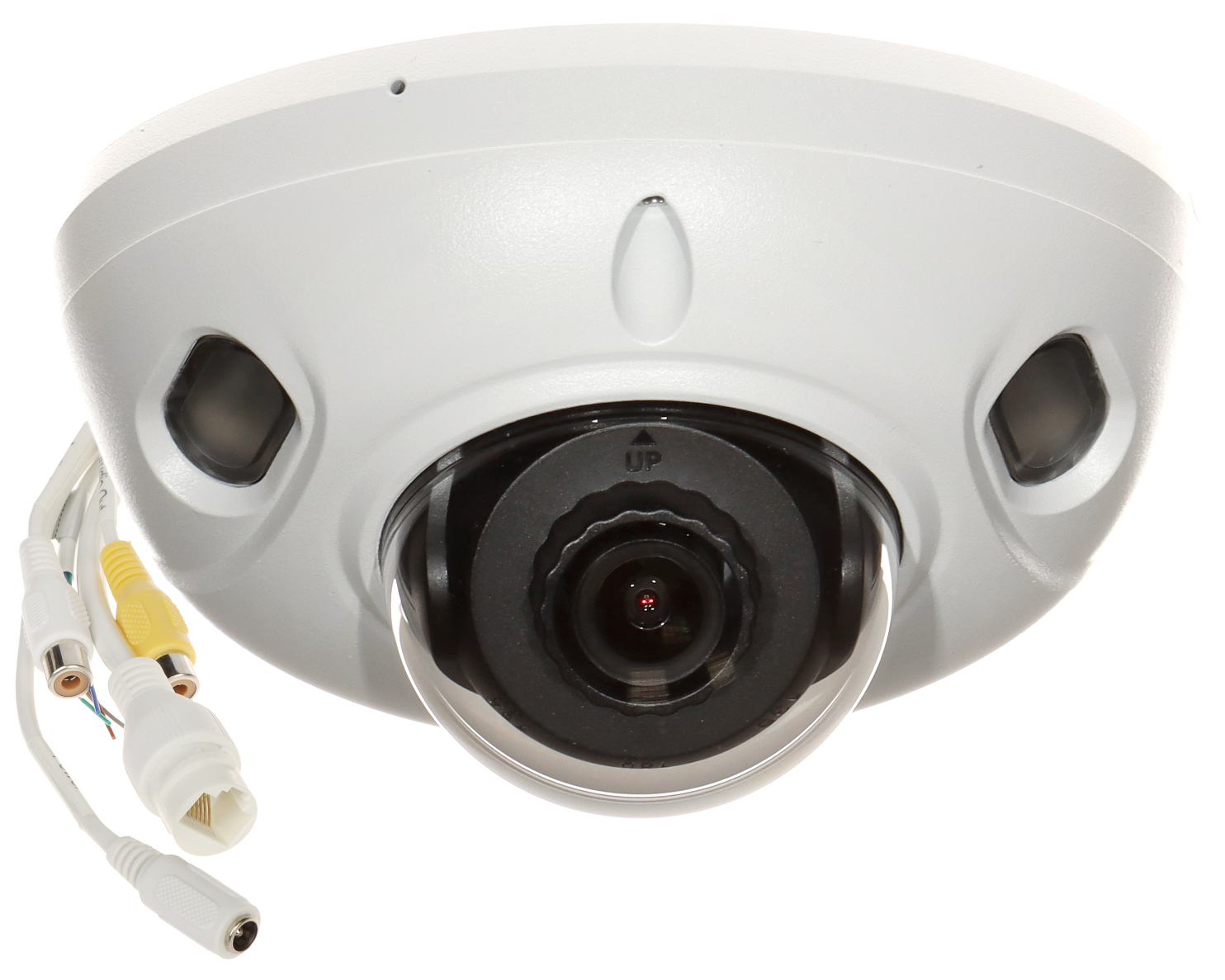

IP CAMERA BCS-L-DMIP25FSR3-AI1 – 5 Mpx 2.8 mm BCS Line

Product code: BCS-L-DMIP25FSR3-AI1

EAN: 5902887087240

Piegādes laiks: 9-13 Janvārī

Estimated Delivery Dates

166,73 €

Availability: 0

Sensors: 1/2.7 " ;>Matrix size: 5 Mpx ;>Resolution: 2960 x 1668, 2880 x 1620, 2688 x 1520, 2560 x 1440, 2048 x 1536, 2304 x 1296, 1920 x 1080 ;>Viewing angle: 111 ° ;>Image compression method: H.265+ ;>Infrared illumination detection area: 30 m ;>Alarm inputs/outputs: 1 / 1 ;>Audio: Built-in microphone, Two-way audio streaming support ;>Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible) ;>Source of energy supply: PoE (802.3af), 12V DC ;>Anti-vandalism: IK10 ; <table>

Standard:
TCP/IP
Sensors:
1/2.7" Progressive Scan CMOS

Matrix size:
5 Mpx
Resolution:
2960x1668 – 5 Mpx ,
2880x1620 – 4.7 Mpx ,
2688x1520 – 4 Mpx ,
2560x1440 – 3.7 Mpx ,
2048x1536 – 3 Mpx ,
2304x1296 – 3 Mpx ,
1920 x 1080 - 1080p ,
1280x960 – 1.3 Mpx ,
1280x720 – 720p

Lens:
2.8 mm
Angle of visibility:

111 ° (manufacturer's data)

100° (our tests)

Image compression method:
H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI Coding
Infrared illumination reception area:
30 m

Alarm inputs/outputs:
1 / 1
Mainstream transmission speed:

20 frame rate – 5 Mpx

25 frame rate – 4 Mpx

Network interface:
10/100 Base-T (RJ-45)
Audio:

Built-in microphone,

External microphone input

Audio output

Two-way audio streaming support

Sound detection

Compliant with AAC standard

WEB Server:
Built-in
Memory card slot:
Supports Micro SD memory cards up to 256GB (local recording possible)

Maximum number of online users:
20
ONVIF:
21.12

Mobile phone access:
Port: 8000 or access via cloud

Android: Free application BCS Manager

iOS (iPhone): Free app BCS Manager
Default IP address:
192.168.1.64

Default username/admin password:
admin / –
Administrator password must be set during first launch
Browser access ports:
80

Access ports using PC application:
37777
Access ports using the mobile application:
37777

ONVIF port:
80
RTSP URL:

Main stream: rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0

Side stream : rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1

Selected functions:

WDR – 120 dB – Wide dynamic range of lighting

3D-DNR - Digital Noise Reduction

F-DNR (Defog) – Precipitation Noise Reduction

BLC - Backlight compensation

HLC – High Light Compensation (Spot)

Day/night mode

ICR – Infrared mechanical filter

Automatic white balance

AGC - Automatic gain control

Image rotation and mirroring

Motion detection – max. 4 configurable zones

Privacy zones – max. 4

SMD 4.0 – search for an object classified as: person, motor vehicle – increased detection distance and resistance to false alarms

Configurable: brightness, contrast, saturation

Sharpness - Sharpness of the image contours

Intelligent image analysis: burglary, crossing the line, determining entrance to the area / exit from the area – classification of persons and vehicles
Source of energy supply:

PoE (802.3af),

12 V DC / 600 mA

Power consumed:
≤ 7.2W
Hull:
Dome, Metal

Colour:
White
Class of protection:
IP67

Anti-vandalism:
IK10
Operating temperature:
-40°C … 60°C

Language selection:
Polish, English, French, Spanish, Dutch, German, Portuguese, Romanian, Turkish, Italian
Weight:
0.43 kg

Size:
Ø 111 x 65 mm
Manufacturer / Brand:
BCS Line

WARRANTY:
3 years

Additional information

Svars	0,5740 kg
Dimensions	140 × 135 × 115 cm

IP CAMERA BCS-L-DMIP25FSR3-AI1 – 5 Mpx 2.8 mm BCS Line
