IP KAMERA IPC-EW5541-AS – 5 Mpx 1.4 mm – Fish Eye DAHUA

Sensors: 1/2.7" Progressive Scan CMOS </span>;>Matrix size: 5 Mpx </span>;>Resolution: 2592 x 1944, 2048 x 1536 </span>;>Viewing angle: 180° </span>;>Infrared illumination detection area: 10 m </span>;>Image compression method: H.265+ </span>;>Alarm inputs/outputs: 1 / 1 </span>;>Audio: Two-way audio streaming support </span>;>Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible) </span>;>Source of energy supply: PoE (802.3af), 12V DC </span>; <table>

Standard:
TCP/IP
Sensors:
1/2.7" Progressive Scan CMOS

Matrix size:
5 Mpx
Resolution:
2592x1944 – 5 Mpx ,
2048x1536 – 3 Mpx ,
1600 x 1200  – 2 Mpx ,
1280x960 – 1.3 Mpx ,
1280x720 – 720p

Lens:
1.4 mm – Fish Eye
Angle of visibility:
180°

Infrared illumination reception area:
10 m
Signal-to-sound ratio (S/N):
> 56 dB

RS-485 interface:

Image compression method:
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs/outputs:
1 / 1
Audio:

Two-way audio streaming support

Mainstream transmission speed:
25 frame rate @ 5 Mpx
Network interface:
10/100 Base-T (RJ-45)

Network protocols:
IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTCP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP
Memory card slot:
Supports Micro SD memory cards up to 256GB (local recording possible)

Default username/admin password:
admin / –
Administrator password must be set during first launch
Default IP address:
192.168.1.108

Browser access ports:
80, 37777
Access ports using PC application:
37777

Access ports using the mobile application:
37777
ONVIF port:
80

RTSP URL:
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
WEB Server:
Built-in

Maximum number of online users:
20
ONVIF:


Selected functions:

≤ 7.3 W @ 12 V DC
Hull:
Dome – Metal + Plastic

Anti-vandalism:

Colour:
White + Black

Operating temperature:
-10°C … 50°C
Weight:
0.32 kg

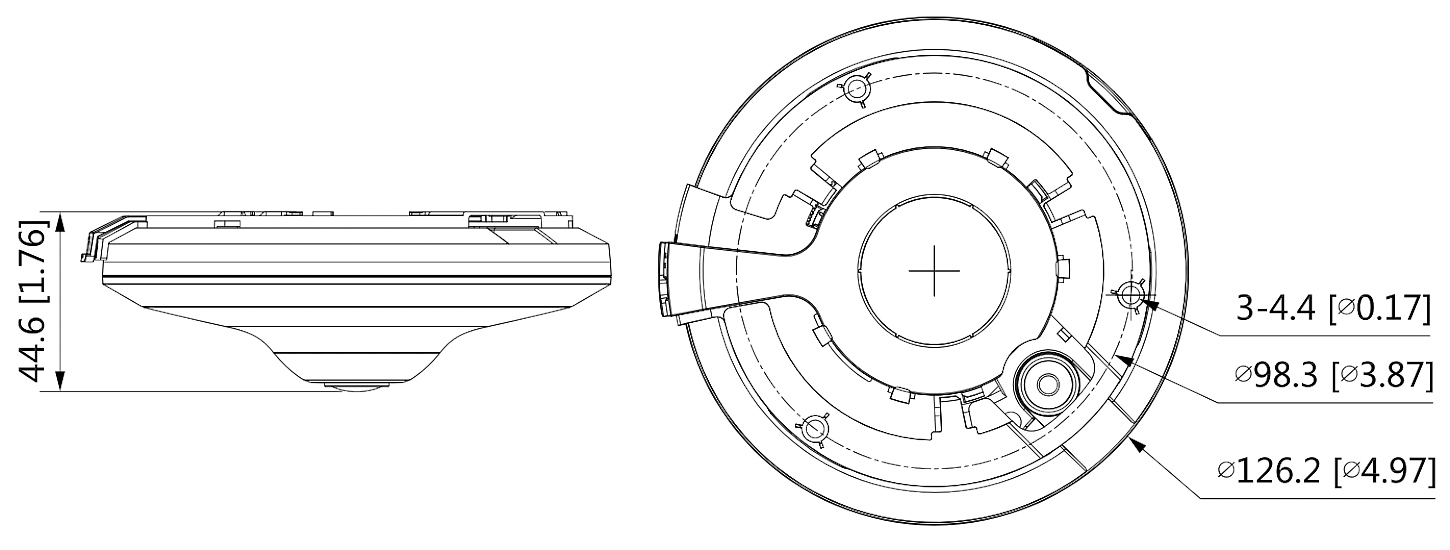

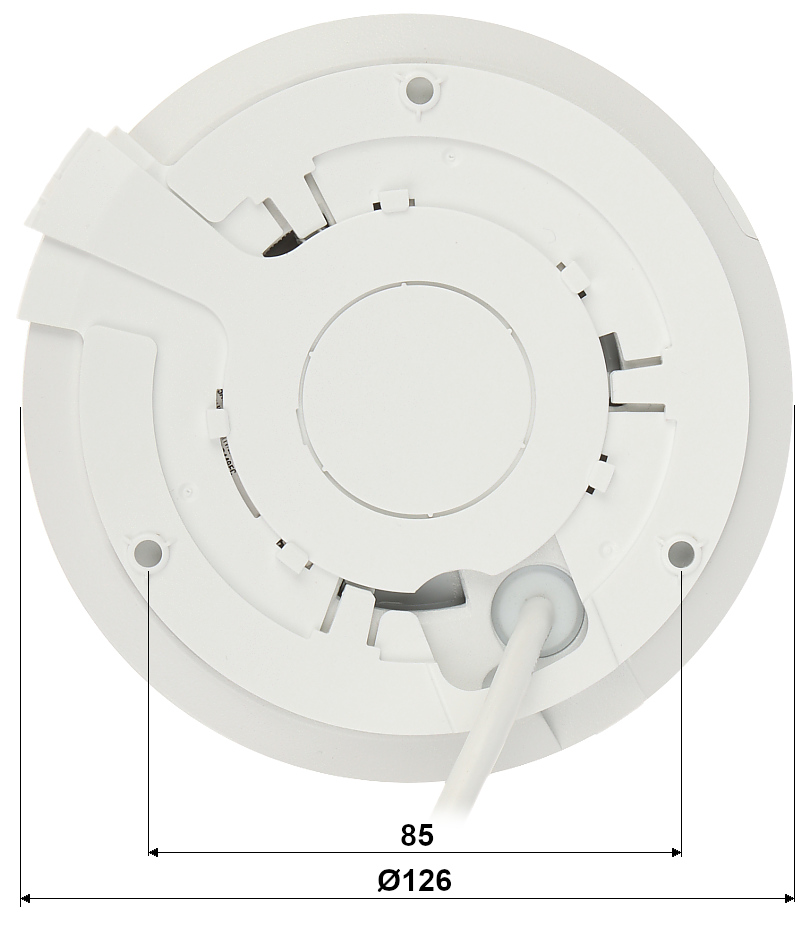

Size:
Ø 126 x 45 mm
Language selection:
poļu, angļu, čehu, franču, itāļu, spāņu, nīderlandiešu, vācu, portugāļu, krievu

Manufacturer / Brand:
DAHUA
WARRANTY:
3 years
