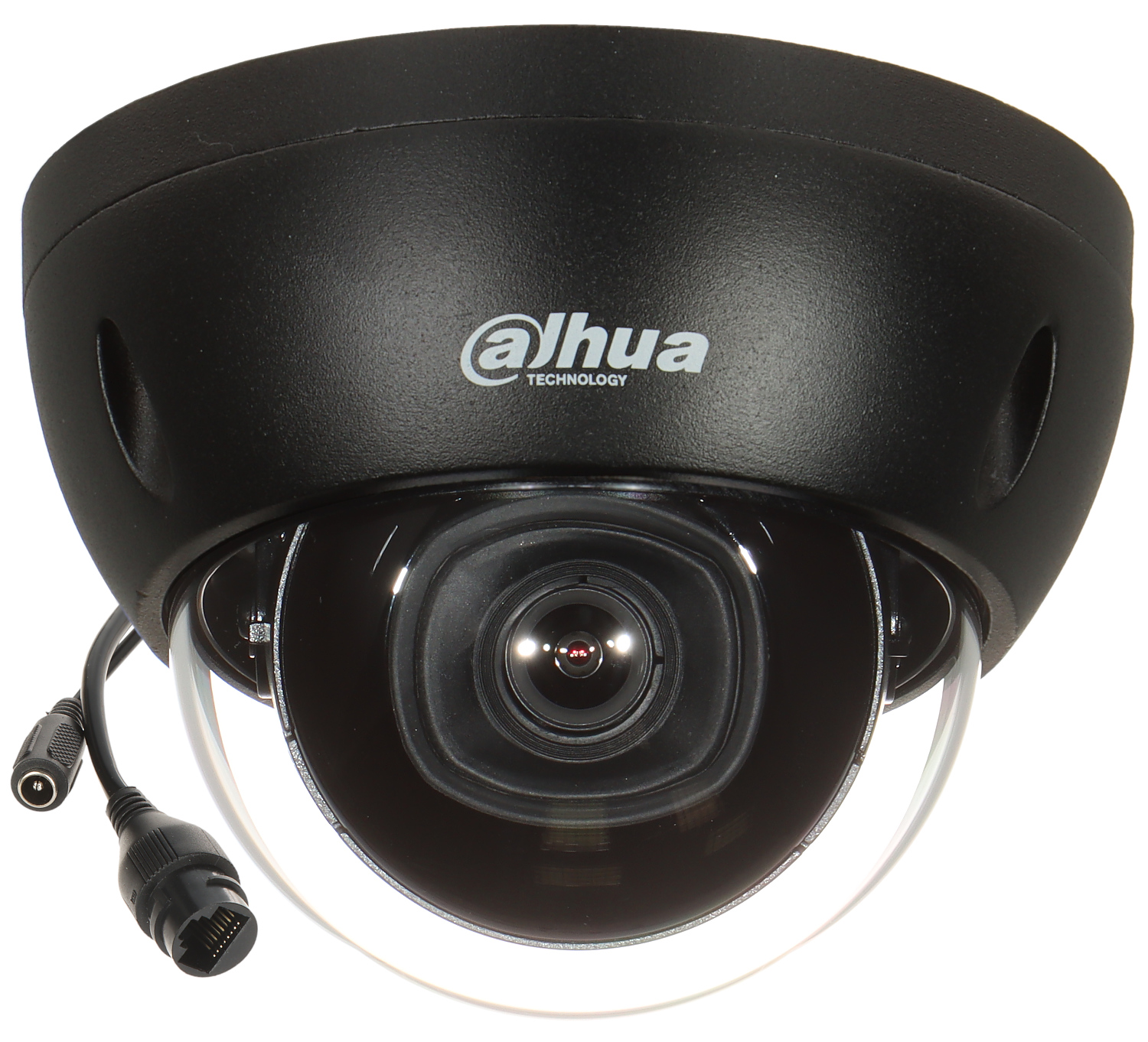

IP PRETVANDĀLISMA KAMERA IPC-HDBW2541E-S-0280B-BLACK WizSense – 5 Mpx 2.8 mm DAHUA

Sensors: 1/2.7” Progressive Scan CMOS </span>; Matrix size: 5 Mpx </span>; Resolution: 2592 x 1944, 2688 x 1520, 2304 x 1296, 1920 x 1080 </span>; Viewing angle: 97 ° </span>; Infrared illumination detection area: 30 m </span>; Memory card slot: Supports Micro SD memory cards up to 256GB (local recording possible) </span>; Image compression method: H.265+ </span>; Audio: Built-in microphone </span>; Source of energy supply: PoE (802.3af), 12V DC </span>; Anti-vandalism: IK10 </span>;

Standard:	TCP/IP
Sensors:	1/2.7” Progressive Scan CMOS
Matrix size:	5 Mpx
Resolution:	2592x1944 – 5 Mpx , 2688x1520 – 4 Mpx , 2304x1296 – 3 Mpx , 1920x1080 – 1080p , 1280 x 960  – 1.3 Mpx 1280x720 – 720p
Lens:	2.8 mm
Angle of visibility:	97 ° (manufacturer's data) 93 ° (mūsu pārbaudes)
Infrared illumination reception area:	30 m
RS-485 interface:

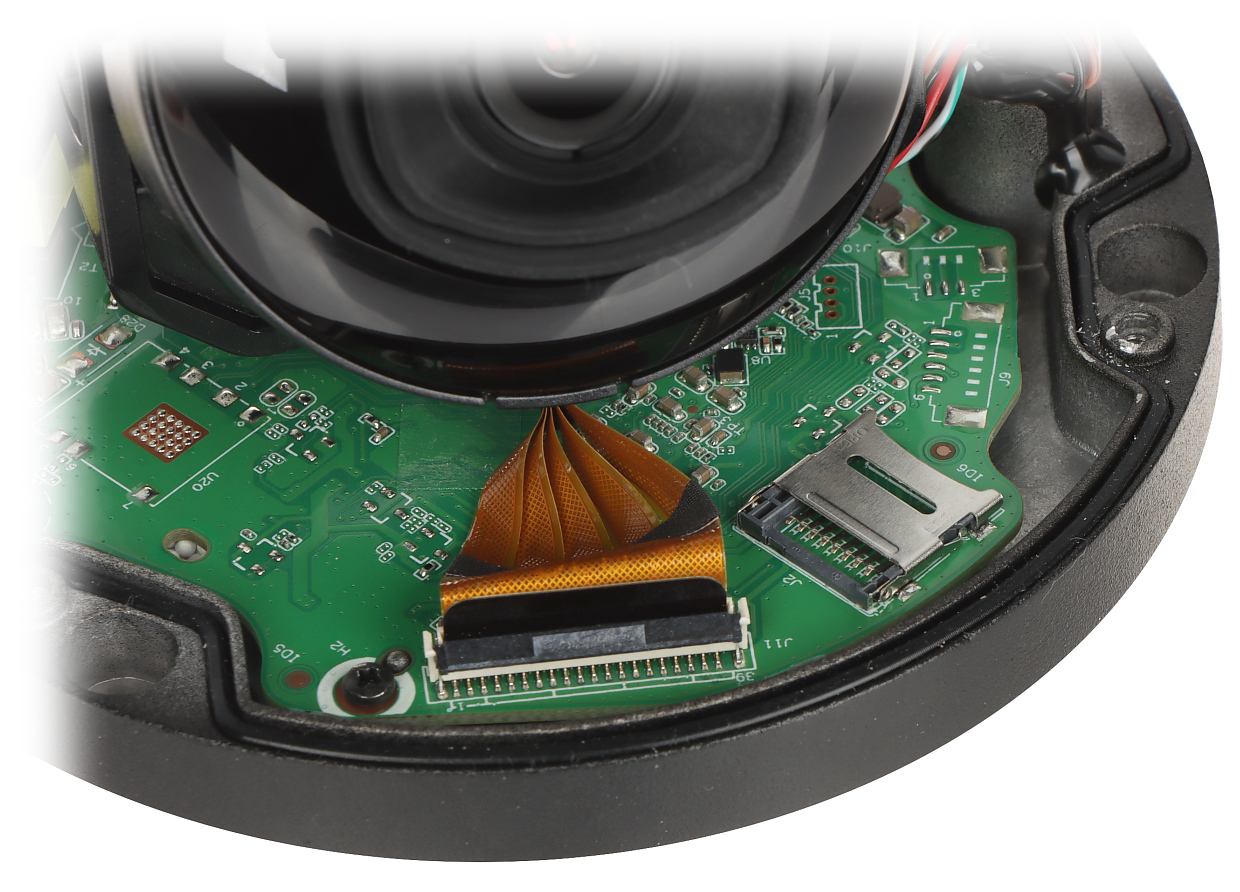

Memory card slot:	Supports Micro SD memory cards up to 256GB (local recording possible)
Image compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs/outputs:
Audio:	Built-in microphone Audio signal transmission over the network Sound detection
Mainstream transmission speed:	20 frame rate @ 5 Mpx 25 frame rate @ 4 Mpx
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
WEB Server:	Built-in
Maximum number of online users:	20
ONVIF:	21.12
Mobile phone access:	Port: 37777 or access via cloud Android: Free application DMSS iOS (iPhone): Free app DMSS
Default IP address:	192.168.1.108
Default username/admin password:	admin / – Administrator password must be set during first launch
Browser access ports:	80, 37777
Access ports using PC application:	37777
Access ports using the mobile application:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Selected functions:	WDR – 120 dB – Wide dynamic range of lighting 3D-DNR - Digital Noise Reduction ROI – improving the quality of selected image fragments SSA – Smart Scene Adaptive – intelligent scene adaptation by automatically adjusting exposure parameters to obtain a better image BLC - Backlight compensation HLC – High Light Compensation (Spot) ICR – Infrared mechanical filter Day/night mode (color/b&w/auto) WB – White Balance (ATW/AWB/Manual/Internal/External) AGC - Automatic gain control Mirror – mirror image Motion detection – max. 4 zones Privacy zones – max. 4 SMD PLUS – search for an object classified as: person, motor vehicle IVS analysis : crossing the line, burglary – classification of persons and vehicles, change of scene
Source of energy supply:	PoE (802.3af), 12V DC / 510 mA
Power consumed:	≤ 7.2 W @ PoE ≤ 6.1 W @ 12 V DC
Hull:	Dome – Metal
Colour:	Black
Class of protection:	IP67
Anti-vandalism:	IK10
Operating temperature:	-40°C … 60°C
Weight:	0.36 kg

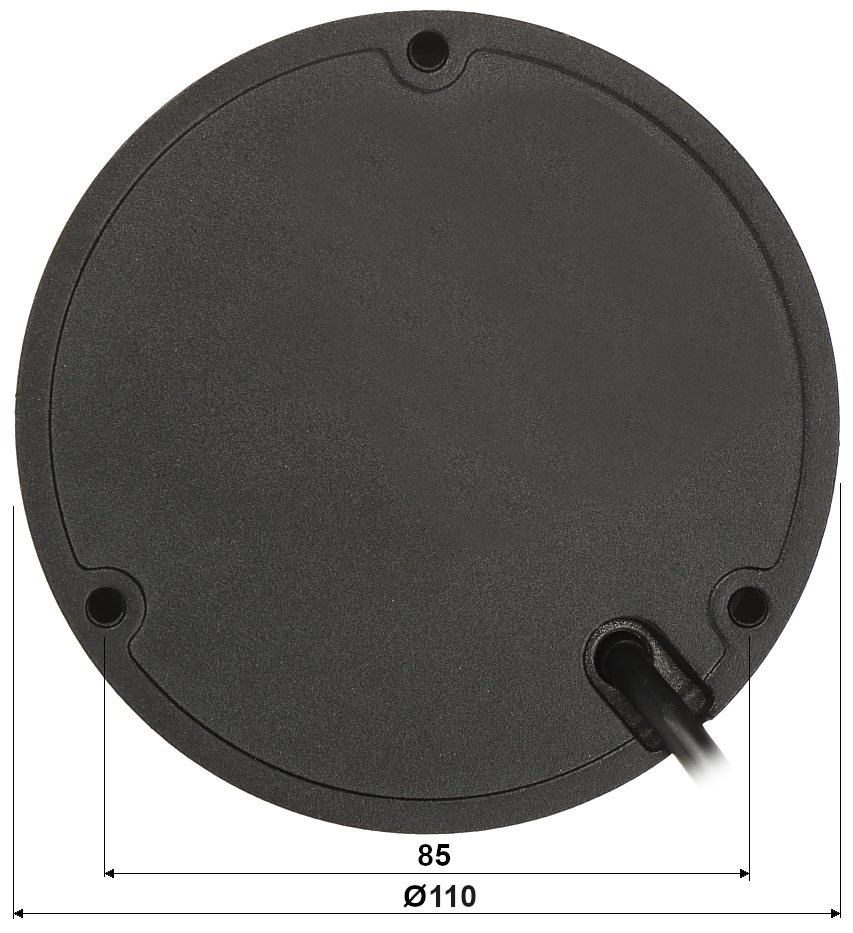

Size:	Ø 110 x 81 mm
Language selection:	Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years
