IP Tīkla Video Ierakstītājs Videoreģistrators APTI-N0911-4P-I3 9 KANĀLI, 4 PoE

Supported resolution: max. 8 Mpx - 3840 x 2160 px, 4K UHD </span>;>Audio support: 9 Channels </span>;>Image compression method: H.265+ </span>;>Supported hard drives: 1 x 8TB SATA </span>;>Alarm inputs/outputs: 4 / 1 </span>; <table>

Standard:
TCP/IP
Supported resolution:
max. 8 Mpx – 3840 x 2160 px, 4K UHD

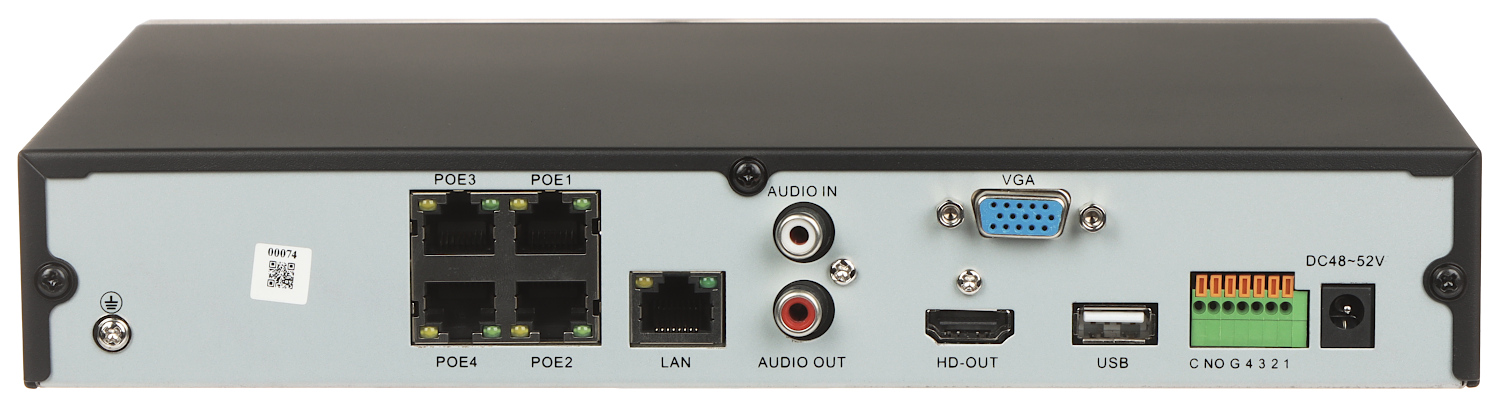

Video outputs:
1 pc HDMI 4K
1 piece VGA
Audio support:

Two-way audio streaming support

Audio input:
1 piece CINCH
Audio output:
1 piece CINCH

Image compression method:
H.265+ / H.265 / H.264+ / H.264
Bit transmission:
80 Mbps

Supported hard drives:
1 x 8TB SATA
Recording modes:
Manual, sensor, motion detection, schedule

Backups on external media:
Copy of the recording (.avi) in USB (pendrive) format
Searching and playing recordings:
Search for recordings in the timeline or file list. Playback: forward, fast.
Plays up to 4 cameras simultaneously @ 1080p

Network interface:
1 x RJ-45 10/100 Base-TX
Network features:
Client program and IE browser: live view, playback and recording archive, recorder parameter configuration

Network protocols:
IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE
ONVIF:


Default IP address:
192.168.1.88
Default username/admin password:
admin / 12345

Mobile phone access:
Cloud access (P2P)

Android: Free application BitVision, iOS: Free app iVMS320
Browser access ports:
80, 5000, 554

Access ports using PC application:
80, 5000, 554
USB:
2 pcs. USB 2.0

Regular ports:

Alarm inputs/outputs:
4 / 1

PTZ head rotation control:
IP Speed Dome cameras
Motion detection:
Screen division: 22 x 18 motion zones

Intelligent image analysis:

Selected functions:

D-ZOOM – Digital zoom

Mouse crew:

IR remote control included:


Switch PoE:
Iebūvēts 4-portu PoE slēdzis : 15 W / Kanāls – PoE (802.3af)
Maximum total load of the switch:
50W

Source of energy supply:

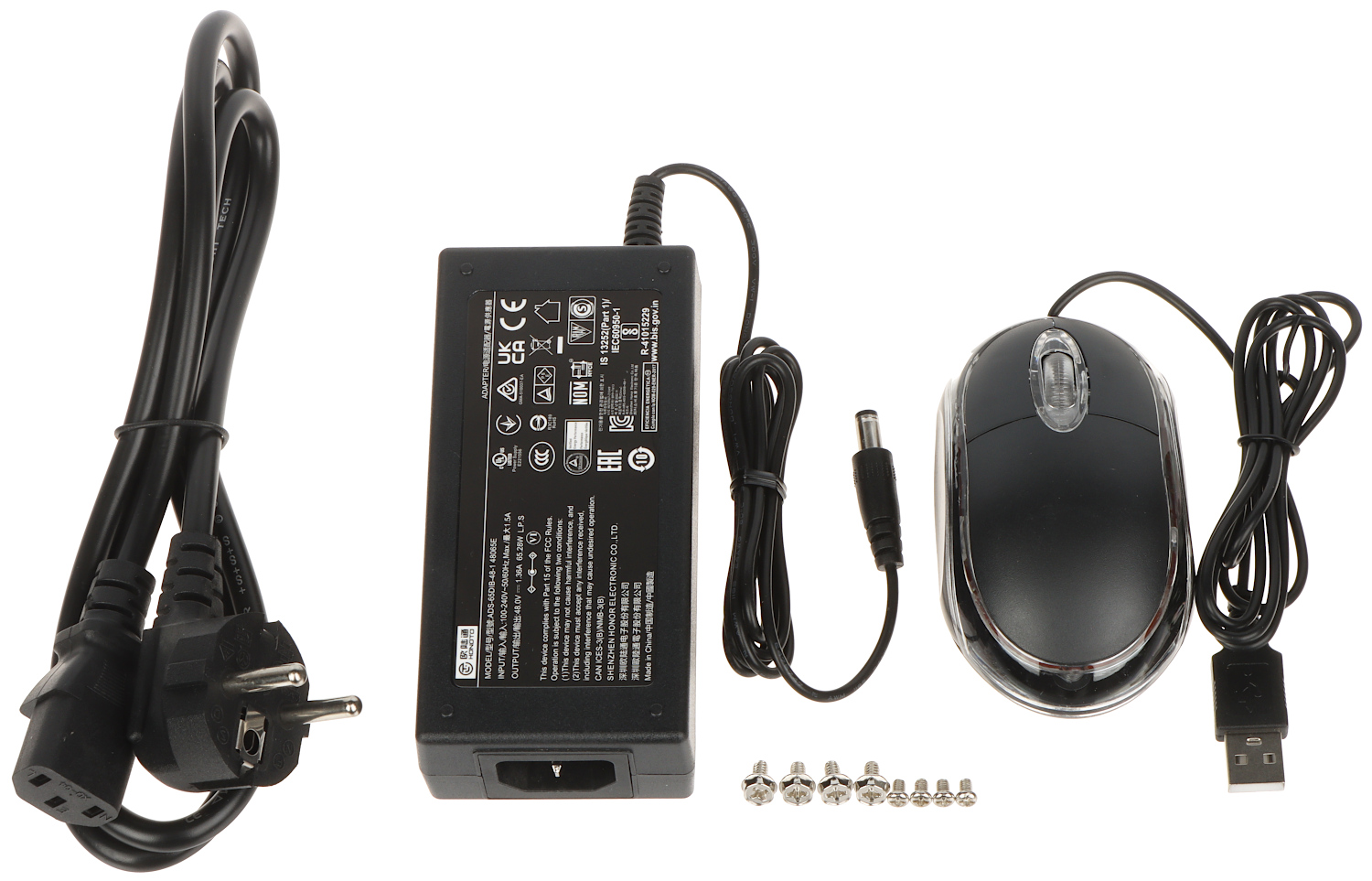

48V DC / 1.36 A (power adapter included)
Power consumed:
≤ 10W (without HDD)

Operating temperature:
-10°C … 50°C
Weight:
0.96 kg

Size:
260 x 237 x 45 mm
Language selection:
Polish, English, French, Spanish, German, Portuguese, Russian, Ukrainian, Italian

Manufacturer / Brand:
APTI
WARRANTY:
2 years
