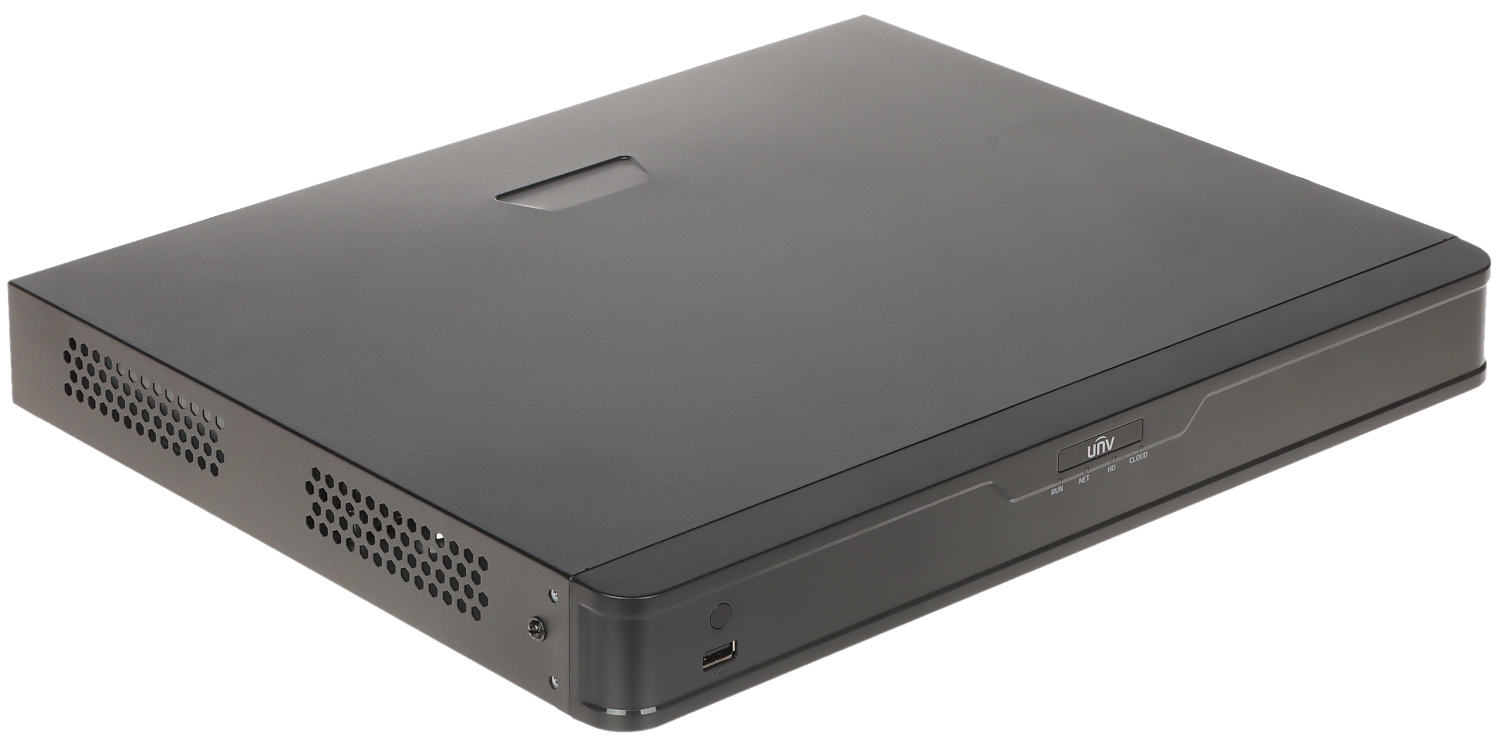

UNIVIEW IP Network Video Recorder NVR302-16E2 16 CHANNELS

Supported resolution: max. 12 Mpx - 4000 x 3000 px </span>;>Audio support: 16 Channels </span>;>Image compression method: Ultra 265 </span>;>Supported hard drives: 2 x 10TB SATA </span>;>Selected features: Intelligent image analysis </span>; <table>

Standard:
TCP/IP
Supported resolution:
max. 12 Mpx – 4000 x 3000 px

Video outputs:
1 pc HDMI 4K
1 piece VGA
There is an option to configure the SPOT function on one of the outputs
Audio support:

Two-way audio streaming support

Audio input:
1 piece CINCH
Audio output:
1 piece CINCH

Image compression method:
Ultra 265 / H.265 / H.264
Bit transmission:
max. 320 Mbps

Supported hard drives:
2 x 10TB SATA
Recording modes:
Manual, sensor, motion detection, schedule

Backups on external media:
Backup to USB (pendrive, external drive)
Searching and playing recordings:
Search for recordings by time and event type. Playback: forward, backward, speed up, slow down
Advanced search (up to a second)
1/4/6/8/9/16 channel synchronous playback

Network interface:
2 times RJ-45 10/100/1000 Base-TX
Network features:
Full network support, Remote recording copy, Built-in web server
max. 128 online users

Network protocols:
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP
ONVIF:


Default IP address:
DHCP or 192.168.1.30
Default username/admin password:
admin / 123456

Mobile phone access:
Port: 80 or access via cloud

RS-485 management
Motion detection:


Intelligent image analysis:

Selected functions:
The functions are implemented by the DVR in cooperation with cameras that support these functions.

Corridor mode – a useful mode for monitoring corridors, entrance gates and narrow spaces

Mouse crew:

IR remote control included:


Switch PoE:

Source of energy supply:
12 V DC / 3.33 A

Power consumed:
max. 12 W (without HDD)
Operating temperature:
-10°C … 55°C

Weight:
1.74 kg
Size:
380 x 322 x 53 mm

Language selection:
Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Slovak, Italian
Manufacturer / Brand:
UNIVIEW

WARRANTY:
3 years
