| Standard: |
TCP/IP |
| Supported resolution: |
max. 8.3 Mpx 4K UHD – 3840 x 2160 px |

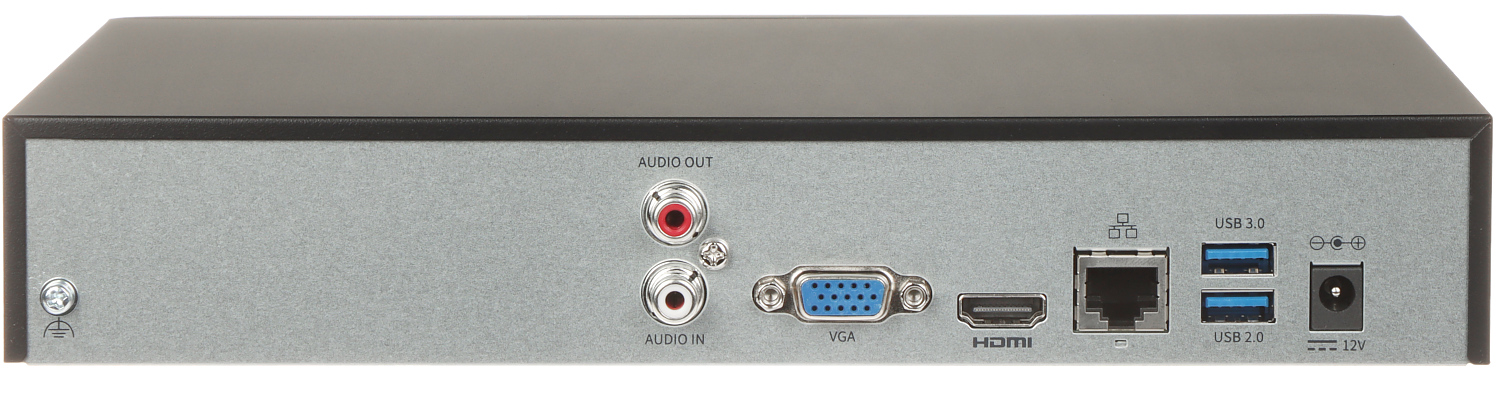

| Video outputs: |
1 pc HDMI 4K 1 pc VGA |
| Audio support: |
4 Channels – Audio from cameras Two-way audio streaming support Sound detection |
| Audio input: |
1 pc. CINCH |
| Audio output: |
1 pc. CINCH |
| Image compression method: |
Ultra 265 / H.265 / H.264 |
| Bit transmission: |
max. 80 Mbps |
| Supported hard drives: |
1 x 8TB SATA |
| Recording modes: |
Manual, motion detection, schedule |
| Backups on external media: |
Backup to USB (pendrive, external drive) |
| Searching and playing recordings: |
Search for recordings by time and event type. Playback: forward, backward, fast forward, slow forward Advanced search (up to a second) 1/4 channel synchronous playback |
| Network interface: |
1 x RJ-45 10/100 Base-TX |
| Network functions: |
Full network support, Remote control of recording copying, Built-in web server max. 128 on-line users |
| Network protocols: |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP |
| ONVIF: |
- |
| Default IP address: |
DHCP or 192.168.1.30 |
| Default username/admin password: |
admin / 123456 |
| Mobile phone access: |
Port: 80 or cloud access Android: Free EZView app iOS (iPhone): Free EZView app |
| Browser access ports: |
80, 554 |
| Access ports using PC application: |
Port: 80 or cloud access – PC: Free application EZStation |
| Access ports using the mobile application: |
80 |
| RTSP URL: |
rtsp://192.168.1.30:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live – Side stream |
| USB: |
1 x USB 2.0 1 x USB 3.0 |
| Regular ports: |
- |
| Alarm inputs/outputs: |
- |
| PTZ head rotation control: |
PTZ Uniview cameras |
| Motion detection: |
- |
| Intelligent image analysis: |
- |
| Selected features: |
Intelligent image analysis: crossing the line, intrusion, entering the marked area, leaving the marked area, scene change, abandoned/missing object, object tracking, dynamic analysis of individual object behavior, counting people who have crossed the line, estimating the size of the gathered audience Person detection Tamper alarm VIDEO signal loss alarm Compatible with ANR function Corridor mode – a useful mode for monitoring corridors, entrance gates and narrow spaces Software update via cloud |
| Mouse crew: |
- |
| IR remote control included: |
- |
| Source of energy supply: |
12 V DC / 2 A (power adapter included) |
| Power consumption: |
max. 6 W (without HDD) |
| Operating temperature: |
-10°C … 55°C |
| Weight: |
0.69 kg |
| Size: |
260 x 222 x 47 mm |
| Language selection: |
Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Slovak, Italian |
| Manufacturer / Brand: |
UNIVIEW |
| Warranty: |
3 years |
