COAXIAL CABLE TRISET-302-B2CA/500 A+ TRISET

In the section: 500 m. Price indicated is for 1m when purchasing the entire roll. </span>;>Coaxial cable: TRISET </span>;>Inner core: Ø 1.02 mm Cu Wire </span>;>Dielectric: Ø 4.8 mm </span>;>Screen: – Al/PET/Al </span>;>Selected characteristics: Ugunsreakcijas klase atbilst CPR – B2ca-s1a, d1, a1 </span>; <table>

In the section:

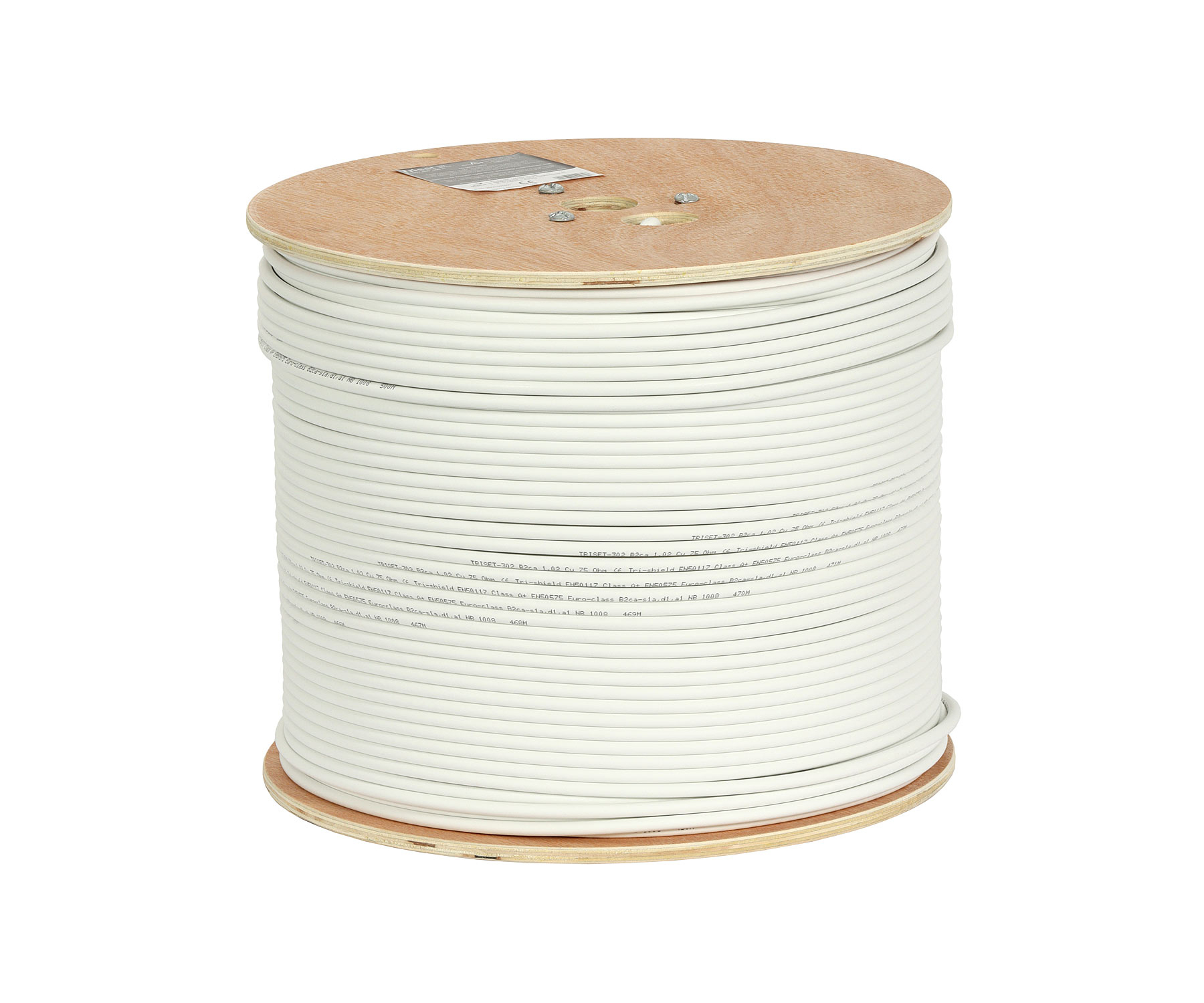

500 m. Price indicated is for 1m when purchasing the entire roll.

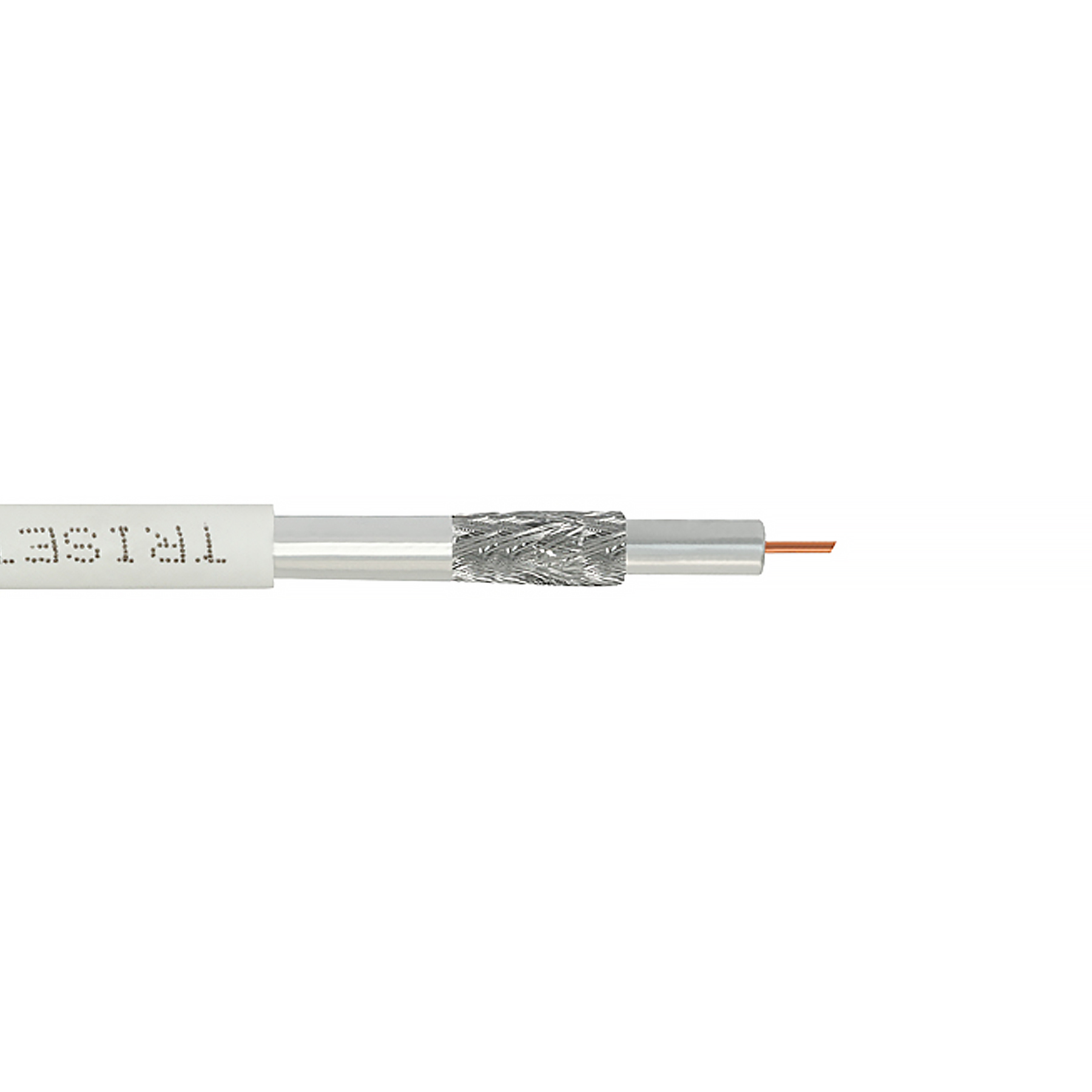

Coaxial cable:
TRISET

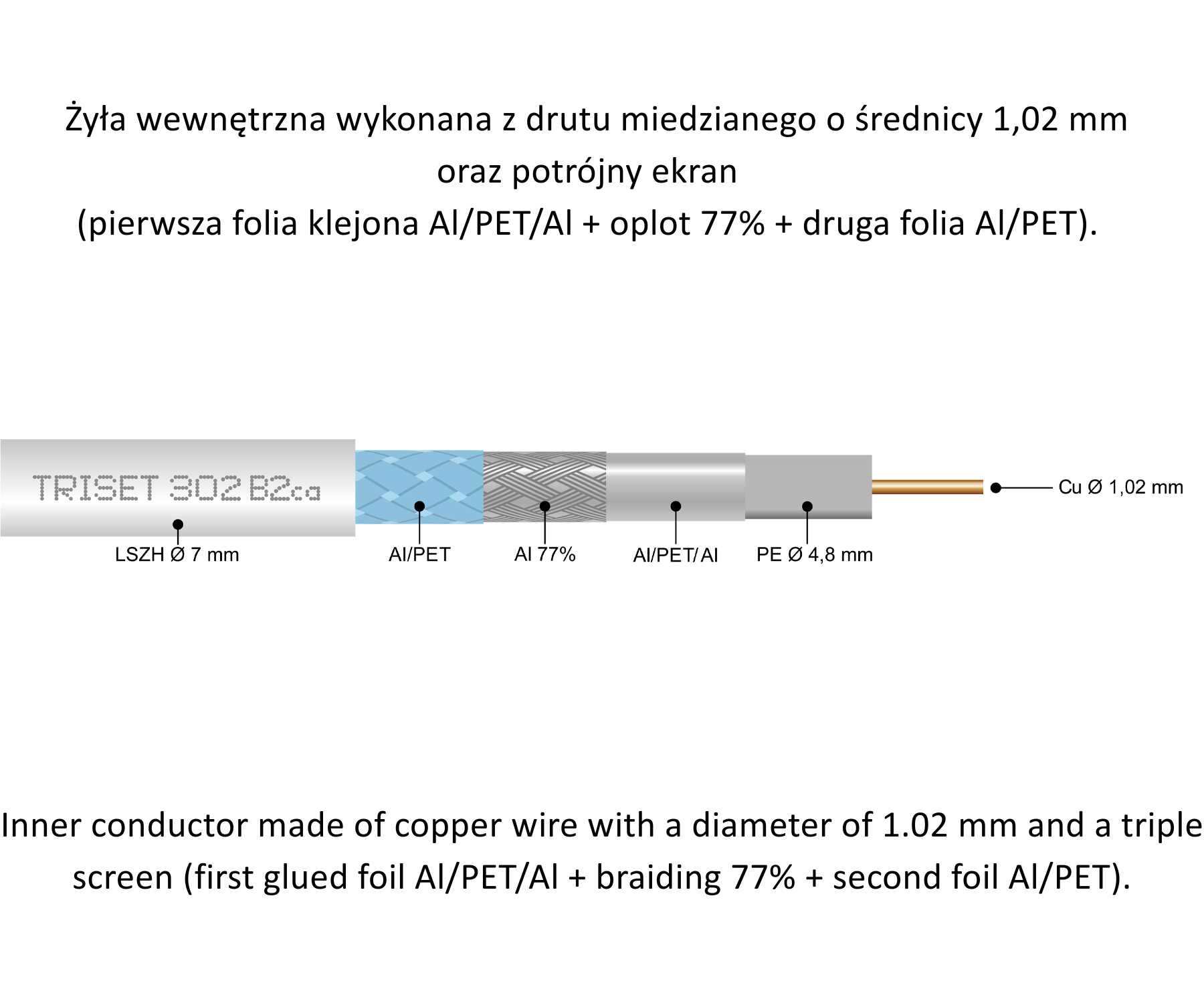

Inner core:
Ø 1.02 mm Cu Wire
Dielectric:
Ø 4.8 mm (physically whipped)

Screen:
Triple

Foil – Al/PET/Al

Foil – Al/PET

Shielding class A++ @ ≤ 2 GHz

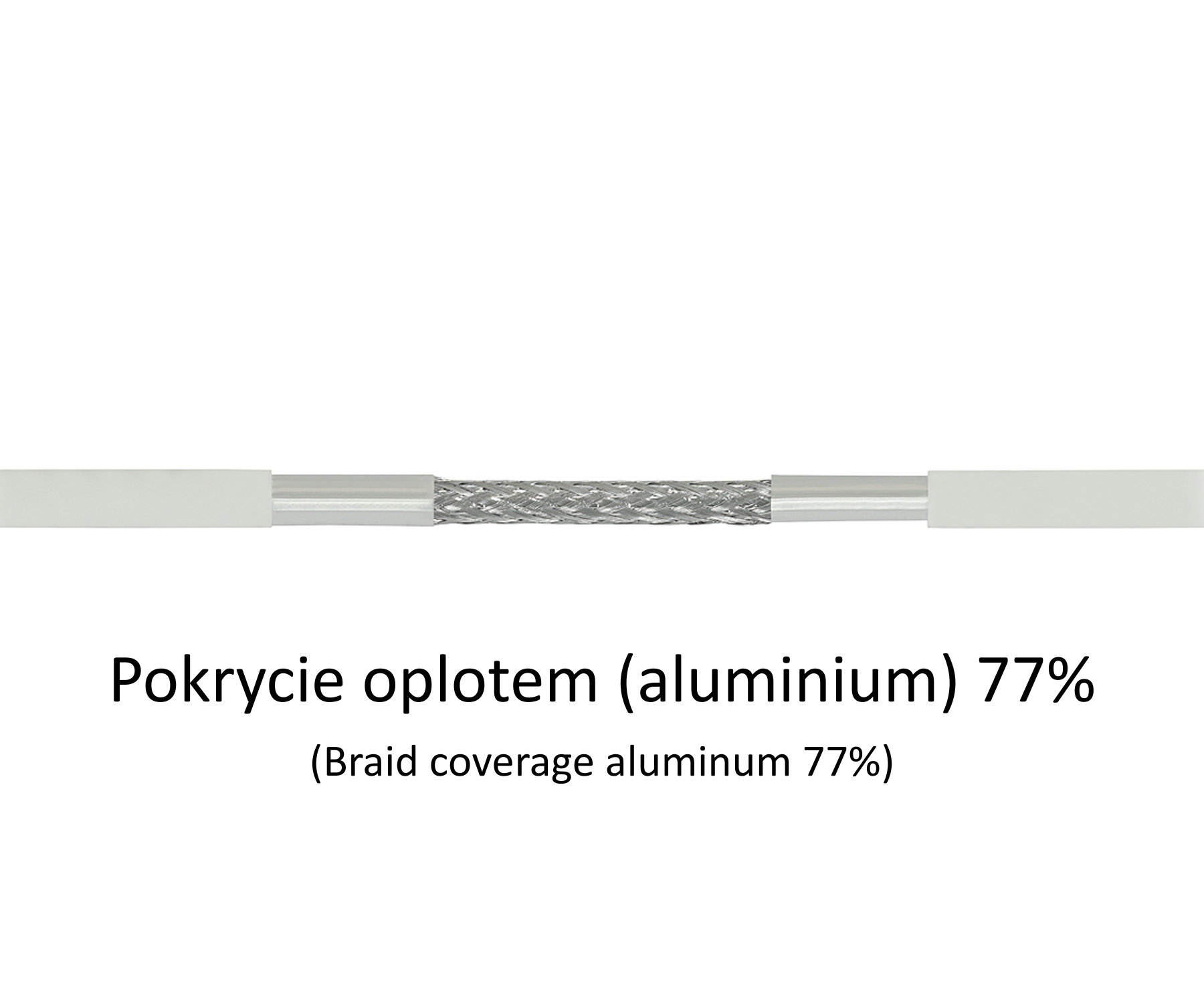

Braiding:
77 % – Al wire

External coating:
Ø 7 mm LSZH (LS0H)
Coating color:
White

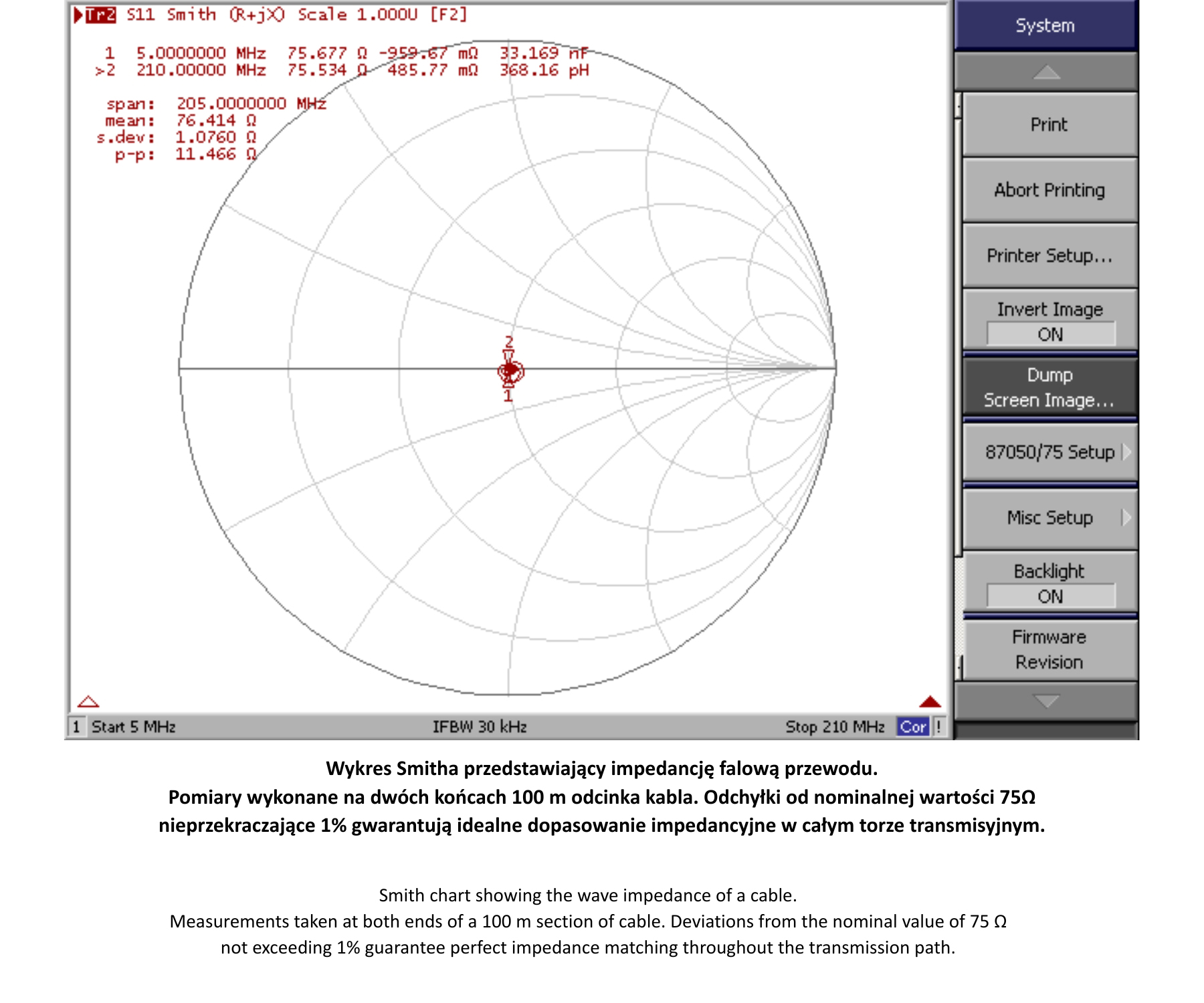

Full resistance:
75 Ω
Load:
52.5 pF/m

Conductor resistance to direct current:
21.91 Ω/km

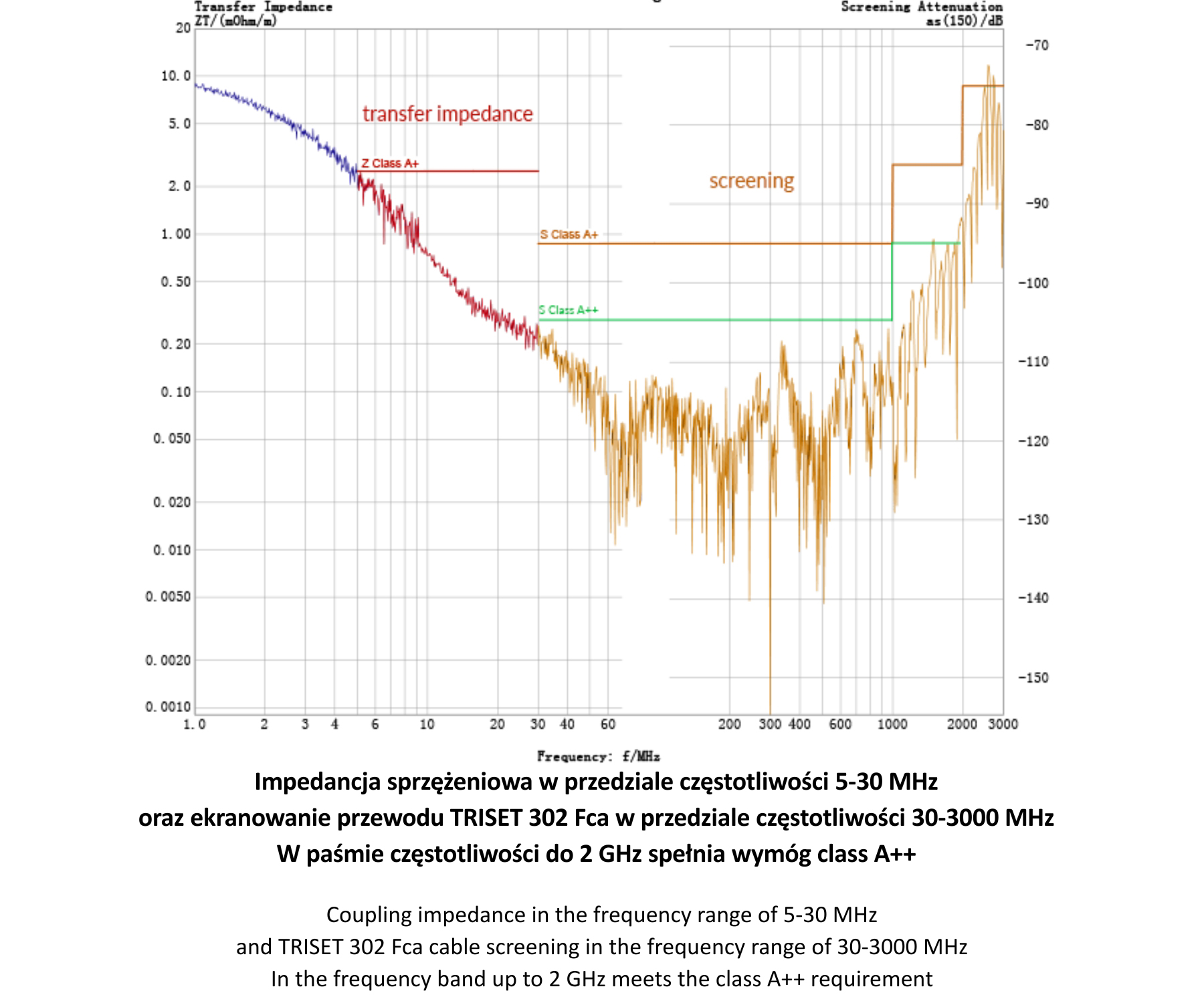

Test efficiency:
> 105 dB @30 … 1000 MHz
> 95 dB @1 … 2 GHz
> 85 dB @2 … 3 GHz

Selected characteristics:

low attenuation

perfect match

high shielding efficiency

The cable meets the EN50117 standard and complies with the class A++ standard in the band up to 2GHz and class A+ in the entire transmission bandwidth

Ugunsreakcijas klase atbilst CPR – B2ca-s1a, d1, a1
Manufacturer / Brand:
TRISET

WARRANTY:
2 years
