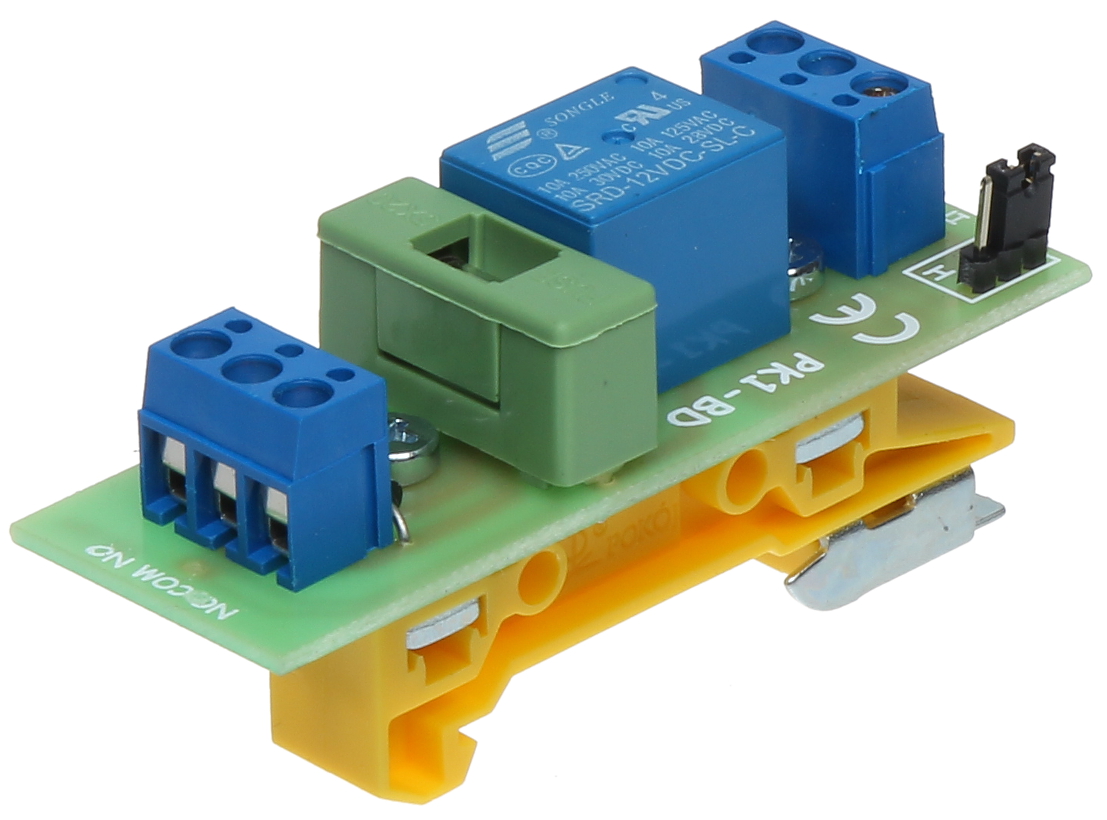

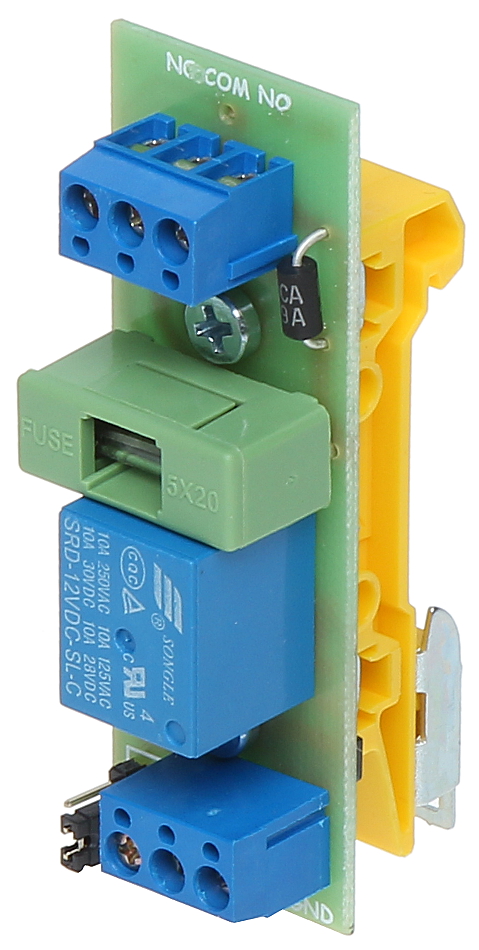

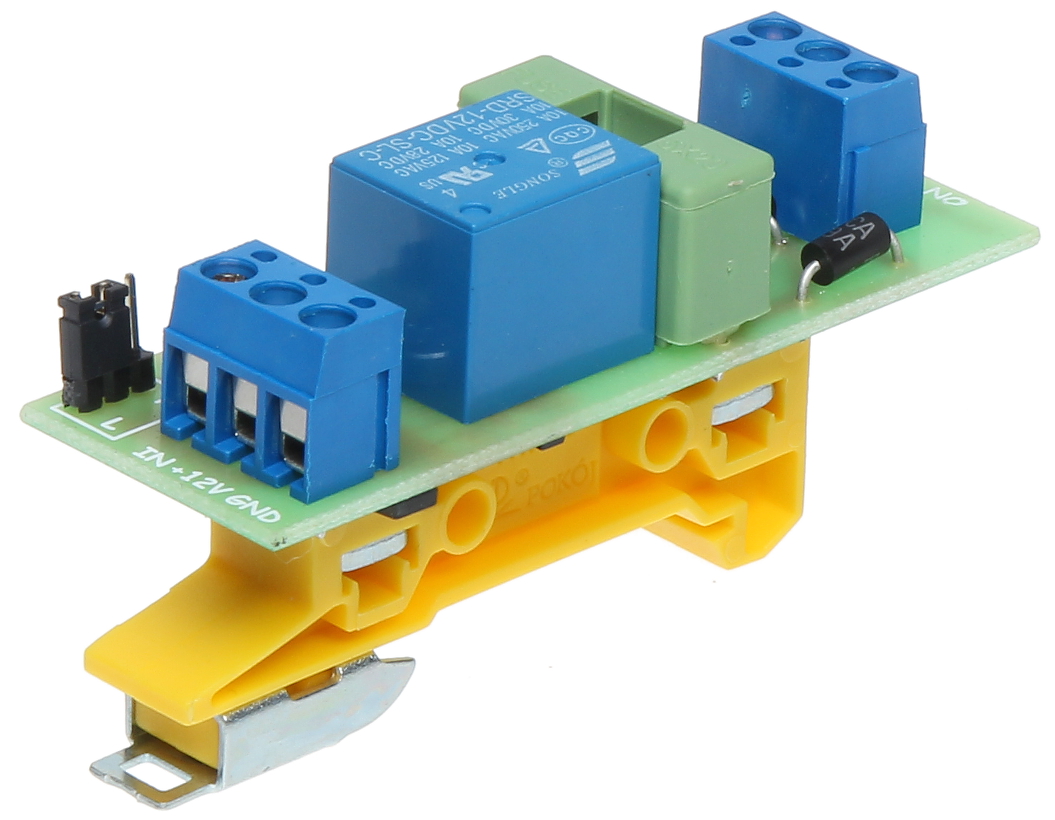

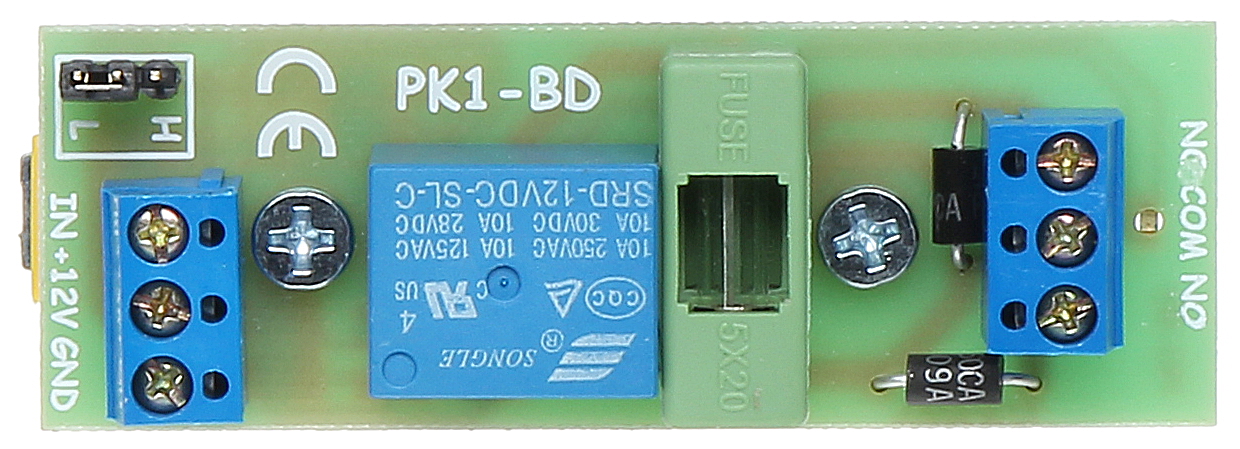

Technical Specification:
| Number of relay outputs: | 1 |
| Source of energy supply: | 10 … 16 V DC |
| Current consumption: | 35mA / 12V DC |
| Relay load: | 10 A (max), 30 V DC / 50 V AC (max) |
| Relay connection voltage H: | > 4V |
| Relay connection voltage L: | < 2.7V |
| Exit: | NO/NC |
| Application: | relay for controlling an electric trigger, latch or electromagnetic lock |

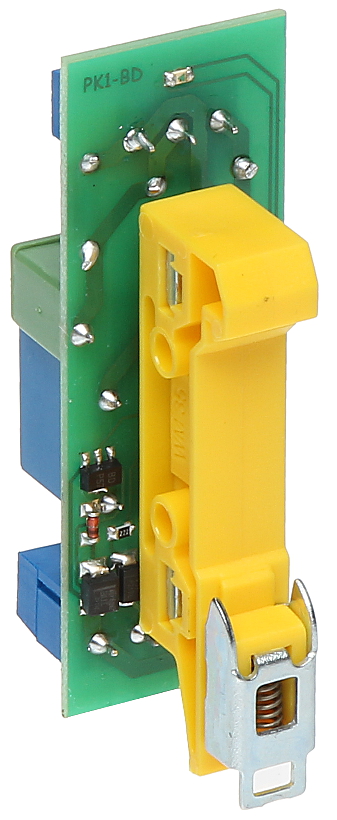

| Selected characteristics: | DIN rail mounting, TS-35, LED indication, Protection: Overvoltage, Reverse polarity connection, Fuse (5/20mm) 10 A |
| Operating temperature: | -10°C … 40°C |
| Weight: | 0.04 kg |
| Size: | 78 x 27 x 41 mm |
| Manufacturer / Brand: | DELTA |
| Warranty: | 3 years |
