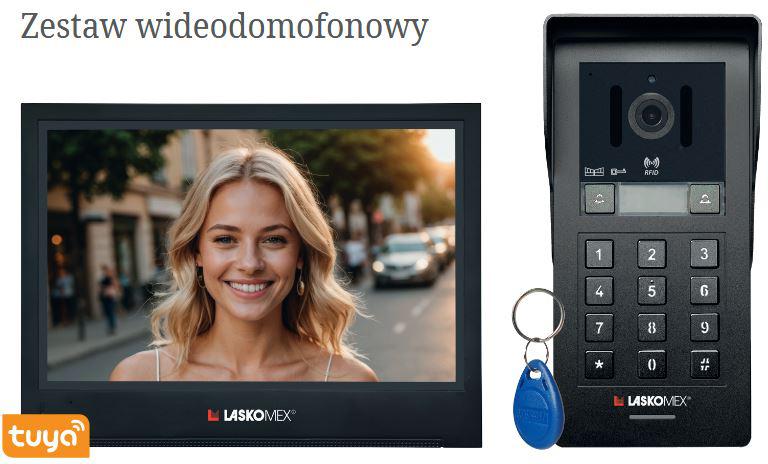

Laskomex 2-wire IP video intercom set GEMINI ZEST
Bastion Gemini video intercom – a modern 2-wire solution with Tuya Smart support
Bastion Gemini is a functional IP video intercom with an 8-inch touchscreen, simple 2-wire installation and integration with Tuya Smart application. Designed with user convenience and quick installation by professionals in mind. The system provides high image quality, remote operation via smartphone, and full access control to the premises.
Key features:
High image quality
An 8-inch screen with 1024×600 resolution and a Full HD 2MP camera with a 100° viewing angle guarantee a clear view and comfortable conversations.
Two-wire installation
Connecting the monitor to the door station with a single two-wire cable - quick upgrade without the need to change the wiring.
Tuya Smart / Wi-Fi / LAN application
Remote viewing, motion notifications, the ability to open gates and doors using your smartphone from anywhere.
Gate control and gates
Two independent relays - for the electric lock and the Gate/barrier drive. Control from the monitor screen or app.
RFID reader + code key
Easy access using PIN codes (up to 10) and RFID key fobs (5 included). Ability to assign actions to each user.
Video and photo recording
Automatic or manual photo and video recording, e.g. after motion detection or a call from the door station.
Operating modes + answering machine
“Night” mode, ”Away from home” with automatic voice notification and the ability to record a message.
IP camera support (ONVIF)
Possibility to connect up to 2 IP cameras (wired or Wi-Fi) – e.g. for garden or entrance gate monitoring.
Intercom + digital photo frame
Ability to communicate between 4 monitors in the system and display photos in monitor standby mode.
Custom ringtones and microSD card
Support for MP3 files as ringtones - the ability to personalize notifications.
Specifications

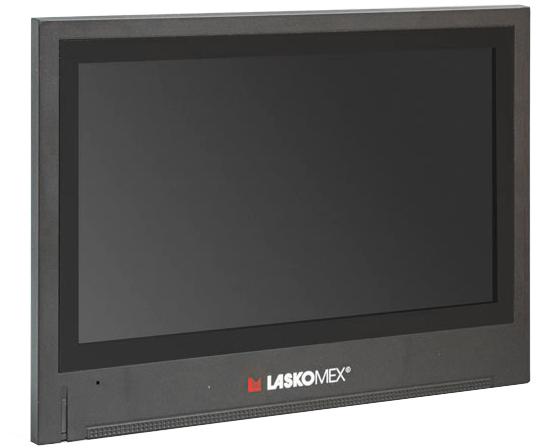

MVC‑9000 monitor
- Screen size 8-inch TFT touchscreen, 1024×600
- Feeding 24 V DC
- Energy consumption <3,5 W (gaidīšanas režīmā) / <6 W (sarunas režīmā)
- Intercom between monitorsYes, up to 4 monitors

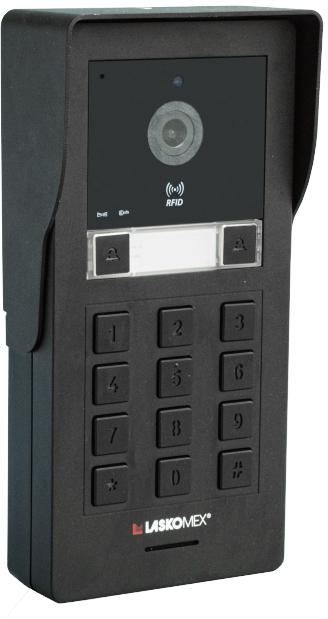

Panel BVC‑9000
- Camera CMOS 2 MP, viewing angle 100°
- Sensitivity 0.1 lux
- Feeding24 V DC (from monitor)
- Energy consumption<2 w (gaidīšanas režīmā)>
- Protection IP60
Access systems
- RFID 125 kHz, 5 keys, up to 30
Additional features
- Operating modes At home, At night, Away (with voice recording)
- Digital frame Yes, displaying photos from microSD
- Outdoor IP camera Up to 2 ONVIF cameras
Connectivity
- Network LAN/Wi-Fi (Tuya app)
Installation standard
- Cables 2 wires (line 1+2)
