Mikrotik RouterBoard RB931-2ND HAP MINI 14248
div>

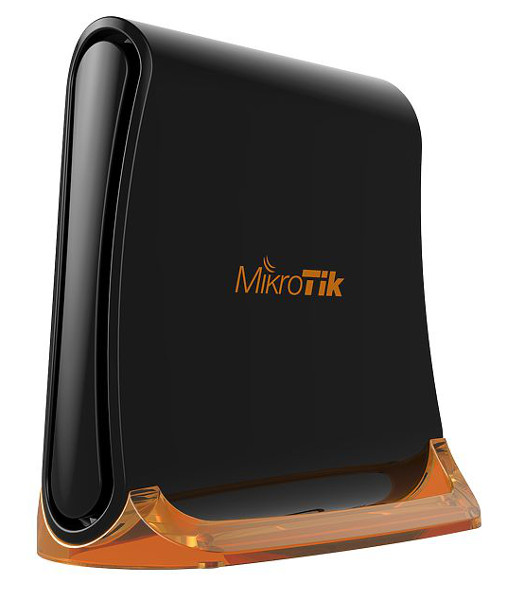

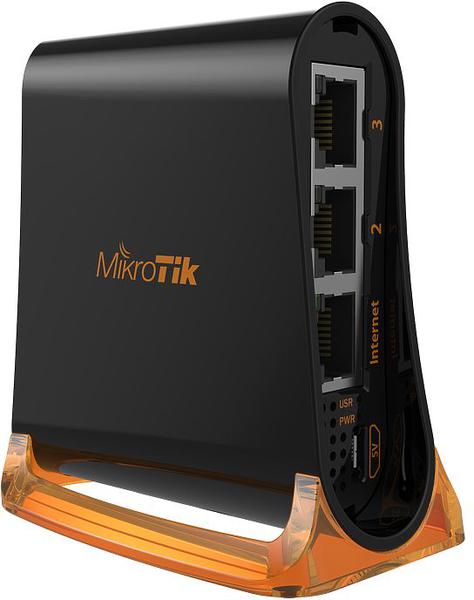

The device functions as a wireless router/access point, is equipped with 3 fast Ethernet ports and two built-in amplified antennas 1.5 dBi.
The product stands out for its small size – its height is only 8 cm (tower body). Despite its inconspicuous appearance, its functionality does not differ from the hAP Lite series routers – it has an efficient QCA9533 chip/processor with a clock frequency of 650 MHz and 32 MB of RAM. The offered product can transmit a wireless network 2.4GHz band. The use of 2×2 MIMO (dual-chain) technology allows theoretically to achieve 300 Mbps throughput.
The maximum transmission power is 22 dBmThe device, like the hAP Lite, is powered via microUSB with 5V voltage, The set includes a 5 V / 0.7 A power supply. The RB931-2nD has the RouterOS system with the Level 4 license.
Technical specifications
| Processor / chip | QCA9533 | |
| Architecture | SMIP | |
| Clocking | 650MHz | |
| Number of processor cores | 1 | |
| RAM memory | 32MB | |
| Interface network | 3 fast Ethernet ports | |
| 10/100 Mbps | ||
| Frequency | 2.4 GHz band | |
| Standards >2×2 MIMO | Yes | |
| Antenna gain | 1.5 dBi | |
| Input voltage | 5V | |
| Maximum power consumption | ||
| Clock speed | 650MHz | |
| Number of processor cores | 1 | |
| RAM memory | 32MB | |
| Network interface 0 > |
||
| Frequency | 2.4 GHz band | |
| Standards | IEEE 802.11 b/g/n | |
| 2×2 MIMO/ | Y | 1.5 dBi |
| Input voltage | 5V | |
| Maximum power consumption | 3.5W | |
| Dimensions | 48 x 78 x 81 mm running | RouterOS |
| license | Level 4 | |
| Kit contents | Device | |
| 1x power supply 5V, 0.7A | Clock speed | 650MHz |
| Number of processor cores | 1 | |
| RAM memory | 32MB | |
| Network interface 0 > |
||
| Frequency | 2.4 GHz band | |
| Standards | IEEE 802.11 b/g/n | |
| 2×2 MIMO/ | Y | 1.5 dBi |
| Input voltage | 5V | |
| Maximum power consumption | 3.5W | |
| Dimensions | 48 x 78 x 81 mm running | RouterOS |
| license | Level 4 | |
| Kit contents | Device | |
| 1x power supply 5V, 0.7A |
| Svars | 0,5600 kg |
|---|
