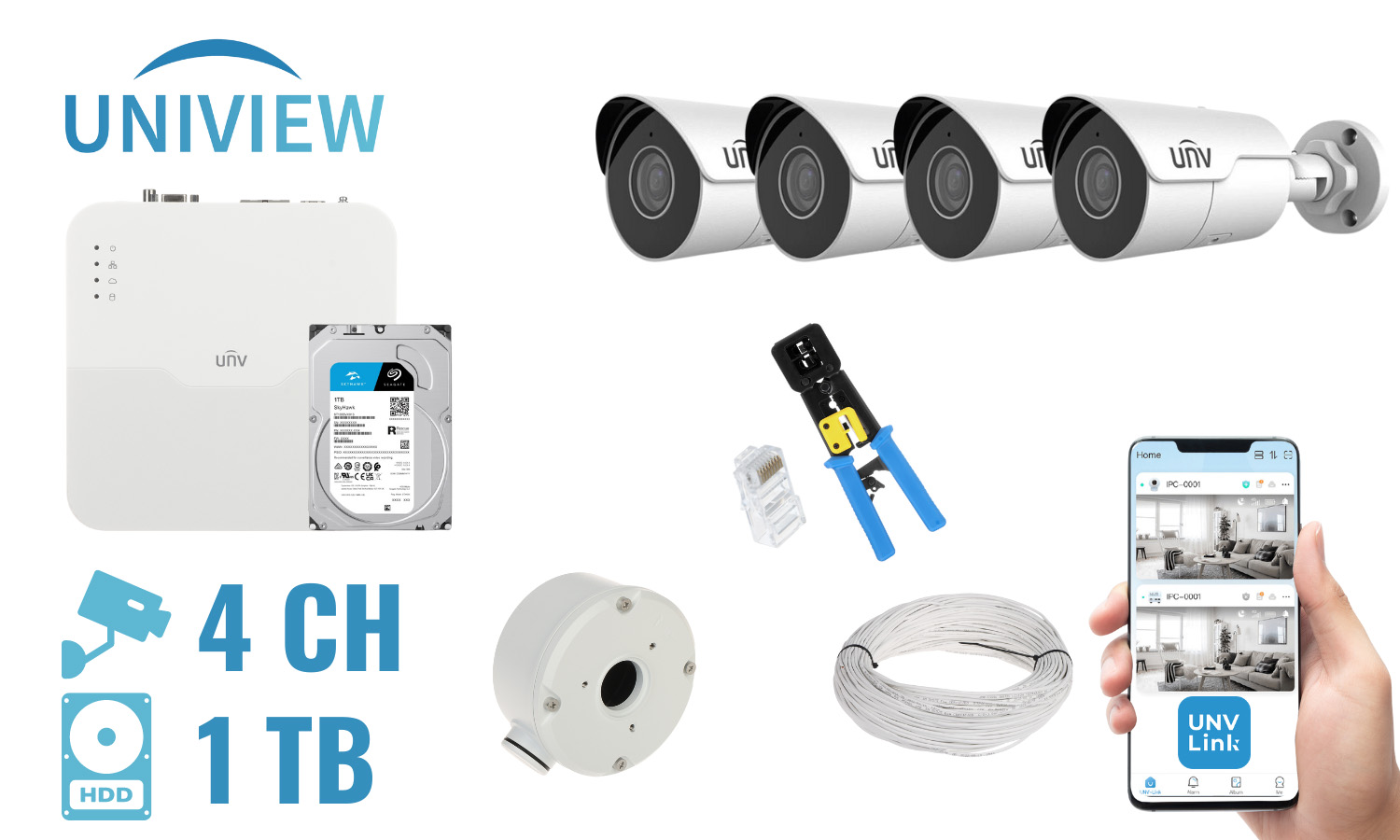

The kit consists of a DVR, a 1 TB hard drive, 4 tube cameras, a PoE switch, a 100 m long twisted-pair cable, a set of RJ45 plugs and a crimping tool; Supported resolution: max. 8.3 Mpx 4K UHD – 3840 x 2160 px </span>;>Image compression method: Ultra 265 </span>;>Standard: IP </span>; <table>
Included:
REGISTRAR:
| Model: | NVR301-04LS3-P4 |
| Standard: | IP |
| Supported resolution: | max. 8.3 Mpx 4K UHD – 3840 x 2160 px |
| Video outputs: | 1 pc HDMI 4K 1 piece VGA |
| Audio support: | 4 Channels – Audio from cameras |
| Audio input: |  |
| Audio output: | 1 piece RCA (CINCH) |
| Image compression method: | Ultra 265 / H.265 / H.264 |
| Supported hard drives: | 1 x 6TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Backups on external media: | Backup to USB (pendrive, external drive) |
| Searching and playing recordings: | Search for recordings by time and event type. Playback: forward, backward, speed up, slow down Advanced search (up to a second) Synchronous playback in 1/4 channel division Channels played simultaneously: |
| Network interface: | 1 x RJ-45 – 10 / 100 Mbps |
| Network features: | Full network support, Remote recording copy, Built-in web server max. 128 online users |
| ONVIF: |  |
| Bit transmission: | max. 64 Mbps |
| Default username/admin password: | admin / 123456 |
| Default IP address: | DHCP or 192.168.1.30 |
| RTSP URL: | rtsp://192.168.1.30:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live – Side stream |
| Browser access ports: | 80, 554 |

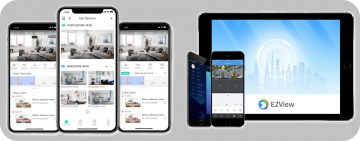

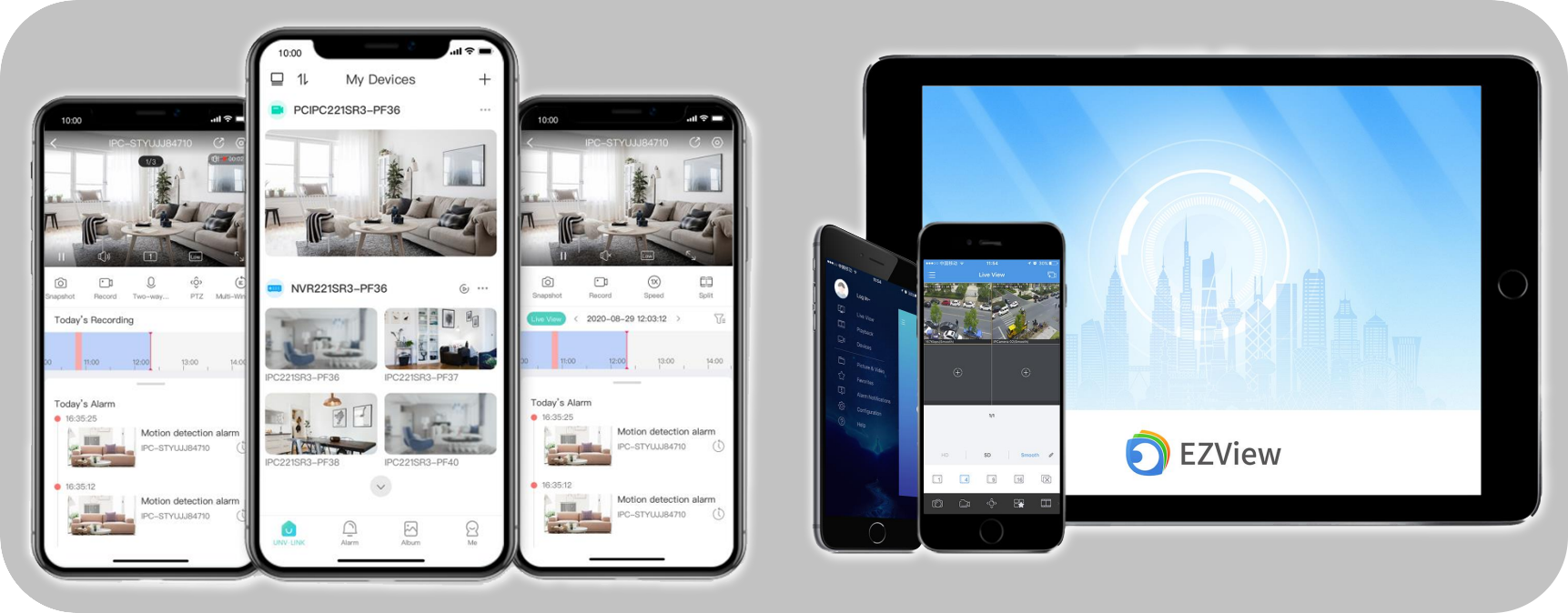

| Access ports using PC application: | Port: 80 or cloud access – PC: Free application EZStation |
| Access ports using the mobile application: | 80 |
| Mobile phone access: | Port: 80 or access via cloud |
| Alarm inputs/outputs: | |
| PTZ head rotation control: | PTZ Uniview cameras |
| Motion detection: | |
| Intelligent image analysis: | |
| USB: | 2 times USB 2.0 |
| Mouse crew: | |
| IR remote control included: | |
| Selected functions: | The functions are implemented by the DVR in cooperation with cameras that support these functions.
|
| Switch PoE: | Iebūvēts 4-portu PoE slēdzis, 25.5 W / Kanāls – PoE (802.3af/at) |
| Maximum total load of the switch: | 54W |
| Source of energy supply: | 48V DC / 1.35 A (power adapter included) |
| Weight: | 0.57 kg |
| Size: | 210 x 205 x 46 mm |
CAMERA:
| Model: | IPC2124LE-ADF28KM-G |
| Number of cameras in the set: | 4 pcs. |
| Standard: | IP |
| Resolution: | 2688x1520 – 4 Mpx , 2560x1440 – 3.7 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p |
| Sensors: | 1/3" Progressive Scan CMOS |
| Lens: | 2.8 mm |
| Angle of visibility: | 101 ° |
| Infrared illumination reception area: | 50 m |
| Signal-to-sound ratio (S/N): | > 52 dB |
| RS-485 interface: | |
| Memory card slot: | Micro SD card support up to 256GB |
| Image compression method: | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs/outputs: | |
| Audio: | |
| Mainstream transmission speed: | 25 frame rate @ 4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Maximum number of online users: | 32 |
| ONVIF: | |
| Mobile phone access: | Cloud access (P2P) |
| Default IP address: | DHCP or 192.168.1.13 |
| Default username/admin password: | admin / 123456 |
| Browser access ports: | 80, 554 |
| Access ports using PC application: | Port: 80 or cloud access – PC: Free application EZStation |
| Access ports using the mobile application: | 80 |
| ONVIF socket: | 80 |
| RTSP URL: | rtsp://192.168.1.13:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live – Side stream |
| Selected functions: | |
| Source of energy supply: | |
| Power consumed: | ≤ 6.5W |
| Hull: | Compact, Metal + Plastic |
| Colour: | White |
| Class of protection: | IP67 |
| Anti-vandalism: | |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.43 kg |
| Size: | 190 73 x 71 mm |
BRACKET:
| Model: | TR-JB05-B-IN |
| Mounting hole arrangement: | 45 mm |
| Number of holes: | 3 |
| Fastener diameter: | Ø 104 mm |
| Suitable for cameras: | UNIVIEW |
| Material: | Aluminum alloy |
| Colour: | White |
| Distance from mounting surface: | 54.5 mm |
| Weight: | 0.31 kg |
| Size: | Ø 104 x 54.5 mm |
TWISTED PAIR CABLE:
| Model: | PFM920I-5EUN/100M |
| Length: | 100 m |
| Type: | UTP cat. 5e |
| Inner core: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Screen: | |
| External coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Selected characteristics: | Parameters significantly exceed the requirements of category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| WARRANTY: | 3 years |
RJ-45 plug:
| Model: | RJ45T |
| Included: | 100 pcs. |
| Connector type: | RJ-45 – Plug, 8 pin |
| Assembly of connecting elements: | Fixation |
| Core assembly: | Compression on each wire using 3 teeth |
| Application: | Twisted pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Selected characteristics: | Very easy and quick installation |
CLAMP:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Selected characteristics: | |
| Size: | 200 x 75 x 25 mm |
Hard drive:
| Model: | HDD-ST1000VX013 |
| Number of hard drives: | 1 piece |
| Load: | 1TB |
| Interface: | SATA 6 Gbps |
| Size format: | 3.5 " |
| Cache: | 64MB |
| Designed for 24/7 operation: | |
| Weight: | 0.39 kg |
| Manufacturer / Brand: | SEAGATE |
| WARRANTY: | 3 years |
General information:
| Standard: | IP |
| Language selection: | Polish, English, Czech, Spanish, French, German, Portuguese, Slovak, Hungarian, Italian |
| Manufacturer / Brand: | UNIVIEW |
| WARRANTY: | 3 years |
