MONITORINGA KOMPLEKTS UNV-NVR16-16IPCBT 16 KAMERAS + DVR UNIVIEW

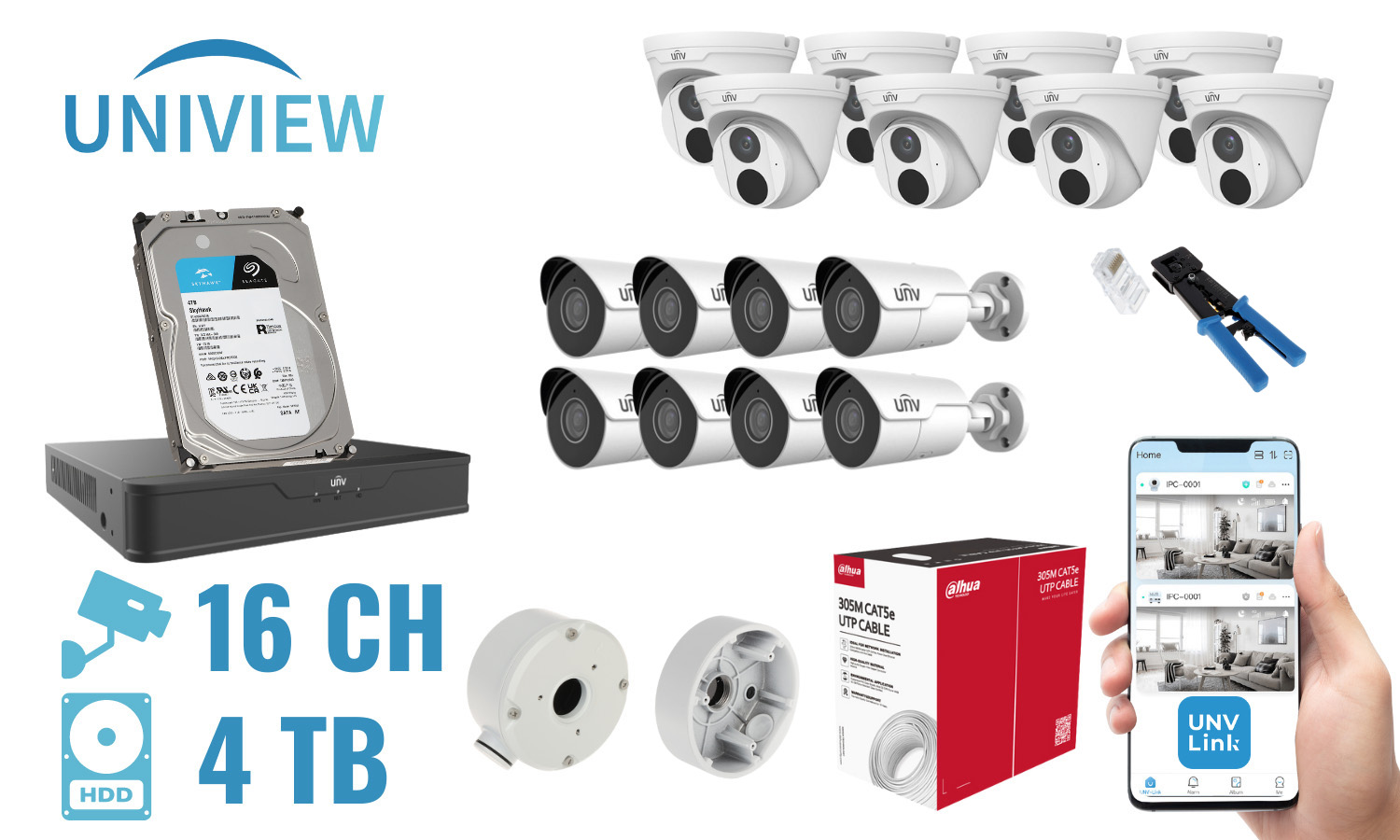

Komplektā ietilpst DVR, 4 TB cietais disks, 8 lodveida kameras, 8 kupolkameras, 305 m garš vītā pāra kabelis, RJ45 kontaktdakšu komplekts un presēšanas rīks; Supported resolution: max. 8.3 Mpx 4K UHD – 3840 x 2160 px </span>;>Image compression method: Ultra 265 </span>;>Designed for 24/7 operation</span>;>Standard: IP </span>; <table>

Cameras:

8 pcs. TR-JB03-I-IN

Twisted pair cable:
305 m PFM920I-5EUN
Crimping pliers:
1 piece HT-240T

RJ-45 plug:
100 pcs. RJ45T

REGISTRAR:

Model:	NVR501-16B
Standard:	IP
Supported resolution:	max. 8.3 Mpx 4K UHD – 3840 x 2160 px
Video outputs:	1 pc HDMI 4K 1 piece VGA
Audio support:	16 Channels – Audio from cameras Two-way audio streaming support
Audio input:	1 piece CINCH
Audio output:	1 piece CINCH
Image compression method:	Ultra 265 / H.265 / H.264
Bit transmission:	max. 80 Mbps
Supported hard drives:	1 x 8TB SATA
Recording modes:	Manual, motion detection, schedule
Backups on external media:	Backup to USB (pendrive, external drive)
Searching and playing recordings:	Search for recordings by time and event type. Playback: forward, backward, speed up, slow down Advanced search (up to a second) 1/4/6/8/9/16 channel synchronous playback
Network interface:	1 x RJ-45 10/100 Base-TX
Network features:	Full network support, Remote recording copy, Built-in web server max. 128 online users
ONVIF:
Default IP address:	DHCP or 192.168.1.30
Default username/admin password:	admin / 123456
Mobile phone access:	Port: 80 or access via cloud Android: Free application UNV Link iOS (iPhone): Free app UNV Link
Browser access ports:	80, 554
Access ports using PC application:	Port: 80 or cloud access – PC: Free application EZStation
Access ports using the mobile application:	80
RTSP URL:	rtsp://192.168.1.30:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live – Side stream
USB:	1 x USB 2.0 1 x USB 3.0
Regular ports:
Alarm inputs/outputs:
PTZ head rotation control:	PTZ Uniview cameras
Motion detection:
Intelligent image analysis:
Selected functions:	The functions are implemented by the DVR in cooperation with cameras that support these functions. Intelligent image analysis: crossing the line, burglary, entering the marked area, leaving the marked area, change of scene, abandoned/missing object, object tracking, līniju pārkāpušo cilvēku skaitīšana, census, estimate of the size of the audience gathered Sound detection Motion detection Compatible with ANR function Corridor mode – a useful mode for monitoring corridors, entrance gates and narrow spaces
Mouse crew:
IR remote control included:
Source of energy supply:	12 V DC / 2 A (power adapter included)
Power consumed:	max. 6 W (bez HDD)
Operating temperature:	-10°C … 55°C
Weight:	0.69 kg
Size:	260  x 222  x 47 mm

Kamera 1:

Model:	IPC2124LE-ADF28KM-G
Number of cameras in the set:	8 pcs.
Standard:	IP
Resolution:	2688x1520 – 4 Mpx , 2560x1440 – 3.7 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p
Sensors:	1/3" Progressive Scan CMOS
Lens:	2.8 mm
Angle of visibility:	101 °
Infrared illumination reception area:	50 m
Signal-to-sound ratio (S/N):	> 52 dB
RS-485 interface:
Memory card slot:	Micro SD card support up to 256GB
Image compression method:	Ultra 265 / H.265 / H.264 / MJPEG
Alarm inputs/outputs:
Audio:	Built-in microphone Audio signal transmission over the network Sound detection
Mainstream transmission speed:	25 frame rate @ 4 Mpx
Network interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in
Maximum number of online users:	32
ONVIF:
Mobile phone access:	Cloud access (P2P) Android: Free application UNV Link iOS (iPhone): Free app UNV Link
Default IP address:	DHCP or 192.168.1.13
Default username/admin password:	admin / 123456
Browser access ports:	80, 554
Access ports using PC application:	Port: 80 or cloud access – PC: Free application EZStation
Access ports using the mobile application:	80
ONVIF socket:	80
RTSP URL:	rtsp://192.168.1.13:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live – Side stream
Selected functions:	WDR – 120 dB – Wide dynamic range of lighting 2D-DNR, 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Precipitation Noise Reduction ROI – improving the quality of selected image fragments ANR – saving the image to the card in case of loss of connection with the recording device (network crash) and later synchronization Compatible with NAS – Network Attached Storage BLC/HLC – Backlight/High Light Compensation Ability to change resolution, quality and bitrate Mirror – mirror image Privacy zones – max. 4 Motion detection with human/vehicle silhouette recognition Sharpness - Sharpness of the image contours Intelligent image analysis: burglary, crossing the line (human silhouette)
Source of energy supply:	PoE (802.3af), 12 V DC / 540 mA
Power consumed:	≤ 6.5W
Hull:	Compact, Metal + Plastic
Colour:	White
Class of protection:	IP67
Mechanical protection class:
Operating temperature:	-30°C … 60°C
Weight:	0.43 kg
Size:	190  73  x 71 mm

Kamera 2:

Model:	IPC3614LE-ADF28K-G
Number of cameras in the set:	8
Standard:	IP
Sensors:	1/3" Progressive Scan CMOS
Scanning system:	Progressive
Resolution:	2688x1520 – 4 Mpx , 2560x1440 – 3.7 Mpx , 2304x1296 – 3 Mpx , 1920 x 1080 - 1080p
Lens:	2.8 mm
Angle of visibility:	101 ° (manufacturer's data) 96 ° (mūsu pārbaudes)
Infrared illumination reception area:	30 m
Signal-to-sound ratio (S/N):	> 52 dB
RS-485 interface:
Memory card slot:	Micro SD card support up to 256GB
Image compression method:	Ultra 265 / H.265 / H.264 / MJPEG
Alarm inputs/outputs:
Audio:	Built-in microphone Audio signal transmission over the network Sound detection
Mainstream transmission speed:	25 frame rate @ 3.7 Mpx
Network interface:	10/100 Base-T (RJ-45)
WEB Server:	Built-in
Maximum number of online users:	32
ONVIF:
Mobile phone access:	Cloud access (P2P) Android: Free application UNV Link iOS (iPhone): Free app UNV Link
Default IP address:	DHCP or 192.168.1.13
Default username/admin password:	admin / 123456
Browser access ports:	80, 554
Access ports using PC application:	Port: 80 or cloud access – PC: Free application EZStation
Access ports using the mobile application:	80
ONVIF socket:	80
RTSP URL:	rtsp://192.168.1.13:554/unicast/c1/s0/live – Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live – Side stream
Selected functions:	WDR – 120 dB – Wide dynamic range of lighting 2D-DNR, 3D-DNR – Digital Noise Reduction F-DNR (Defog) – Precipitation Noise Reduction ROI – improving the quality of selected image fragments ANR – saving the image to the card in case of loss of connection with the recording device (network crash) and later synchronization Compatible with NAS – Network Attached Storage BLC/HLC – Backlight/High Light Compensation Ability to change resolution, quality and bitrate Mirror – mirror image Privacy zones – max. 4 Motion detection with human/vehicle silhouette recognition Sharpness - Sharpness of the image contours Corridor mode – a useful mode for monitoring corridors, entrance gates and narrow spaces Intelligent image analysis: crossing the line, burglary (human silhouette)
Source of energy supply:	PoE (802.3af), 12 V DC / 500 mA
Power consumed:	≤ 6 W
Hull:	Dome, Metal + Plastic
Colour:	White
Class of protection:	IP67
Anti-vandalism:
Operating temperature:	-30°C … 60°C
Weight:	0.37 kg
Size:	Ø 118  x 95 mm

KRONŠTEINS 1:

Model:	TR-JB05-B-IN
Mounting hole arrangement:	45 mm
Number of holes:	3
Fastener diameter:	Ø 104 mm
Suitable for cameras:	UNIVIEW
Material:	Aluminum alloy
Colour:	White
Distance from mounting surface:	54.5 mm
Weight:	0.31 kg
Size:	Ø 104  x 54.5 mm

KRONŠTEINS 2:

Model:	TR-JB03-I-IN
Mounting hole arrangement:	70 mm
Number of holes:	3
Fastener diameter:	Ø 118 mm
Suitable for cameras:	UNIVIEW
Material:	Aluminum
Colour:	White
Distance from mounting surface:	38 mm
Weight:	0.2 kg
Size:	Ø 118  x 38 mm

TWISTED PAIR CABLE:

Model:	PFM920I-5EUN
Length:	305 m
Type:	UTP cat. 5e
Inner core:	Ø 0.45 mm Cu=99.99%, Wire
Resistance:	max. 12 Ω / 100 m
Screen:
External coating:	Ø 4.7 mm PVC
Coating color:	White
Selected characteristics:	Parameters significantly exceed the requirements of category 5+
Weight:	24.5 kg/km
Manufacturer / Brand:	DAHUA
WARRANTY:	3 years

RJ-45 plug:

Model:	RJ45T
Included:	100 pcs.
Connector type:	RJ-45 – Plug, 8 pin
Assembly of connecting elements:	Fixation
Core assembly:	Compression on each wire using 3 teeth
Application:	Twisted pair cable, UTP cat. 5e, FTP cat. 5e
Material:	PET
Selected characteristics:	Very easy and quick installation

CLAMP:

Model:	HT-240T
Material:	Metal / PET
Application:	Plug RJ45 (8P8C)
Selected characteristics:	Insulation cleaning device Trimmer
Size:	200 x 75 x 25 mm

Switch PoE:

Model:	NSW2020-16T1GT1GC-POE-IN
LAN ports:	16x RJ45 ( 16 x PoE (802.3af/at) ), 1 x RJ45 – Uplink, 1 x Combo: RJ45/SFP – Uplink
Management:
LED diodes:	G1/SFP1, G2, PoE Max, Power, Link/Act, PoE
Transmission speed:	100 Mbps : 16 LAN & PoE porti, 1000 Mbps : 2 LAN porti – Uplink, 1000 Mbps : 1 SFP ligzda – Uplink
Maximum output power:	30 W / PoE 802.3af/at ligzda
Maximum total power:	225 W
MAC address table:	16k
Working mode:	Default : 100 m, 100 Mbps Extend : 250 m, 10 Mbps VLAN – 1 … 16 porti ir izolēti viens no otra un darbojas atsevišķi ar portiem G1, G2
Selected characteristics:	Augstas prioritātes porti : 1  … 8  Datu plūsmas kontrole Bufera optimizācija Barošana PoE – dzīslas : 4-5(+), 7-8(-) Metal body Possibility of installation in a 19" rack cabinet
Certificates:	CE, FCC
Hull:	Desktop, Metal
Source of energy supply:	100 … 240 V AC, 50 / 60 Hz
Operating temperature:	0°C … 40°C
Weight:	2.08 kg
Size:	440  x 195  x 44 mm, RACK 19", 1U

Hard drive:

Model:	HDD-ST4000VX016
Number of hard drives:	1 piece
Load:	4 TB
Interface:	SATA 6 Gbps
Size format:	3.5 "
Cache:	256MB
Technology:	ImagePerfect™ firmware is designed to ensure flawless video capture under 24/7 monitoring workloads Built-in data recovery function for uninterrupted video streaming Increased disk workload factor – up to 180 TB per year Optimized to handle up to 64 single-stream HD cameras MTBF (mean time between failures) : 1,000,000 hours
Designed for 24/7 operation:
Weight:	0.43 kg
Manufacturer / Brand:	SEAGATE

General information:

Standard:	IP
Language selection:	Polish, English, Czech, Spanish, French, German, Portuguese, Slovak, Hungarian, Italian
Manufacturer / Brand:	UNIVIEW
WARRANTY:	3 years
