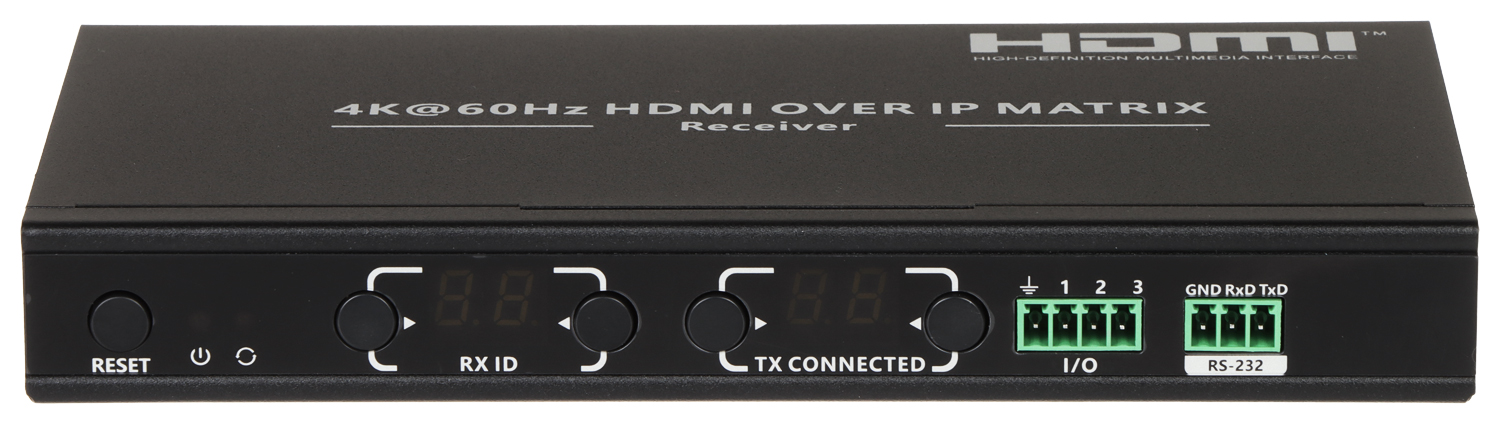

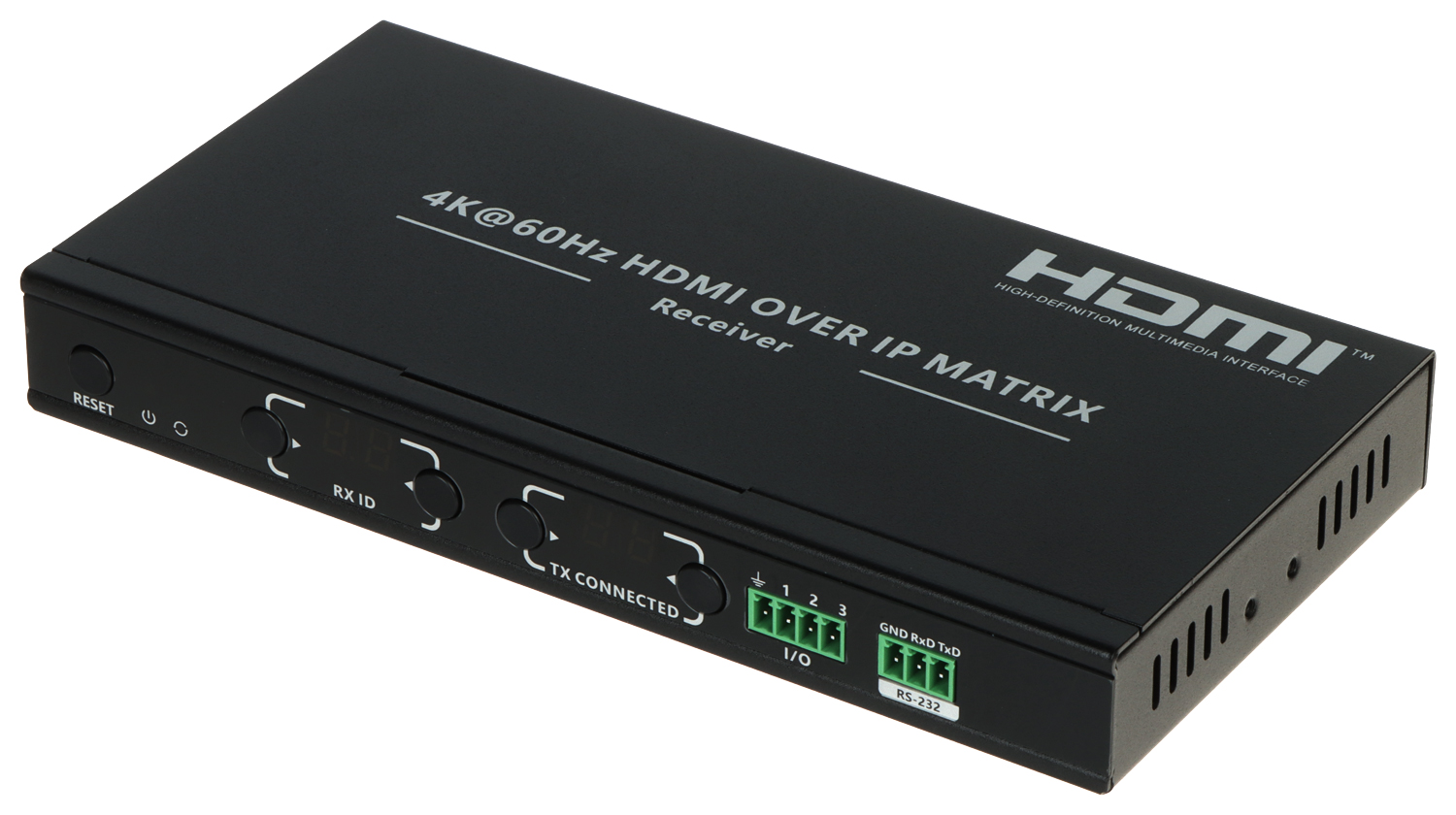

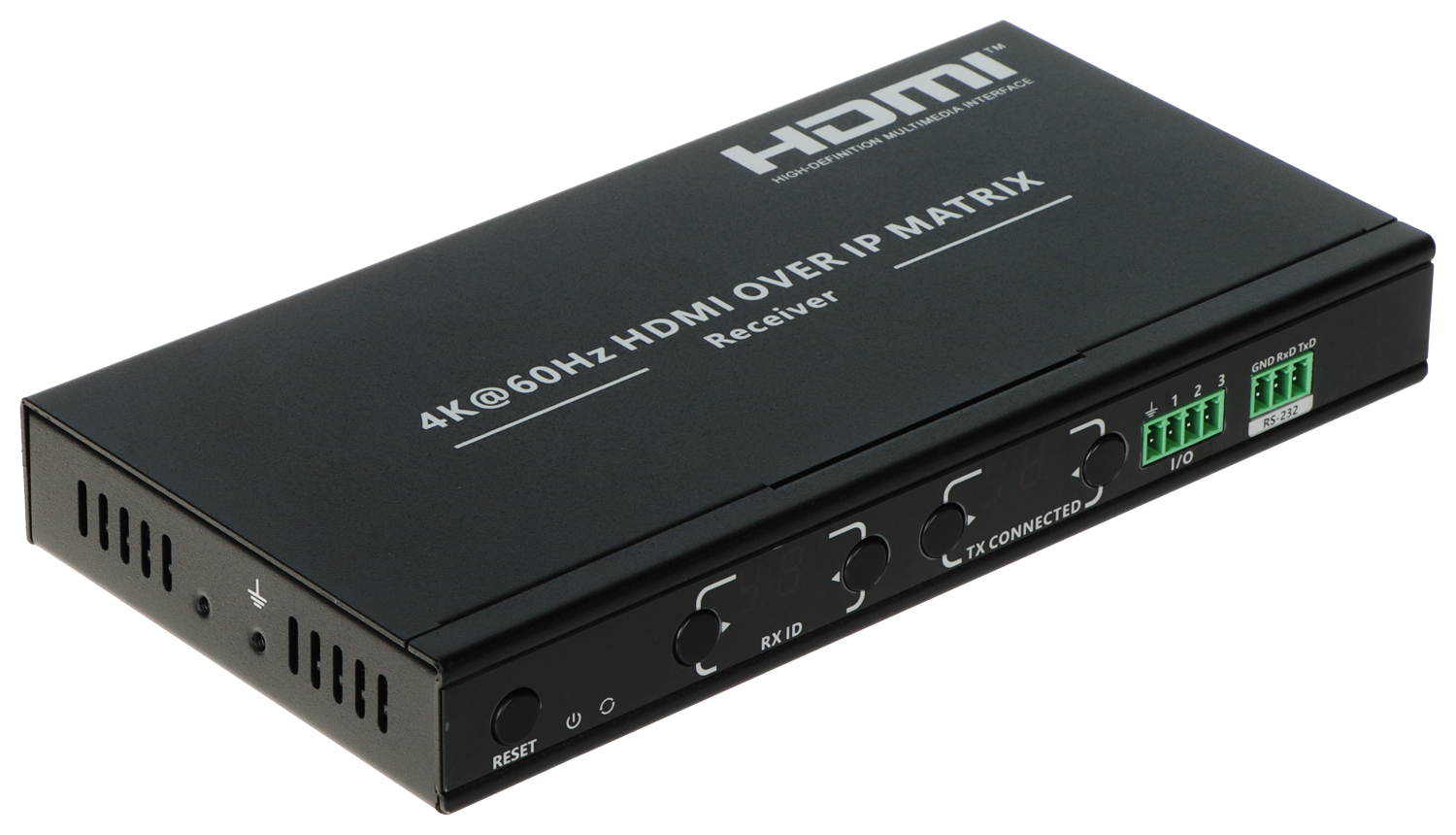

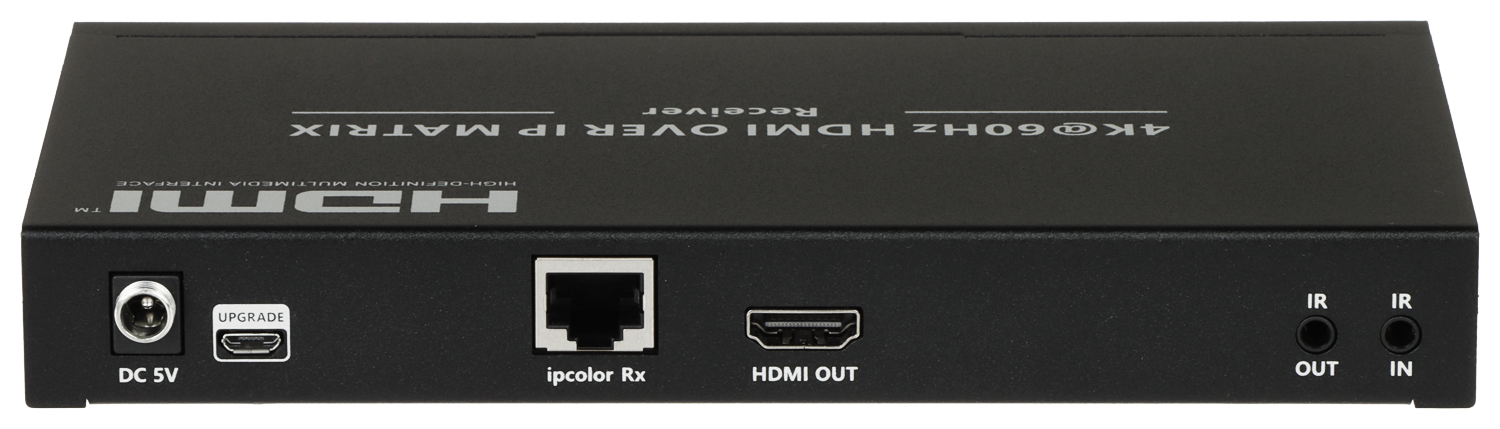

PAPLAŠINĀTĀJA UZTVĒRĒJS HDMI-EX122E-RX

Preces kods: HDMI-EX122E-RX

EAN: 5902887094217

Piegādes laiks: 12-16 Martā

Estimated Delivery Dates

237,34

Availability: 1

Ierīce palīdz nosūtīt augstas izšķirtspējas signālu uz televīzijas uztvērēju, kas aprīkots ar HDMI savienotājiem, izmantojot 5, 5e, 6 kategorijas neekranēto kabeli; Maximum transmission reception area: 80 m UTP kat. 5, 100 m UTP kat. 5e, 120 m UTP kat. 6 </span>;>Supports HDMI standard: 2.0 </span>;>Selected characteristics: Support for Video wall mode : max. 5 x 5, Uztvērējs IR / IR transmitter </span>; <table>

Device type:
Receiver
Supported resolution HDMI:

  • 1280x720 – 720p @ 50/60Hz
  • 1920 x 1080 - 1080p @ 50/60Hz
  • 1920 x 1200  @ 60 Hz
  • 2560 x 1440  @ 60 Hz
  • 3840x2160 – 4K UHD @ 24/30/50/60 Hz
  • 4096 x 2160  @ 24/30 Hz

    Maximum transmission reception area:
  • 80 m UTP kat. 5,
  • 100 m UTP kat. 5e,
  • 120 m UTP kat. 6
    Protocols:
    ipcolor STREAM™

    Max. viereizēji darbojošos uztvērēju skaits:
    256
    Supports HDMI standard:
    2.0

    HDCP:
    1.4 / 2.2
    Selected characteristics:
  • HDMI kabelis : max. 5 m
  • Fast data transfer: max. 18 Gbps
  • Pārraides aizkave : 70  … 130 ms – 1080p @ 60 Hz, 130  … 200 ms – 4K @ 60 Hz
  • Saderīga ar LPCM 2.0

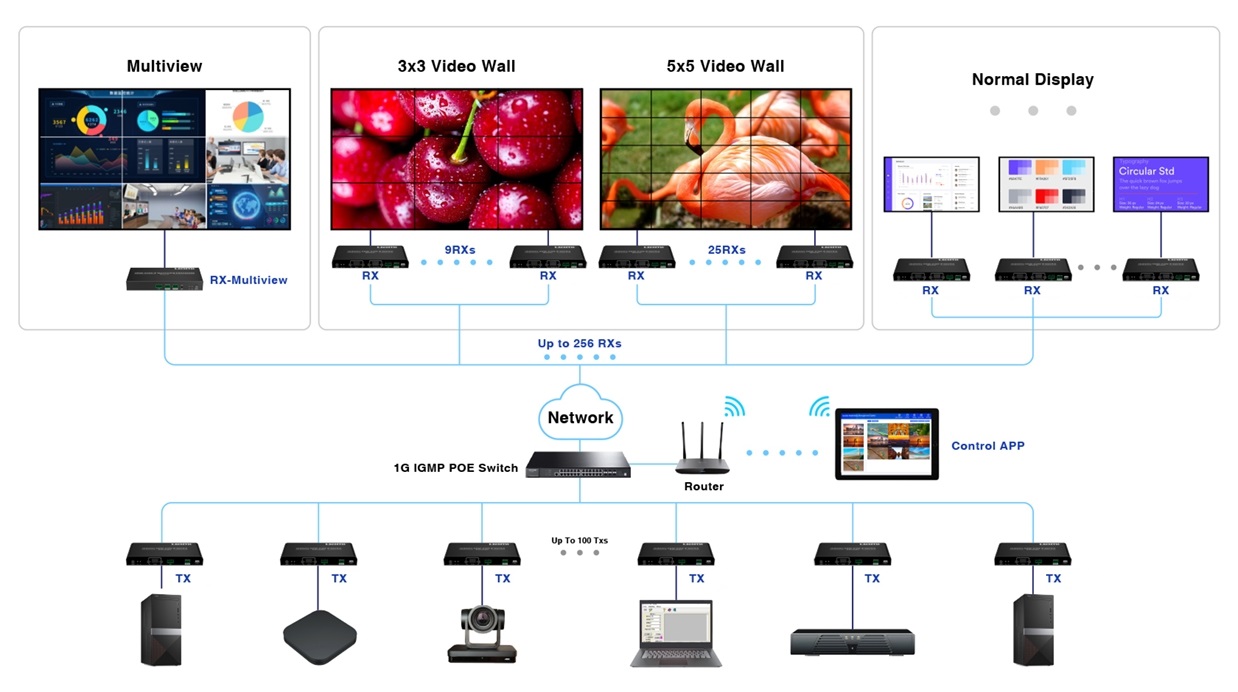

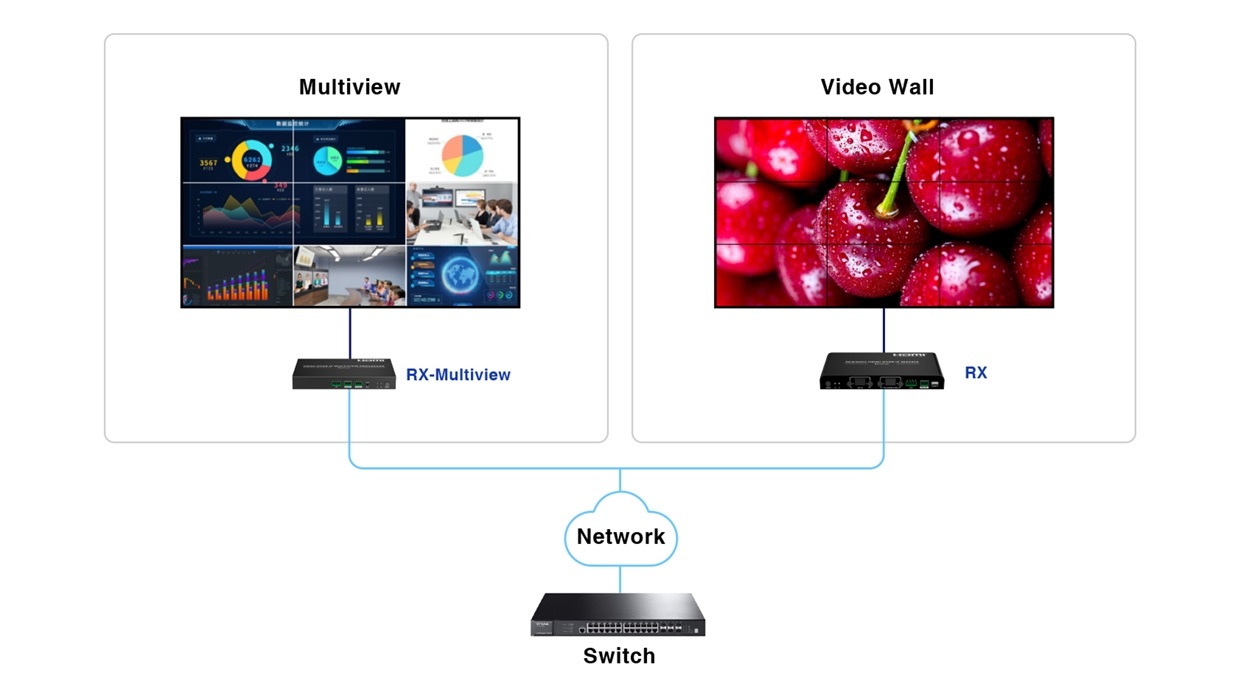

  • Support for Video wall mode : max. 5 x 5,
  • Uztvērējs IR / IR transmitter
  • I/O porti, RS-232 (vadāmība)
  • mini USB socket – Possibility to update firmware
  • RESET key
  • Attālā vadība – Bezmaksas aplikācija iMMS – ipcolor Multimedia Management System na Android
  • Surge protection
  • Protection against electrostatic discharge – ESD – IEC 61000-4-2, ±4kV contact, ±8kV air
  • Lightning protection

    Source of energy supply:

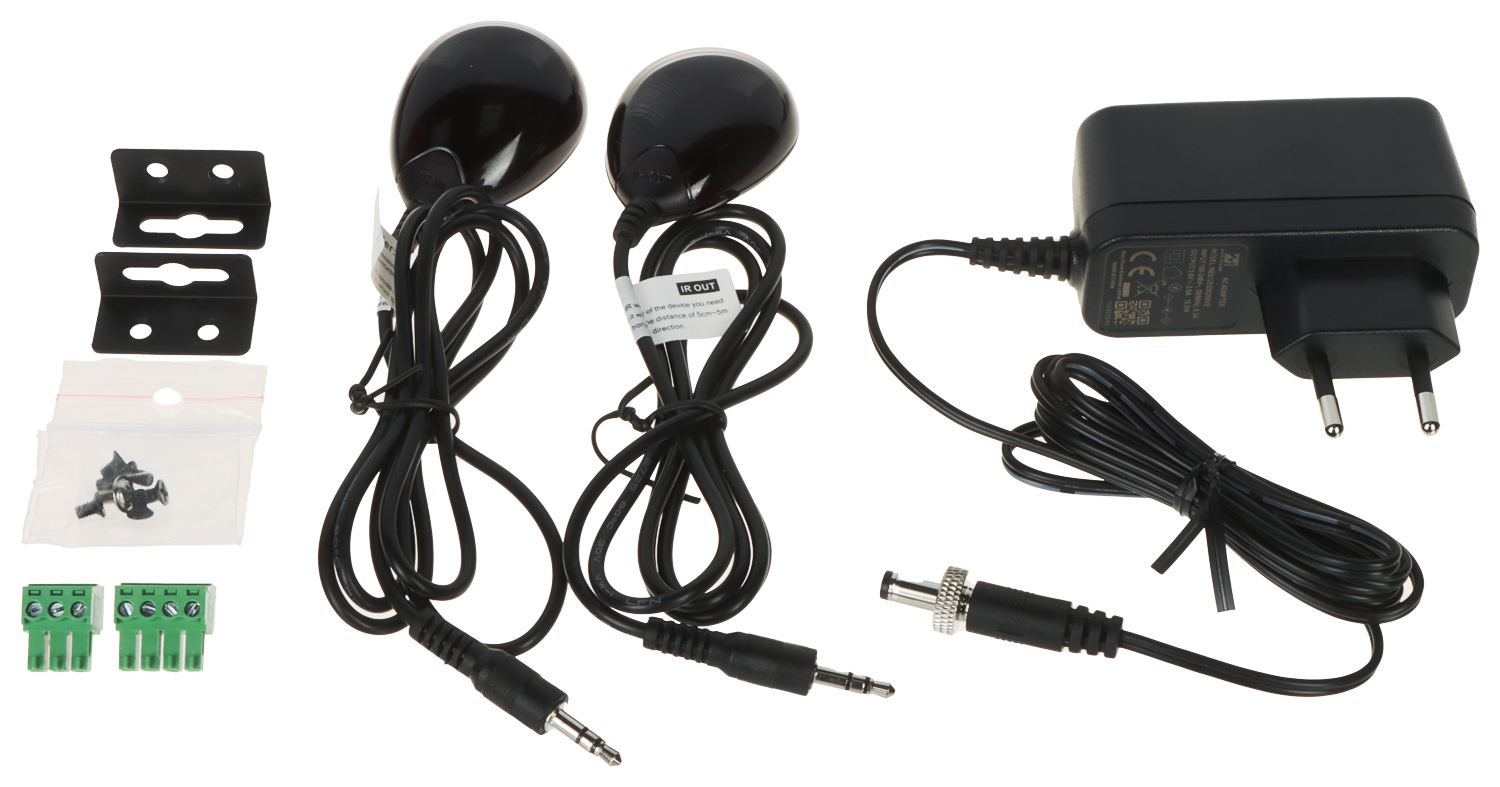

  • 5V DC / 2 A (power adapter included)
  • PoE
    Power consumed:
    ≤ 3.5W

    Operating temperature:
    -20°C … 60°C
    Permissible relative humidity:
    0 % … 90 % (non-condensing)

    Weight:
    0.514 kg
    Size:
    191  x 96  x 25 mm

    WARRANTY:
    2 years
  • Additional information

    Svars 0,8680 kg
    Dimensions 240 × 180 × 80 cm
