LAN ports: 1 x RJ45 10/100/1000 Base-T + Hi-PoE (802.3af/at/bt), 3 x RJ45 10/100/1000 Base-T + PoE (802.3af/at), 2 x SFP ligzda 100/1000 Base-X – Uplink </span>;>Management: vietējā piekļuve, Mākoņa pārvaldība </span>;>Transmission speed: 10 / 100 / 1000 Mbps – LAN & PoE porti, 100 / 1000 Mbps – SFP porti </span>;>Maximum total power: 90W </span>;
<table>
LAN ports:
Management:
Transmission speed:
Maximum output power:
Maximum total power:
90W
MAC address table:
8k
Bufera atmiņa:
8.4 Mbit
Jumbo Frame:
12288 B
Switching performance:
12 Gbps
Packet forwarding speed:
8.928 Mpps
MTBF (mean time between failures):
> 1000000 h
Mobile phone access:
Selected characteristics:
LED diodes:
Power, Link/Act

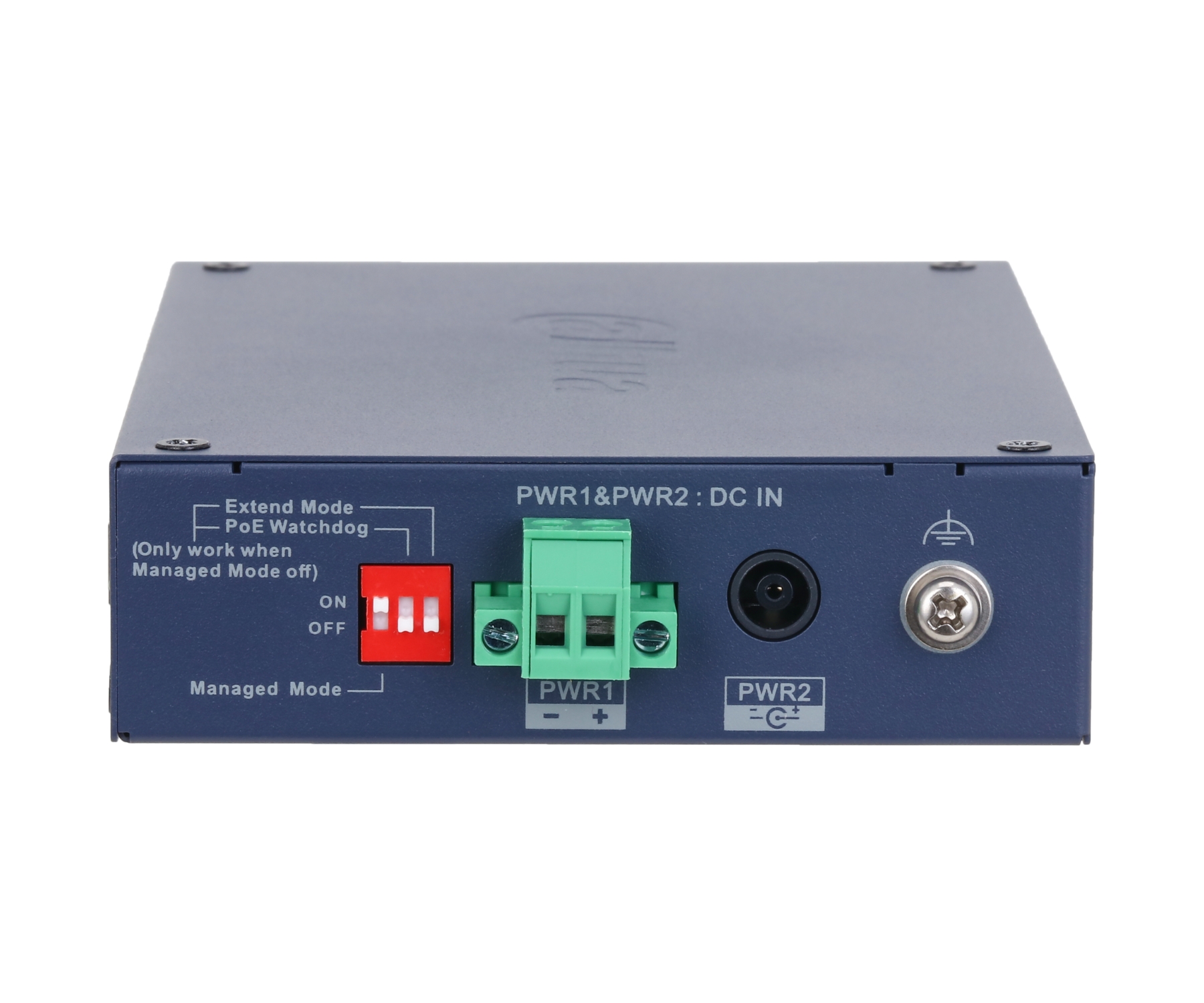

Source of energy supply:

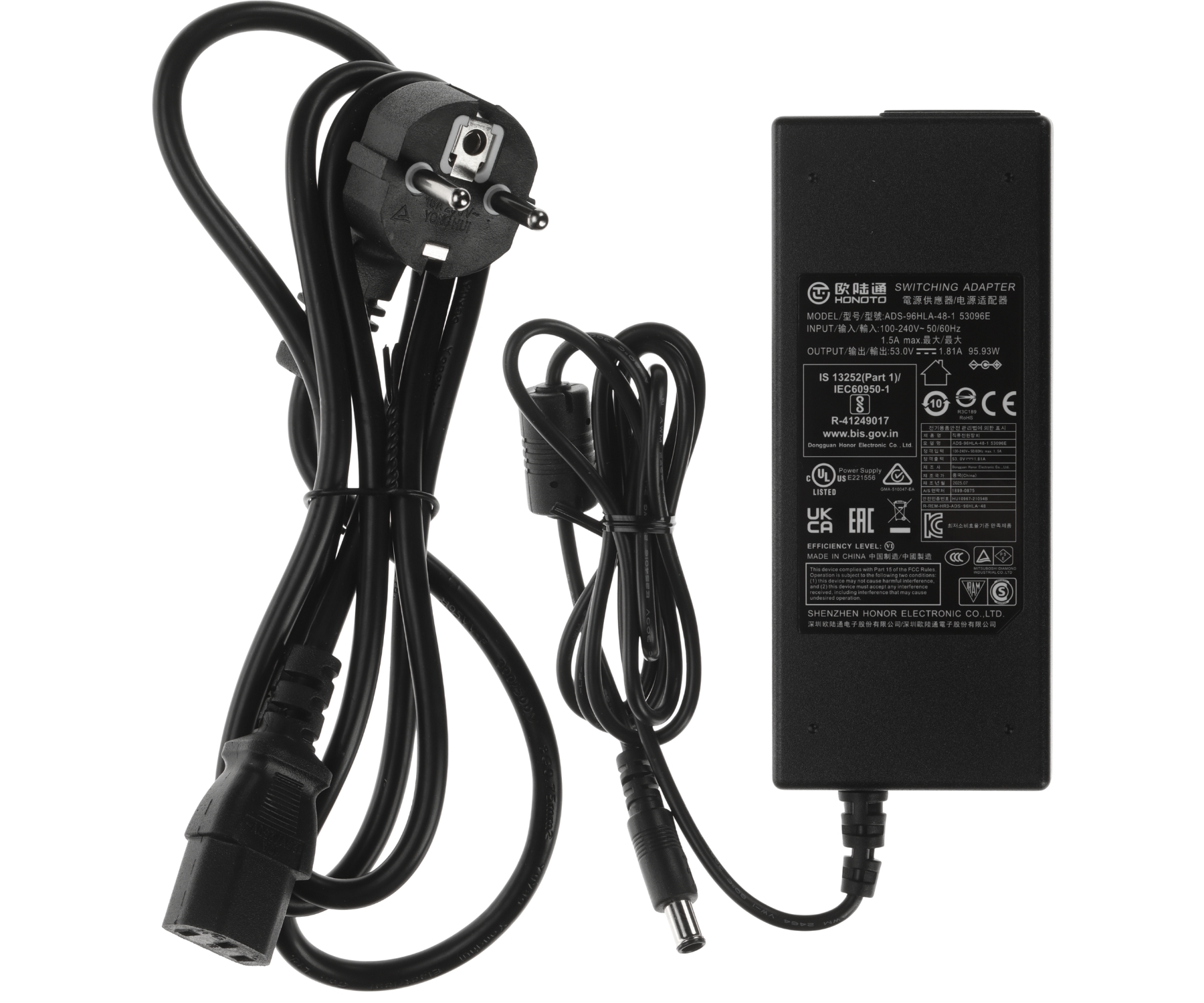

48 … 57 V DC / 2 … 1.69 A (komplektā strāvas adapteris)
Class of protection:
IP30
Mechanical protection class:
IK06
Operating temperature:
-30 °C … 65 °C

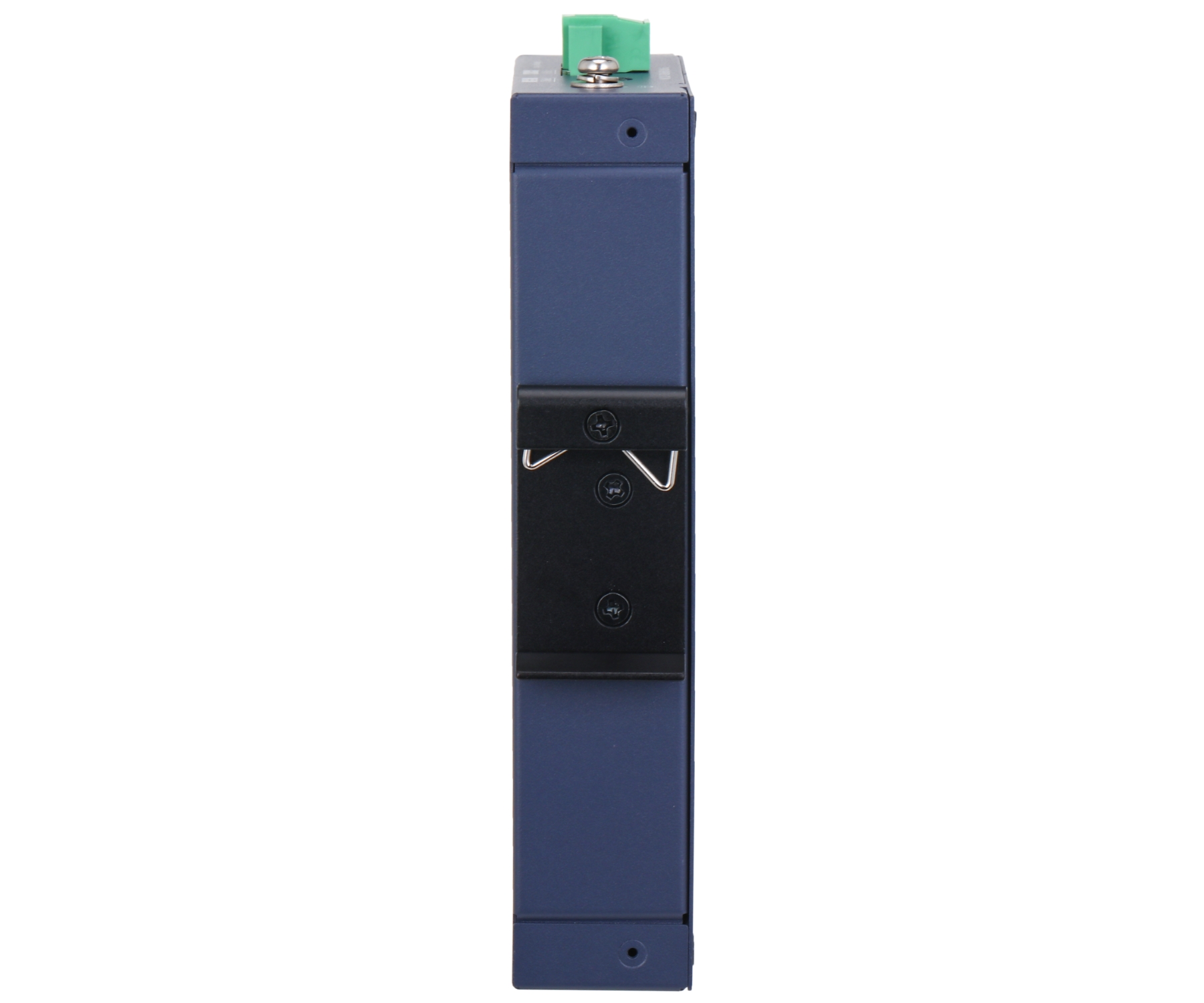

Assembly:
DIN rail (TS-35)
Weight:
0.33 kg

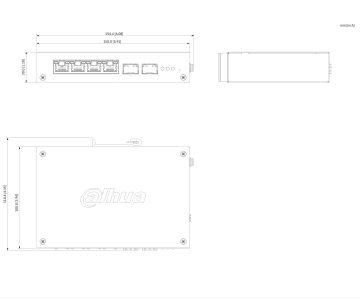

Size:
159.8 x 117.4 x 30.0 mm
Manufacturer / Brand:
DAHUA
WARRANTY:
5 years

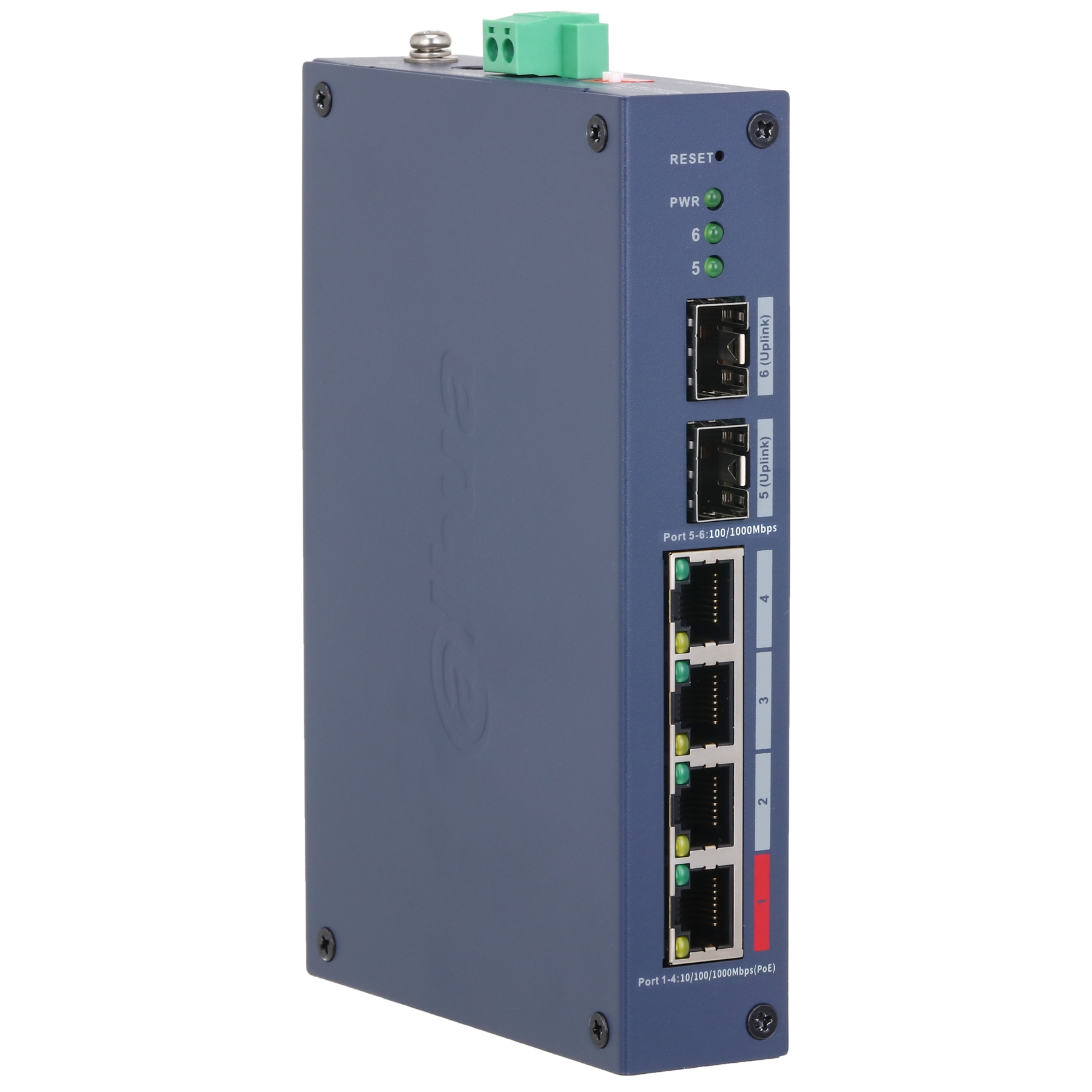

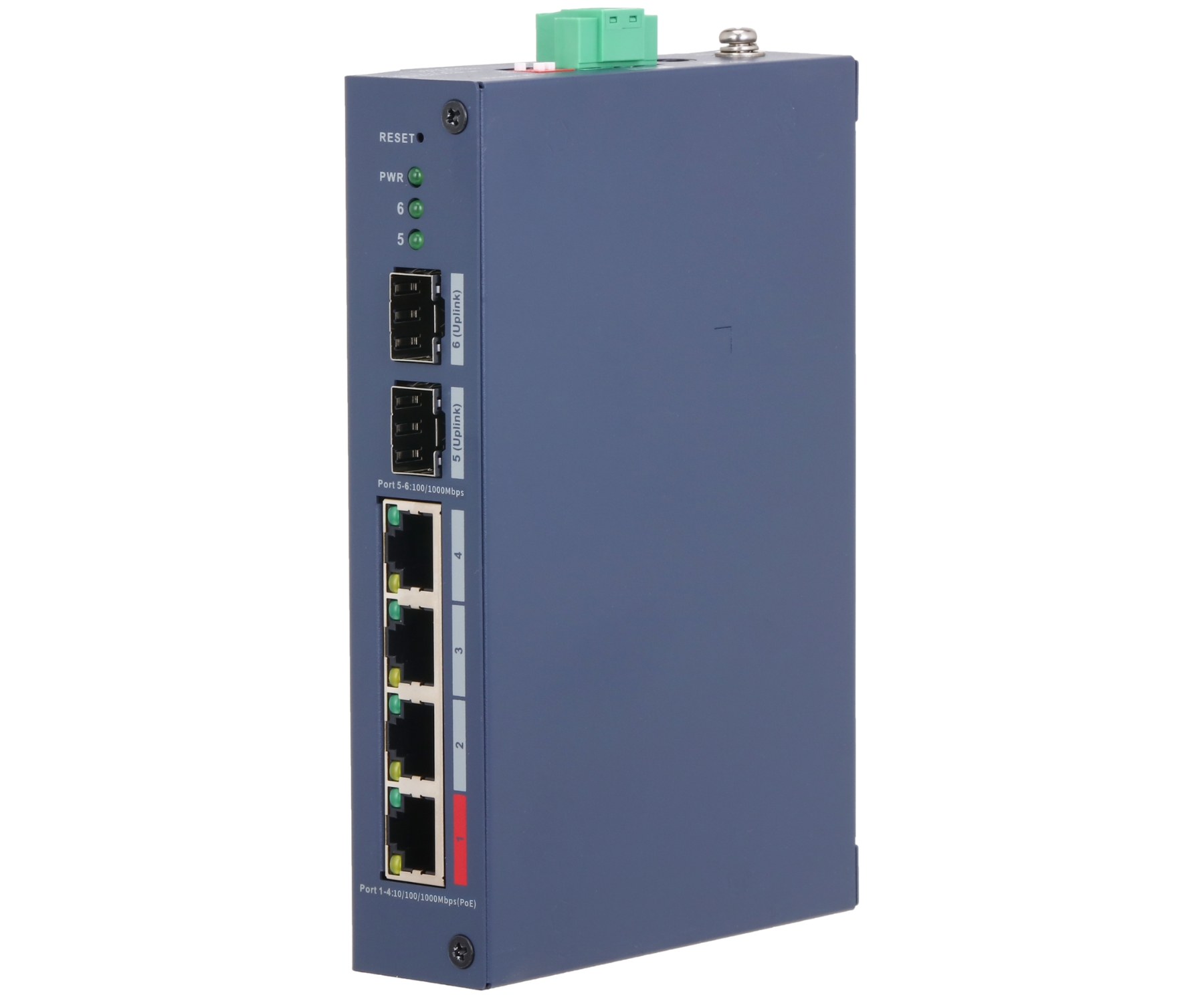

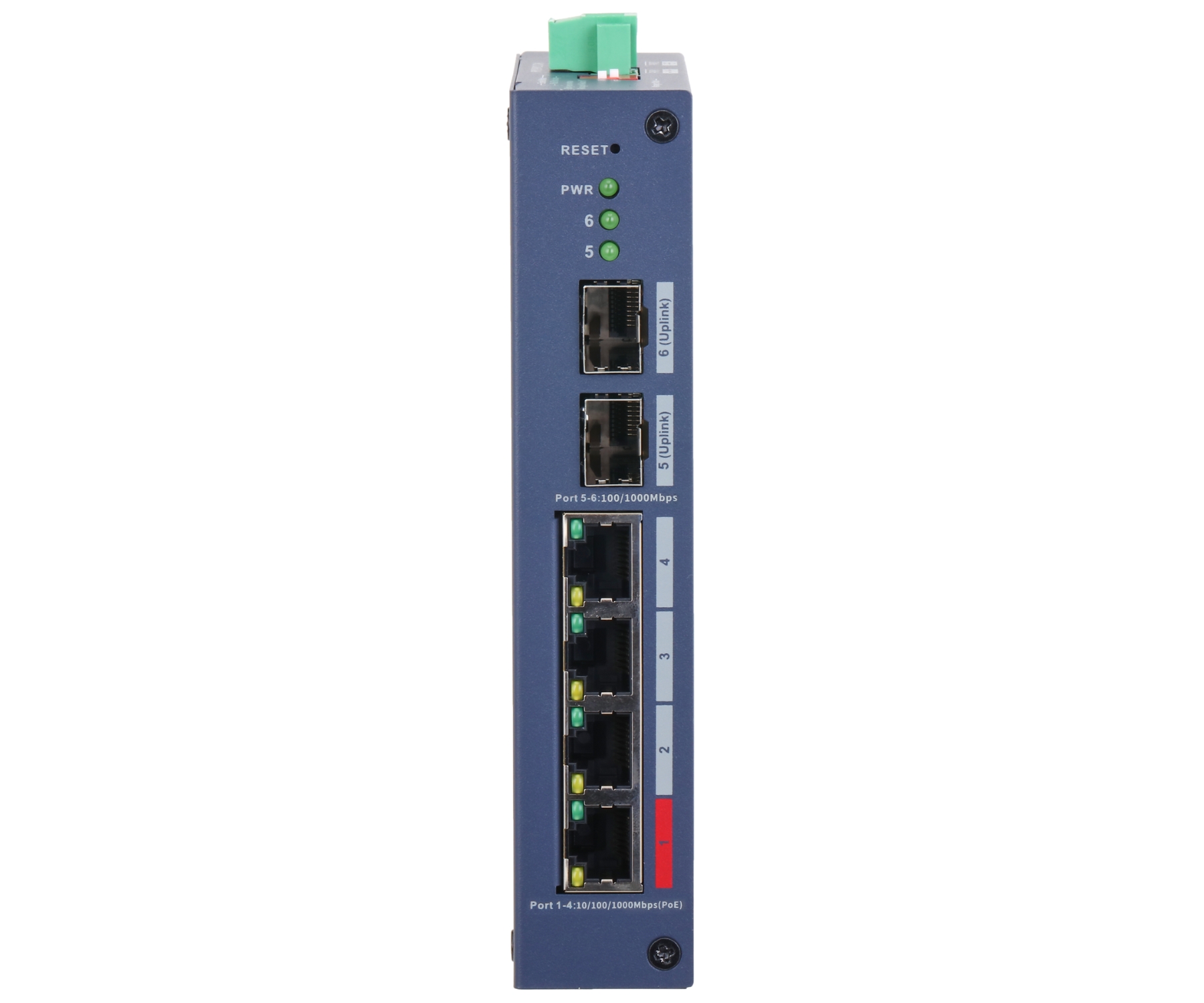

PĀRVALDĀMS POE INDUSTRIĀLAIS SLĒDZIS CHS4206-4GT-90 4-PORTU SFP DAHUA
Estimated Delivery Dates
114,97 €
Availability: 4
Additional information
| Svars | 1,0780 kg |
|---|---|
| Dimensions | 270 × 240 × 80 cm |
