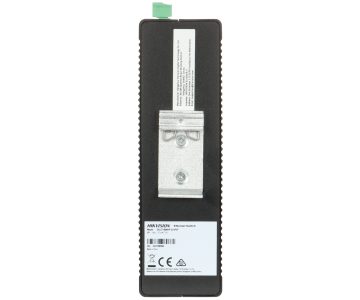

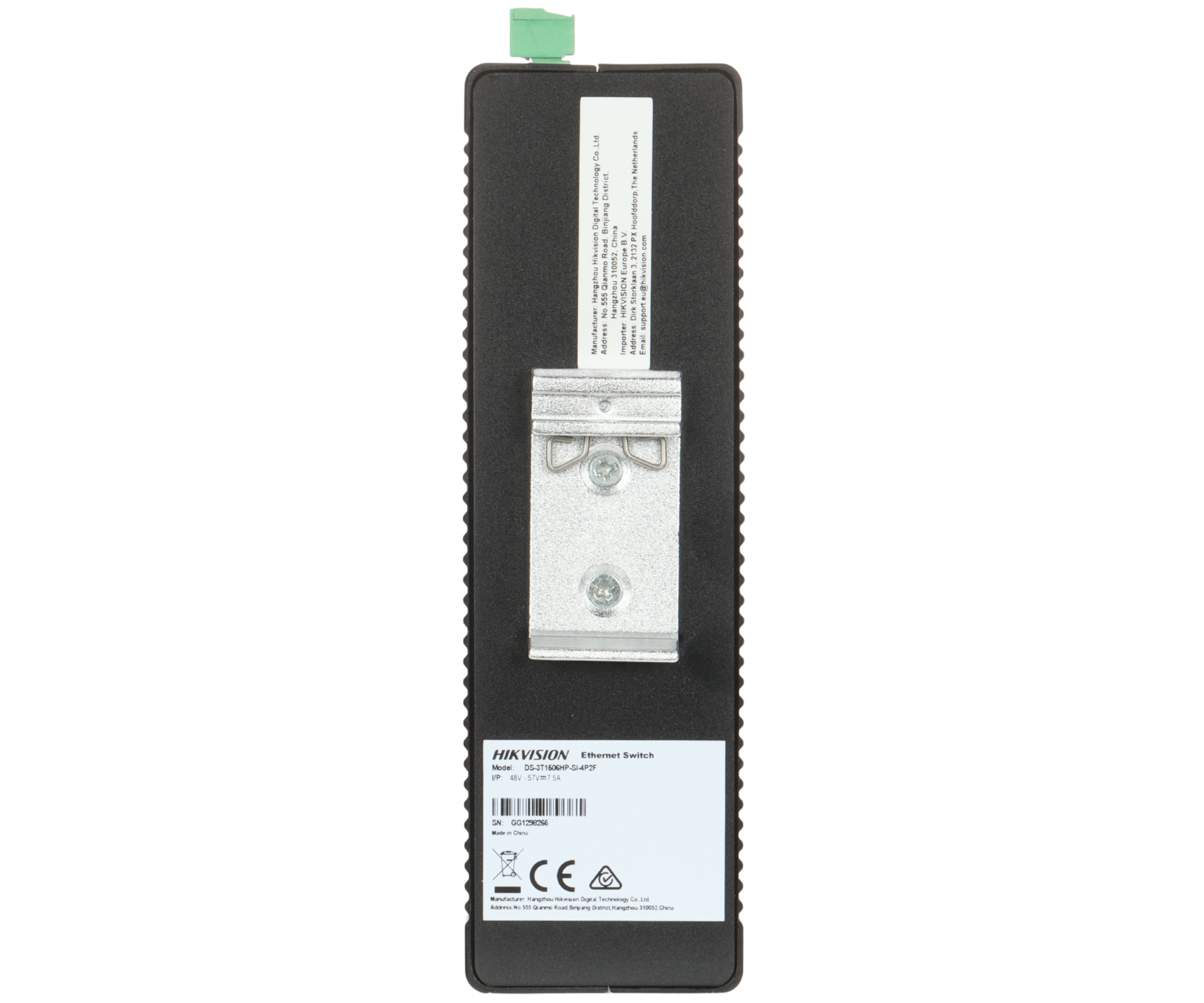

LAN ports: 4 x RJ45 ( 4 x PoE (802.3bt) ), 2 x SFP ligzda </span>;>Transmission speed: 10 / 100 / 1000 Mbps – 4 LAN & PoE porti, 1000 Mbps – 2 SFP porti – Uplink </span>;>Maximum total power: 300W </span>;>Management</span>;>Selected characteristics: DIN rail mounting </span>;
<table>
LAN ports:
Transmission speed:
Maximum output power:
1 … 4 porti : 90 W / PoE ligzda
Maximum total power:
300W
MAC address table:
8k
Switching performance:
20 Gbps (visa vienība) / 12 Gbps (Viena pieslēgvieta)
Packet forwarding speed:
14.88 Mpps (visa vienība) / 8.93 Mpps (Viena pieslēgvieta)
Management:
Default IP address:
192.168.1.64
Default username/admin password:
admin / –
Working mode:
Selected characteristics:

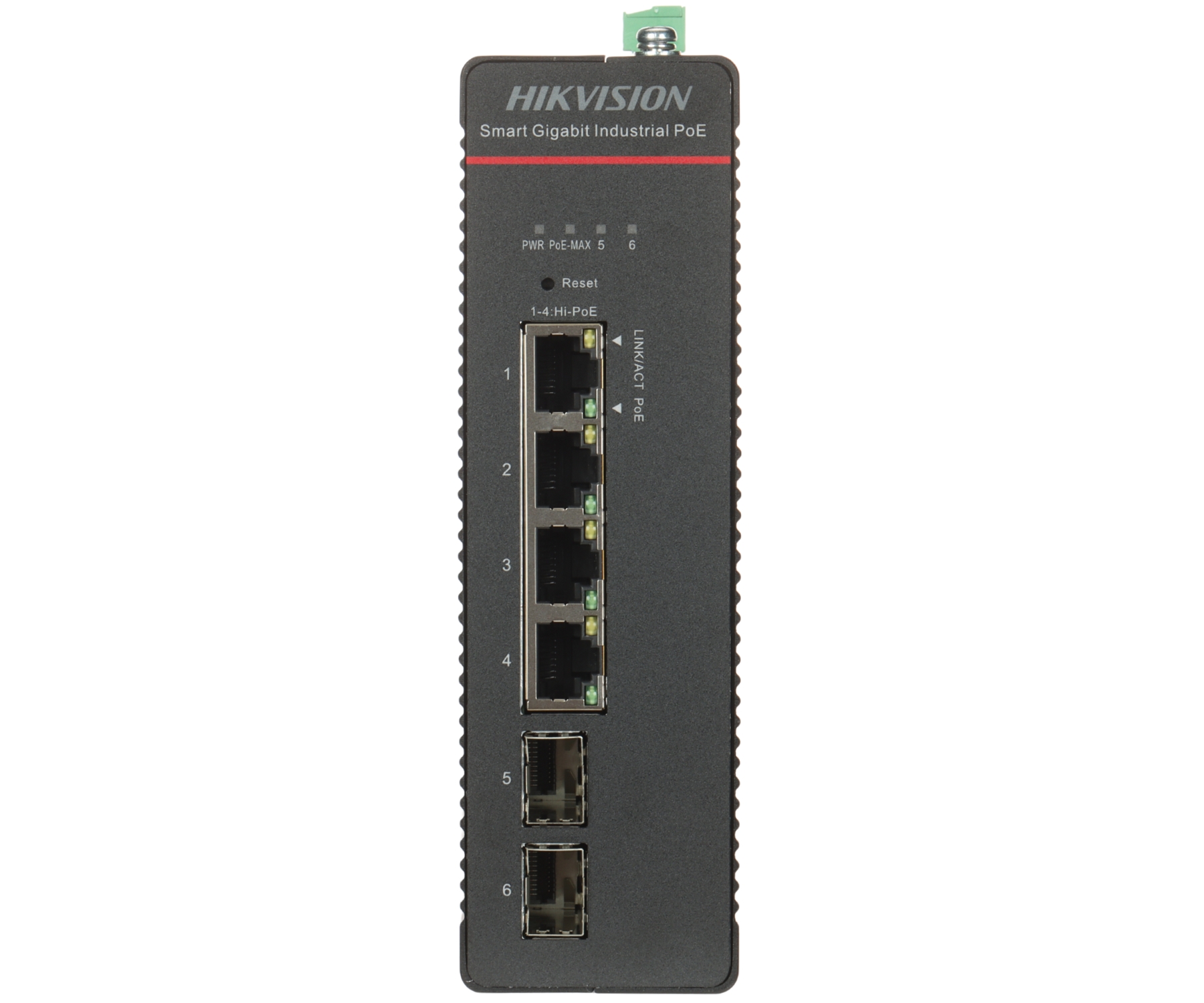

LED diodes:
Power, PoE Max, Link/Act, PoE, 5 SFP, 6 SFP
Hull:
Metal
Protection:
Pārspriegums 6 kV – PoE porti

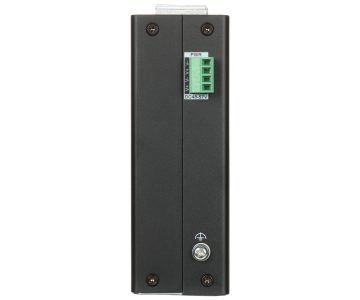

Source of energy supply:
48 … 57 V DC – skrūvējama plāksne (strāvas adapteris nav iekļauts komplektā)
Operating temperature:
-40°C … 75°C
Weight:
0.88 kg

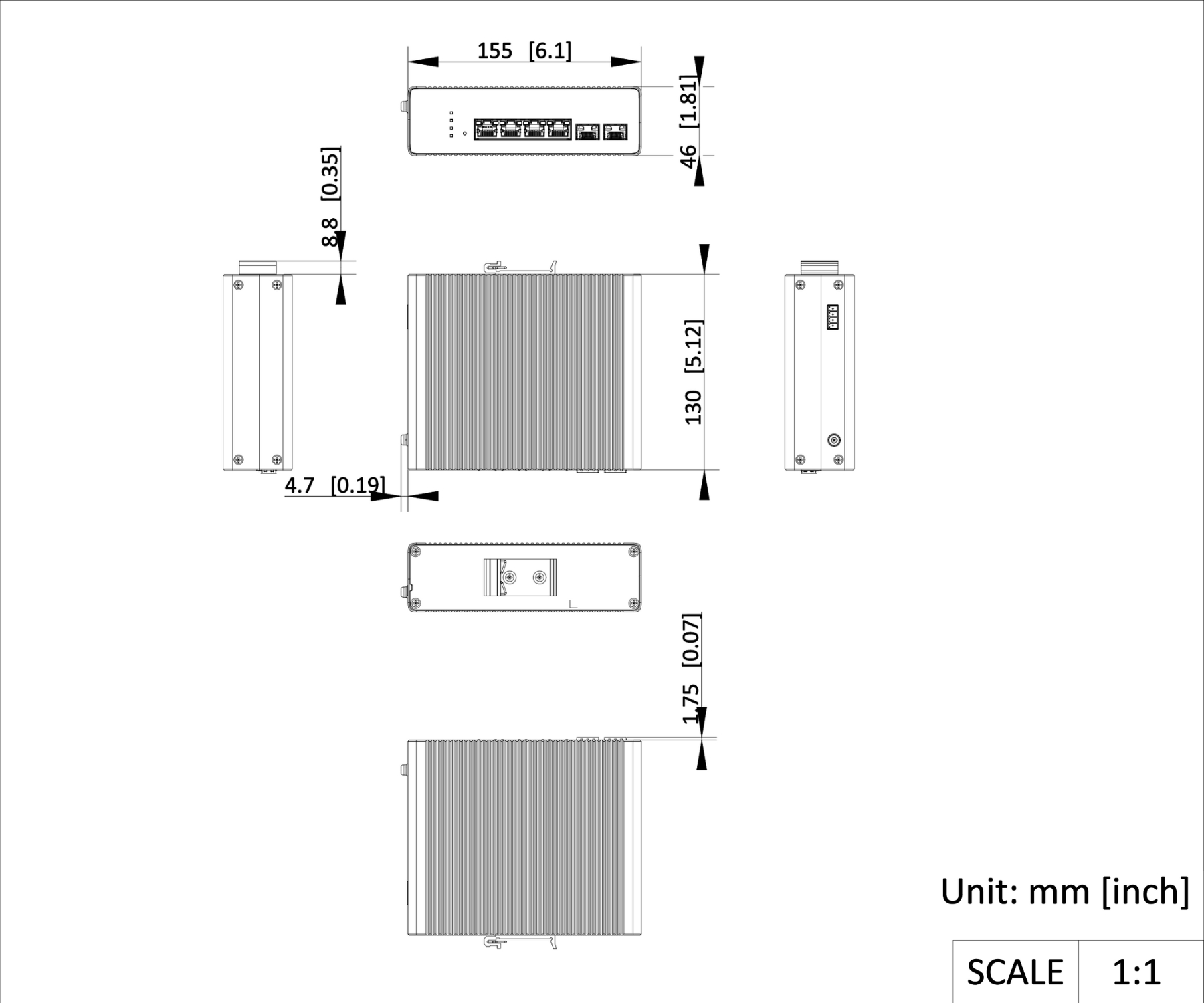

Size:
155 x 130 x 46 mm
Manufacturer / Brand:
Hikvision
SAP Code:
301803624
WARRANTY:
3 years

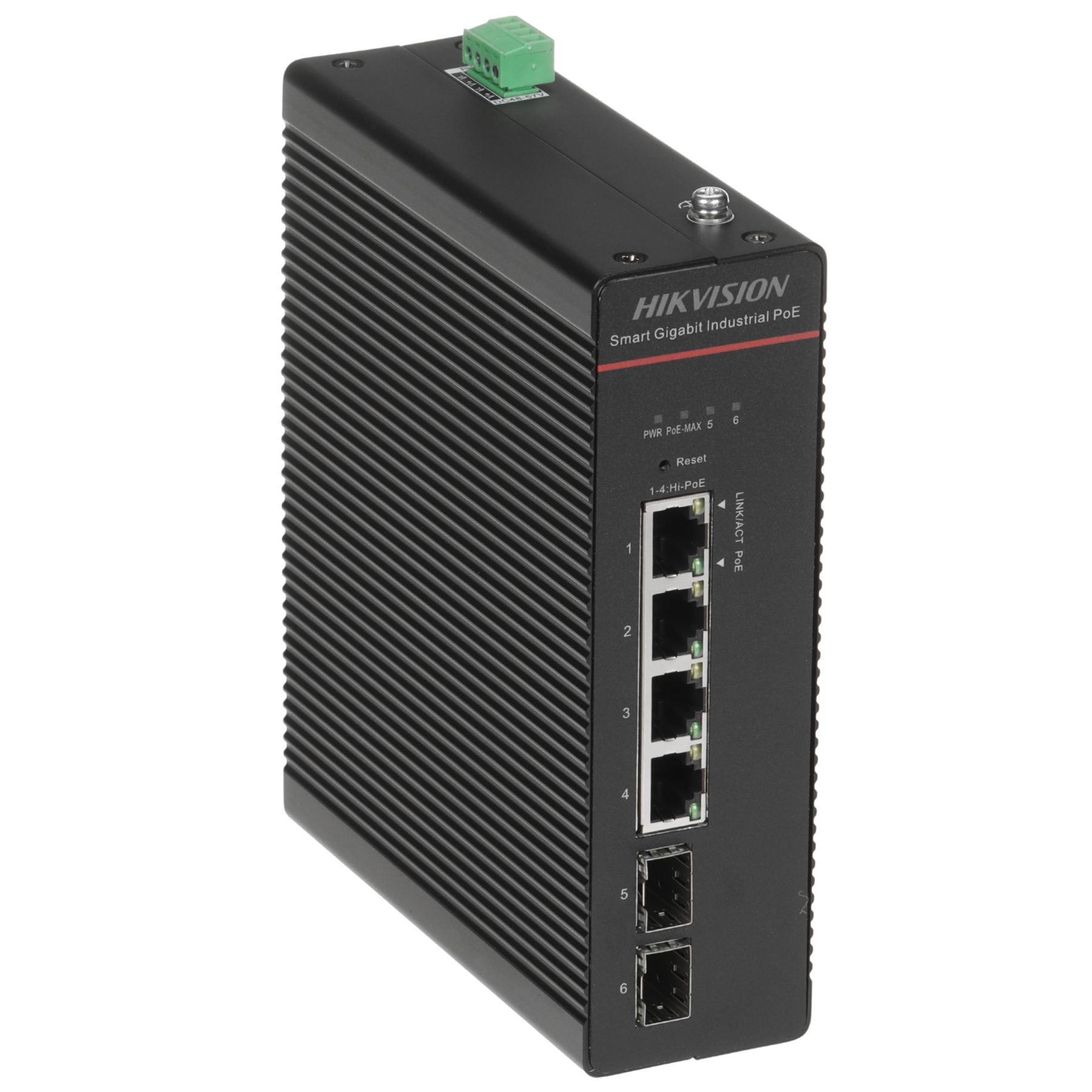

PĀRVALDĀMS POE INDUSTRIĀLAIS SLĒDZIS DS-3T1506HP-SI-4P2F/NO POWER UNIT 4-PORTU SFP Hikvision
Estimated Delivery Dates
183,93 €
Availability: 3
Additional information
| Svars | 1,0200 kg |
|---|---|
| Dimensions | 215 × 185 × 85 cm |
